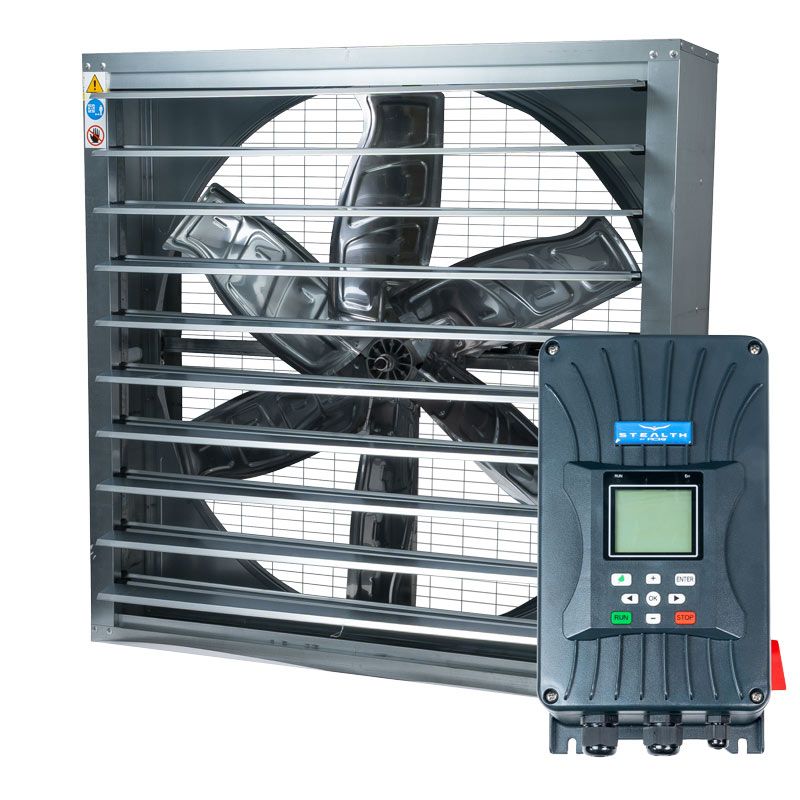

The ACiQ SWE1380 Cabinet Wall Exhaust Fan is a high-performance 54-inch direct-drive wall-mounted exhaust fan designed to deliver powerful, energy-efficient ventilation for industrial, commercial, and agricultural applications. Engineered as a modern, low-maintenance alternative to traditional belt-driven fans like the Triangle VIK and Coolair MBH, this unit effectively removes excess heat, humidity, dust, and airborne contaminants to maintain optimal air quality in large spaces.

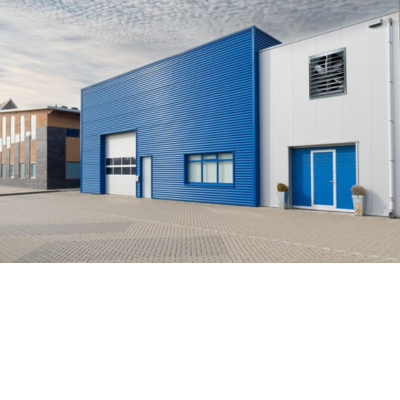

Designed for multi-purpose commercial and agricultural use, the SWE1380 series is ideal for warehouses, manufacturing facilities, livestock barns, poultry houses, greenhouses, and grow facilities. Featuring a 54.33-inch square outer housing and requiring a 54.7-inch wall cutout, its rugged cabinet frame installs securely into exterior wall openings for stable, low-vibration operation.

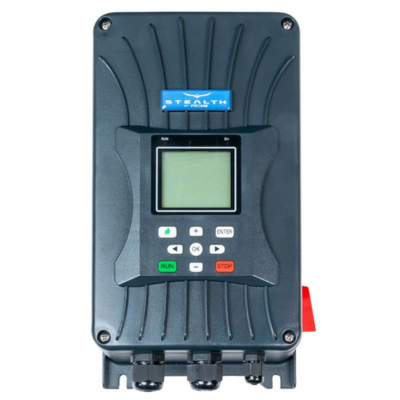

Powered by an advanced 1.5 HP variable-speed brushless motor (ECM / PMSM technology), the fan delivers up to 28,253 CFM of air movement while consuming significantly less energy than conventional induction motors. The maintenance-free direct-drive design eliminates belts, pulleys, and routine bearing service, while the included speed controller (VFD) offers precise airflow adjustment and full compatibility with automated building management systems via RS485 and 0–10V control signals.
ACiQ provides a 24-month limited warranty for registered units and an 18-month limited warranty for unregistered units on its SWE Shutter Wall Exhaust Fan series, starting from the applicable warranty date. For registered units, the warranty begins on the initial installation date. For unregistered units, the warranty begins on the date of manufacture. Warranty coverage applies to system failures determined to be factory defects by a factory-authorized ACiQ Technical Support agent and approved by ACiQ.
For complete warranty details, registration instructions, coverage requirements, limitations, and exclusions, please refer to the ACiQ Shutter Wall Exhaust Fan Warranty Document.

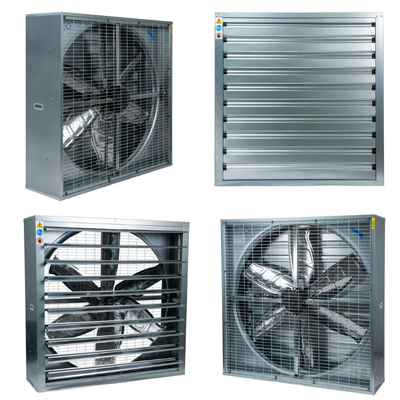

The ACiQ SWE series features a 54-inch heavy-gauge galvanized steel cabinet engineered for severe commercial, industrial, and agricultural environments. Powered by an IP55-rated weather-resistant 1.5 HP brushless motor (ECM/PMSM), its direct-drive assembly eliminates high-wear components like belts, pulleys, and bearings for exceptional long-term reliability.
