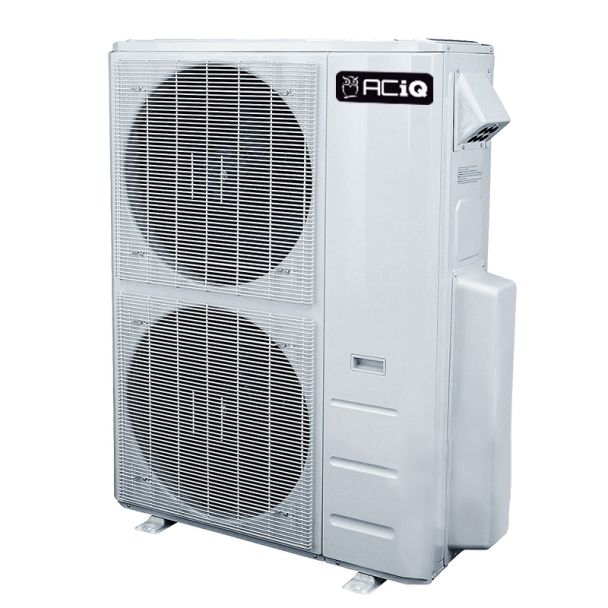

55,000 BTU ACiQ Multi Zone Condenser

By

ACiQ

In stock
Model

ES-55Z-M5B

ID

122414

Availability: In Stock - Ready to Ship

Authorized ACiQ Dealer

AHRI Certified

AHRI Number:210857395

Suggested Retail $5,079.00 Your Low Price Special Price $3,319.00

Free Shipping
Accessories for this product
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing

Description

OVERVIEW

ACiQ is the smart solution to adaptive heating and cooling in almost any space and climate -all at an affordable cost. With the ES-55Z-M5B, you can have up to 5 air handlers run off a single condenser, saving space outside and keeping you perfectly comfortable in your home.

QUICK FACTS

  • 55,000 BTU, 21.3 SEER2 multi zone heat pump condenser
  • Designed to function with up to 5 attached air handlers
  • Efficient cooling from 5°F to 122°F outdoor temperatures
  • Efficient heating from -13°F to 75°F outdoor temperatures
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation at even the highest workloads

55,000 BTU, 21.3 SEER2

The 55,000 BTU, ES-55Z-M5 is designed to easily support up to 4 air handlers at up to 1.25 times the condenser BTU rating, or 68,750 BTU across all air handlers. This adaptive, inverter condenser is constantly self-adjusting to provide the precise amount of heating or cooling needed to maintain your desired temperature in each room or zone. You can set different temperatures room by room, even turn off heating and cooling in unused areas. This, combined with a high efficiency rating of 21.3 SEER2, means you are buying a system designed to intelligently save you money both up front and over the lifetime of the unit.

Although the condenser is pre-charged, please note that this model of equipment does not have quick connect line set connectors and is not a self-install unit. You will need a professional to add more refrigerant and vacuum the lines as needed. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section to the right of this text. For all multi zone ACiQ condensers, a minimum of two air handlers is needed for the unit to function.


ACIQ Quality ConstructionACIQ Quality Construction

Quality Construction

State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.


Highest Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.

ACIQ Highest Efficiency CompressorACIQ Highest Efficiency Compressor

ACIQ Longer life, longer warrantyACIQ Longer life, longer warranty

Longer life, longer warranty

Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.


Installation and Maintenance

ACiQ multi zone condensers are pre-charged with R410-A refrigerant for 25' per air handler connection. In many cases, no additional refrigerant is needed. All units are run-tested at the factory for years of trouble-free performance. Troubleshooting is easy thanks to unit's self diagnosing control board with alerts that are sent to each connected air handler.

ACIQ Installation and MaintenanceACIQ Installation and Maintenance

Product Specifications

More Information
55,000 BTU ACiQ Multi Zone Condenser
SKUES-55Z-M5B
Refrigerant Charge125'
Weight (in lbs)257.280000
AHRI Certificate Number210857395
Brand/ManufacturerACiQ
HSPF29.1
Cooling BTU55000 BTU
Heating BTU55000 BTU
Maximum CFM4500
Decibel Level (dBA)62
Electric HeatHeat Pump
Energy StarYes
RefrigerantR410A
SEER2 (Efficiency)21.3
Compressor TypeRotary
Liquid Line1/4" (5)
Suction Line3/8" (3); 1/2" (2)
Electrical208/230V 1 Phase 60 Hz
PhaseSingle Phase
Max Breaker Size60 Amps
Min. Breaker Size40 Amps
BTU/Tonnage55,000 BTU/4.5 Ton
Zone CompatibilityMulti Zone
Operating ModeCooling, Heating
Height52.48"
Width37.48"
Depth16.34"
Warranty12 year compressor, 7 year parts with online registration
