ACIQ 7.5 Ton 180,000 BTU 11.2 EER Commercial Gas Packaged Unit - Medium Heat | 208/230V 3 Phase - R454B - Two Stage

ACIQ 7.5 Ton 180,000 BTU 11.2 EER Commercial Gas Packaged Unit - Medium Heat | 208/230V 3 Phase - R454B - Two Stage
By

ACiQ

In stock
Model

RGF090HE2A0AAA

ID

197088

Was $12,499.00 Your Low Price Special Price $9,999.00
Ships in 4-6 Weeks

Product Features
  • Designed for Easy Retrofit Installs
  • Custom Roof Curbs designed to fit your current adapter!
  • Precharged with R454b Refrigerant
  • 2-Stage Condenser
  • 208/230V 3 Phase
  • Up to a 10-Year Limited Warranty with Online Registration

Call 800-397-1392 for Best Prices!

7.5-Ton Standard-Efficiency Gas/Electric Packaged Rooftop Unit for Light Commercial Applications with X-Vane™ Technology

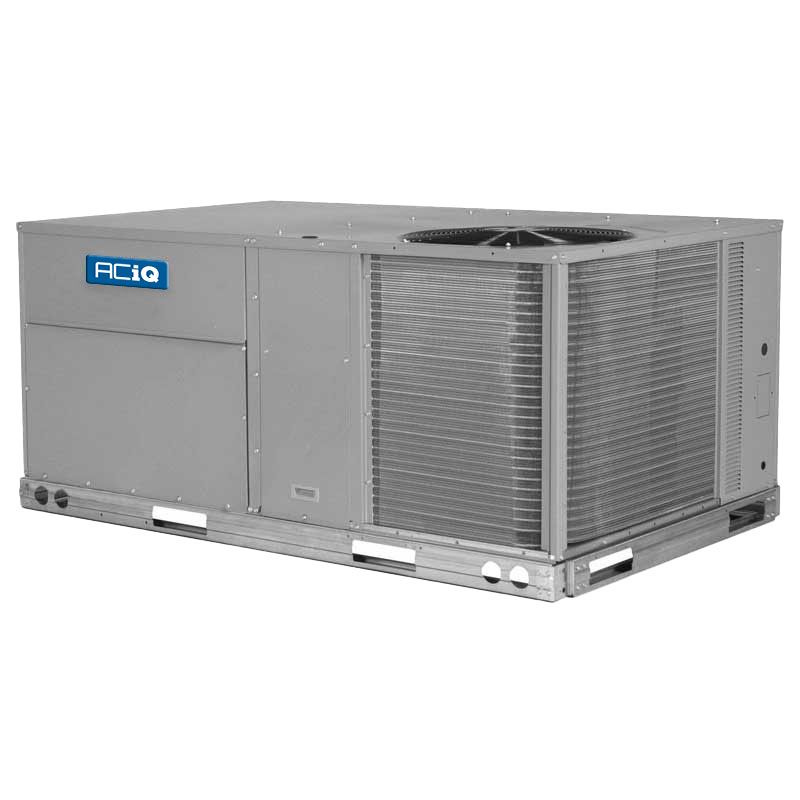

The ACiQ RGF090HE2A0AAA is a 7.5-ton gas/electric packaged rooftop unit designed for light commercial heating and cooling applications. The RGF090-180 platform combines gas heating and electric cooling with one- and two-stage cooling configurations, direct-drive ECM/Vane Axial fan technology with patented X-Vane™ Technology, and a convertible airflow design in a single packaged rooftop system.

Key Benefits

  • Up to 11.2 EER / 15.2 IEER – Provides efficient full-load and integrated part-load cooling performance across the RGF090-180 platform.
  • Three Gas-Heat Options – The RGF platform is available with low-, medium-, and high-heat configurations to accommodate different commercial heating requirements.
  • One- and Two-Stage Cooling – Provides staged cooling configurations for applications requiring capacity control and efficient operation.
  • Direct-Drive X-Vane™ Fan Technology – Uses an ECM-driven Vane Axial fan design that eliminates the conventional belt-driven fan arrangement.
  • Multiple Static Fan Options – Standard, medium, and high-static fan motor options are available for different commercial duct-system requirements.
  • Convertible Airflow Design – Provides installation flexibility for compatible rooftop applications.
  • Factory-Installed Economizer Option – Provides an available outdoor-air economizer configuration for compatible ventilation and free-cooling applications.
  • Multiple Coil Options – Available coil configurations include aluminum/copper round-tube plate-fin, copper/copper, precoated, and E-coated coils.

Medium-Heat Gas Heating

The E heating designation identifies the medium-heat configuration. The RGF090-180 platform offers low-, medium-, and high-heat options, allowing the packaged rooftop unit to be selected according to the heating requirements of the application.

7.5-Ton Cooling Performance

The RGF090HE2A0AAA is the 7.5-ton configuration within the RGF090-180 packaged rooftop platform. The RGF090-180 series provides up to 11.2 EER and 15.2 IEER, with one- and two-stage cooling configurations available across the platform. The exact model-specific net cooling capacity is not stated in the official manufacturer literature available for this exact model and is therefore not inferred from an RGS or RGH predecessor.

11.2 EER / 15.2 IEER Platform Efficiency and X-Vane™ Fan Technology

The RGF090-180 platform combines cooling efficiency with direct-drive ECM/Vane Axial fan technology. Patented X-Vane™ Technology eliminates the conventional belt-driven fan arrangement while providing direct-drive indoor airflow. Standard, medium, and high-static fan motor options allow the unit to be configured for different duct-system requirements.

Packaged Rooftop Installation Design

The packaged configuration integrates gas heating, electric cooling, indoor air movement, refrigeration components, and controls into one outdoor cabinet. The H electrical designation identifies the 208/230V, three-phase, 60 Hz configuration. The RGF090-180 platform features a convertible airflow design for compatible rooftop installations.

Controls & Comfort

The RGF090-180 platform supports one- and two-stage cooling configurations and three gas-heating options. Direct-drive ECM/Vane Axial fan technology provides controlled indoor airflow. Available commercial options include factory-installed economizers, hot gas re-heat adaptive dehumidification, -20°F low-ambient controls, CO2 sensors, smoke detectors, power exhaust, phase-monitor protection, condensate overflow protection, fan/filter status monitoring, and fault detection and diagnostics.

Light Commercial Applications

The ACiQ RGF090HE2A0AAA is designed for light commercial rooftop applications requiring integrated gas heating and electric cooling. Its 7.5-ton nominal size, medium-heat gas configuration, 208/230V three-phase electrical service, staged cooling capability, direct-drive X-Vane™ fan technology, and convertible airflow design provide an integrated packaged heating and cooling solution.

Service & Maintenance

The direct-drive X-Vane™ fan eliminates the conventional belt-driven fan arrangement, helping simplify fan service and maintenance. The RGF platform provides multiple service and installation options, including hinged panels, fan/filter status monitoring, condensate overflow protection, non-fused disconnects, smoke detectors, phase-monitor protection, and fault detection and diagnostics.

Warranty

The ACiQ RGF090HE2A0AAA is covered by applicable manufacturer limited warranty provisions for the RGF packaged rooftop product family. Applicable warranty coverage varies by component and heat-exchanger construction. Warranty periods, registration requirements, installation requirements, and other conditions are subject to the applicable manufacturer warranty certificate.

Recommended Accessories

  • Factory-Installed Economizer – Optional outdoor-air economizer for compatible ventilation and free-cooling applications.
  • Hot Gas Re-Heat Adaptive Dehumidification – Optional dehumidification configuration for improved part-load humidity control.
  • -20°F Low Ambient Controls – Optional low-ambient operating controls for applicable installations.
  • Non-Fused Disconnect – Optional electrical disconnect.
  • Power Exhaust – Optional exhaust system for compatible economizer applications.
  • Condensate Overflow Switch – Optional condensate protection accessory.
  • Fan/Filter Status Switch – Optional airflow and filter monitoring accessory.

Reliable Commercial Comfort with the ACiQ RGF090HE2A0AAA

Experience reliable year-round commercial comfort with the ACiQ RGF090HE2A0AAA. Combining medium-heat gas heating and 7.5-ton packaged electric cooling with direct-drive X-Vane™ fan technology, staged cooling capability, multiple static fan options, and convertible airflow for light commercial applications.

Packaged Unit Buyers Guide

  • How packaged units work for residential and commercial use
  • The different types of packaged units
  • Figuring out the right size unit for your needs
  • The importance of a custom curb adapter
  • And much more!
More Information
ACIQ 7.5 Ton 180,000 BTU 11.2 EER Commercial Gas Packaged Unit - Medium Heat | 208/230V 3 Phase - R454B - Two Stage
FeatureSpec
SKURGF090HE2A0AAA
Refrigerant ChargePre-Charged
Weight787
ManufacturerACiQ
EquivalentCarrier: 48FCEM08A2A5-0A0A0
Furnace Efficiency / AFUE 80%
Cooling BTU86,000 BTU
Heating BTU180,000 BTU
Drive TypeDirect
Maximum CFM2650
Decibel Level (dBA)79 Decibels
RefrigerantR454B
EER11.2
IEER15.0
Condenser StagesTwo Stage
Compressor TypeScroll
Electrical208/230v 3 Phase 60 Hz
Electric Phase FilterThree Phase
Tonnage7.5 Ton
Burner StagesTwo
Size Range38" Wide & Up
Height41 1/4"
Width88 1/8"
Depth59 1/2"
Warranty10 Years Aluminized Heat Exchanger, 5 Years Compressor, and 1 Year Parts
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.

PROPOSITION 65 WARNING
Write Your Own Review
You're reviewing:ACIQ 7.5 Ton 180,000 BTU 11.2 EER Commercial Gas Packaged Unit - Medium Heat | 208/230V 3 Phase - R454B - Two Stage
Your Rating
Customer Questions
What is a Commercial Gas Packaged Unit?
A commercial packaged gas/electric unit is an all-in-one HVAC system that contains the air conditioner, gas furnace, evaporator coil, condenser, compressor, and controls inside a single cabinet. Unlike split systems, everything is housed in one outdoor unit, typically installed on a roof or concrete pad. This simplifies installation and frees up indoor space.
What types of buildings use Rooftop Gas Packaged Units?
Commercial Gas Package Units are commonly used for: Retail Stores Restaurants Churches Warehouses Office Buildings Schools Light Industrial Facilities Most Gas Package Units can be used on a rooftop or at ground level
How does a Commercial Gas Packaged Unit work?
Commercial Gas Packaged Unit uses two separate heating and cooling methods: Cooling Mode The electric air conditioning system removes heat from the building. A scroll compressor circulates refrigerant to provide cooling. Heating Mode Natural gas is burned inside the furnace section. Heated air is distributed through the ductwork. Your Commercial Gas Packaged Unit will automatically switch between heating and cooling based on thermostat demand
What is the life expectancy of the typical Commercial Gas Packaged Rooftop Unit?
The typical life expectancy of a Commercial Gas Rooftop Packaged Unit is approximately 15–20 years with proper installation and routine preventative maintenance. Factors such as operating hours, weather exposure, maintenance frequency, and overall operating conditions can affect equipment longevity. Regular filter changes, coil cleaning, inspections, and servicing of burners and heat exchangers can help extend the unit's lifespan.
Can a Commercial Gas Packaged Unit provide suitable year-round operation?
Yes. A commercial gas packaged unit provides year-round heating and cooling by combining a gas furnace for heating with an electric air conditioner for cooling in one self-contained system. During colder months, the gas furnace provides reliable heat, while the cooling components operate during warmer months to maintain comfortable indoor temperatures. This makes gas packaged units a versatile HVAC solution for commercial buildings that require heating and cooling throughout the year.
What does BTU and Tonnage Mean?
BTU (British Thermal Unit) measures the amount of heating or cooling energy a commercial rooftop packaged unit can produce per hour, while tonnage measures the unit's nominal cooling capacity. One ton of cooling equals 12,000 BTU/h, meaning a 10-ton commercial rooftop unit provides approximately 120,000 BTU/h of cooling capacity. Both measurements help contractors and customers determine the appropriate HVAC system size and output for a building's heating and cooling requirements.
What accessories or additional components are needed to install a Commercial Rooftop Units?
Installing a commercial rooftop unit may require several accessories and additional components depending on the building's existing setup and installation requirements. Common components include a roof curb or curb adapter, ductwork transitions, electrical disconnects, thermostats, economizers, dampers, and supplemental heating kits when applicable. Additional accessories, such as hail guards, smoke detectors, and condensate drain components, may also be recommended based on the application. Always verify equipment compatibility and manufacturer installation requirements before purchasing additional components.
Can I replace my existing Commercial Rooftop Unit without replacing the ductwork?
Yes. In many cases, an existing commercial rooftop unit can be replaced without replacing the current ductwork, provided the duct system is in good condition and compatible with the new equipment. Before installation, an HVAC professional should evaluate the ductwork, airflow requirements, unit capacity, and existing connections to ensure proper system performance. Additional modifications may be necessary if the new unit has different dimensions, airflow configurations, or connection requirements.
What is the difference between EER and IEER ratings on Commercial Rooftop Units?
EER (Energy Efficiency Ratio) and IEER (Integrated Energy Efficiency Ratio) are ratings used to measure the cooling efficiency of commercial HVAC equipment. EER measures how efficiently a unit operates under specific full-load outdoor temperature and operating conditions, while IEER evaluates efficiency across multiple operating conditions, including part-load performance. IEER provides a broader picture of how efficiently a commercial rooftop unit operates under varying cooling demands throughout the year. Higher EER and IEER ratings generally indicate greater energy efficiency and potentially lower operating costs.
Can a Commercial Rooftop Unit be installed on the ground instead of the roof?
Yes. Some commercial packaged rooftop units can be installed at ground level when the equipment is designed for horizontal airflow rather than vertical rooftop discharge. These horizontal-flow units require adequate space, a stable mounting surface, proper ductwork connections, and sufficient clearance for airflow and servicing. Always verify the manufacturer's installation requirements and local building codes before selecting a ground-level installation.
Do Commercial Rooftop Units require professional installation?
Yes. Commercial rooftop units should be installed by qualified HVAC professionals to ensure proper equipment placement, electrical connections, ductwork compatibility, refrigerant handling, and system performance. Professional installation helps ensure the unit operates safely and efficiently while meeting applicable building codes, manufacturer requirements, and local regulations.
