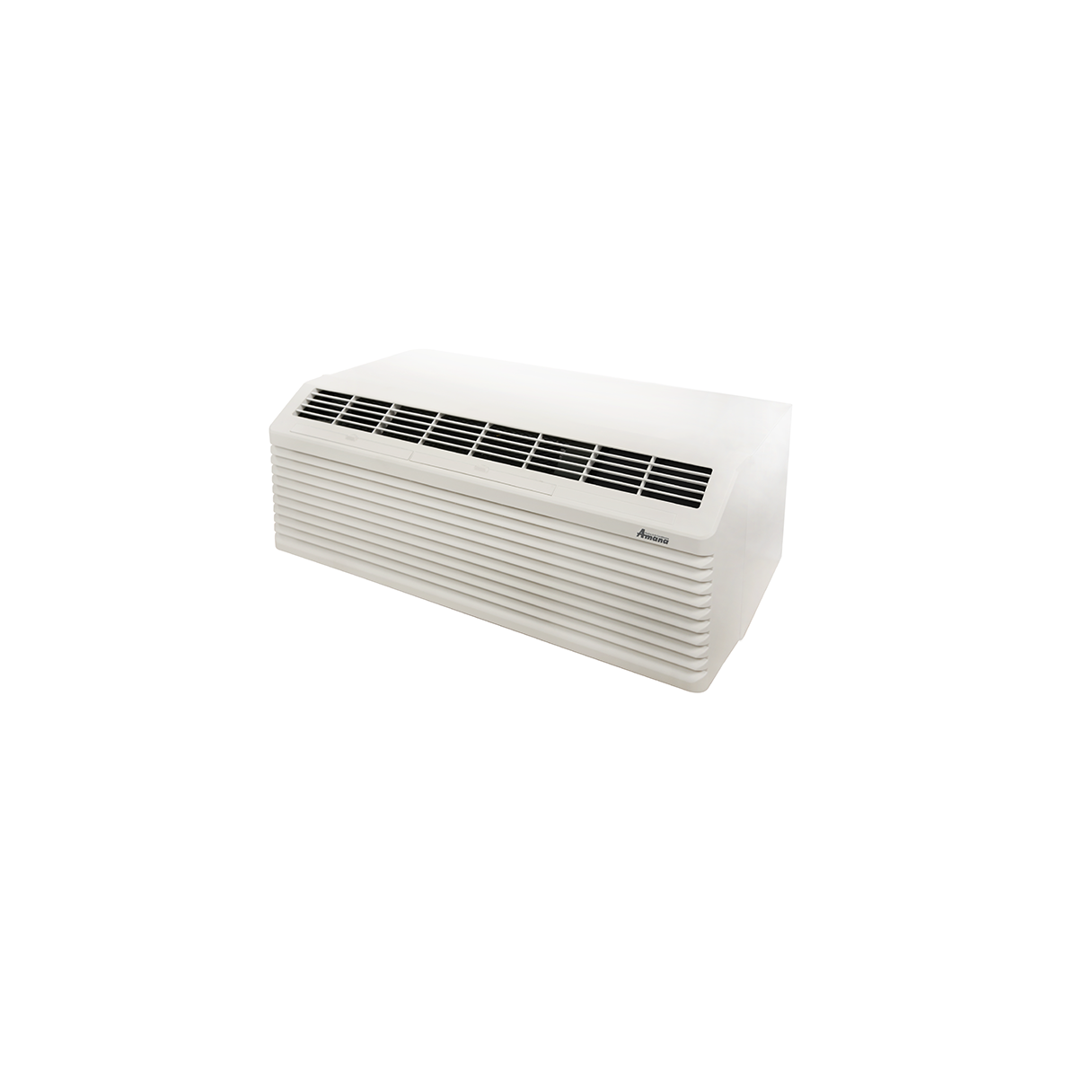

Amana 12,000 BTU PTAC Air Conditioner with 3.5KW Electric Heater 230V - R410A

Amana 12,000 BTU PTAC Air Conditioner with 3.5KW Electric Heater 230V - R410A
By

Amana

Out of stock
Model

PTC123K35AXXX

ID

8267

OVERVIEW

The Amana K Series Model PTAC air conditioner comes equipped with an electric heater, allowing you to stay warm all year round. Its compact size makes it perfect for small living areas, and it features Bluetooth and RF connectivity that can be accessed via the Amana brand mobile app, enabling you to use the Eden Energy Management System to modify settings and timing. This unit provides 11,900 BTUs of heating and cooling, requires 208-230V of power at 20 amps, and needs a NEMA 6-20P receptacle to power the unit and the included 3.5kw electric heater. Amana's PTACs use the environmentally friendly R-410a refrigerant. You can find the Wall Sleeve and exterior grille under the Accessories section. With a 11.0 EER rating, Amana's unit is an excellent choice for new construction or as a replacement for an existing unit.

QUICK FACTS

  • Cooling and Heating: The PTAC air conditioner is capable of both cooling and heating the room, providing year-round comfort to occupants.
  • High Efficiency: The K Series PTAC air conditioner is designed to be highly efficient, with an energy efficiency ratio (EER) of up to 13.0. This can help to reduce energy costs and save money on utility bills.
  • Quiet Operation: The unit is designed to operate quietly, with noise levels as low as 51 decibels (dB). This can help to ensure a peaceful and comfortable environment for occupants.
  • Durable Construction: The unit is built to withstand heavy use, with a robust construction that can withstand the demands of commercial applications.
  • Digital Display: The PTAC air conditioner features a digital display that shows the current temperature and other settings, making it easy to monitor and adjust the unit as needed.
  • Multiple Operating Modes: The unit offers multiple operating modes, including fan-only, cool, heat, and auto. This allows users to select the mode that best suits their needs.
  • Remote Control: The PTAC air conditioner comes with a remote control, allowing users to adjust the settings from across the room.
  • Optional Features: The unit can be equipped with optional features, such as a built-in heater or a fresh air vent, depending on the needs of the application.

Warranty

1 Year Unit Replacement / 5 Years Parts Warranty

More Information
Amana 12,000 BTU PTAC Air Conditioner with 3.5KW Electric Heater 230V - R410A
FeatureSpec
SKUPTC123K35AXXX
Weight (in lbs)125
Brand/ManufacturerAmana
UPC663051648449
Cooling BTU11,900
Maximum CFM310
Electric Heat3.5 Kilowatts
Energy StarNo
RefrigerantR410A
EER11.0
Electrical230 V. 1 Phase 60 Hz
Max Breaker Size15 amps
BTU/Tonnage12,000 BTU/1 Ton
Size Range38" Wide & Up
Height16"
Width42"
Depth21.5"
Warranty1 Year Unit Replacement / 5 Years Parts Warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Write Your Own Review
You're reviewing:Amana 12,000 BTU PTAC Air Conditioner with 3.5KW Electric Heater 230V - R410A
Your Rating
Customer Questions
Does this unit have a wiring diagram for its controls?
This PTAC plugs into an outlet and does not need a wiring diagram as a result. However if you want to use a thermostat with this PTAC, a wiring harness is required in order to connect them to each other. The model number for the harness is PWHK01C. The below diagram came from the harness's manual and outlines how to connect the thermostat to the PTAC: If you have any further questions, please call us and we will be happy to assist you.
How many square feet will this 12,000 BTU PTAC accommodate?
Hello, thank you for reaching out with your question. This 12,000 BTU PTAC unit will accommodate a 400-600 square foot room/zone. Maximum capacity for this space and system could also be impacted by how many windows are in the room, how tall the ceilings are, and even by how well the room is insulated. If you have any additional questions, please feel free to reach out.
