Fujitsu 12,000 BTU 16 SEER Ductless Mini-Split Heat Pump System

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Fujitsu

Model

12RL2

23358

Be the first to review this product

8 Questions Answered

Availability: In Stock - Ready to Ship

Authorized Fujitsu Dealer

AHRI Number:5625780

$1,156.00

BTU/Tonnage

Free Shipping

Accessories for this product

Description

The Fujitsu 12RL2 ductless mini split system is a stylish and slim wall mounted air handler that fits perfect in any home or space. The Aesthetic, minimalist design delivers powerful cooling abilities while at the same time blending in to any room or with any decor.

Since Fujitsu ductless mini split systems have little to no ducting, they forego those energy losses typically associated central forced-air systems. Duct losses can easily account for more than 30% of energy consumption, especially if the ducts are not sealed tight or in an unconditioned space such as an attic or crawlspace. By getting a ductless mini split system you're not only getting a typically higher SEER rating, but you're also saving in energy loss.

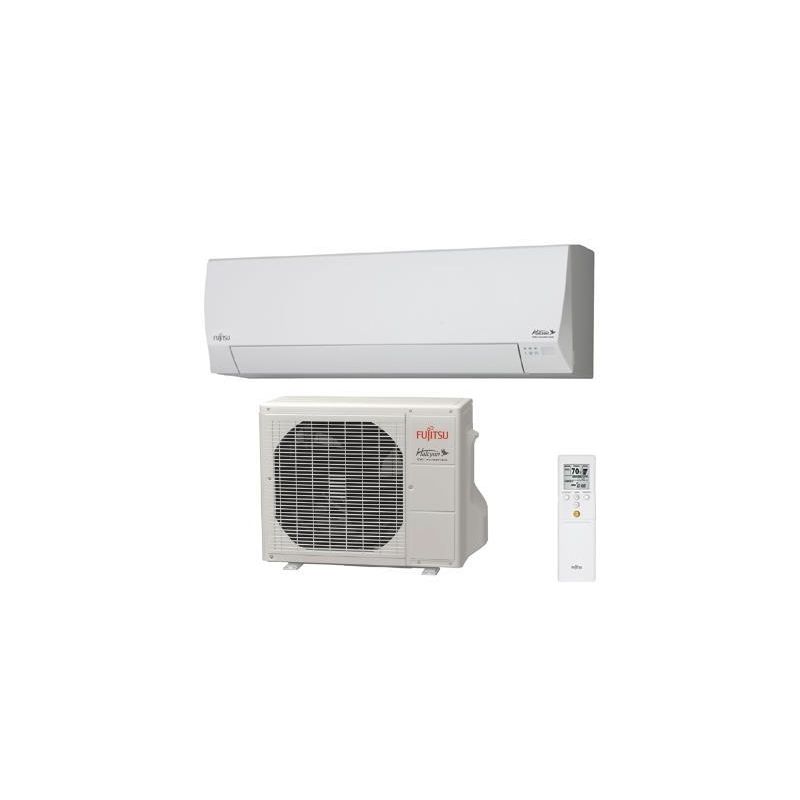

Bundled Items: 1 x Fujitsu ASU12RL2 Indoor Air Handler, 1 x Fujitsu AOU12RL2 Outdoor Mini Split Condenser

Product Specifications

More Information
Fujitsu 12,000 BTU 16 SEER Ductless Mini-Split Heat Pump System
SKU	12RL2
Weight (in lbs)	106.000000
AHRI Certificate Number	5625780
Brand/Manufacturer	Fujitsu
Cooling BTU	12000
Heating BTU	14000
Refrigerant	R410A
SEER1 (Efficiency)	16-17
Liquid Valve Size	1/4"
Suction Valve Size	3/8"
Electrical	115V 1 Phase 60 Hz
BTU/Tonnage	12,000 BTU/1 Ton
Mini-Split Type	Wall Mounted
Valve Type	Flare
Height	Indoor: 10 5/16" Outdoor: 21 1/4"
Width	Indoor: 32 9/32" Outdoor: 26"
Depth	Indoor: 8 1/8" Outdoor: 11 11/32"
Warranty	Please Note: Fujitsu does not offer warranty for online purchases
Resources	Submittal Operating Manual Design and Technical Manual Service Instruction Service Manual Brochure You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.

Reviews

Questions and Answers

Customer Questions

CAN MINISPLIT HEAT ON DRY SETTING?

The dry mode setting is a cooling setting and will not provide heat.

AC & HEAT?

Yes, this Fujitsu mini-split system has an outdoor heat pump meaning it will heat and cool.

what is the warranty coverage

The compressor can be registered under a 7 year warranty and the parts can be registered under a 5 year warranty.

Noise decimal

The indoor unit operates between the noise decimals of 23 and 43 depending on if it is is set to quiet, low, medium or high. The outdoor unit has a noise decimal of 51.

We are building a new garage. Will this system work in Northern Wisconsin with our cold winters?

Thank you for your question. The size of system (BTU output) you will need is dependent upon a few factors such as square footage, climate zone, number of windows and quality of insulation. For Wisconsin, you will need about 50 to 60 BTUs per square foot. For more information on sizing, please reference our Sizing Guide This particular system heats with outdoor temperatures as low as 15 degrees Fahrenheit. However, if you require heating with a lower outdoor temp, we have many single zone systems that heat even with negative outdoor temperatures. To view these systems with low ambient heating, please Click Here For more assistance, please give us a call.

What is the coldest working temp?

Thank you for your question. This system efficiently heats with outdoor temperatures ranging from 15 degrees Fahrenheit and 75 degrees Fahrenheit. It efficiently cools with outdoor temperatures ranging from 15 degrees Fahrenheit and 115 degrees Fahrenheit. During heating this system has the operation range of 60 to 88; during cooling it has the operation range of 64 to 90. For more assistance, please give us a call.

How do you use as a heater?

Thank you for your question. This mini split system can be used for both heating and cooling. To use it for heating, use the remote control to switch it to heating mode. From there you can select your desired temperature. For more assistance, please give us a call.

How many btu's per sq. ft. do I need for Maryland? Planning on 400 sq. ft.

Please reference our Sizing Guide that will allow you to know exactly what kind of unit you'll be needing as there are many determining factors such as insulation quality, location, etc... If you have any further questions please feel free to give us a call! Thanks.
