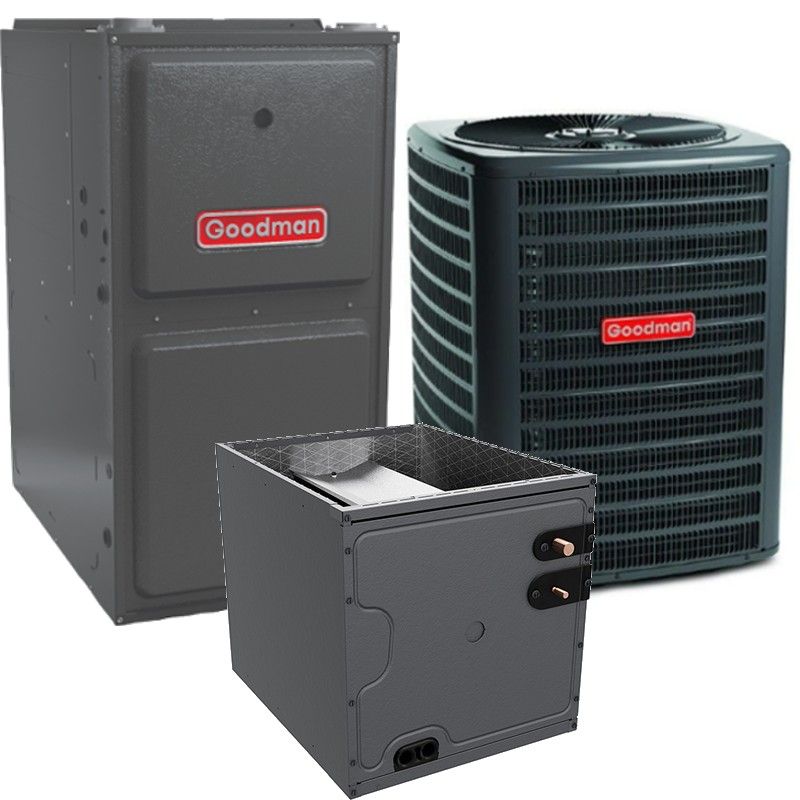

Today's Hours 8am - 11pm est2.5 Ton 13 SEER 96% AFUE 80,000 BTU Goodman Gas Furnace and Air Conditioner System - Upflow
Required Fields *
Customer reviews
Out of stock
By
Goodman
Out of stock
Model
GSX130301 / CAPF3030C6 / GMSS960805CN
ID
1053
The Goodman GMSS96 High-Efficiency Gas Furnace with single-stage gas valve and a multi-speed circulating blower provides efficient and economical performance. A single-stage gas furnace provides more consistent airflow through constant rotation. Energy efficiency is key to controlling the cost of heating your home. The 96% AFUE rating on this gas furnace means that 96 cents of every $1.00 of heating energy expense warms your home.
Standard Features
- Heavy-duty aluminized-steel tubular heat exchanger
- Stainless-steel secondary heat exchanger
- Single-stage gas valve
- Durable Silicon Nitride Igniter
- Quet single-speed induced draft blower
- Self-diagnostic control board with constant memory fault code history output to an LED
- Color-coded low-voltage terminals with provisions for air cleaner and humidifier
- Cabinet air leakage (QLeak) = <2%
- All models comply with California Low NOx emissions standardsÂ
The Goodman GSX130301 Air Conditioner Condenser uses the chlorine-free refrigerant R-410A and features operating sound levels that are among the lowest in the heating and cooling industry. With its 13 SEER rating, The Goodman GSX130301 Air Conditioner Condenser will help reduce energy consumption throughout the life of the system. Goodman has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.Â
Please note that this product is regulated by DOE Efficiency Standards.
- R-410A chlorine-free refrigerant
- Factory-installed filter dryer
- Copper tube/enhanced aluminum fin coil
- Service valves with sweat connections and easy-access gauge ports
- Contactor with lug connection
- Ground lug connection
- AHRI Certified; ETL Listed
- Goodman brand louvered sound control top design
- Steel louver coil guard
- Heavy-gauge galvanized-steel cabinet
- Baked-on powder-paint finish with 500-hour salt-spray approval
- Top and side maintenance access
- Single-panel access to controls with space provided for field-installed accessories
- When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds
2.5 Ton 21" Width Goodman Vertical Evaporator Cased CoilInstallation and Durability
Enhanced Comfort
OVERVIEW
With the CAPF3030C6 evaporator coil, Goodman provides an enhanced comfort to your home. With its ability to work with AC-only systems or with heat pumps and its ability to be installed in both the upflow or downflow orientations, the CAPF3030C6 is designed to be versatile in design and to provide an efficient comfort at a low cost.
QUICK FACTS
- 2.5 ton evaporator coil
- Installable in the upflow or downflow configurations
- Usable with either a heat pump or an AC-only condenser
- Low air leakage
- Check flowrater expansion device for use in any application
2.5 Tons
The Goodman CAPF3030C6 evaporator coil is rated for a 2.5 ton output. In many system configurations, this coil may be larger in tonnage than its paired condenser. This is intentional, to maintain the overall efficiency of the entire system.Please note that in order for this coil to function, a furnace or blower and a condenser is required, all sold separately.
Warranty
The CAPF3030C6 coil is covered under Goodman’s standard 10 year parts warranty when the unit is installed following your state and local codes, the coil is paired with a compatible condenser, and the entire system is registered online through the manufacturer.
The Goodman CAPF3030C6 evaporator coil is able to be installed in upflow and downflow applications. With its rust-resistant, thermoplastic drain plan, water retention rate is significantly lower than previous models. For even more enhanced durability, the cabinet is made of a strong galvanized-steel with a leather-grain finish. If you ever need to perform maintenance on your coil, there is a split-seam on the front of the casing for easy internal access. Please note that this coil will not work as a replacement for any single-piece air handler coils.
The CAPF3030C6 evaporator coil’s foil-faced insulation lowers air leakage, increasing the amount of air flow going into your ductwork, keeping you more comfortable while decreasing the unit’s run time. With compatible equipment, the CAPF3030C6 evaporator coil lives up to Goodman’s enhanced comfort and efficiency standards at a reasonable price.
30 Feet of 3/8" x 3/4"
Line sets are the copper lines which connect an outdoor condensing unit/heat pump to an inside air handler or evaporator coil. Line sets are available in different lengths and diameters to fit most applications.
50 Feet of 3/8" x 3/4"
Ensure efficient refrigerant flow and optimal HVAC performance with this 50-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set offers durability, flexibility, and superior thermal protection for long-lasting operation.
Key Features:
✔ Premium Copper Tubing: 3/8" liquid line (LL) and 3/4" suction line (SL) for efficient refrigerant transfer.
✔ Pre-Insulated for Efficiency: 3/8" thick insulation minimizes energy loss and condensation buildup.
✔ Versatile Application: Compatible with heat pumps and conventional split systems.
✔ Easy Installation: Flexible and durable copper tubing allows for smooth routing and connection.
✔ Extended 50-Foot Length: Ideal for larger residential and light commercial HVAC installations.
Upgrade your HVAC system with this high-quality insulated line set, engineered for reliability, efficiency, and ease of installation.
Top reviews
- Good product for the priceIt has been almost 10 years and the furnace still working good. I plan to get a 2 stage furnace next time.
Posted on
- Very loud but works great.We had this unit installed in 2022 by an independent contractor. Cools great, but it's quite loud. Do wish it was a little quieter. But on the bright side, it cools nicely without too many problems.
Posted on
- Great dealHVAC direct consistently beat my local distributor….their loss. I will continue with hvac direct.
Posted on
- Extremely pleasedThe product and customer service are above and beyond what I was expecting. I ordered the wrong product and they helped me with my mistake to get my order correct. Ben was awesome as well as the entire dock crew. I will order from here again.
Posted on
- very noiseyLike the unit . Had an old Goodman unit which was about 41 years old. Had to replace it. Bought a new Goodman GSX130301. It was installed on July 22. 2022. Very cold air. Just very noise.
Posted on
- happy with productI have had this product for about 3 weeks. Works very good. Happy with the GSX 130301 a/c unit. My old a/c unit was a Goodman it lasted 45 year old. My old unit was put in in 1977. That is why I bought another Goodman a/c unit.
Posted on
- Works GreatThe product works great, I enjoy shopping with you guys for any product and promote your business to others. Upon receiving their was a medium size dent on the sheet metal jacket, however everything works fine and I can mostly hide the dent. So no worries
Posted on
- Very happyMy nephew who is licensed installed it, the line set and coil, cools great, very happy. Quiet as well.
Posted on
Customer Questions
Why Choose Goodman?
For over three decades Goodman has concentrated on something more important than simple brand recognition consumer advertising. They focus on the design, engineering, and manufacturing of dependable products that have helped millions and millions of homeowners achieve reliable, high-quality, and affordable indoor comfort. In addition, Goodman has earned the loyalty and respect from thousands of local independent heating and cooling professionals across North America.
