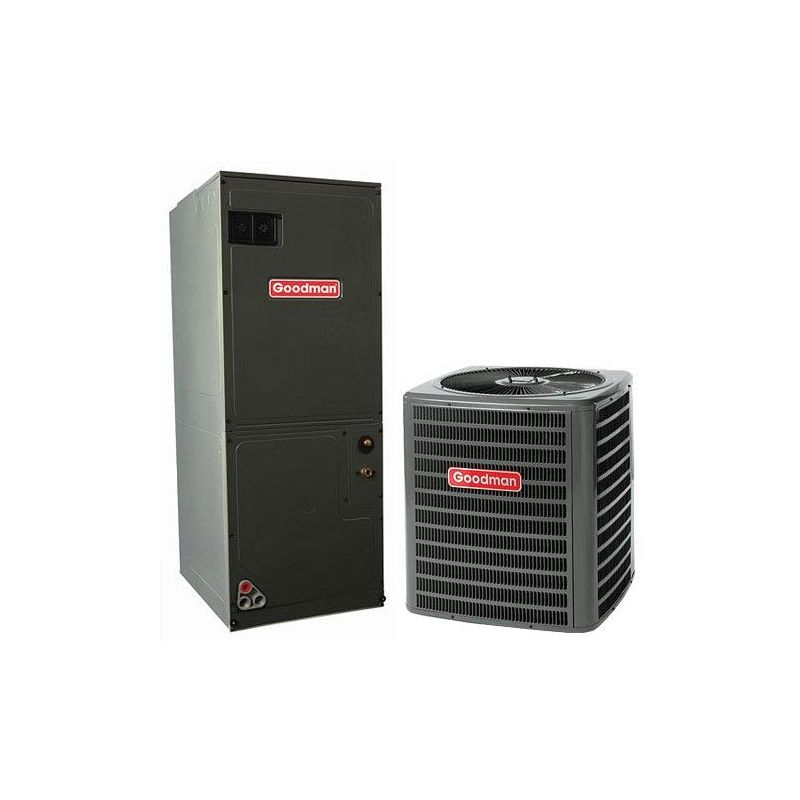

Goodman 3.5 Ton 14 SEER Air Conditioner Split System - R410A Single Stage - Multi-Positional

Goodman 3.5 Ton 14 SEER Air Conditioner Split System - R410A Single Stage - Multi-Positional

Required Fields *

Customer reviews
Rating:
4.4 out of 5
Out of stock
By

Goodman

Out of stock

Model

GSX140421 / ARUF43D14

ID

1574

The Goodman GSX140421 Air Conditioner Condenser uses the chlorine-free refrigerant R-410A to help prevent damage to the Ozone Layer. This unit is equipped with sound-dampening features to provide operating sound levels are among the lowest in the heating and cooling industry.

The Goodman ARUF43D14 Multi-Position Air Handler is suitable for use with R-410A refrigerant and may be installed in a variety of locations. This air handler features a SmartFrame sub-structure that adds lateral stability, mounting locations for internal components, and additional insulation retention.

3.5 Ton ACiQ Hybrid Upgrade - R454B
30 Feet of 3/8" x 7/8"

Ensure optimal refrigerant flow and HVAC system efficiency with this 30-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set provides durability, flexibility, and thermal protection for reliable performance.

Key Features:

✔ Premium Copper Tubing: 3/8" liquid line (LL) and 7/8" suction line (SL) ensure efficient refrigerant transfer.
✔ Pre-Insulated for Efficiency: 3/8" thick insulation reduces energy loss and condensation buildup.
✔ Versatile Application: Compatible with heat pumps and conventional split systems.
✔ Easy Installation: Flexible and durable copper tubing allows for smooth routing and connection.
✔ Standard 30-Foot Length: Ideal for a variety of residential and light commercial HVAC installations.

Upgrade your HVAC system with this high-quality insulated line set, designed for long-lasting performance and efficiency.

5 Kilowatt 16,200 BTU Goodman Heater Coil

The Goodman HKS-C Series Heat Strip have rust resistant nickel chromium heat elements. Completely assembled and tested including a plug in wiring harness for ease of installation in Air Handlers. The Goodman HKS-C Series Heat Strips offer sequencers for better temperature control. Goodman has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.

Compatible With

  • Goodman ARPT Air Handlers
  • Goodman ARUF Air Handlers
  • Goodman ASPT Air Handlers
  • Goodman ASUF Air Handlers
  • Goodman AVPTC Air Handlers
No Thank You
50 Feet of 3/8" x 1 1/8"

Ensure maximum refrigerant flow and HVAC system efficiency with this 50-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set offers durability, flexibility, and superior thermal insulation for high-performance HVAC applications.

Key Features:

✔ Premium Copper Tubing: 3/8" liquid line (LL) and 1 1/8" suction line (SL) for optimal refrigerant transfer.
✔ Pre-Insulated for Efficiency: 3/8" thick insulation minimizes energy loss and condensation buildup.
✔ Versatile Application: Ideal for larger capacity heat pumps and split systems requiring greater refrigerant flow.
✔ Easy Installation: Flexible and durable copper tubing allows for smooth routing and secure connections.
✔ Extended 50-Foot Length: Suitable for larger residential, commercial, and industrial HVAC installations.

Upgrade your HVAC system with this high-quality insulated line set, built for long-lasting performance, efficiency, and durability.

More Information
3.5 Ton Multi-Positional Goodman Air Handler - Open Box
FeatureSpec
SKUARUF43D14
Weight (in lbs)145
Brand/ManufacturerGoodman
UPC689526873079
Blower MotorMulti Speed - PSC
Maximum CFM1,900
Electric Backup Heat Capabilities (Optional)5 Kilowatts, 8 Kilowatts, 10 Kilowatts, 15 Kilowatts, 20 Kilowatts
RefrigerantR410A
Filter Size23" x 20"
Liquid Line3/8"
Suction Line7/8"
Electrical208/240  V, 1 Phase,  60 Hz
Max Breaker Size15 amps
Tonnage3.5 Ton
Fuel TypeElectric
Height53 7/16"
Width24.5"
Depth21"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Goodman 3.5 Ton 14 SEER Central Air Conditioner Condenser - R410A Single Stage
FeatureSpec
SKUGSX140421
Weight (in lbs)207
Brand/ManufacturerGoodman
UPC663051608641
Cooling BTU42,000
Decibel Level (dBA)73
Energy StarNo
RefrigerantR410A
SEER1 (Efficiency)14
Condenser StagesSingle Stage
Compressor TypeScroll
Liquid Valve Size3/8"
Suction Valve Size7/8"
Electrical208 / 230 V. 1 Phase 60 Hz
Max Breaker Size35 amps
Min. Breaker Size22 amps
Tonnage3.5 Ton
Height32.5"
Width29"
Depth29"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
50 Feet of 3/8" LL x 1 1/8" SL x 3/8" Insulated Line Set
FeatureSpec
SKULS381183850
Weight (in lbs)48
Brand/ManufacturerOnline Supply
UPCna
Liquid Line3/8"
Suction Line1 1/8"
Suction Line Insulation Thickness1/2"
ColorBlack
Length50 feet
Safety InformationPROPOSITION 65 WARNING
30 Feet of 3/8" LL x 7/8" SL x 3/8" Insulated Line Set
FeatureSpec
SKULS38783830
Weight (in lbs)30
Brand/ManufacturerOnline Supply
UPCna
Liquid Line3/8"
Suction Line7/8"
Suction Line Insulation Thickness3/8"
ColorBlack
Length30 feet
Safety InformationPROPOSITION 65 WARNING
5 Kilowatt 16,200 BTU Goodman Heater Coil
FeatureSpec
SKUHKSC05XC
Weight (in lbs)8
Brand/ManufacturerGoodman
UPC650361147441
Heating BTU16,200
Electric Heat5 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
PhaseSingle Phase
Max Breaker Size35 amps
Min. Breaker Size32 amps
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
8 Kilowatt 23,800 BTU Goodman Heater Coil
FeatureSpec
SKUHKSC08XC
Weight (in lbs)9
Brand/ManufacturerGoodman
UPC650361147311
Heating BTU23,800
Electric Heat8 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
PhaseSingle Phase
Max Breaker Size50 amps
Min. Breaker Size48 amps
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
10 Kilowatt 34,100 BTU Goodman Heater Coil
FeatureSpec
SKUHKSC10XC
Weight (in lbs)9
Brand/ManufacturerGoodman
UPC650361147335
Heating BTU34,100
Electric Heat10 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
PhaseSingle Phase
Max Breaker Size60 amps
Min. Breaker Size57 amps
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
15 Kilowatt 51,150 BTU Goodman Heater Coil
FeatureSpec
SKUHKSC15XB
Weight (in lbs)9
Brand/ManufacturerGoodman
UPC650361148288
Heating BTU51,150
Electric Heat15 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
PhaseSingle Phase
Max Breaker SizeCircuit 1: 60 amps / Circuit 2: 25 amps
Min. Breaker SizeCircuit 1: 57 amps / Circuit 2: 25 amps
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
20 Kilowatt 68,200 BTU Goodman Heater Coil
FeatureSpec
SKUHKSC20DB
Weight (in lbs)9
Brand/ManufacturerGoodman
UPC663051509979
Heating BTU68,200
Electric Heat20 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
PhaseSingle Phase
Max Breaker SizeCircuit 1: 60 amps / Circuit 2: 50 amps
Min. Breaker SizeCircuit 1: 57 amps / Circuit 2: 50 amps
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
3.5 Ton ACiQ Hybrid Upgrade - R454B
FeatureSpec
SKUACIQ-4X-EHPD-UPG
Weight (in lbs)120
Brand/ManufacturerACiQ
RefrigerantR410A
Safety InformationPROPOSITION 65 WARNING
Top reviews
  1. Extremely Satisfied
    Price
    100%
    Service
    100%
    Quality
    80%
    We are extremely satisfied! The new Goodman air conditioner is working perfectly. It is super quiet too. Your delivery was very quick. Unfortunately this order included a condensing unit that had some damage, but again you folks excelled. A replacement unit was sent quickly and the folks I worked with were very nice.

    Review by

    Posted on

  2. capacitor
    Price
    60%
    Service
    60%
    Quality
    40%
    only less than 3 years and capacitor fail

    Review by

    Posted on

  3. Goodman fan forever
    Quality
    100%
    Price
    100%
    Service
    100%
    This is the second Goodman unit we've installed to replace older Goodman units that were over 25 years old. (YES!) Wouldn't have anything else. Reliable Heating in Greer is probably the best installer in the entire state of South Carolina. Great people. Great prices.

    Review by

    Posted on

  4. So for so good
    Quality
    100%
    Price
    100%
    Service
    100%
    Great system so for only had a couple of months

    Review by

    Posted on

  5. Quality system at a very reasonable price
    Quality
    100%
    Price
    100%
    Service
    100%
    The system is very quiet. I haven't had it very long but it appears to do the job. Compared to other manufacturers prices it was a very good value.

    Review by

    Posted on

Customer Questions
How many amps does this unit pull?
This unit can pull between 22-35 amps. If you have any further questions please feel free to give us a call! Thanks.
Do I need and accumulator/dryer ?
This unit comes with a factory-installed filter drier already pre-built into the condenser. If you have any further questions please feel free to give us a call! Thanks.
Is this unit pre-charged?
Yes, this Goodman GSX140421 unit is pre-charged with R410A Refrigerant.
How do I know flow direction of the air handler?
Hello, this unit is mult-positional meaning that is can be placed all upflow, downflow, and horizontal configurations. If you have any further questions please feel free to give us a call! Thank you.
