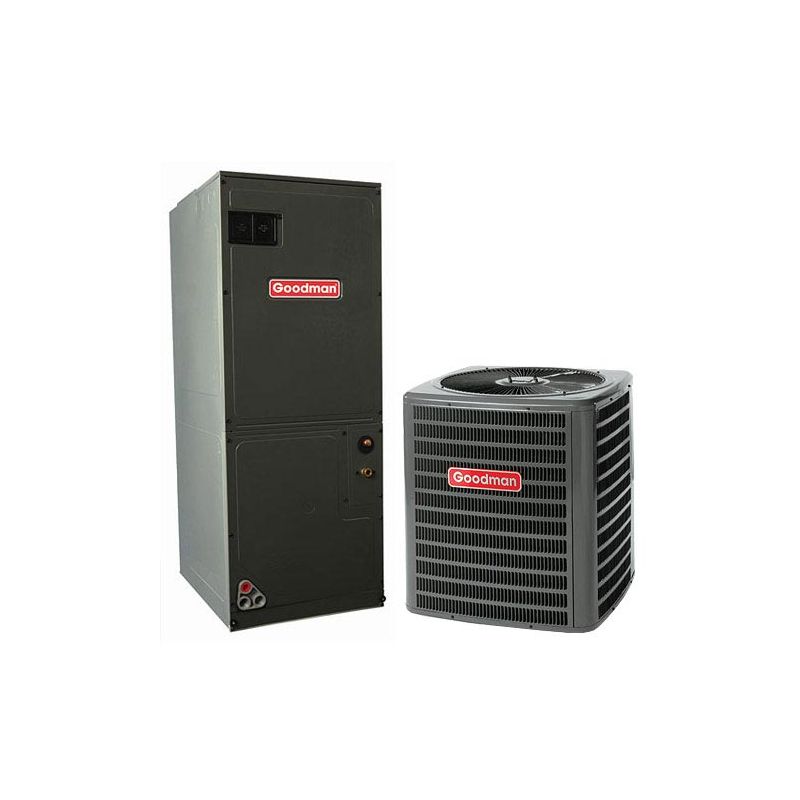

3 Ton 14 SEER Goodman Heat Pump Air Conditioner System

By

Goodman

Out of stock

Model

GSZ140361 / ARUF37D14

ID

694

Rating:
100% of 100
Availability: Discontinued
Goodman

Authorized Goodman Dealer

People that viewed this product purchased this instead:
  1. 3 Ton 14 SEER ACiQ Heat Pump System
    3 Ton 14 SEER ACiQ Heat Pump System
    Rating:
    90%
    Suggested Retail $4,462.00
    Special Price $3,177.00
  2. 3 Ton 14.3 SEER2 ACiQ Heat Pump Split System - Multi-Positional
    3 Ton 14.3 SEER2 ACiQ Heat Pump Split System - Multi-Positional
    Rating:
    98%
    Suggested Retail $4,645.00
    Special Price $3,716.00
  3. 3 Ton 15.2 SEER2 ACiQ Heat Pump Split System - Multi-Positional
    3 Ton 15.2 SEER2 ACiQ Heat Pump Split System - Multi-Positional
    Rating:
    100%
    Suggested Retail $4,752.00
    Special Price $3,801.00
SAVE $1,285.00
3 Ton 14 SEER ACiQ Heat Pump System
SAVE $929.00
SAVE $951.00

Description

The Goodman® GSZ14 14 SEER Heat Pump uses the environmentally friendly refrigerant R-410A and features operating sound levels that are among the best in the heating and cooling industry. R-410A is chlorine-free to help prevent damage to the ozone layer. With its 14 SEER rating, the GSZ14 will help reduce energy consumption throughout the life of the system.

All Goodman 14 / 15 SEER heat pumps must be installed with a bi-flow thermostatic expansion valve. This valve is installed in front of the indoor evaporator coil inline with the line set piping. If you are installing a heat pump with a backup heat source which will be a fuel furnace, you will need to install an electronic all fuel kit.

Please note that this heat pump equipment comes pre-charged with R-410A liquid refrigerant and by Federal law cannot be released to the atmosphere. Yes, you can purchase this equipment without being EPA certified. And, if you are mechanically inclined you may perform about 90% of the equipment installation yourself. However, we strongly recommend to have a professional heating/cooling contractor do the final part of the installation including managing the refrigerant. An HVAC contractor has the tools and know-how to do this work.

 Standard Features

  • R-410A chlorine-free refrigerant
  • High-efficiency scroll compressor
  • SmartShift® technology to ensure quiet reliable defrost
  • Factory-installed bi-flow liquid-line filter drier
  • Factory-installed suction-line accumulator
  • Factory-installed compressor crankcase heater
  • Factory-installed high-capacity muffler
  • High- and low-pressure switches
  • Service valves with sweat connections and easy access to gauge ports
  • Copper tube/enhanced aluminum fin coil
  • Fully charged for 15’ of tubing length
  • Contactor with lug connection
  • Ground lug connection
  • AHRI Certified; ETL Listed

Cabinet Features

  • Goodman® brand sound control top design
  • Steel louver coil guard
  • Heavy-gauge galvanized-steel cabinet
  • Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
  • Top and side maintenance access
  • Service ports and controls are accessible while unit is operating
  • When properly anchored, meets the 2010
  • Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

The Goodman ARUF Multi-Position Air Handler is suitable for use with R-410A refrigerant and may be installed in a variety of locations.  This air handler features a SmartFrame™ sub-structure that adds lateral stability, mounting locations for internal components, and additional insulation retention.

Standard Features

  • All-aluminum evaporator coil
  • Check flowrater expansion device for cooling-only and heat pump applications
  • Direct-drive, multi-speed motor
  • Transformer and blower time-delay on all units
  • Easy single-bulb UV light compatibility
  • Complies with the Factory-sealed Air Handling Credit with or without field-installed filter kits as listed in the 2001 Florida Building Code, Chapter 13, Section 610.2.A.2.1
  • AHRI Certified; ETL Listed

Cabinet Features

  • New rigid SmartFrame™ cabinet
  • 21 inch depth for easy attic access
  • Galvanized leather grain-embossed finish
  • Glue-less cabinet insulation retention
  • Screw-less sides & back prevents condensation
  • Multi-position capability: upflow, downflow, horizontal or vertical
  • Coil-mounting track for quick repositioning
  • Tool-less filter access accommodates standard-size filters
  • Power supply entry at top; low-voltage entry at top and on left side
  • Easily convertible 4-way design
  • Multiple electrical knockouts
  • Heavy-gauge bottom plate
3 Ton 14 SEER Goodman Heat Pump

OVERVIEW

The Goodman GSZ140361 heat pump condenser is a standard efficiency, low-cost solution for an all-electric home when paired with a suitable heat pump coil or air handler. Just like all of Goodman's equipment, the GSZ140361 is manufactured with high-quality materials to provide a superior comfort in your home.

Utilizing advanced technology, the Goodman heat pump system efficiently transfers heat between the indoors and outdoors, providing both heating and cooling functionalities in a single unit for year-round comfort. With its straightforward installation process, it not only ensures convenience but it's also cost-efficient, making it an ideal choice for those seeking an energy-efficient and hassle-free heating and cooling solution.

QUICK FACTS

  • Ideal size to cover a medium-sized house in ideal climates
  • 3 ton, 14 SEER heat pump condenser
  • Low sound output
  • Fully charged for up to 15' of line set
  • Factory-installed bi-flow filter drier

3 Ton

The Goodman GSZ140361 heat pump has a capacity of 3 tons. In an ideal climate, this tonnage will normally cover up to a medium-sized house. In some bundles, the air handler or coil associated with this condenser may be intentionally larger in tonnage to maintain the unit's overall efficiency. Please note that an indoor air handler or coil that is compatible with heat pumps is required for this unit to function.

14 SEER

At 14 SEER, the GSZ140361 heat pump condenser has the industry-standard minimum, allowing the unit to remain inexpensive upfront in comparison to higher SEER ratings. If you are replacing an existing heat pump, in most cases this SEER rating will still be higher than your old unit, allowing it to still save you money over time in energy bills.

Warranty

The GSZ140361 condenser comes with Goodman's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.

Durability and Reliability

The Goodman GSZ140361 heat pump condenser is manufactured with a durable cabinet with paint that is approved for 500 hours of salt spray, making it compliant with the 2010 Florida building code unit integrity requirements for hurricane-like weather when properly anchored to your local codes. The built-in bi-flow liquids line filter drier protects the unit from impurities in the refrigerant and other general wear and tear, increasing the reliability of the unit.

Installation and Maintenance

The Goodman GSZ140361 has easily accessible gauge ports and service valves with sweat connections, allowing for a faster and easier installation process. There are factory-installed features such as a filter drier, compressor crankcase heater, pressure switches, and a high-capacity muffler so your installer doesn't have to, further providing ease to the installation process. Moreover, the cabinet of the unit is fit with two maintenance access panels: one on the top and one on the side. All of these features lower your installation and maintenance costs, keeping more money in your pocket to spend on the things you care about most.

Comfort in Mind

With its sound control top insulation and SmartShift technology for quiet and reliable defrost cycles, the GSZ140361 heat pump has some of the lowest sound outputs on a single stage unit on the market today.

Why Buy at HVACDirect.com

HVACDirect.com is one of the leading and reliable sources for top-quality heat pump systems. With its superior energy efficiency, our heat pumps not only provide significant upfront cost savings but also ensures long-term economic benefits through reduced energy consumption. Known for delivering heat pump package units that excel in both performance and durability, we are a trusted choice for various heating and cooling needs. Our customers can confidently rely on the efficiency and effectiveness of our heat pump systems, making us a preferred destination for those seeking high-performance solutions in the HVAC industry and a trusted choice for various heating and cooling needs.

8 Kilowatt 23,800 BTU Goodman Heater Coil

The Goodman HKS-C Series Heat Strip have rust resistant nickel chromium heat elements. Completely assembled and tested including a plug in wiring harness for ease of installation in Air Handlers. The Goodman HKS-C Series Heat Strips offer sequencers for better temperature control. Goodman has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.

Compatible With

  • Goodman ARPT Air Handlers
  • Goodman ARUF Air Handlers
  • Goodman ASPT Air Handlers
  • Goodman ASUF Air Handlers
  • Goodman AVPTC Air Handlers
10 Kilowatt 34,100 BTU Goodman Heater Coil

The Goodman HKS-C Series Heat Strip have rust resistant nickel chromium heat elements. Completely assembled and tested including a plug in wiring harness for ease of installation in Air Handlers. The Goodman HKS-C Series Heat Strips offer sequencers for better temperature control. Goodman has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.

Compatible With

  • Goodman ARPT Air Handlers
  • Goodman ARUF Air Handlers
  • Goodman ASPT Air Handlers
  • Goodman ASUF Air Handlers
  • Goodman AVPTC Air Handlers
15 Kilowatt 51,150 BTU Goodman Heater Coil

This 240 volt heater coil can be added to a Goodman air handler to provide winter-time heating capabilities.

Produces 51,150 BTUs of heat.

Controlled by sequencers for optimum temperature balance. Completely assembled and tested. Built-in overcurrent protection on all units as indicated in electrical data chart (see spec sheet). Multiple branch circuit capability. High temperature limit controls for safe operation. Plug-in wiring harness for easy installation into air handlers. Rust-resistant nickel chromium heat elements.

If you are installing a heater coil in an air handler, line voltage is to be connected directly to the heater coil which will operate both the heater coil and air handler. A separate circuit for the air handler is not needed.

Depending on the heater coil size being installed, one or two circuits to the heater coil will be necessary (see "PRODUCT SPECIFICATIONS" below for quantity and amperage of circuits required for this heater coil.) At your home's circuit panel, individual 220 volt double-pole circuit breakers are required for each circuit.

Compatible With

  • Goodman ARPT Air Handlers - 30,000+ BTU
  • Goodman ARUF Air Handlers - 30,000+ BTU
  • Goodman ASPT Air Handlers - 36,000+ BTU
  • Goodman ASUF Air Handlers - 42,000+ BTU
  • Goodman AVPTC Air Handlers - 36,000+ BTU
20 Kilowatt 68,200 BTU Goodman Heater Coil

This 240 volt heater coil can be added to a Goodman air handler to provide winter-time heating capabilities.

Produces 68,200 BTUs of heat.

Controlled by sequencers for optimum temperature balance. Completely assembled and tested. Built-in overcurrent protection on all units as indicated in electrical data chart (see spec sheet). Multiple branch circuit capability. High temperature limit controls for safe operation. Plug-in wiring harness for easy installation into air handlers. Rust-resistant nickel chromium heat elements.

If you are installing a heater coil in an air handler, line voltage is to be connected directly to the heater coil which will operate both the heater coil and air handler. A separate circuit for the air handler is not needed.

Depending on the heater coil size being installed, one or two circuits to the heater coil will be necessary (see "PRODUCT SPECIFICATIONS" below for quantity and amperage of circuits required for this heater coil.) At your home's circuit panel, individual 220 volt double-pole circuit breakers are required for each circuit.

Compatible With

  • Goodman ARPT**D14 Air Handlers
  • Goodman ARUF**D14 Air Handlers
  • Goodman ASPT**D14 Air Handlers
  • Goodman ASUF**D14 Air Handlers
  • Goodman AVPTC**D14 Air Handlers
5 Kilowatt 16,200 BTU Goodman Heater Coil

The Goodman HKS-C Series Heat Strip have rust resistant nickel chromium heat elements. Completely assembled and tested including a plug in wiring harness for ease of installation in Air Handlers. The Goodman HKS-C Series Heat Strips offer sequencers for better temperature control. Goodman has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.

Compatible With

  • Goodman ARPT Air Handlers
  • Goodman ARUF Air Handlers
  • Goodman ASPT Air Handlers
  • Goodman ASUF Air Handlers
  • Goodman AVPTC Air Handlers
30 Feet of 3/8" LL x 7/8" SL x 3/8" Insulated Line Set

Line sets are the copper lines which connect an outdoor condensing unit/heat pump to an inside air handler or evaporator coil. Line sets are available in different lengths and diameters to fit most applications.

50 Feet of 3/8" LL x 7/8" SL x 3/8" Insulated Line Set

Line sets are the copper lines which connect an outdoor condensing unit/heat pump to an inside air handler or evaporator coil. Line sets are available in different lengths and diameters to fit most applications.

3 Ton ACiQ Hybrid Upgrade | Extreme Heat

Product Specifications

More Information
3 Ton 14 SEER Goodman Heat Pump
SKUGSZ140361
Weight (in lbs)215.000000
Brand/ManufacturerGoodman
ReplacesGSZ140371
Cooling BTU36,000
Heating BTU36,000
Decibel Level (dBA)74
Energy StarYes
RefrigerantR410A
SEER1 (Efficiency)14
Condenser StagesSingle Stage
Compressor TypeScroll
Liquid Valve Size3/8"
Suction Valve Size3/4"
Electrical208 / 230 V. 1 Phase 60 Hz
Max Breaker Size30 amps
Min. Breaker Size22.4 amps
Tonnage3 Ton
Valve TypeSweat
Height36"
Width29"
Depth29"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
3 Ton Multi-Positional Goodman Air Handler
SKUARUF37D14
Weight (in lbs)140.000000
Brand/ManufacturerGoodman
Blower MotorMulti Speed - PSC
Maximum CFM1,785
Electric Backup Heat Capabilities (Optional)5 Kilowatts, 8 Kilowatts, 10 Kilowatts, 15 Kilowatts, 20 Kilowatts
RefrigerantR410A
Filter Size23" x 20"
Liquid Line3/8"
Suction Line7/8"
Electrical208/240  V, 1 Phase,  60 Hz
Max Breaker Size15 amps
Tonnage3 Ton
Fuel TypeElectric
Height53 7/16"
Width24 1/2"
Depth21"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
8 Kilowatt 23,800 BTU Goodman Heater Coil
SKUHKSC08XC
Weight (in lbs)9.000000
Brand/ManufacturerGoodman
Heating BTU23,800
Electric Heat8 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
PhaseSingle Phase
Max Breaker Size50 amps
Min. Breaker Size48 amps
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
10 Kilowatt 34,100 BTU Goodman Heater Coil
SKUHKSC10XC
Weight (in lbs)9.000000
Brand/ManufacturerGoodman
Heating BTU34,100
Electric Heat10 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
PhaseSingle Phase
Max Breaker Size60 amps
Min. Breaker Size57 amps
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
15 Kilowatt 51,150 BTU Goodman Heater Coil
SKUHKSC15XB
Weight (in lbs)9.000000
Brand/ManufacturerGoodman
Heating BTU51,150
Electric Heat15 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
PhaseSingle Phase
Max Breaker SizeCircuit 1: 60 amps / Circuit 2: 25 amps
Min. Breaker SizeCircuit 1: 57 amps / Circuit 2: 25 amps
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
20 Kilowatt 68,200 BTU Goodman Heater Coil
SKUHKSC20DB
Weight (in lbs)9.000000
Brand/ManufacturerGoodman
Heating BTU68,200
Electric Heat20 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
PhaseSingle Phase
Max Breaker SizeCircuit 1: 60 amps / Circuit 2: 50 amps
Min. Breaker SizeCircuit 1: 57 amps / Circuit 2: 50 amps
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
5 Kilowatt 16,200 BTU Goodman Heater Coil
SKUHKSC05XC
Weight (in lbs)8.000000
Brand/ManufacturerGoodman
Heating BTU16,200
Electric Heat5 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
PhaseSingle Phase
Max Breaker Size35 amps
Min. Breaker Size32 amps
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
30 Feet of 3/8" LL x 7/8" SL x 3/8" Insulated Line Set
SKULS38783830
Weight (in lbs)30.000000
Brand/ManufacturerOnline Supply
Liquid Line3/8"
Suction Line7/8"
Suction Line Insulation Thickness3/8"
Length30 feet
Safety InformationPROPOSITION 65 WARNING
50 Feet of 3/8" LL x 7/8" SL x 3/8" Insulated Line Set
SKULS38783850
Weight (in lbs)30.000000
Brand/ManufacturerOnline Supply
Liquid Line3/8"
Suction Line7/8"
Suction Line Insulation Thickness3/4"
Length50 feet
Safety InformationPROPOSITION 65 WARNING
3 Ton ACiQ Hybrid Upgrade | Extreme Heat
SKUACIQ-36-HPC-UPG
Weight (in lbs)120.000000
Brand/ManufacturerACiQ
RefrigerantR410A
Safety InformationPROPOSITION 65 WARNING

Reviews 19

Write Your Own Review
You're reviewing:3 Ton 14 SEER Goodman Heat Pump Air Conditioner System
Your Rating

Questions and Answers

Customer Questions
Is this a complete system outside and inside unit?
This product includes the indoor air handler and outdoor heat pump. Depending on your location and application, you may also want to purchase a backup heat kit, especially if the outdoor temps drop below 35 degrees during the winter. The heat kit options are available under the accessories section of the bundle. If you have any further questions, please call us and we will be happy to assist you.
Can the handler and coil be setup horizontally/ on side?
The air handler cabinet is designed to be able to function in the upflow, downflow, or horizontal configurations.
How much is the cost for everything to have this work done?
Please reference our Sizing Guide that will allow you to know exactly what kind of unit you'll be needing. If you have any further questions please feel free to give us a call! Thanks.
Did you find what you were looking for?
Why Choose a Goodman Product?
Why Choose Goodman?

For over three decades Goodman has concentrated on something more important than simple brand recognition consumer advertising. They focus on the design, engineering, and manufacturing of dependable products that have helped millions and millions of homeowners achieve reliable, high-quality, and affordable indoor comfort. In addition, Goodman has earned the loyalty and respect from thousands of local independent heating and cooling professionals across North America.

WHY CHOOSE HVACDIRECT.COM?

Our mission is simple: To provide an open HVAC marketplace online, offering the best HVAC brands directly to the public, based on real, affordable prices. For too long, local dealers have charged whatever they could get away with - but now YOU HAVE A CHOICE.



Choose us for:

  • Real recommendations on only what you need (no upsells)
  • Real wholesale prices, never inflated
  • Real advice & tech support from experts in home heating & cooling
Money Icon

COMPETITIVE PRICING

We sell products at wholesale pricing. No markups, no hidden fees. Our average customer saves BETWEEN THREE TO SIX THOUSAND DOLLARS
-That's the Direct Advantage!

Best Brands

BEST BRANDS

Just because a brand is nationally known, doesn't mean it's the best. Our HVAC technicians have hand-selected the most efficient and durable products for American homeowners, giving you exactly what you need at the best pricing.

Warranty

INDUSTRY-LEADING WARRANTIES

We choose products with long, best-in-the-market warranties by manufacturers with great customer service and solid reputations. This gives you peace of mind that you'll be getting a great quality product.

Huge Savings
Read about a real life example from one of our
customers who saved thousand.

We've helped over 100,000 American homeowners and earned their trust.

See What Our Customers are Saying
