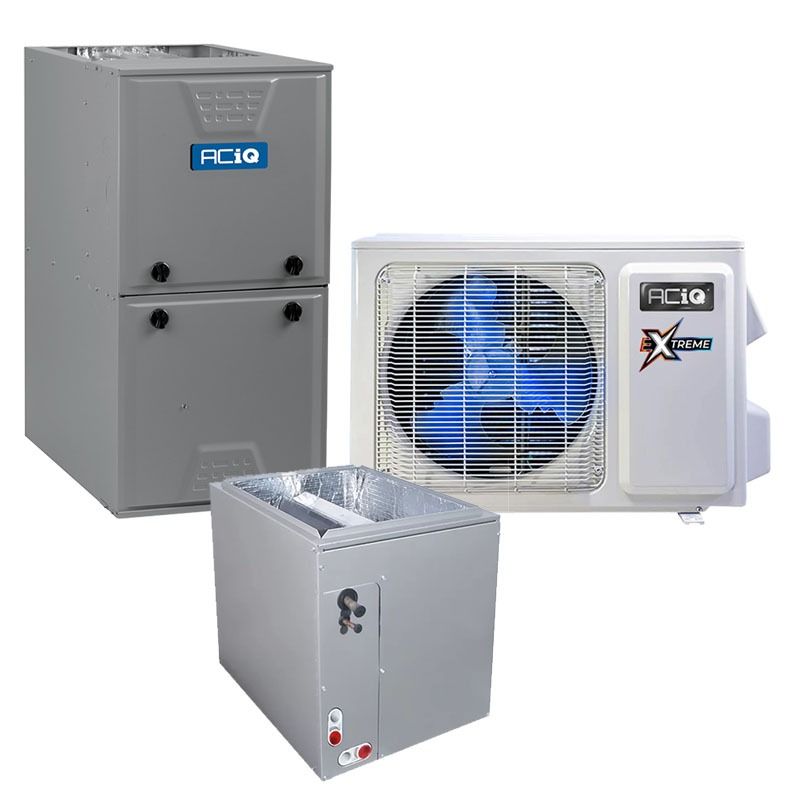

Hybrid 2 Ton 16.1 SEER2 96% AFUE 40,000 BTU ACiQ High Efficiency Heat Pump and Gas Furnace System | Inverter | Extreme Series-R410A

One Smart Thermostat for ACiQ Communicating & Traditional HVAC Systems

The ACiQ TL04-1 Smart Thermostat gives you the flexibility to control your HVAC system in two different ways. Use it as an advanced communicating thermostat with compatible ACiQ equipment or set it up as a traditional 24V thermostat for most conventional heating and cooling systems. Built-in Wi-Fi, an easy-to-use touchscreen, and smart-device control through the ACiQ Home app make it simple to manage your comfort at home or away.

Key Benefits

• Communicating & 24V Control - Use with compatible ACiQ communicating equipment or as a traditional 24V thermostat.
• Ideal for ACiQ Inverter Systems - HA/HB communication lets compatible ACiQ equipment communicate directly with the thermostat.
• ACiQ Home App Control - Adjust temperatures and manage your comfort from a compatible smartphone or tablet.
• Broad HVAC Compatibility - Works with most traditional 24V heating, cooling, and heat pump systems.
• Easy Touchscreen Control - A modern touchscreen makes everyday temperature and system adjustments simple.

One Thermostat, Two Ways to Control Your HVAC System

What makes the TL04-1 different is its ability to work as either a communicating or traditional thermostat. Pair it with compatible ACiQ equipment using HA/HB communication for direct communication between the thermostat and HVAC system, or configure it for traditional 24V control with most conventional HVAC equipment. This flexibility makes the TL04-1 a smart choice whether you're building a new ACiQ system or upgrading the thermostat in an existing home.

Get More from Compatible ACiQ Inverter Equipment

When connected to compatible ACiQ equipment through HA/HB wiring, the TL04-1 becomes a communicating thermostat that allows the thermostat and HVAC equipment to share information directly. This makes it an ideal control option for compatible ACiQ inverter systems and helps the equipment take advantage of its advanced operating capabilities.

Control Your Comfort with the ACiQ Home App

Connect the TL04-1 to the ACiQ Home app for convenient control from a compatible smartphone or tablet. Adjust temperatures and manage comfort settings remotely, giving you easy access to your HVAC system whether you're at home or away. The TL04-1 is also compatible with the NetHome Plus app for smart-device control.

Also Works with Traditional 24V HVAC Systems

You don't need a communicating ACiQ system to use the TL04-1. It can also be configured as a traditional thermostat for most 24V HVAC systems, including compatible one- and two-stage heating and cooling equipment and heat pumps with auxiliary and emergency heat.

What's Included

• ACiQ TL04-1 Smart Thermostat
• M-Base
• Trim Plate
• Wire Labels
• Screws & Anchors
• Installation Guide

This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 21" long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.

Features:

• 21" Arm Length
• Weight capacity of 220 lbs per arm
• Bolts and anti-vibration washers included

No Return Policy

All sales of this product are final and are non-refundable.

Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.

What’s Included:

• 3/4" x 6' Electrical Whip – SKU: 84138
• 60A Non-Fused Disconnect – SKU: 83335
• Surge Protector – SKU: ICM517
• CPS Charging Adapter – SKU: 87-AD87
• Telescoping Wall Sleeve – SKU: NFP-75

Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!

Ensure efficient refrigerant flow and optimal HVAC performance with this 50-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set offers durability, flexibility, and superior thermal protection for long-lasting operation.

Key Features:

✔ Premium Copper Tubing: 3/8" liquid line (LL) and 3/4" suction line (SL) for efficient refrigerant transfer.
✔ Pre-Insulated for Efficiency: 3/8" thick insulation minimizes energy loss and condensation buildup.
✔ Versatile Application: Compatible with heat pumps and conventional split systems.
✔ Easy Installation: Flexible and durable copper tubing allows for smooth routing and connection.
✔ Extended 50-Foot Length: Ideal for larger residential and light commercial HVAC installations.

Upgrade your HVAC system with this high-quality insulated line set, engineered for reliability, efficiency, and ease of installation.

The Ecobee is more than a smart thermostat. Most thermostats only read the temperature in one place (usually the hallway) which can make other rooms uncomfortable. Ecobee5 comes with a room sensor to help manage hot or cold spots. When you place sensors in your favorite rooms, ecobee5 can read the temperature and detect occupancy. That's how it ensures comfort in the rooms that matter.

With Amazon Alexa Voice Service built inside, ecobee5 can perform the many 'skills' that come with Alexa. All you have to do is ask, and watch the blue light pipe on top of the thermostat blink in response. For total hands-free control, it can even hear you from across the room. Imagine you’re throwing a last-minute dinner party. Simply ask your ecobee5 to walk you through each step out loud – from finding the right recipes to the ideal music playlist. ecobee5 has embedded microphones with far-field voice recognition and a speaker engineered for clear voice and full sound. It’s the smart thermostat that looks at home on your wall – that you can hear and speak to from across the room.

Features

Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.

Features

• Ideal for piping, duct runs, cable trays and condensers
• Weather resistant PVC
• Linear track holds 3/8" hex head bolts
• Two 7/8" long bolts included
• Weighs up to 397 Ib

E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.

• High recycled plastic content
• Subtle texture resists unit slide
• Unaffected by UV or weather
• Uniform ribbing transfers load evenly
• Drillable for securing unit
• Lightweight, yet rugged

No Return Policy

All sales of this product are final and are non-refundable.

E Lite Condenser Pad and Risers

E Lite Condenser Pad

E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.

Key Features:

• Reliable Support: Abundance of ridges for stable ground support.
• Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
• Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
• Simple Appearance: Gray color with size labels.
• Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.

E Lite Risers

E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.

Key Features:

• Weather Resistance: Made from tough PVC for long-lasting performance.
• Secure Setup: The track securely holds bolts in place.
• Bolts Included: Each set comes with two bolts.
• Strong Support: Capable of handling loads of up to 397 pounds.

E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.

No Return Policy

All sales of this product are final and are non-refundable.

OVERVIEW

Designed to be a high-efficiency furnace, the ACiQ N95ESN0401410A is a money saving unit to provide heating throughout even the coldest months of the year. With its multi-positional design, this unit is a good all-around choice for nearly any application.

QUICK FACTS

• 40,000 BTU, 96% AFUE natural gas furnace
• Generally suitable for up to a small house in ideal applications
• Multi-positional design can be installed in the upflow, downflow, or horizontal orientations
• Single stage burner with a multi-speed blower
• Field-convertible to propane with an optional LP kit
• On board self-diagnostics
• Energy Star certified

40,000 BTU, 96% AFUE

The ACiQ N95ESN0401410A has an input of 40,000 BTU. With an efficiency of 96%, this means that the furnace has an output of 38,400 BTU. The 96% AFUE also means that for the gas going into the furnace, 96% of it is used to heat your home while only 4% is lost out of the flue piping and lost to normal furnace operations. All furnaces at this efficiency (90% and above) requires plastic/PVC flue venting, and if metal flue venting is required for your installation, an 80% efficient furnace would be needed instead. While this unit uses natural gas as fuel out of the box, we also have an LP conversion kit, available at an additional cost.Please note that this furnace is not Ultra Low NOx compliant and if shipped to California may be subject to a mitigation fee.

---

Quiet Comfort

Every ACiQ furnace is designed to keep your family warm and comfortable year after year. Whisper-quiet ECM blower fans, solid construction with thicker sheet metal and
more cabinet insulation give you near-silent operation. From entry level to top-of-the-line, your comfort is the priority.

---

High Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Multi-speed or Variable Speed ECM blowers come in every furnace. Adding options such as high-efficiency secondary heat exchangers, two stage heating, modulating burners and variable blowers all can further reduce your energy bills while increasing comfort.

---

Longer life, longer warranty

Thicker sheet metal, more cabinet insulation and aluminized steel heat exchangers reflect the highest build quality you can get. Every furnace is backed by ACiQ’s 10 year, 20 year or lifetime (depending on model) heat exchanger extended warranty with online registration.
