LG 12,000 BTU Multi F 19.7 SEER2 Single Zone Concealed Duct Mini Split Heat Pump System - R32 | 230V

Name: LG 12,000 BTU Multi F 19.7 SEER2 Single Zone Concealed Duct Mini Split Heat Pump System - R32 | 230V
Brand: LG
SKU: KUSXB121A / KNUJB121A
Price: 2911 USD
Availability: InStock

SAVE $728.00

Required Fields *

Be the first to review this product

Ships in 3-5 Business Days

Free Shipping

LG

In stock

Model

KUSXB121A / KNUJB121A

235799

Was $3,639.00

Your Low Price $2,911.00

Customize LG 12,000 BTU Multi F 19.7 SEER2 Single Zone Concealed Duct Mini Split Heat Pump System - R32 | 230V

See what is Included

Heat Pump Condenser

Quantity

1 Ton Single Zone Condenser

1 Ton Single Zone Condenser + $1,752.00

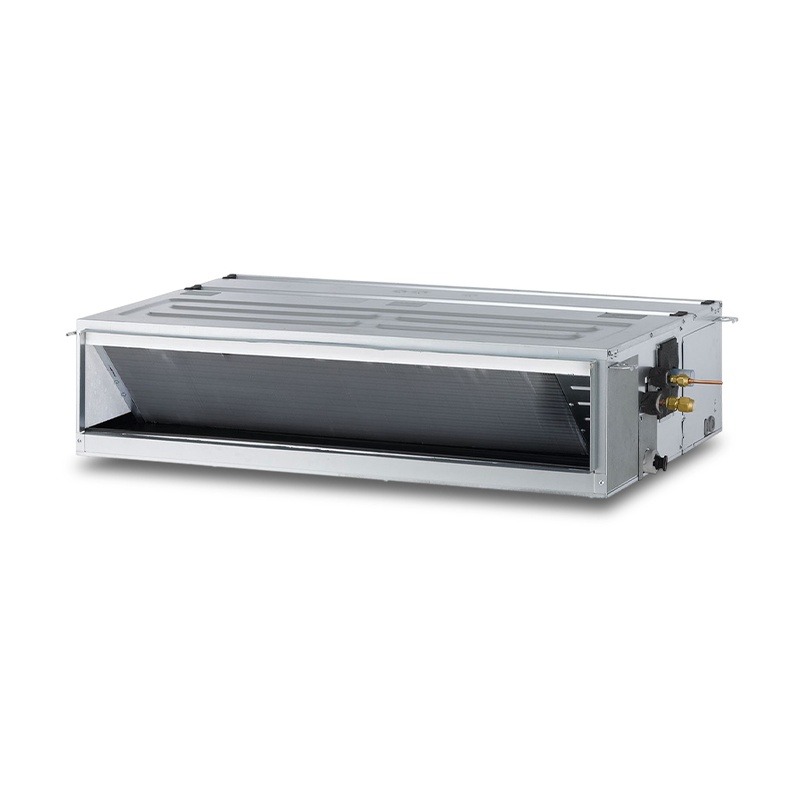

12k BTU Medium Static Pressure Concealed Duct

Zone 1

Quantity

12k BTU Medium Static Pressure Concealed Duct

12k BTU Medium Static Pressure Concealed Duct + $1,159.00

Choose Your Accessories

Line Set + Control Wire

Quantity

Mounting Options

Quantity

Install Kit w/ Surge Protector

Quantity

Thermostat

Quantity

Qty

$2,911.00

Product Specs

More Information
LG 1 Ton 16.2 SEER2 High Efficiency Heat Pump Condenser \| Inverter - R32
Feature	Spec
SKU	KUSXB121A
Refrigerant Charge	38.8 oz (Pre-charged for 24.6 ft line set)
Weight (in lbs)	79.4
AHRI Certificate Number	217284945
Brand/Manufacturer	LG
UPC	195174082249
Cooling BTU	12,000 BTU
Heating BTU	15,000 BTU
Decibel Level (dBA)	52 dBA
Electric Heat	Heat Pump
Energy Star	Yes
Refrigerant	R32
HSPF2	9.5
SEER2 (Efficiency)	16.2
EER2	12.2
Condenser Stages	Variable Speed
Compressor Type	Scroll
Liquid Line	1/4"
Suction Line	3/8"
Liquid Valve Size	1/4"
Suction Valve Size	3/8"
Electrical	208-230V 1 Phase 60Hz
Max Breaker Size	30 Amps
Min. Breaker Size	13.4 Amps
Tonnage	1 Ton
Min/Max Outdoor Temp for Heating	-4°F - 64°F
Min/Max Outdoor Temp for Cooling	5°F - 118°F
Zone Compatibility	Single Zone
Ambient Temperature Range	-4 - 118°F
Height	21 15/32"
Width	30 5/16"
Depth	11 11/32"
Warranty	10 Years Compressor and 10 Years Parts with Online Registration
Resources	KUSXB121A / KNSLB121A Submittal KKUSXB121A Submittal Sheet (Single Zone Mid Static Ducted) KUSXB121A Submittal Sheet (Four-Way Cassette) KUSXB121A Submittal Sheet (Low Wall Console) KUSXB Installation Manual KUSXB / KNSLB Engineering Manual LG R32 Residential System Warranty You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
LG 12,000 BTU Multi F Mid Static Multi Zone Concealed Duct Mini Split Air Handler - R32\| 230V
Feature	Spec
SKU	KNUJB121A
Weight (in lbs)	61.7
Brand/Manufacturer	LG
UPC	195174080504
Controller	Wireless Included
Cooling BTU	12,000 BTU
Heating BTU	15,000 BTU
Maximum CFM	494.4 Hi / 423.8 Med / 353.1 Lo CFM (Airflow)
Decibel Level (dBA)	28 - 31 dBA
Refrigerant	R32
Liquid Line	1/4"
Suction Line	3/8"
Electrical	208-230V \| 1Phase \| 60Hz
BTU/Tonnage	12,000 BTU/1 Ton
Mini Split Type	Concealed Duct
Zone Compatibility	Single Zone
Height	9.78"
Width	35.56"
Depth	24.37"
Warranty	10 Year Compressor / 7 Years Parts Warranty with Online Registration
Resources	Submittal Engineering Manual Install Manual You will need AdobeA® AcrobatA® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
Feature	Spec
SKU	87762 / EL1838-3
Weight (in lbs)	25
Brand/Manufacturer	Online Supply
UPC	na
Height	3"
Width	18"
Depth	38"
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Installation Kit for Condensers - Accessory Set
Feature	Spec
SKU	MSK001
Weight (in lbs)	15
Brand/Manufacturer	Online Supply
UPC	na
Resources	Surge Protector Install Guide You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
17" Wall Mount Bracket for Mini Split Systems
Feature	Spec
SKU	HW-600
Weight (in lbs)	9.2
Brand/Manufacturer	Online Supply
Length	17"
Height	20"
Width	6"
Resources	HW-600 Install Guide You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 15 feet
Feature	Spec
SKU	201813 / CW-144-15
Weight (in lbs)	15
Brand/Manufacturer	Online Supply
UPC	na
Liquid Line	1/4"
Suction Line	3/8"
Length	15'
Height	1/2"
Width	1/2"
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 25 feet
Feature	Spec
SKU	366390 / CW-144-25
Weight (in lbs)	25
Brand/Manufacturer	Online Supply
UPC	na
Length	25'
Height	1/2"
Width	1/2"
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 30 feet
Feature	Spec
SKU	216740 / CW-144-30
Weight (in lbs)	30
Brand/Manufacturer	Online Supply
UPC	na
Length	30'
Height	1/2"
Width	1/2"
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 35 feet
Feature	Spec
SKU	366395 / CW-144-35
Weight (in lbs)	35
Brand/Manufacturer	Online Supply
UPC	na
Length	35'
Height	1/2"
Width	1/2"
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 50 feet
Feature	Spec
SKU	366396 / CW-144-50
Weight (in lbs)	45
Brand/Manufacturer	Online Supply
UPC	na
Length	50'
Height	1/2"
Width	1/2"
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
LG - PREMTC200 - Simple Wired Remote Controller
Feature	Spec
SKU	PREMTC200
Weight (in lbs)	5
Brand/Manufacturer	LG
UPC	195174128145
Refrigerant	R32
Electrical	208/230v 1 Phase 60 Hz
Max Breaker Size	15 Amps
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
LG - PREMTB101 - Wired Remote Controller
Feature	Spec
SKU	PREMTB101
Weight (in lbs)	1.18
Brand/Manufacturer	LG
UPC	195174067062
Height	2.48
Width	10.51
Depth	6.22
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
LG Deluxe Wired Remote Controller
Feature	Spec
SKU	PREMTAB31
Weight (in lbs)	1.13
Brand/Manufacturer	LG
Replaces	SKU: PREMTA201
UPC	8806091933034
Electrical	12VDC Power From Indoor Unit
Height	4.34"
Width	4.34"
Depth	0.91"
Operating Temperature	32°F ~104°F
Resources	Submittal
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
