Today's Hours 8am - 11pm estLG 30,000 BTU Multi F LGRED 20 SEER2 4 Zone Wall Mounted Mini Split Heat Pump System - R32 | 230V - 7 + 7 + 7 + 7
Required Fields *
By
LG
In stock
Model
KUMXA301A / 4-KNMAB071A
ID
233039
Was $7,561.00
Your Low Price $6,527.00
ONLY 1 LEFT!
Free Shipping

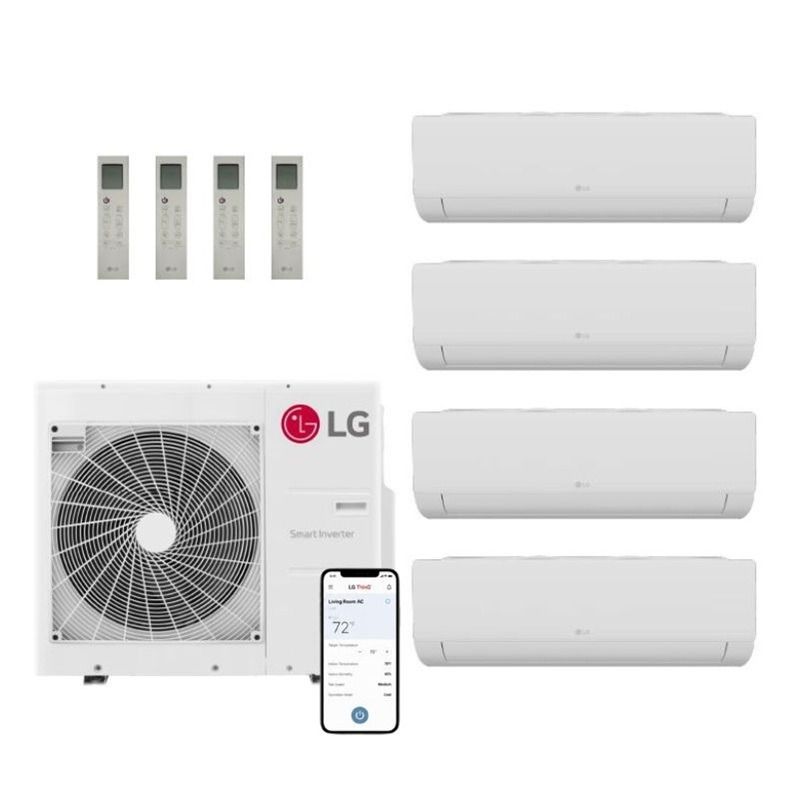

LG 30,000 BTU Multi F LGRED 20 SEER2 4‑Zone Wall‑Mounted Mini‑Split Heat Pump System – R32 | 230V – 7 + 7 + 7 + 7
Designed to efficiently heat and cool up to four zones totaling approximately 1,200–1,400 sq ft, this 30,000 BTU Multi F LGRED system is ideal for multi‑room homes, offices, or light‑commercial spaces. With advanced inverter technology, R32 refrigerant, and built‑in Wi‑Fi compatibility, it delivers powerful, energy‑efficient comfort across multiple rooms while helping lower utility bills.
Key Features
- Covers up to approximately 1,200–1,400 sq ft across four zones
- 20 SEER2 efficiency with LGRED inverter technology
- Built‑in Wi‑Fi compatibility for seamless smart‑home integration and remote control
- Excellent cold climate performance, operating down to –13F in heating mode with LGRED heat technology
Feature Highlights
Efficiency (SEER2)
A 20 SEER2 rating means this multi‑zone system delivers strong cooling performance while using less energy than standard mini‑split units. The outdoor unit’s inverter‑driven compressor continuously adjusts output instead of cycling on and off, maintaining consistent temperatures and reducing power waste. This combination helps keep energy costs lower over time without sacrificing comfort.
Quiet Operation
LG’s indoor wall‑mounted units are engineered for quiet, low‑noise operation, making them ideal for bedrooms, home offices, and common living areas. The outdoor condenser is also designed to minimize sound, even at full load. This allows you to enjoy cooling and heating without intrusive mechanical noise.
Right‑Sized Power
With a 30,000 BTU outdoor unit and four 7,000 BTU indoor heads, this system is well‑matched to small to medium‑sized rooms grouped into four zones. Each indoor unit can run independently, so you only cool or heat the spaces you’re using. This zoning capability maximizes comfort while avoiding oversized or under‑sized equipment.
What’s Included
- Outdoor condenser — 30,000 BTU cooling/heating output, R32 refrigerant, 20 SEER2 rated efficiency
- Four indoor wall‑mounted air handlers — 7,000 BTU each, designed for quiet operation and coverage of ~250–350 sq ft per room
- Wireless remote control
- Installation manual
Recommended Accessories
- Refrigerant line set
- Wall bracket or condenser pad for the outdoor unit
- Drain hose and insulation kit for each indoor unit
Warranty
LG products include a 10‑year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
30k BTU Multi Zone Condenser w/ Cold Climate Technology
30,000 BTU LG LGRED® Multi Zone Mini Split Heat Pump Condenser – R32 | 230V
This outdoor mini split condenser provides efficient heating and cooling performance for single-zone LGRED® applications. When paired with a compatible LG indoor air handler, it supports comfort for spaces approximately 1,250 to 1,750 sq ft.
Key Features
- Inverter Variable-Speed Compressor: Adjusts compressor speed to maintain consistent indoor temperatures while helping reduce energy consumption.
- 30,000 BTU Capacity: Provides heating and cooling capacity for compatible LG Multi F multi-zone applications.
- LGRED° Heat Technology: Delivers reliable heating performance in extreme winter weather for enhanced cold-climate comfort.
- Compact Outdoor Design: Offers flexible placement options to accommodate different installation spaces.
- Quiet Outdoor Operation: Engineered to help minimize operating noise for a more comfortable environment.
- Flexible Indoor Unit Compatibility: Works with compatible ducted and duct-free indoor units to support a variety of installation needs.
Warranty
LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
7k BTU High Efficiency Wall Mount
LG 7,000 BTU Single Zone Wall Mount High Efficiency Mini Split Air Handler - R32 | 230V
This wall-mount mini split air handler is designed to deliver quiet, efficient airflow for bedrooms, offices, and small living spaces. It supports comfort for rooms up to 200-300 sq ft when paired with a compatible outdoor condenser.
Key Features
- 7,000 BTU Capacity: Provides reliable cooling and heating output for multi-zone applications in small‑sized rooms.
- High-Efficiency Heating and Cooling: Delivers energy-conscious comfort for residential spaces with efficient temperature control.
- Multi-Zone System Compatibility: Connects with compatible LG Multi F outdoor units to provide personalized heating and cooling in individual rooms or zones.
- R32 Refrigerant: Uses R32 refrigerant in compatible models for LG's newer high-efficiency systems.
- Inverter Technology: Adjusts system output based on heating and cooling demand to maintain consistent comfort and manage energy use.
- Wall-Mounted Duct-Free Design: Installs directly on an interior wall without conventional ductwork, making it suitable for room additions, renovations, and spaces where extending existing ducts is impractical.
- Quiet Indoor Operation: Provides comfortable heating and cooling for living rooms, bedrooms, and home offices.
- Wireless Remote Control: Allows users to adjust temperature settings, operating modes, and fan speed from the room.
- LG ThinQ® Smart Control Compatibility: Select compatible configurations support remote monitoring and control through the LG ThinQ app.
Compatibility
This indoor air handler is compatible with LG multi-zone outdoor systems designed for R32 refrigerant and matching high‑efficiency indoor‑outdoor pairings. It must be installed with a compatible outdoor unit to operate properly.
Warranty
When installed and registered according to LG requirements, LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
15 feet - 1/4" and 3/8" Line Set
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
25 feet - 1/4" and 3/8" Line Set
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Equipment Pad
E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
- High recycled plastic content
- Subtle texture resists unit slide
- Unaffected by UV or weather
- Uniform ribbing transfers load evenly
- Drillable for securing unit
- Lightweight, yet rugged
No Return Policy
All sales of this product are final and are non-refundable.
Installation Kit for Condensers with 3/4" Whip
Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
What’s Included:
- 3/4" x 6' Electrical Whip – SKU: 84138
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
30 feet - 1/4" and 3/8" Line Set
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
35 feet - 1/4" and 3/8" Line Set
This insulated refrigerant line set for mini split systems comes as a pair, including both the liquid line and suction line. It is used to connect the indoor air handler to the outdoor condenser. The line set is 35’ feet long. The liquid line has 1/4 inch outside diameter flared ends. The suction line has 3/8 inch outside diameter flared ends.
Features:
- Insulated
- Flared Line Ends
- Heavy Duty Refrigerant Lines
Condenser Risers - 4" x 18" - 2 Pack
Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.
Features
- Ideal for piping, duct runs, cable trays and condensers
- Weather resistant PVC
- Linear track holds 3/8" hex head bolts
- Two 7/8" long bolts included
- Weighs up to 397 Ib
50 feet - 1/4" and 3/8" Line Set
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Equipment Pad and Risers Kit
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
- Reliable Support: Abundance of ridges for stable ground support.
- Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
- Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
- Simple Appearance: Gray color with size labels.
- Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
- Weather Resistance: Made from tough PVC for long-lasting performance.
- Secure Setup: The track securely holds bolts in place.
- Bolts Included: Each set comes with two bolts.
- Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
30" Wall Mount Bracket
This wall mount bracket is perfect for outdoor condensers. The length of the wall bracket arms are 30" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).
Features:
- Steel: 10 GA
- Powder-coated grey Finish
- Load rating: 600 lbs per pair
- Holes will accommodate anchors for installation
- Warranty: 1 year
No Return Policy
All sales of this product are final and are non-refundable.
