Today's Hours 8am - 11pm estLG 30,000 BTU Multi F LGRED 20 SEER2 4 Zone Wall Mounted Mini Split Heat Pump System - R32 | 230V - 7 + 7 + 7 + 15
Required Fields *
By
LG
In stock
Model
KUMXA301A / 3-KNMAB071A / KNMAB151A
ID
233042
Was $7,900.00
Your Low Price $6,318.00

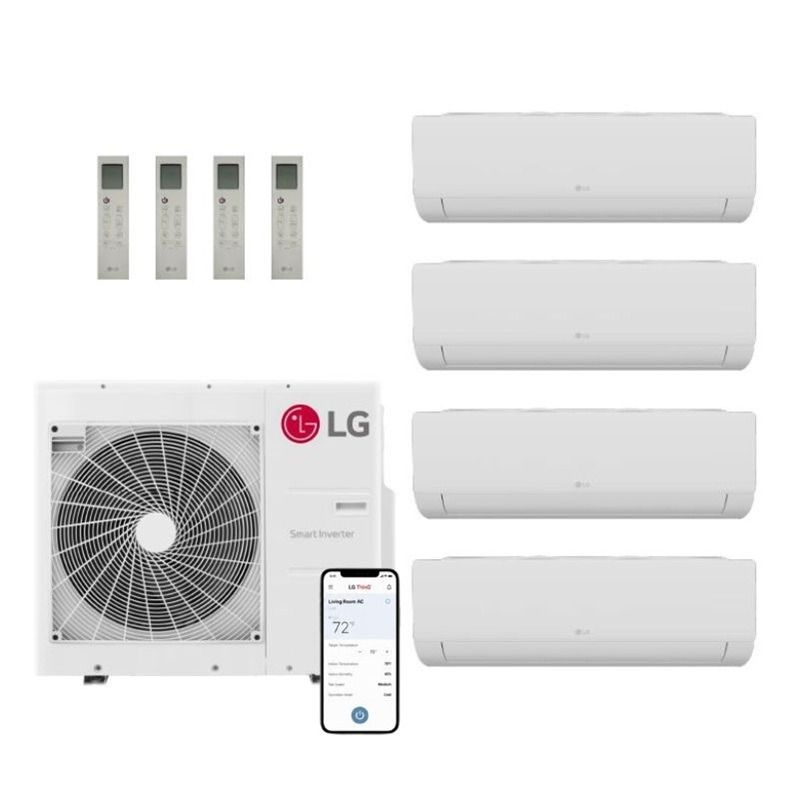

LG 30,000 BTU Multi F LGRED 20 SEER2 4 Zone Wall Mounted Mini Split Heat Pump System - R32 | 230V - 7 + 7 + 7 + 15
This LG Multi F LGRED 30,000 BTU 4-zone mini split system delivers efficient year-round comfort for small to medium homes or multi-room spaces. With four independently controlled indoor units, it allows personalized temperature control in each zone while maintaining strong energy efficiency and quiet operation. Ideal for bedrooms, living rooms, offices, and light commercial applications.
Key Features
- Covers up to approx. 1,500 sq ft
- 20 SEER2 efficiency
- Inverter-driven compressor for precise temperature control and energy savings
- Built-in Wi-Fi compatibility for smart remote access and control
- Reliable cold climate performance for consistent heating in low outdoor temperatures
Feature Highlights
Efficiency (SEER2)
With a 20 SEER2 rating, this system is designed to reduce energy consumption while maintaining consistent comfort. The inverter technology continuously adjusts output rather than cycling on and off, helping improve efficiency and lower utility costs over time.
Quiet Operation
Engineered for low-noise performance, the indoor air handlers operate quietly enough for bedrooms, home offices, and living areas. This ensures comfort without disruptive background noise, even during continuous operation.
Right-Sized Power
The 30,000 BTU capacity is well-suited for multi-room applications, typically supporting up to four zones with balanced performance. This makes it ideal for homes requiring flexible comfort control across several living spaces without oversizing energy use.
What’s Included
- Outdoor condenser — 30,000 BTU / 20 SEER2
- Indoor air handlers — (7 + 7 + 7 + 15 BTU configuration)
- Wireless remote control
- Installation manual
Recommended Accessories
- Refrigerant line set
- Wall bracket or condenser pad
- Drain hose and insulation kit
Warranty
LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
30k BTU Multi Zone Condenser w/ Cold Climate Technology
30,000 BTU LG LGRED® Multi Zone Mini Split Heat Pump Condenser – R32 | 230V
This outdoor mini split condenser provides efficient heating and cooling performance for single-zone LGRED® applications. When paired with a compatible LG indoor air handler, it supports comfort for spaces approximately 1,250 to 1,750 sq ft.
Key Features
- High-efficiency inverter-driven performance
- 30,000 BTU capacity for single-zone systems
- Compact outdoor design for flexible placement
- Engineered for quiet outdoor operation
- Pairs with compatible LG indoor air handlers
Warranty
LG products include a 10-year warranty when installation is completed by a licensed contractor and the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
7k BTU High Efficiency Wall Mount
LG 7,000 BTU Single Zone Wall Mount High Efficiency Mini Split Air Handler - R32 | 230V
This wall-mount mini split air handler is designed to deliver quiet, efficient airflow for bedrooms, offices, and small living spaces. It supports comfort for rooms up to 200-300 sq ft when paired with a compatible outdoor condenser.
Key Features
- Ultra-quiet indoor operation with sound levels down to 26-35 dB, ideal for noise-sensitive areas like bedrooms and home offices
- 7,000 BTU cooling for dependable year-round comfort in a single zone indoor space
- Wall-mounted Multi F indoor unit using R32 refrigerant for high efficiency performance in a slim, modern cabinet
- Jet Cool and Jet Heat modes for rapid temperature pull-down or warm-up when you need fast comfort
- Compact, lightweight indoor chassis with 1/4" liquid and 3/8" gas line connections to simplify installation and routing
Warranty
When installed and registered according to LG requirements, LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
15K BTU High Efficiency Wall Mount
LG 15,000 BTU Multi Zone Wall Mount High Efficiency Mini Split Air Handler - R32 | 230V
This wall-mount mini split air handler delivers quiet, efficient comfort for bedrooms, offices, and living areas up to 600–1,000 sq ft with 15,000 BTU cooling when paired with a compatible outdoor condenser.
Key Features
- Quiet indoor operation from 30 dB, perfect for noise-sensitive areas like bedrooms and home offices
- 15,000 BTU cooling capacity for reliable year-round comfort in a single zone indoor space
- Sleek wall-mounted Multi F unit with R32 refrigerant for high-efficiency performance in a slim cabinet
- Jet Cool and Jet Heat modes for rapid temperature changes when you need fast comfort
- Compact chassis with 1/4"" liquid and 1/2"" gas lines to streamline installation and routing
LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
15 feet - 1/4" and 3/8" Line Set
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
25 feet - 1/4" and 3/8" Line Set
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Equipment Pad
E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
- High recycled plastic content
- Subtle texture resists unit slide
- Unaffected by UV or weather
- Uniform ribbing transfers load evenly
- Drillable for securing unit
- Lightweight, yet rugged
No Return Policy
All sales of this product are final and are non-refundable.
Installation Kit for Condensers
Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
What’s Included:
- 3/4" x 6' Electrical Whip – SKU: 84138
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
30 feet - 1/4" and 3/8" Line Set
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
35 feet - 1/4" and 3/8" Line Set
This insulated refrigerant line set for mini split systems comes as a pair, including both the liquid line and suction line. It is used to connect the indoor air handler to the outdoor condenser. The line set is 35’ feet long. The liquid line has 1/4 inch outside diameter flared ends. The suction line has 3/8 inch outside diameter flared ends.
Features:
- Insulated
- Flared Line Ends
- Heavy Duty Refrigerant Lines
Condenser Risers - 4" x 18" - 2 Pack
Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.
Features
- Ideal for piping, duct runs, cable trays and condensers
- Weather resistant PVC
- Linear track holds 3/8" hex head bolts
- Two 7/8" long bolts included
- Weighs up to 397 Ib
50 feet - 1/4" and 3/8" Line Set
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Equipment Pad and Risers Kit
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
- Reliable Support: Abundance of ridges for stable ground support.
- Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
- Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
- Simple Appearance: Gray color with size labels.
- Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
- Weather Resistance: Made from tough PVC for long-lasting performance.
- Secure Setup: The track securely holds bolts in place.
- Bolts Included: Each set comes with two bolts.
- Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
30" Wall Mount Bracket
This wall mount bracket is perfect for outdoor condensers. The length of the wall bracket arms are 30" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).
Features:
- Steel: 10 GA
- Powder-coated grey Finish
- Load rating: 600 lbs per pair
- Holes will accommodate anchors for installation
- Warranty: 1 year
- ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)
No Return Policy
All sales of this product are final and are non-refundable.
