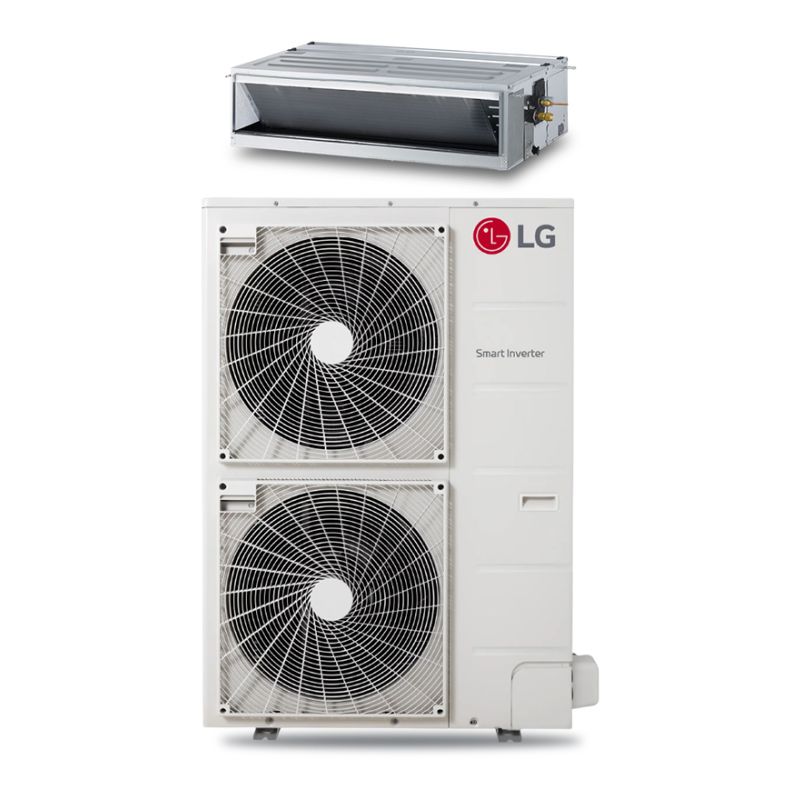

LG 36,000 BTU Multi F 22 SEER2 Single Zone Concealed Duct Mini Split Heat Pump System - R32 | 230V

Name: LG 36,000 BTU Multi F 22 SEER2 Single Zone Concealed Duct Mini Split Heat Pump System - R32 | 230V
Brand: LG
SKU: KUSXB361A / KNUJB361A
Price: 5015 USD
Availability: InStock

lg 36 000 btu multi f 22 seer2 single zone concealed duct mini split heat pump system r32 230v 235810

SAVE $1,255.00

Required Fields *

Be the first to review this product

Ships in 3-5 Business Days

Free Shipping

LG

In stock

Model

KUSXB361A / KNUJB361A

235810

Was $6,270.00

Your Low Price $5,015.00

Customize LG 36,000 BTU Multi F 22 SEER2 Single Zone Concealed Duct Mini Split Heat Pump System - R32 | 230V

See what is Included

3 Ton High Efficiency Single Zone Condenser

Heat Pump Condenser

Quantity

3 Ton High Efficiency Single Zone Condenser

3 Ton High Efficiency Single Zone Condenser + $3,093.00

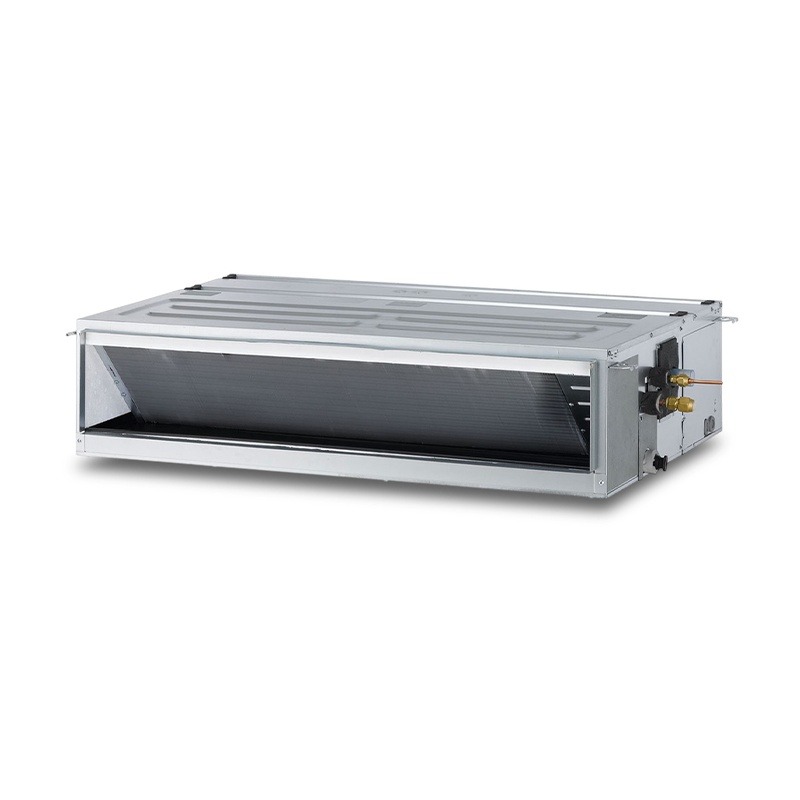

36k BTU Medium Static Pressure Concealed Duct

Zone 1

Quantity

36k BTU Medium Static Pressure Concealed Duct

36k BTU Medium Static Pressure Concealed Duct + $1,922.00

Choose Your Accessories

Line Set + Control Wire

Quantity

Mounting Options

Quantity

Install Kit w/ Surge Protector

Quantity

Thermostat

Quantity

Qty

$5,015.00

Product Specs

More Information
LG 3 Ton 17.5 SEER2 High Efficiency Heat Pump Condenser \| Inverter - R32
Feature	Spec
SKU	KUSXB361A
Refrigerant Charge	106 oz (Pre-charged for 24.6 ft line set)
Weight (in lbs)	214.3
AHRI Certificate Number	217284914
Brand/Manufacturer	LG
UPC	195174085721
Cooling BTU	33,000 BTU
Heating BTU	40,000 BTU
Decibel Level (dBA)	54 dBA
Electric Heat	Heat Pump
Energy Star	Yes
Refrigerant	R32
HSPF2	9.5
SEER2 (Efficiency)	17.5
EER2	11.8
Condenser Stages	Variable Speed
Compressor Type	Scroll
Liquid Line	3/8"
Suction Line	5/8"
Liquid Valve Size	3/8"
Suction Valve Size	5/8"
Electrical	208-230V 1 Phase 60Hz
Max Breaker Size	35 Amps
Min. Breaker Size	32 Amps
Tonnage	3 Ton
Min/Max Outdoor Temp for Heating	-4°F - 64°F
Min/Max Outdoor Temp for Cooling	5°F - 118°F
Zone Compatibility	Single Zone
Ambient Temperature Range	-4 - 118°F
Height	32 27/32"
Width	37 13/32"
Depth	13"
Warranty	10 Years Compressor and 10 Years Parts with Online Registration
Resources	KUSXB361A / KNSLB361A Submittal KUSXB361A Submittal Sheet (Single Zone Mid Static Ducted) KUSXB361A Submittal Sheet (Ceiling Cassette) KUSXB Installation Manual KUSXB / KNSLB Engineering Manual LG R32 Residential System Warranty You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
LG 36,000 BTU Multi F Mid Static Multi Zone Concealed Duct Mini Split Air Handler - R32\| 230V
Feature	Spec
SKU	KNUJB361A
Weight (in lbs)	85.3
Brand/Manufacturer	LG
UPC	195174080535
Controller	Wireless Included
Cooling BTU	36,000 BTU
Heating BTU	40,000 BTU
Maximum CFM	1,130 Hi / 989 Med / 848 Lo CFM (Airflow)
Decibel Level (dBA)	33-36 dBA
Refrigerant	R32
Liquid Line	3/8"
Suction Line	5/8"
Electrical	208-230V \| 1Phase \| 60Hz
BTU/Tonnage	36,000 BTU/3 Ton
Mini Split Type	Concealed Duct
Zone Compatibility	Single Zone
Height	10.62"
Width	49.18"
Depth	27.25"
Warranty	10 Year Compressor / 7 Years Parts Warranty with Online Registration
Resources	Submittal Engineering Manual Install Manual You will need AdobeA® AcrobatA® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
Feature	Spec
SKU	87762 / EL1838-3
Weight (in lbs)	25
Brand/Manufacturer	Online Supply
UPC	na
Height	3"
Width	18"
Depth	38"
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Installation Kit for Condensers - Accessory Set
Feature	Spec
SKU	MSK001
Weight (in lbs)	15
Brand/Manufacturer	Online Supply
UPC	na
Resources	Surge Protector Install Guide You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
30" Wall Mount Bracket for Mini Split Systems
Feature	Spec
SKU	ACB-30
Weight (in lbs)	9.2
Brand/Manufacturer	Online Supply
Length	30"
Height	16"
Width	2"
Resources	Installation Manual Data Sheet You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
LG - PREMTC200 - Simple Wired Remote Controller
Feature	Spec
SKU	PREMTC200
Weight (in lbs)	5
Brand/Manufacturer	LG
UPC	195174128145
Refrigerant	R32
Electrical	208/230v 1 Phase 60 Hz
Max Breaker Size	15 Amps
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
LG - PREMTB101 - Wired Remote Controller
Feature	Spec
SKU	PREMTB101
Weight (in lbs)	1.18
Brand/Manufacturer	LG
UPC	195174067062
Height	2.48
Width	10.51
Depth	6.22
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
LG Deluxe Wired Remote Controller
Feature	Spec
SKU	PREMTAB31
Weight (in lbs)	1.13
Brand/Manufacturer	LG
Replaces	SKU: PREMTA201
UPC	8806091933034
Electrical	12VDC Power From Indoor Unit
Height	4.34"
Width	4.34"
Depth	0.91"
Operating Temperature	32°F ~104°F
Resources	Submittal
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 3/8" and 5/8" Line Ends & Control Wire - 15 feet
Feature	Spec
SKU	221885 / CW-144-15
Weight (in lbs)	15
Brand/Manufacturer	Online Supply
UPC	na
Length	25'
Height	1/2"
Width	1/2"
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 3/8" and 5/8" Line Ends & Control Wire - 25 feet
Feature	Spec
SKU	366426 / CW-144-25
Weight (in lbs)	25
Brand/Manufacturer	Online Supply
UPC	na
Length	25'
Height	1/2"
Width	1/2"
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 3/8" and 5/8" Line Ends & Control Wire - 30 feet
Feature	Spec
SKU	216748 / CW-144-30
Weight (in lbs)	30
Brand/Manufacturer	Online Supply
UPC	na
Length	30'
Height	1/2"
Width	1/2"
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 3/8" and 5/8" Line Ends & Control Wire - 35 feet
Feature	Spec
SKU	366427 / CW-144-35
Weight (in lbs)	35
Brand/Manufacturer	Online Supply
UPC	na
Length	35'
Height	1/2"
Width	1/2"
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 3/8" and 5/8" Line Ends & Control Wire - 50 feet
Feature	Spec
SKU	366428 / CW-144-50
Weight (in lbs)	45
Brand/Manufacturer	Online Supply
UPC	na
Length	50'
Height	1/2"
Width	1/2"
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
