LG 48,000 BTU LGRED 17.8 SEER2 Single Zone Ceiling Cassette Mini Split Heat Pump System - R32 | 230V

Name: LG 48,000 BTU LGRED 17.8 SEER2 Single Zone Ceiling Cassette Mini Split Heat Pump System - R32 | 230V
Brand: LG
SKU: KUSXA481A / KNSCB481A
Price: 8294 USD
Availability: InStock

SAVE $1,996.00

Required Fields *

Be the first to review this product

Ships in 5-7 Business Days

Free Shipping

LG

In stock

Model

KUSXA481A / KNSCB481A

235828

Was $10,290.00

Your Low Price $8,294.00

Customize LG 48,000 BTU LGRED 17.8 SEER2 Single Zone Ceiling Cassette Mini Split Heat Pump System - R32 | 230V

See what is Included

Heat Pump Condenser

Quantity

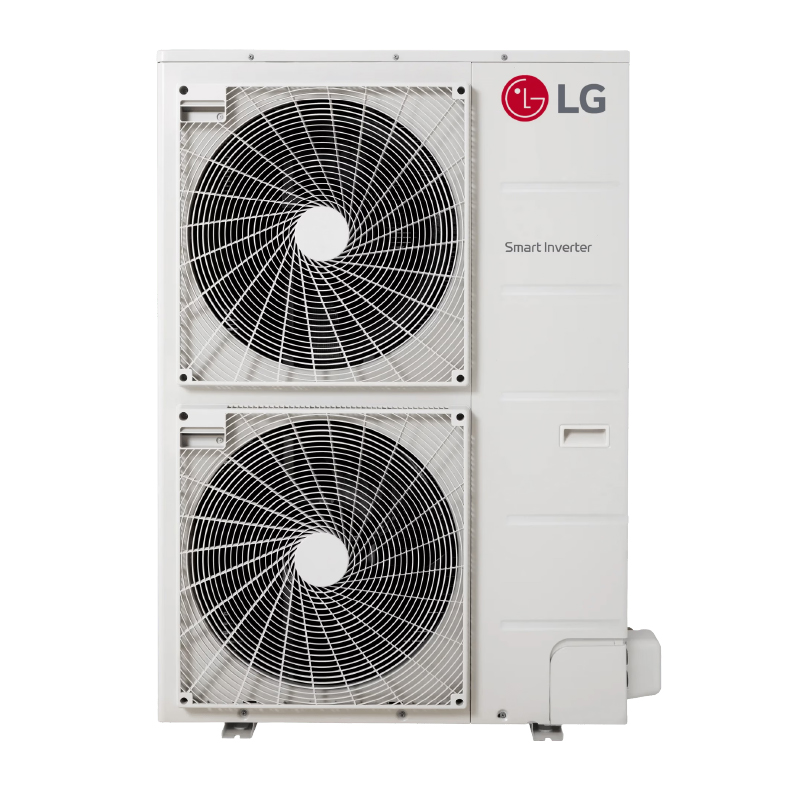

4 Ton LGRED Multi Zone Condenser

4 Ton LGRED Multi Zone Condenser + $5,172.00

Zone 1

Quantity

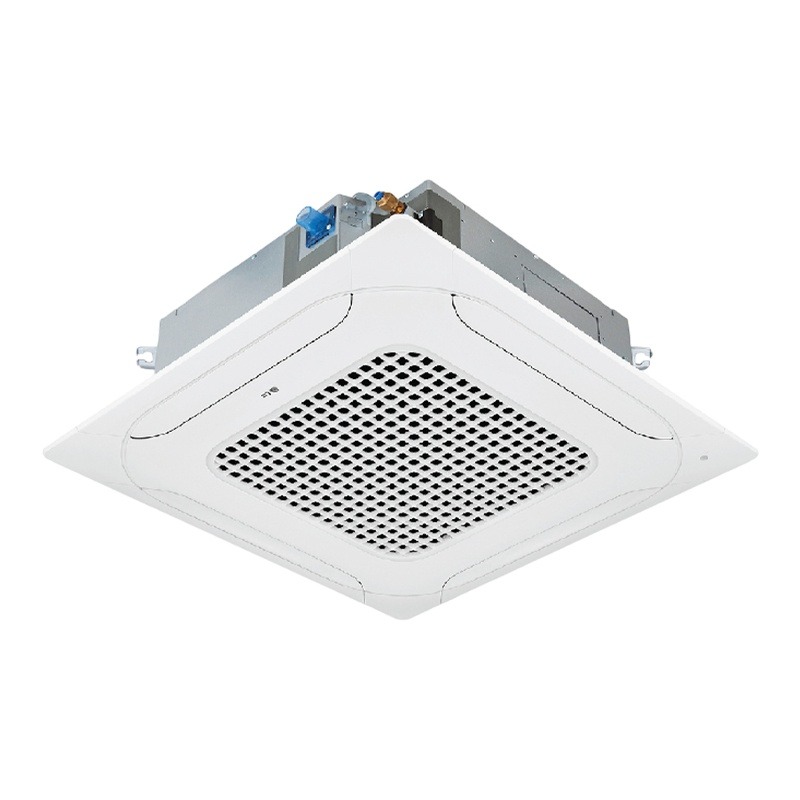

48k BTU Four-Way Ceiling Cassette

48k BTU Four-Way Ceiling Cassette + $2,809.00

Grille

Quantity

LG Standard Panel

LG Standard Panel + $313.00

Choose Your Accessories

Line Set + Control Wire

Quantity

Mounting Options

Quantity

Install Kit w/ Surge Protector

Quantity

Thermostat

Quantity

Qty

$8,294.00

Product Specs

More Information
LG 4 Ton 20.9 SEER LGRED High Efficiency Heat Pump Condenser - R32 \| 230V
Feature	Spec
SKU	KUSXA481A
Refrigerant Charge	7.5 lbs (Pre-charged for 24.6 ft line set)
Weight (in lbs)	238.1
AHRI Certificate Number	214837931
Brand/Manufacturer	LG
UPC	195174085752
Cooling BTU	48,000 BTU
Heating BTU	52,000 BTU
Decibel Level (dBA)	56 dBA
Energy Star	Yes
Refrigerant	R32
HSPF2	9.3
SEER2 (Efficiency)	20.9
EER2	12.7
Liquid Line	3/8"
Suction Line	5/8"
Electrical	208-230V \| 1Phase \| 60Hz
Max Breaker Size	40 Amps
Min. Breaker Size	32 Amps
BTU/Tonnage	48,000 BTU/4 Ton
Min/Max Outdoor Temp for Heating	-13°F - 64°F
Min/Max Outdoor Temp for Cooling	5°F - 118°F
Zone Compatibility	Single Zone
Height	57.60"
Width	18.15"
Depth	45.16"
Warranty	LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
Resources	Submittal KSSJA481A Submittal Sheet (Single Zone Mid Static Ducted) KSSCA481A Submittal Sheet (Ceiling Cassette) Engineering Manual Install Manual You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
LG 48,000 BTU Multi F Single Zone Ceiling Cassette Mini Split Air Handler - R32\| 230V
Feature	Spec
SKU	KNSCB481A
Weight (in lbs)	74.3
Brand/Manufacturer	LG
UPC	195174090459
Controller	Wireless Included
Cooling BTU	48,000 BTU
Heating BTU	51,000 BTU
Maximum CFM	1,130 Hi / 953 Med / 812 Lo CFM (Airflow)
Decibel Level (dBA)	41-46 dBA
Refrigerant	R32
Liquid Line	3/8"
Suction Line	5/8"
Electrical	208-230V \| 1Phase \| 60Hz
BTU/Tonnage	48,000 BTU/4 Ton
Mini Split Type	Ceiling Cassette
Zone Compatibility	Multi Zone
Height	14.17"
Width	36.1"
Depth	36.3"
Warranty	10 Year Compressor / 7 Years Parts Warranty with Online Registration
Resources	Submittal Engineering Manual Install Manual You will need AdobeA® AcrobatA® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
LG Standard Panel
Feature	Spec
SKU	PT-AAGW0
Weight (in lbs)	16
Brand/Manufacturer	LG
UPC	8806098732029
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
Feature	Spec
SKU	87762 / EL1838-3
Weight (in lbs)	25
Brand/Manufacturer	Online Supply
UPC	na
Height	3"
Width	18"
Depth	38"
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Installation Kit for Condensers - Accessory Set
Feature	Spec
SKU	MSK001
Weight (in lbs)	15
Brand/Manufacturer	Online Supply
UPC	na
Resources	Surge Protector Install Guide You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
30" Wall Mount Bracket for Mini Split Systems
Feature	Spec
SKU	ACB-30
Weight (in lbs)	9.2
Brand/Manufacturer	Online Supply
Length	30"
Height	16"
Width	2"
Resources	Installation Manual Data Sheet You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 3/8" and 5/8" Line Ends & Control Wire - 15 feet
Feature	Spec
SKU	221885 / CW-144-15
Weight (in lbs)	15
Brand/Manufacturer	Online Supply
UPC	na
Length	25'
Height	1/2"
Width	1/2"
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 3/8" and 5/8" Line Ends & Control Wire - 25 feet
Feature	Spec
SKU	366426 / CW-144-25
Weight (in lbs)	25
Brand/Manufacturer	Online Supply
UPC	na
Length	25'
Height	1/2"
Width	1/2"
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 3/8" and 5/8" Line Ends & Control Wire - 30 feet
Feature	Spec
SKU	216748 / CW-144-30
Weight (in lbs)	30
Brand/Manufacturer	Online Supply
UPC	na
Length	30'
Height	1/2"
Width	1/2"
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 3/8" and 5/8" Line Ends & Control Wire - 35 feet
Feature	Spec
SKU	366427 / CW-144-35
Weight (in lbs)	35
Brand/Manufacturer	Online Supply
UPC	na
Length	35'
Height	1/2"
Width	1/2"
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 3/8" and 5/8" Line Ends & Control Wire - 50 feet
Feature	Spec
SKU	366428 / CW-144-50
Weight (in lbs)	45
Brand/Manufacturer	Online Supply
UPC	na
Length	50'
Height	1/2"
Width	1/2"
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
LG - PREMTC200 - Simple Wired Remote Controller
Feature	Spec
SKU	PREMTC200
Weight (in lbs)	5
Brand/Manufacturer	LG
UPC	195174128145
Refrigerant	R32
Electrical	208/230v 1 Phase 60 Hz
Max Breaker Size	15 Amps
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
LG - PREMTB101 - Wired Remote Controller
Feature	Spec
SKU	PREMTB101
Weight (in lbs)	1.18
Brand/Manufacturer	LG
UPC	195174067062
Height	2.48
Width	10.51
Depth	6.22
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
LG Deluxe Wired Remote Controller
Feature	Spec
SKU	PREMTAB31
Weight (in lbs)	1.13
Brand/Manufacturer	LG
Replaces	SKU: PREMTA201
UPC	8806091933034
Electrical	12VDC Power From Indoor Unit
Height	4.34"
Width	4.34"
Depth	0.91"
Operating Temperature	32°F ~104°F
Resources	Submittal
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
