LG 48,000 BTU 20.8 SEER2 3 Zone Wall Mount Mini Split Heat Pump System R32 | 230V 12 + 12 + 12
The LG Multi F MAX 12 + 12 + 12 configuration is a heavy duty multi zone solution designed to provide massive climate control capacity for approximately 1,200–1,800 sq ft. By pairing a high output 48,000 BTU outdoor condenser with three 12,000 BTU indoor units, this system is the perfect choice for large master suites, open concept living areas, or multi room commercial spaces that require rapid temperature adjustments and consistent performance in extreme weather conditions.
Key Features
- Covers up to 1,800 sq ft (ideal for three large 400–600 sq ft zones)
- High efficiency 20.8 SEER2 rating
- LG Inverter Technology for whisper quiet operation and precise temperature maintenance
- Superior heating and cooling reserves for large scale residential or light commercial use
Feature Highlights
Efficiency (SEER2)
Boasting a 20.8 SEER2 rating, this system is engineered to provide maximum thermal comfort while significantly reducing energy waste. By utilizing a variable speed compressor, it consumes only the power necessary to maintain your desired temperature, leading to substantial savings on monthly utility bills.
Quiet Operation
Designed with the homeowner’s peace in mind, LG’s indoor units feature a unique skew fan and Brushless DC (BLDC) motor technology. Operating at sound levels as low as 19–23 dB, this system provides a powerful climate solution that remains virtually silent, making it ideal for bedrooms and home offices.
Right Sized Power
The "MAX" series 48,000 BTU condenser provides an incredible amount of power for this three zone configuration. This ensures that even when all three 12,000 BTU units are working at peak demand, the system has the "headroom" to maintain performance without straining, extending the overall lifespan of the equipment.

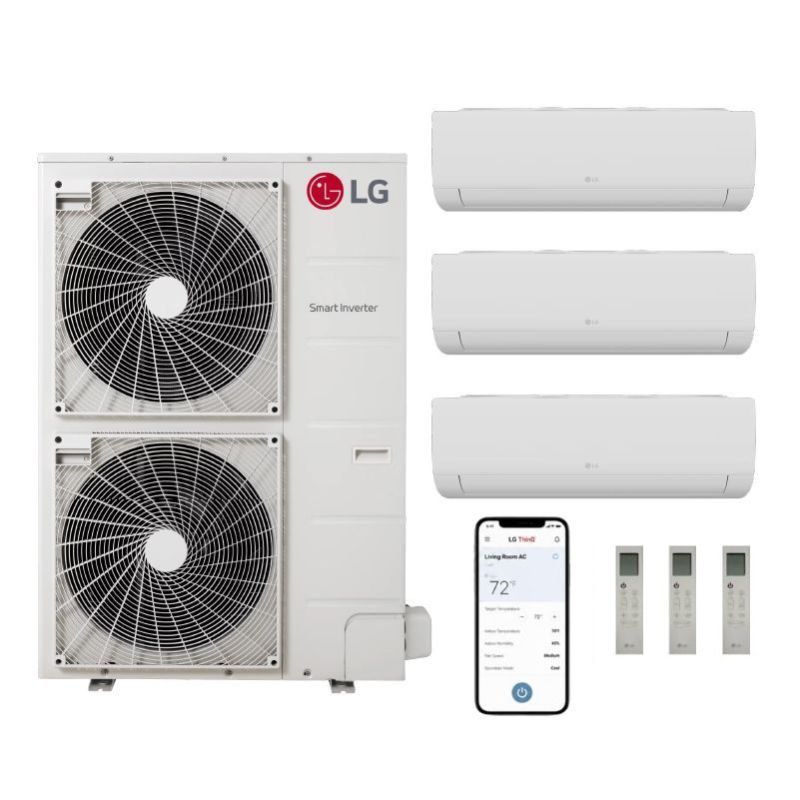

What’s Included
- Outdoor Condenser (LMU483HV) — 48,000 BTU / 20.8 SEER2
- (3) Indoor Air Handlers (LMN123HVT) — 12,000 BTU units with multi stage filtration
- (3) Wireless Remote Controls for independent zone management
- Installation and Operations Manual
Recommended Accessories
- Refrigerant Line Sets (3 sets of 1/4" x 3/8" required)
- Heavy Duty Wall Bracket or Ground Condenser Pad
- Drain Hose and Decorative Line Set Covers (Slimduct)
Warranty
LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
``
48k BTU Multi Zone Condenser48,000 BTU LG Multi Zone Mini Split Heat Pump Condenser - R32 | 230V
This outdoor mini split condenser provides efficient heating and cooling performance for single-zone applications. When paired with a compatible indoor air handler, it supports comfort for spaces up to 1700-2100sq ft.
Key Features
- High-efficiency inverter-driven performance
- 48,000 BTU capacity for single-zone systems
- Compact outdoor design for flexible placement
- Engineered for quiet outdoor operation
- Pairs with compatible Carrier Infinity air handlers
Warranty
LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
12k BTU High Efficiency Wall MountThe 12,000 BTU LG High Efficiency Single Zone Wall Mount Mini Split Air Handler is designed to condition rooms up to approximately 550 square feet with quiet, energy‑efficient performance. Its compact, high‑efficiency design delivers strong cooling and heating output while helping to reduce energy use in bedrooms, offices, and medium‑sized living spaces.
Key Features
- 12,000 BTU Capacity: Provides reliable cooling and heating output for single‑zone applications in medium‑sized rooms.
- High‑Efficiency Operation: Engineered for improved efficiency using R32 refrigerant, supporting lower energy consumption while maintaining consistent comfort.
- Quiet Design: Capable of very low sound levels, making it suitable for spaces where quiet operation is important.
- 4‑Way Left‑Right / Up‑Down Swing: Helps distribute conditioned air more evenly across the room for improved coverage.
- Jet Cool / Jet Heat Mode: Temporarily increases fan speed and adjusts the setpoint to deliver faster cooling or heating for quicker comfort.
- Auto Operation: Continuously adjusts fan speed and refrigerant flow based on indoor conditions for more intelligent, balanced performance.
- Self‑Cleaning Indoor Coil: Automatically flushes moisture and debris from the coil to help maintain airflow and reduce odors over time.
- 3M Micro Dust Filter: A secondary filter that helps capture fine dust and airborne particles for improved indoor air quality.
- Sleep Mode and 24‑Hour Timer: Supports sleep mode and 24‑hour on/off timing for easier comfort scheduling and energy management.
- Auto Restart and Group Control: Auto restart resumes operation after a power interruption, while group control supports coordinated operation when multiple units are installed.
- Variable‑Speed Inverter Fan: Operates at varying speeds to match load conditions, helping maintain steady temperatures and reduce energy use.
- Wi‑Fi Ready via SmartThinQ: Compatible with built‑in Wi‑Fi for remote control and monitoring through a supported app when paired with the proper outdoor configuration.
- R32 Leak Detection Sensor: Monitors refrigerant conditions and helps support safer, code‑compliant installation with an R32‑specific leak‑detection system.
Compatibility
This indoor air handler is compatible with LG single‑zone outdoor systems designed for R32 refrigerant and matching high‑efficiency indoor‑outdoor pairings. It must be installed with a compatible outdoor unit to operate properly.
15 feet - 1/4" and 3/8" Line SetRefrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends,
length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line
and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
25 feet - 1/4" and 3/8" Line SetRefrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
LG Distribution Box 3 Ports For 3 Zone SystemsThis 3-port branch distribution box is designed for select LG Multi F MAX and Multi F MAX with LGRED outdoor units in 48,000 BTU systems and above. It helps distribute refrigerant from the outdoor condenser to compatible indoor units in multi-zone applications, allowing for more flexible and efficient system design. With support for connected indoor unit capacities from 7,000 to 24,000 BTU/h and a maximum combined nominal capacity of 72,000 BTU/h, it is built for reliable multi-zone performance in residential and light commercial installations. Designed for indoor installation, it is compatible with A2L systems.
30 feet - 1/4" and 3/8" Line SetRefrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends,
length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line
and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
50 feet - 1/4" and 3/8" Line SetRefrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends,
length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line
and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
