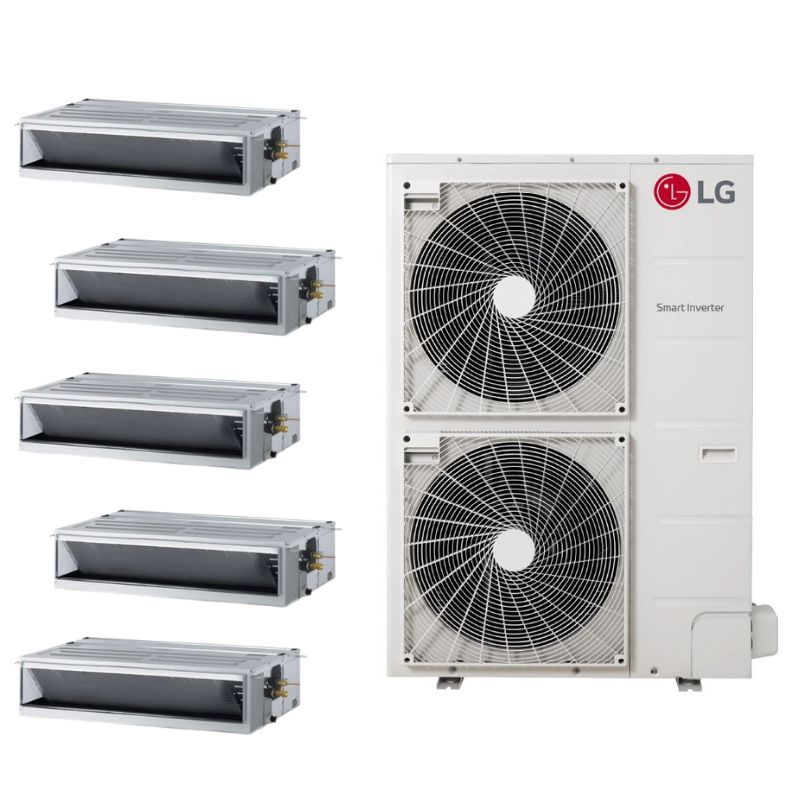

Today's Hours 8am - 11pm estLG 54,000 BTU 18.5 SEER2 5 Zone Concealed Duct Mini Split Heat Pump System - R32 | 230 V - 9 + 9 + 9 + 12 + 12
Required Fields *
By
LG
In stock
Model
KUMXB541A / 3-KNMKB091A / 2-KNMKB121A
ID
238816
Was $12,029.00
Your Low Price $9,621.00
Product Features
- 54,000 BTU Comfort For Rooms Up To 1,900-2,400 Sq Ft.
- High-Efficiency Performance with 18.5 SEER2
- Energy Efficient Inverter Heat Pump Performance
- Concealed Duct Design For A Clean, Hidden Look
- Independent Multi-Zone Temperature Control
- Quiet Indoor Comfort With Low Sound Operation
OVERVIEW
Experience the comfort of a traditional ducted HVAC system with the efficiency and flexibility of ductless technology with the LG 54,000 BTU 18.5 SEER2 5 Zone Concealed Duct Mini Split Heat Pump System. Designed for larger homes and light commercial applications, this premium multi-zone system provides individualized heating and cooling for up to five separate areas while keeping the indoor equipment completely hidden from view. Combining LG's advanced Multi F inverter technology, concealed duct air handlers, and environmentally friendly R32 refrigerant, this system delivers reliable year-round comfort with a clean, unobtrusive installation.
Unlike traditional wall-mounted mini split systems, concealed duct indoor units are installed above ceilings or inside soffits and connected to short duct runs that deliver conditioned air through discreet ceiling or wall registers. This hidden design preserves your interior décor while providing the appearance of a conventional central HVAC system, making it an excellent choice for homeowners seeking both performance and aesthetics.
Key Features
- 18.5 SEER2 Energy Efficiency: Delivers outstanding efficiency while helping reduce monthly heating and cooling costs with advanced LG inverter technology.
- Independent Five-Zone Comfort: Five individually controlled ceiling cassette indoor units allow each room to maintain its own temperature setting, improving comfort while reducing unnecessary energy consumption.
- Concealed Duct Installation: Hidden concealed duct air handlers install above ceilings or within soffits and distribute conditioned air through short duct runs and discreet supply grilles for a clean, finished appearance.
- LG Inverter Heat Pump Technology: Advanced variable-speed inverter technology automatically adjusts compressor performance to maintain precise indoor temperatures, improve efficiency, and minimize operating noise.
- Environmentally Friendly R32 Refrigerant:The system utilizes advanced R32 refrigerant, providing high-performance heating and cooling while reducing environmental impact compared to older refrigerants.
What’s Included
- Outdoor condenser — 54,000 BTU Multi F, 18.5 SEER2
- 5 Concealed Duct Air Handlers: 9k, 9k, 9k, 12k and 12k BTU
- Installation manual
Recommended Accessories
- Refrigerant line set
- Wall bracket or Condenser pad
- Insulation kit with Surge Protector
- Thermostat Controller
Warranty Information
LG products include a 10-year limited warranty when installed by a licensed contractor and registered within 60 days of installation. To register your product and review warranty details, visit https://lg-dfs-warranty.com/
LG Multi Zone Mini Split System
The LG Multi Zone Mini Split System is a flexible, energy-efficient comfort solution that allows a single outdoor unit to heat and cool multiple indoor spaces independently. Designed for homes, additions, apartments, and light commercial applications, this ductless system gives you precise temperature control in each room while eliminating the need for bulky ductwork.
Whether you're conditioning two rooms or an entire multi-room living space, the LG Multi Zone Mini Split System delivers customizable comfort, exceptional efficiency, and dependable performance designed to meet the needs of today's modern homes.
54k BTU Multi Zone Condenser
54,000 BTU LG Multi Zone Mini Split Heat Pump Condenser - R32 | 230V
This outdoor mini split condenser provides efficient heating and cooling performance for single-zone applications. When paired with a compatible indoor air handler, it supports comfort for spaces up to 1900-2400sq ft.
Key Features
- High-efficiency inverter-driven performance
- 54,000 BTU capacity for single-zone systems
- Compact outdoor design for flexible placement
- Engineered for quiet outdoor operation
- Pairs with compatible Carrier Infinity air handlers
Warranty
LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
9k BTU Low Static Pressure Concealed Duct
LG 9,000 BTU Multi F Low Static Multi Zone Concealed Duct Mini Split Air Handler – R32 | 230V
This low-static concealed duct mini split air handler delivers invisible, efficient comfort for bedrooms, offices, and small living spaces. It supports multi-zone systems with flexible ducting and pairs with compatible LG Multi F outdoor condensers.
Key Features
- Designed for multi-zone performance in LG Multi F systems
- 9,000 BTU nominal cooling/heating capacity
- Low-static concealed duct design for hidden installation
- External Static Pressure (ESP) control for optimal airflow
- Quiet inverter-driven fan with washable pre-filter
- Advanced features: drain pump, R32 leak detection, auto restart
Warranty
LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
12k BTU Low Static Pressure Concealed Duct
LG 12,000 BTU Multi F Low Static Multi Zone Concealed Duct Mini Split Air Handler – R32 | 230V
This low-static concealed duct mini split air handler provides discreet, efficient airflow for bedrooms, offices, and living spaces up to 550 sq ft. It features flexible ducting for hidden installation and pairs with compatible LG Multi F outdoor condensers.
Key Features
- Designed for multi-zone compatibility with LG Multi F systems
- 12,000 BTU nominal cooling capacity
- Low-static concealed duct design for invisible integration
- Turbo fan with external static pressure control
- Ultra-quiet operation (27-31 dB) with brushless DC motor
- Built-in condensate pump, anti-fungal filter, auto operation
Warranty
LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
