LG 54,000 BTU 20.6 SEER2 3 Zone Wall Mount Mini Split Heat Pump System R32 | 230V 12 + 12 + 12
The LG Multi F MAX 12 + 12 + 12 configuration is an industrial grade residential solution designed to provide massive cooling and heating capacity for approximately 1,200–1,800 sq ft. By pairing a high output 54,000 BTU outdoor condenser with three 12,000 BTU indoor units, this system offers incredible "thermal headroom," making it the ultimate choice for large open concept homes or light commercial spaces where rapid temperature recovery and consistent comfort are non negotiable, even in extreme weather.
Key Features
- Covers up to 1,800 sq ft
- High efficiency 20.6 SEER2 rating
- Built in Wi-Fi Compatibility
- Inverter Variable Speed compressor for ultra precise temperature maintenance and low energy draw
- Gold Fin™ Anti Corrosion coating for long term outdoor unit durability in harsh environments
Feature Highlights
Efficiency (SEER2)
With a 20.6 SEER2 rating, this system maximizes every watt of power to deliver superior climate control without the high energy costs of traditional HVAC. The higher efficiency helps reduce your monthly utility bills while maintaining a perfectly balanced indoor environment year round.
Quiet Operation
LG indoor units utilize a unique skew fan and Brushless DC (BLDC) motor technology to minimize vibration and airflow noise. Operating at sound levels as low as 19–23 dB, these units provide a whisper quiet experience that won't disturb your sleep, work, or leisure time.
Right Sized Power
The massive 54,000 BTU outdoor capacity provides significant power reserves, ensuring that all three 12,000 BTU zones can operate at maximum output simultaneously. This "right sized" approach prevents the system from straining during extreme heat or cold, leading to faster cooling and a longer overall lifespan for the equipment.

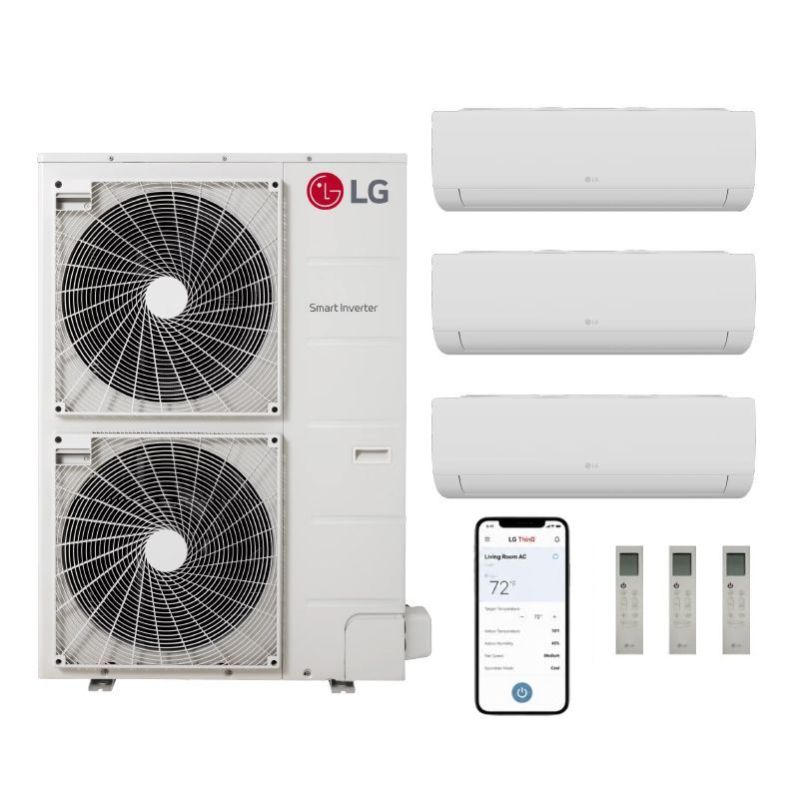

What’s Included
- Outdoor Condenser— 54,000 BTU / 20.6 SEER2
- (3) Indoor Air Handlers — 12,000 BTU units for large room coverage
- (3) Wireless Remote Controls for independent zone management
- Installation and Operations Manual
Recommended Accessories
- Refrigerant Line Sets (3 sets of 1/4" x 3/8" required)
- Heavy duty wall bracket or ground condenser pad
- Drain hose and decorative line set cover kit
Warranty
LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
54k BTU Multi Zone Condenser54,000 BTU LG Multi Zone Mini Split Heat Pump Condenser - R32 | 230V
This outdoor mini split condenser provides efficient heating and cooling performance for single-zone applications. When paired with a compatible indoor air handler, it supports comfort for spaces up to 1900-2400sq ft.
Key Features
- High-efficiency inverter-driven performance
- 54,000 BTU capacity for single-zone systems
- Compact outdoor design for flexible placement
- Engineered for quiet outdoor operation
- Pairs with compatible Carrier Infinity air handlers
Warranty
LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
12k BTU High Efficiency Wall MountThe 12,000 BTU LG High Efficiency Single Zone Wall Mount Mini Split Air Handler is designed to condition rooms up to approximately 550 square feet with quiet, energy‑efficient performance. Its compact, high‑efficiency design delivers strong cooling and heating output while helping to reduce energy use in bedrooms, offices, and medium‑sized living spaces.
Key Features
- 12,000 BTU Capacity: Provides reliable cooling and heating output for single‑zone applications in medium‑sized rooms.
- High‑Efficiency Operation: Engineered for improved efficiency using R32 refrigerant, supporting lower energy consumption while maintaining consistent comfort.
- Quiet Design: Capable of very low sound levels, making it suitable for spaces where quiet operation is important.
- 4‑Way Left‑Right / Up‑Down Swing: Helps distribute conditioned air more evenly across the room for improved coverage.
- Jet Cool / Jet Heat Mode: Temporarily increases fan speed and adjusts the setpoint to deliver faster cooling or heating for quicker comfort.
- Auto Operation: Continuously adjusts fan speed and refrigerant flow based on indoor conditions for more intelligent, balanced performance.
- Self‑Cleaning Indoor Coil: Automatically flushes moisture and debris from the coil to help maintain airflow and reduce odors over time.
- 3M Micro Dust Filter: A secondary filter that helps capture fine dust and airborne particles for improved indoor air quality.
- Sleep Mode and 24‑Hour Timer: Supports sleep mode and 24‑hour on/off timing for easier comfort scheduling and energy management.
- Auto Restart and Group Control: Auto restart resumes operation after a power interruption, while group control supports coordinated operation when multiple units are installed.
- Variable‑Speed Inverter Fan: Operates at varying speeds to match load conditions, helping maintain steady temperatures and reduce energy use.
- Wi‑Fi Ready via SmartThinQ: Compatible with built‑in Wi‑Fi for remote control and monitoring through a supported app when paired with the proper outdoor configuration.
- R32 Leak Detection Sensor: Monitors refrigerant conditions and helps support safer, code‑compliant installation with an R32‑specific leak‑detection system.
Compatibility
This indoor air handler is compatible with LG single‑zone outdoor systems designed for R32 refrigerant and matching high‑efficiency indoor‑outdoor pairings. It must be installed with a compatible outdoor unit to operate properly.
LG Distribution Box 3 Ports For 3 Zone SystemsThis 3-port branch distribution box is designed for select LG Multi F MAX and Multi F MAX with LGRED outdoor units in 48,000 BTU systems and above. It helps distribute refrigerant from the outdoor condenser to compatible indoor units in multi-zone applications, allowing for more flexible and efficient system design. With support for connected indoor unit capacities from 7,000 to 24,000 BTU/h and a maximum combined nominal capacity of 72,000 BTU/h, it is built for reliable multi-zone performance in residential and light commercial installations. Designed for indoor installation, it is compatible with A2L systems.
15 feet - 1/4" and 3/8" Line Set & Control WireComplete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 15-foot refrigerant line set with 1/4" liquid line and 3/8" suction line featuring durable flared ends for secure connections, along with a matching 15-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
- 15 ft. insulated refrigerant line set
- 15 ft. 14/4 mini-split control wire
- 1/4" liquid line with flared ends
- 3/8" suction line with flared ends
Features
- 1/2" thick insulation for improved efficiency
- Heavy-duty refrigerant line construction
- Stranded copper wire for reliable conductivity
- Flexible and durable installation materials
- Compatible with most mini-split systems
- Ideal for HVAC installations and replacements
25 feet - 1/4" and 3/8" Line Set & Control WireComplete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 25-foot refrigerant line set with 1/4" liquid line and 3/8" suction line featuring durable flared ends for secure connections, along with a matching 25-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
- 25 ft. insulated refrigerant line set
- 25 ft. 14/4 mini-split control wire
- 1/4" liquid line with flared ends
- 3/8" suction line with flared ends
Features
- 1/2" thick insulation for improved efficiency
- Heavy-duty refrigerant line construction
- Stranded copper wire for reliable conductivity
- Flexible and durable installation materials
- Compatible with most mini-split systems
- Ideal for HVAC installations and replacements
30 feet - 1/4" and 3/8" Line Set & Control WireComplete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 30-foot refrigerant line set with 1/4" liquid line and 3/8" suction line featuring durable flared ends for secure connections, along with a matching 30-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
- 30 ft. insulated refrigerant line set
- 30 ft. 14/4 mini-split control wire
- 1/4" liquid line with flared ends
- 3/8" suction line with flared ends
Features
- 1/2" thick insulation for improved efficiency
- Heavy-duty refrigerant line construction
- Stranded copper wire for reliable conductivity
- Flexible and durable installation materials
- Compatible with most mini-split systems
- Ideal for HVAC installations and replacements
50 feet - 1/4" and 3/8" Line Set & Control WireComplete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 50-foot refrigerant line set with 1/4" liquid line and 3/8" suction line featuring durable flared ends for secure connections, along with a matching 50-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
- 50 ft. insulated refrigerant line set
- 50 ft. 14/4 mini-split control wire
- 1/4" liquid line with flared ends
- 3/8" suction line with flared ends
Features
- 1/2" thick insulation for improved efficiency
- Heavy-duty refrigerant line construction
- Stranded copper wire for reliable conductivity
- Flexible and durable installation materials
- Compatible with most mini-split systems
- Ideal for HVAC installations and replacements
