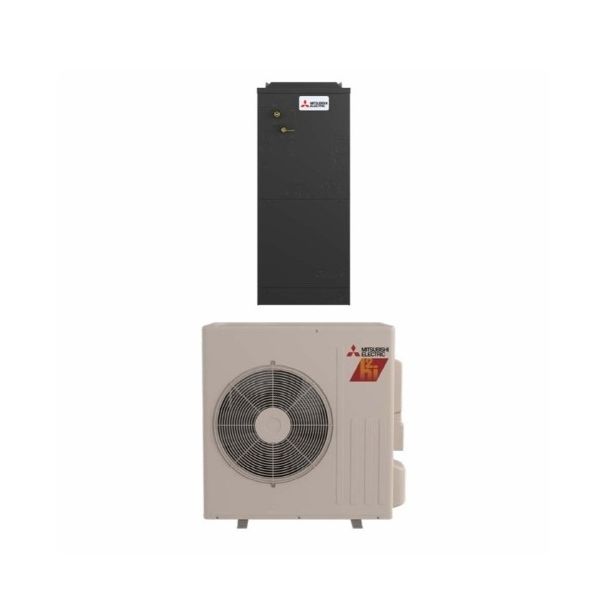

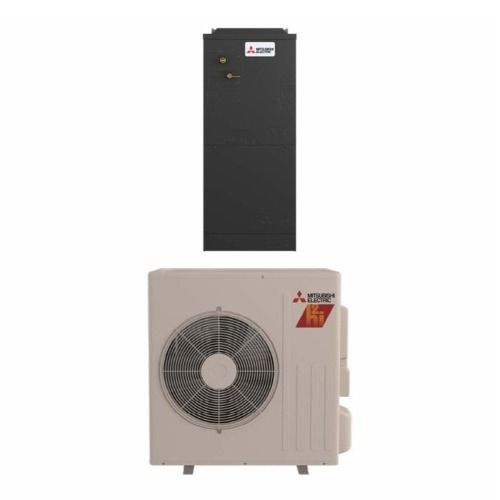

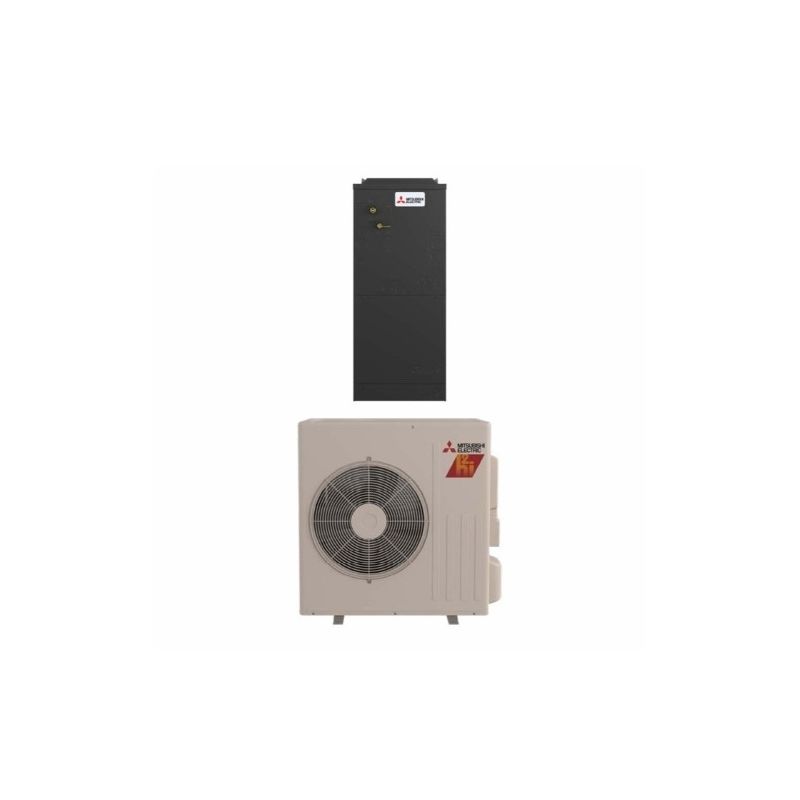

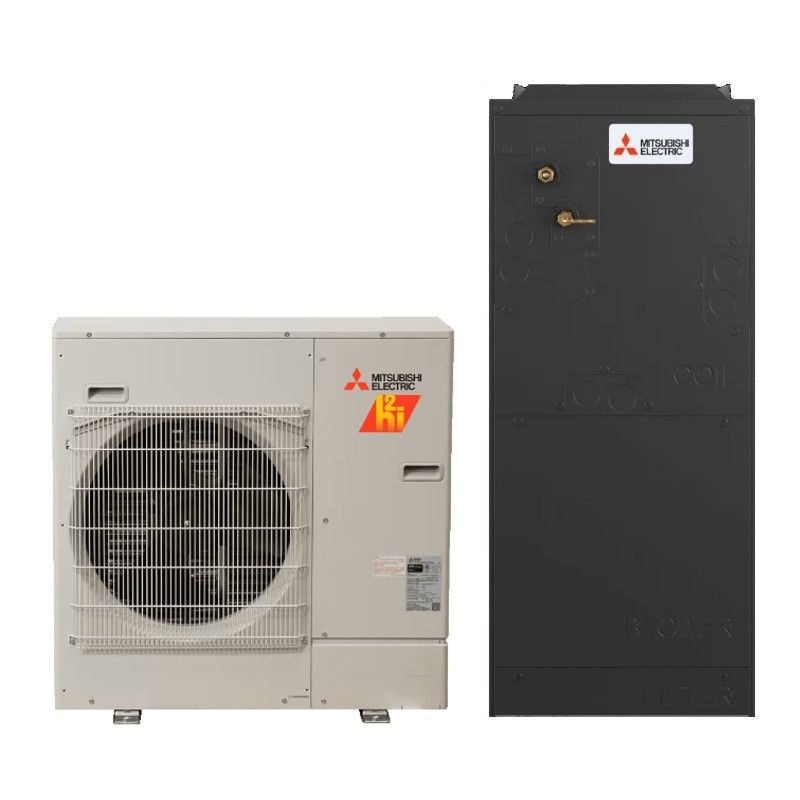

Mitsubishi 1.5 Ton 16.2 SEER2 Ducted Central Air Inverter H2i Heat Pump Split System |R454B

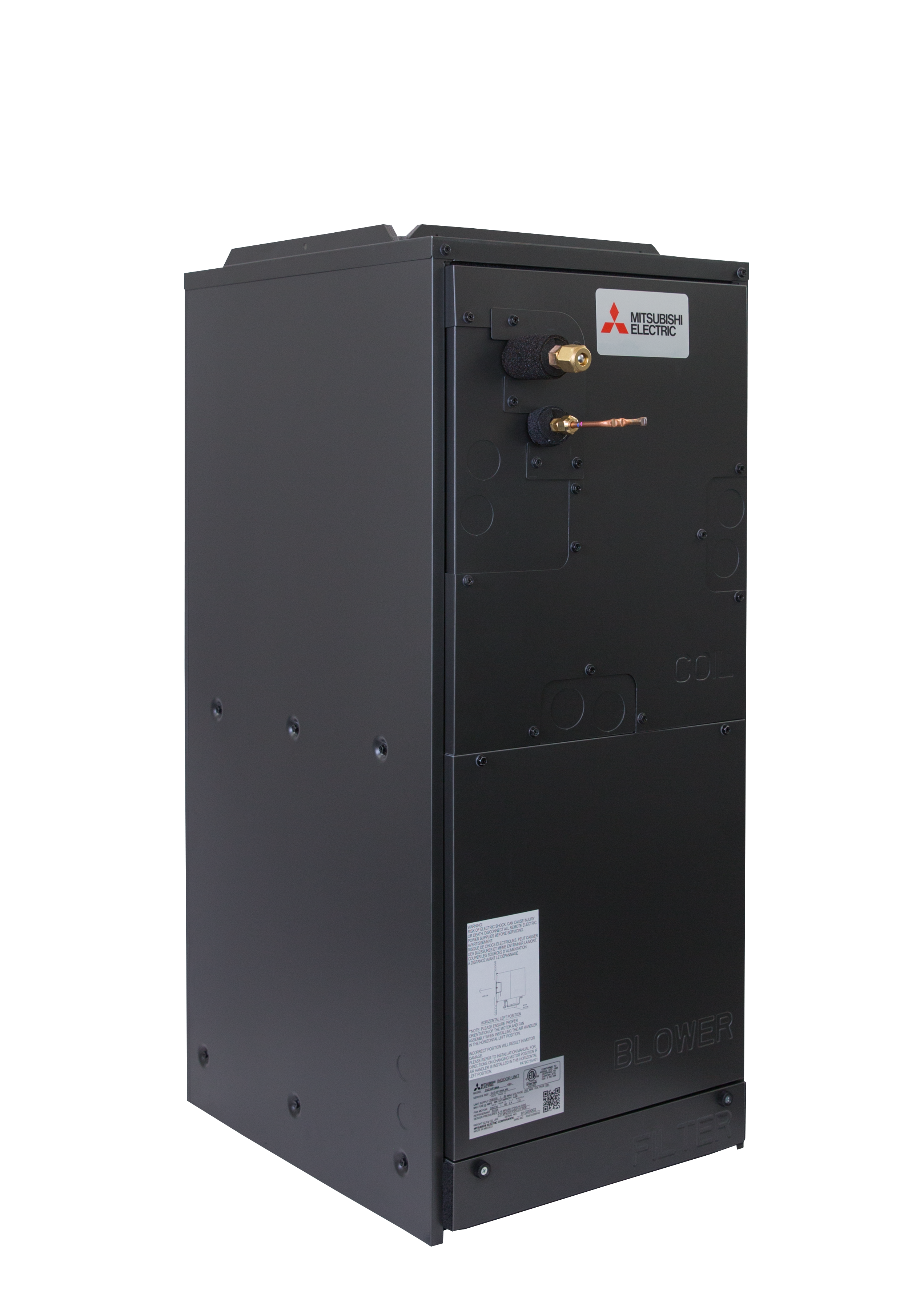

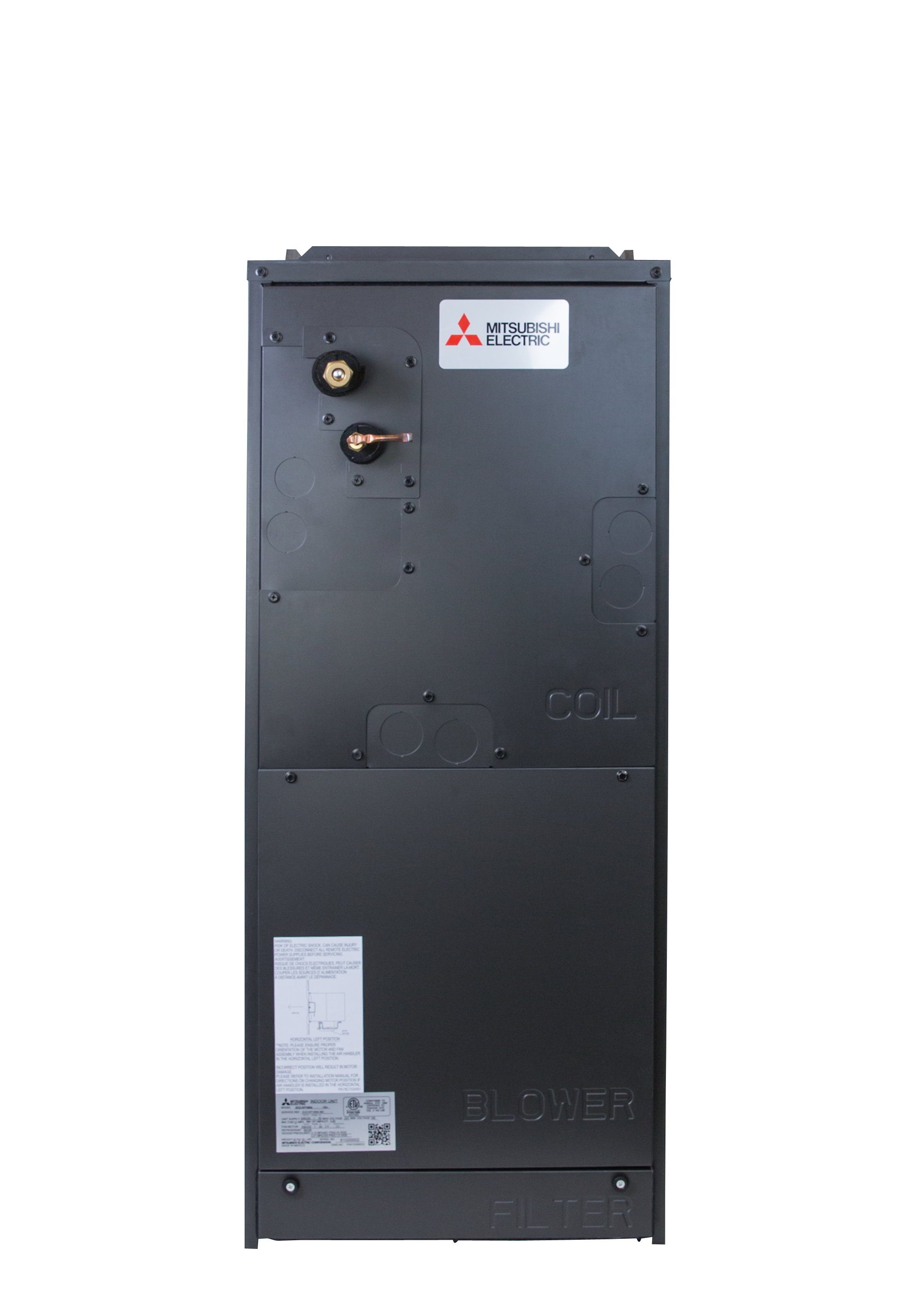

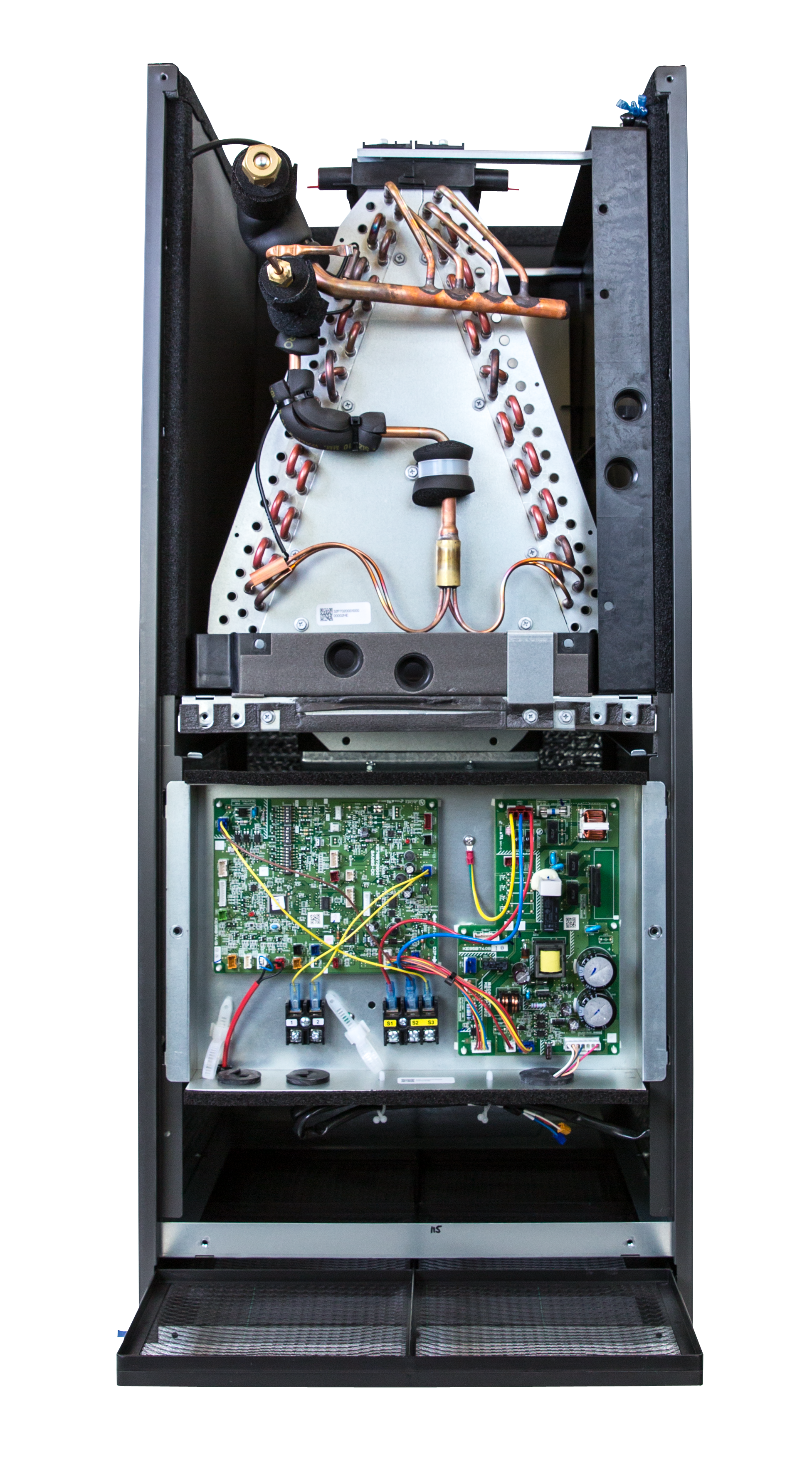

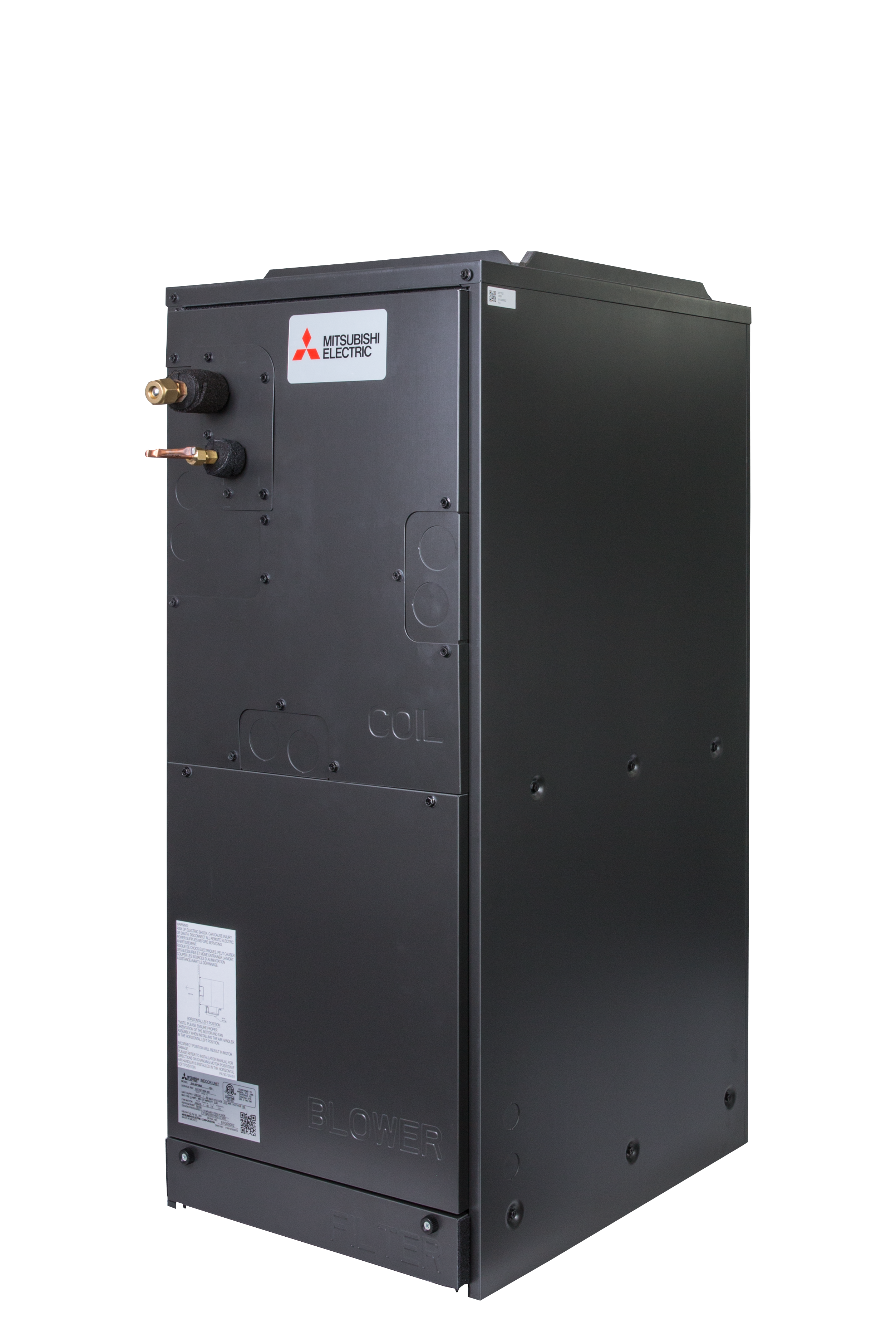

Mitsubishi SVZ Series 1.5 Ton Air Handler | R454B

The Mitsubishi SVZ Series 1.5 Ton Air Handler paired with the SUZ Outdoor Unit is a premium ducted HVAC solution designed for high-performance cooling and heating applications. Featuring advanced inverter-driven technology and compatibility with R454B refrigerant, this unit ensures superior energy efficiency, precise temperature control, and a low environmental impact.

Product Features

• Inverter Technology: Delivers variable speed operation for optimal comfort and energy savings.
• R454B Refrigerant: A next-generation refrigerant with a lower global warming potential (GWP) compared to traditional refrigerants.
• Quiet Operation: Engineered for minimal sound levels, ideal for residential and light commercial environments.
• Compact Design: Streamlined unit dimensions allow for flexible installation options in tight spaces.
• High Efficiency: Rated for excellent SEER and HSPF values to reduce operating costs and environmental impact.
• Multiple Control Options: Compatible with various control interfaces including wired and wireless remote controllers.

Technical Specifications

• Indoor Unit Model: SVZ-KP18NA
• Outdoor Unit Model: SUZ-KA18NA2
• Nominal Capacity: 18,000 BTU/h (1.5 Ton)
• Refrigerant Type: R454B
• Airflow: Multiple fan speeds with selectable static pressure settings
• Power Supply: 208/230V, 1 Phase, 60 Hz
• Sound Pressure Level: As low as 29 dB(A)

Benefits

• Energy Efficiency: Save on utility bills with cutting-edge inverter compressor technology.
• Eco-Friendly Refrigerant: R454B offers a sustainable choice with excellent performance characteristics.
• Custom Comfort: Precisely regulate temperature and airflow for maximum comfort throughout the year.
• Versatile Installation: Suitable for attic, basement, or closet installations in various building layouts.

The Mitsubishi SVZ Series 1.5 Ton Air Handler is ideal for homeowners and businesses seeking a reliable, quiet, and efficient ducted HVAC solution. Designed with advanced technology and environmental responsibility in mind, this system provides year-round comfort and peace of mind.

SUZ-AA18NLHZ - 18,000 BTU/H Hyper Heat Pump Outdoor Unit

The SUZ-AA18NLHZ is an efficient and reliable 18,000 BTU outdoor heat pump unit, designed to deliver optimal performance for both heating and cooling. It is part of the Hyper-Heating INVERTER® (H2i®) series, providing 100% heating capacity down to 5°F and guaranteed operation down to -13°F. Perfect for extreme weather conditions, this unit is ideal for residential and light commercial applications.

Outdoor Unit Features (SUZ-AA18NLHZ):

• Hyper-Heating INVERTER® (H2i®): Ensures 100% heating capacity down to 5°F, with reliable heating down to -13°F for year-round comfort.
• Blue Fin Coating: Provides anti-corrosion protection to the heat exchanger fins, making the unit suitable for coastal or industrial environments.
• Quiet Operation: Operates at a sound level similar to a normal conversation, ensuring minimal noise disruption in residential and commercial settings.
• Hot-Start Technology: Prevents cold air blasts during startup by ensuring the fan operates only once the heat exchanger is warm.
• Built-in Base Pan Heater: Helps prevent freezing in low temperatures, ensuring reliable operation even in colder climates.
• Pulse Amplitude Modulation Technology: Adjusts the power supply to optimize compressor performance, enhancing energy efficiency and reducing energy consumption.
• Joint Lap DC Motor: Improves efficiency and reliability with the innovative DC motor design.
• Outdoor Unit Directed Power: The outdoor unit powers the indoor unit, and the system automatically restarts after a power outage.

Specifications:

• Cooling Capacity: 18,000 BTU/h maximum, with a minimum capacity of 5,000 BTU/h at 95°F outdoor temperature.
• Heating Capacity: 22,500 BTU/h at 47°F, with capacities ranging from 12,100 BTU/h at -13°F to 20,000 BTU/h at 17°F.
• Energy Efficiency: SEER2 rating of 17.2, EER2 of 12.4, and HSPF2 of 9.9 for reduced energy consumption.
• Refrigerant: Uses R410A refrigerant, offering efficient heat exchange and environmental sustainability.
• Noise Levels: Operates at 55 dB(A) during both cooling and heating modes for quiet performance.
• Unit Dimensions: 33-1/16 x 13 x 34-5/8 inches, with a unit weight of 118 lbs.

With its powerful features and reliable operation, the SUZ-AA18NLHZ is an excellent choice for residential and commercial heating and cooling needs, offering year-round comfort in challenging climates.

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 35 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends
