Today's Hours 8am - 11pm estMitsubishi 18,000 BTU 16.2 SEER2 Single Zone Ducted Central Air Inverter Mini Split Heat Pump System – R454B | 230V
Required Fields *
By
Mitsubishi
In stock
Model
SUZ-AA18NL / SVZ-AP18NL
ID
198627
Was $8,169.05
Your Low Price $7,790.49
Product Features
- Complete all-electric inverter heating and cooling system
- Can be installed in upflow, downflow, or horizontal applications
- Certified for use with R454B refrigerant
- Well-suited for small homes in various climates
Save up to $5,500 off Local HVAC Prices

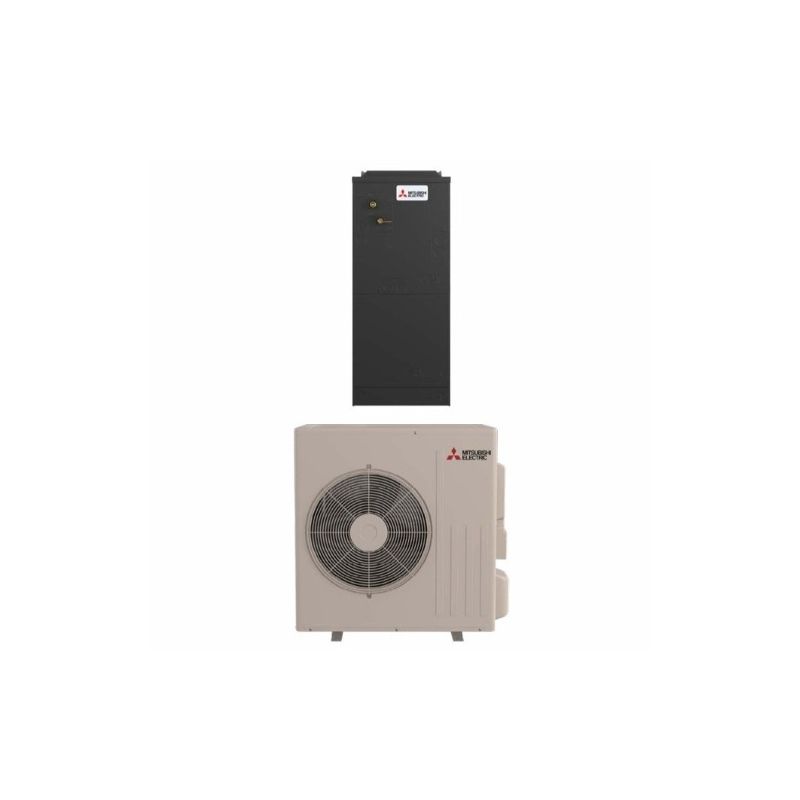

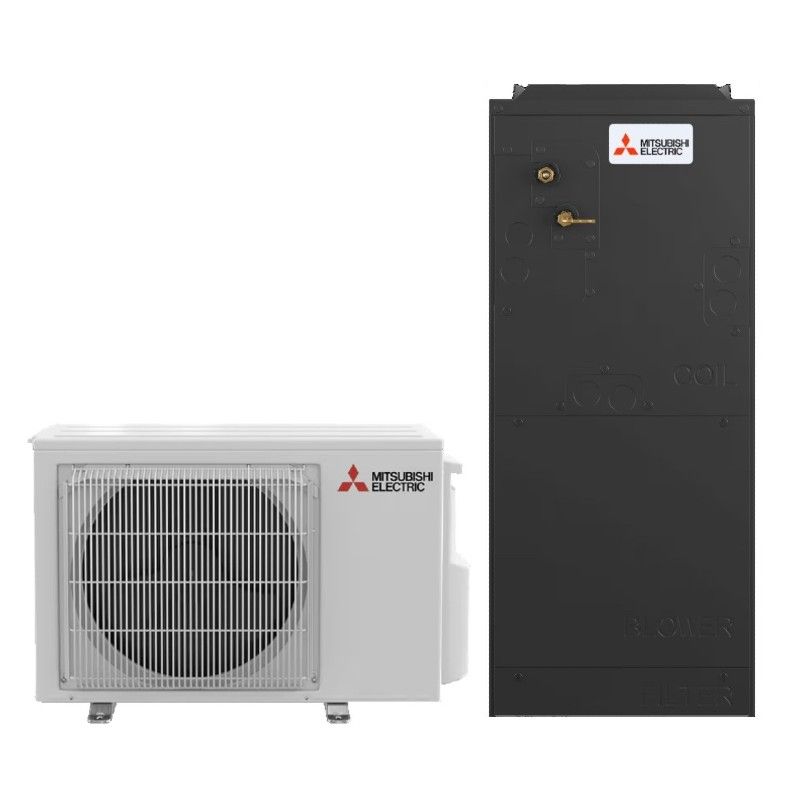

Mitsubishi 1.5 Ton 16.2 SEER2 Ducted Central Air Inverter Heat Pump Split System | R454B
Model Numbers: SUZ-AA18NL (Outdoor Unit) / SVZ-AP18NL (Indoor Unit)
The Mitsubishi 1.5 Ton 16.2 SEER2 Ducted Inverter Heat Pump Split System is a compact and energy-efficient solution designed to deliver year-round comfort. Engineered with inverter-driven compressor technology and utilizing environmentally conscious R454B refrigerant, this system offers powerful performance, quiet operation, and flexible installation options for a variety of residential and light commercial settings.
Key Features
- High Efficiency: Rated up to 16.2 SEER2 and 8.1 HSPF2 for optimized energy use and reduced utility costs.
- Eco-Friendly Refrigerant: Uses R454B, a low-GWP refrigerant that meets current environmental standards while supporting sustainability goals.
- Compact Design: The slim indoor air handler is perfect for installations in attics, closets, and ceiling spaces where space is limited.
- Inverter Compressor: Advanced variable-speed technology ensures precise temperature control, quieter operation, and less wear on components.
- Quiet Operation: Designed with sound-dampening features for minimal noise - ideal for noise-sensitive environments.
- Durability and Reliability: Mitsubishi's trusted engineering ensures long-term performance, even in demanding conditions.
Performance Specifications
- Cooling Capacity: 18,000 BTU/h
- Heating Capacity: 21,000 BTU/h
- Voltage: 208/230V, Single Phase, 60 Hz
- Refrigerant Type: R454B
- SEER2: Up to 16.2
- HSPF2: Up to 8.1
- Operating Temperature Range: Cooling: 14°F - 115°F / Heating: 5°F - 75°F
Applications
This Mitsubishi ducted heat pump system is ideal for:
- Residential homes and multi-family dwellings
- Small offices and light commercial spaces
- Retrofit projects and new construction
- Spaces requiring low-noise and high-efficiency climate control
Benefits
- Year-Round Comfort: Provides consistent heating and cooling throughout all seasons
- Lower Environmental Impact: R454B refrigerant supports eco-conscious building practices
- Quiet and Efficient: Low operating sound levels and energy-smart design
- Trusted Quality: Backed by Mitsubishi's reputation for performance and innovation
The Mitsubishi SUZ-AA18NL / SVZ-AP18NL inverter heat pump system combines advanced technology, environmental responsibility, and quiet, dependable operation. Ideal for a wide range of applications, this system provides the perfect balance of efficiency and performance for modern HVAC needs.
18,000 BTU Mitsubishi Single Zone Condenser - R454B
Create efficient heating and cooling with a outdoor condenser designed to simplify climate upgrades.
Upgrade your comfort with the Mitsubishi SUZ-AA18NL Outdoor Condenser—an inverter-driven outdoor unit designed to deliver efficient heating and cooling for single-zone systems. Built for residential and light commercial applications that demand dependable performance, quiet operation, and easier installation, this condenser pairs effortlessly with a compatible Mitsubishi indoor unit for reliable, year-round comfort.
Key Features
- Designed for Heating and Cooling — Delivers dependable comfort for medium single-zone spaces.
- Inverter-Driven Performance — Helps maintain consistent temperatures while optimizing energy use.
- Quiet Outdoor Operation — Engineered for low-noise performance to help preserve a comfortable environment.
- Built for Durability — Features a corrosion-resistant outdoor coil coating for added protection in challenging environments.
Warranty
Mitsubishi offers a limited warranty of 10-Year Compressor / 10-Year Parts Warranty when installed according to manufacturer guidelines and registered properly.
Installation Kit for Condensers
Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
What’s Included:
- 3/4" x 6' Electrical Whip – SKU: 84138
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
30" Wall Mount Bracket
This wall mount bracket is perfect for outdoor condensers. The length of the wall bracket arms are 30" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).
Features:
- Steel: 10 GA
- Powder-coated grey Finish
- Load rating: 600 lbs per pair
- Holes will accommodate anchors for installation
- Warranty: 1 year
- ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)
No Return Policy
All sales of this product are final and are non-refundable.
Cielo Breez Max Mini Split Thermostat with WiFi
Introducing Cielo Breez Max, the ultimate smart thermostat for your mini-splits, designed to elevate your comfort with intelligent climate control. Transform your air conditioner into a smart powerhouse and manage your cooling or heating from anywhere using your phone. This award-winning device, available in black and white, prevents overheating or overcooling with AI-powered Comfy Max, while seamlessly detecting any mini-split brand for hassle-free setup.
Features:
- Energy Savings
- WiFi Connectivity
- Weekly Schedule
- Geofencing
- Temperature Range Lock
- Real-Time Notifications
- HVAC Zoning
Weekly Schedule lets you set on and off periods throughout the week based on your needs.
Geofencing uses your smartphone's location to trigger actions in your system, such as turning the air conditioner on or off based on your proximity to home.
Temperature Range Lock ensures your air conditioner operates within a set temperature range for optimal comfort and efficiency.
Real-Time Notifications keep you informed with important updates, helping you manage your air conditioner better.
HVAC Zoning allows you to create customized temperature control zones by grouping multiple mini-split units.
The Cielo Breez Max offers innovative features and extraordinary performance, making it a perfect fit for any room air conditioner. Enjoy maximum energy savings and simplified home comfort with this advanced smart thermostat.
18,000 BTU Mitsubishi SVZ Series Air Handler - R454B
Enjoy efficient, quiet comfort with the Mitsubishi Electric SVZ-AP18NL ceiling-concealed ducted indoor unit.
Transform the comfort of your space with the Mitsubishi Electric SVZ-AP18NL Ceiling-Concealed Ducted Mini Split Indoor Unit. Designed to deliver reliable heating and cooling for larger rooms, this indoor unit combines a low-profile ceiling-concealed design with quiet performance for living rooms, bedrooms, home offices, and other everyday spaces.
Key Features
- Efficient Year-Round Comfort — When paired with a compatible Mitsubishi condenser, it helps provide dependable heating and cooling while supporting efficient energy use.
- Right-Sized Comfort for Larger Spaces — The 18,000 BTU capacity is well suited for bigger bedrooms, living areas, and other residential spaces.
- Ultra-Quiet Operation — Helps create a comfortable environment with low-noise performance.
- Advanced Filtration — Helps reduce airborne particles and odors for cleaner indoor air.
Warranty
10-year limited parts warranty with online registration.
Equipment Pad
E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
- High recycled plastic content
- Subtle texture resists unit slide
- Unaffected by UV or weather
- Uniform ribbing transfers load evenly
- Drillable for securing unit
- Lightweight, yet rugged
No Return Policy
All sales of this product are final and are non-refundable.
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 35 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 35 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Condenser Risers - 4" x 18" - 2 Pack
Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.
Features
- Ideal for piping, duct runs, cable trays and condensers
- Weather resistant PVC
- Linear track holds 3/8" hex head bolts
- Two 7/8" long bolts included
- Weighs up to 397 Ib
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 25 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Equipment Pad and Risers Kit
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
- Reliable Support: Abundance of ridges for stable ground support.
- Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
- Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
- Simple Appearance: Gray color with size labels.
- Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
- Weather Resistance: Made from tough PVC for long-lasting performance.
- Secure Setup: The track securely holds bolts in place.
- Bolts Included: Each set comes with two bolts.
- Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 50 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 30 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 15 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Top reviews
- Excellent.The purchase was flawless. Everything was as described. The freight company (Dayton Freight) was outstanding. So far the unit is working great.
Posted on
Customer Questions
Why Choose Mitsubishi Mini Splits?
Mitsubishi mini split air conditioners and heat pumps provide exceptional comfort, energy efficiency, and ultra-quiet performance in any climate. Engineered for reliability and precision, these systems offer year-round heating and cooling while reducing energy costs and enhancing indoor air quality.
