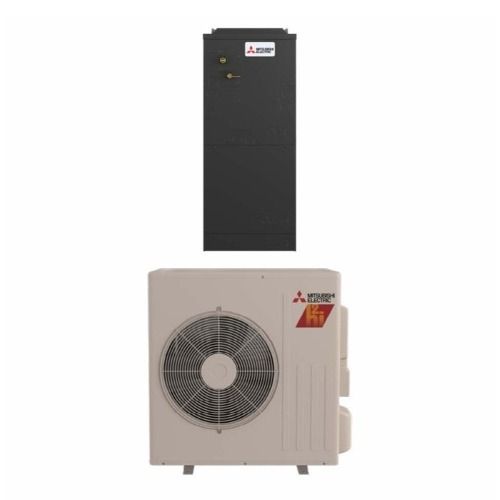

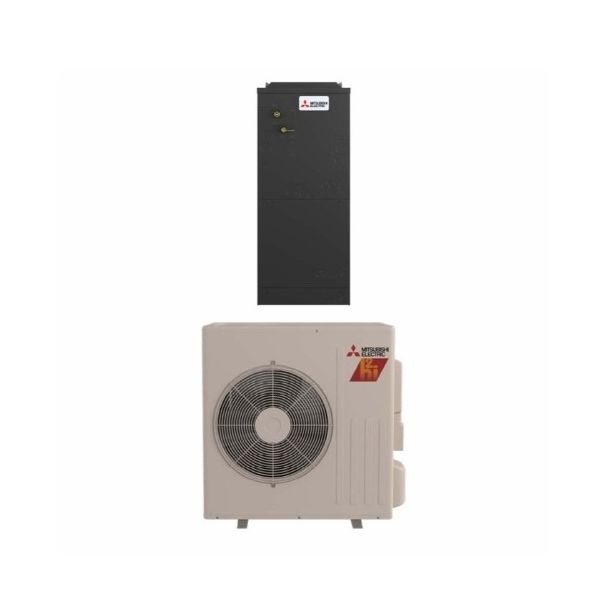

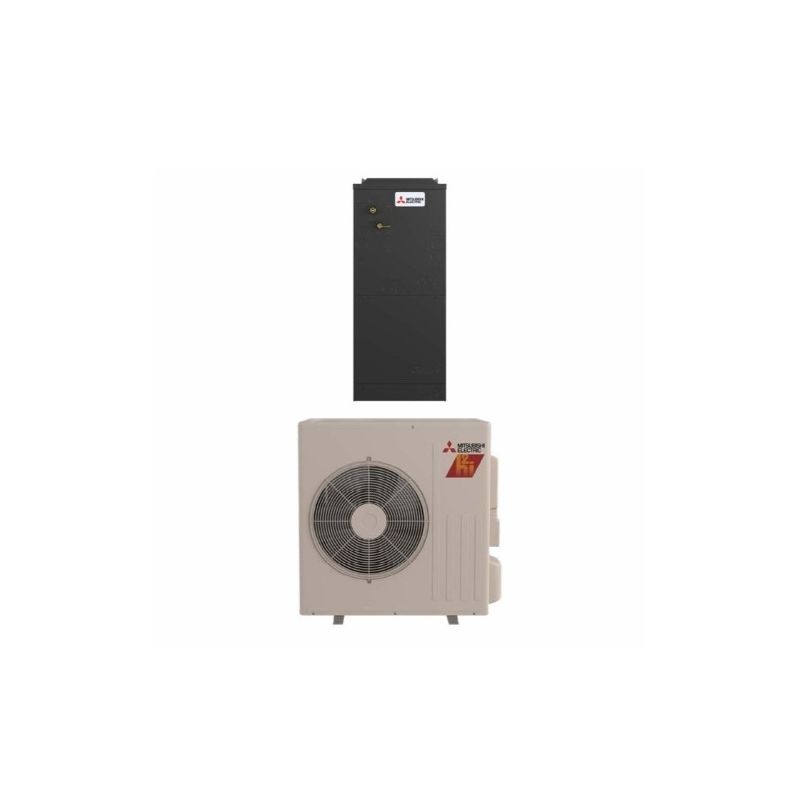

Mitsubishi 12,000 BTU 16.1 SEER2 Single Zone Ducted Central Air Inverter H2i Hyper Mini Split Heat Pump System – R454B | 230V
Required Fields *
By
Mitsubishi
In stock
Model
SUZ-AA12NLHZ / SVZ-AP12NL
ID
198626
In Stock - Ready to Ship
Was $5,201.52
Your Low Price $4,416.00
Free Shipping
Product Features
- Complete all-electric inverter heating and cooling system
- Can be installed in upflow, downflow, or horizontal applications
- Certified for use with R454B refrigerant
- Well-suited for small homes in various climates
Save up to $5,500 off Local HVAC Prices
Mitsubishi 1 Ton 18 SEER Ducted Central Air Inverter H2i Heat Pump Split System | R454B
Model Numbers: SUZ-AA12NLHZ (Outdoor Unit - H2i) / SVZ-AP12NL (Indoor Unit)
The Mitsubishi 1 Ton 18 SEER Ducted Inverter H2i Heat Pump Split System delivers advanced comfort, powerful performance, and cold-climate capability. Equipped with Mitsubishi's H2i (Hyper-Heating INVERTER®) technology and the eco-conscious R454B refrigerant, this system is engineered to deliver efficient year-round climate control - even in extremely cold temperatures.
Key Features
- Hyper-Heating INVERTER® (H2i) Technology: Maintains rated heating capacity down to 5°F and continues operation down to -13°F for reliable comfort in cold climates.
- Energy Efficiency: Delivers up to 18.0 SEER and 11.2 HSPF, providing substantial energy savings and low operating costs.
- R454B Refrigerant: Low Global Warming Potential refrigerant that supports sustainability goals and regulatory compliance.
- Quiet Performance: Engineered for low noise levels, with indoor operation as quiet as 23 dB(A) and outdoor operation around 51 dB(A).
- Compact Ducted Design: Slim, concealed indoor unit ideal for installations in attics, closets, or ceiling spaces.
- Advanced Inverter Control: Allows the system to precisely modulate compressor speed, improving comfort and reducing energy waste.
Performance Specifications
- Cooling Capacity: 12,000 BTU/h
- Heating Capacity: 15,000 BTU/h (rated), capable of maintaining performance at low ambient temperatures
- Voltage: 208/230V, Single Phase, 60 Hz
- Refrigerant Type: R454B
- SEER: Up to 18.0
- HSPF: Up to 11.2
- Operating Temperature Range: Cooling: 14°F - 115°F / Heating: -13°F - 75°F
Applications
This system is ideal for:
- Homes in cold climates needing reliable winter heating
- Residential and light commercial buildings
- New construction, retrofits, and replacements
- Spaces with limited installation clearance or aesthetic needs
Benefits
- Year-Round Comfort: Heating and cooling designed to perform in all seasons
- Eco-Friendly Design: Uses a refrigerant with reduced environmental impact
- Quiet and Discreet: Delivers comfort without intrusion
- Reliable Mitsubishi Quality: Backed by cutting-edge technology and trusted performance

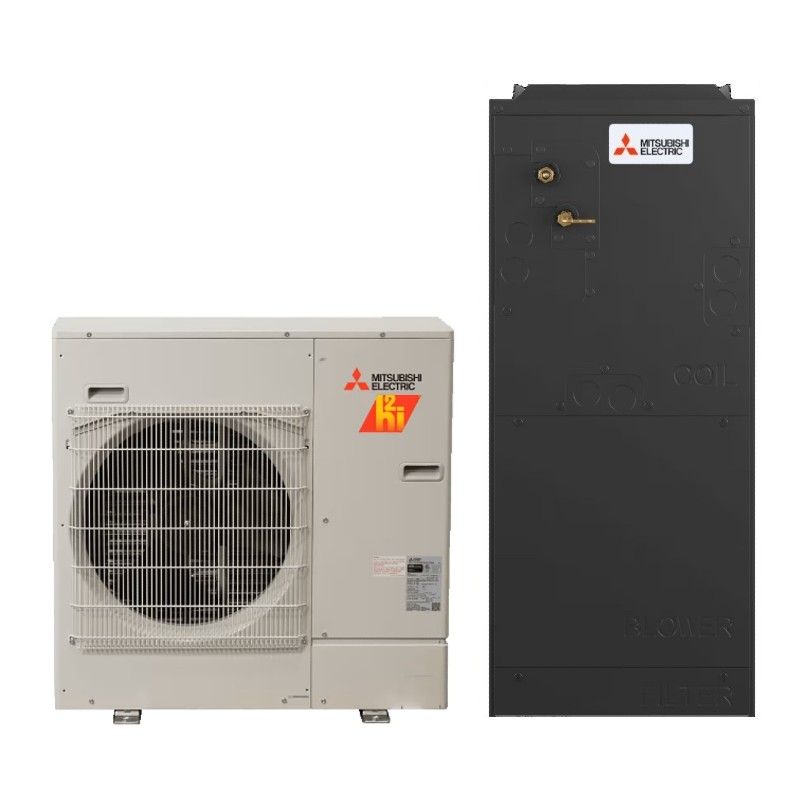

The Mitsubishi SUZ-AA12NLHZ / SVZ-AP12NL H2i ducted inverter heat pump system offers high-efficiency, cold-weather comfort with a design that fits seamlessly into modern spaces. Perfect for demanding climates, this system brings the trusted reliability and innovation of Mitsubishi Electric into your home or business.
12,000 BTU Mitsubishi Single Zone Condenser - R454B
SUZ-AA12NLHZ - 12,000 BTU/H Heat Pump Outdoor Unit
The SUZ-AA12NLHZ is a powerful 12,000 BTU outdoor heat pump unit, designed to provide reliable heating and cooling for residential and commercial spaces. It is part of a versatile system and offers energy-efficient performance for a range of temperature conditions.
Outdoor Unit Features (SUZ-AA12NLHZ):
- Blue Fin Coating: Anti-corrosion treatment applied to the heat exchanger's aluminum fins to prevent damage caused by salt, sulfur, and other airborne contaminants.
- Built-in Base Pan Heater: Enhances system reliability by preventing ice buildup and ensuring smooth operation even in cold climates.
- Hot-Start Technology: Ensures that the fan operates only once the heat exchanger is sufficiently warm, preventing cold air bursts when the unit starts up.
- Hyper-Heating INVERTER® (H2i®): Provides 100% heating capacity down to 5°F, with guaranteed heating down to -13°F, making it suitable for harsh winter conditions.
- Joint Lap DC Motor: Innovative motor design for enhanced efficiency and long-term reliability.
- Outdoor Unit Directed Power: The outdoor unit powers the indoor unit, and in the event of a power outage, the system will restart automatically when power returns.
- Pulse Amplitude Modulation Technology: Optimizes compressor performance and enhances energy efficiency by adjusting the power supply.
- Quiet Operation: Designed to operate quietly, with outdoor units as quiet as a typical conversation, and most indoor units are whisper quiet.
Specifications:
- Cooling Capacity: 12,000 BTU/h (Rated), with a minimum of 5,000 BTU/h.
- Heating Capacity: 15,000 BTU/h at 47°F, 9,300 BTU/h at 17°F, 9,000 BTU/h at -13°F.
- Energy Efficiency: SEER2 rating of 17.2, EER2 of 13.9, and HSPF2 of 10.
- Refrigerant: R410A for effective cooling and heating.
- Sound Levels: Operates at 54 dB(A) during cooling and 55 dB(A) during heating.
- Unit Dimensions: 33-1/16 x 13 x 34-5/8 inches with a weight of 93 lbs.
The SUZ-AA12NLHZ outdoor unit is built to provide consistent and efficient heating and cooling, even in the most challenging environments. It is ideal for use with compatible indoor units in various residential and commercial setups.
Installation Kit for Condensers
4Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
Key Features:
✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.
What’s Included:
- 3/4" x 6' Electrical Whip – SKU: 84138
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
Wall Mount Bracket for Condensers 30"
This wall mount bracket is perfect for outdoor condensers. The length of the wall bracket arms are 30" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).
Features:
- Steel: 10 GA
- Powder-coated grey Finish
- Load rating: 600 lbs per pair
- Holes will accommodate anchors for installation
- Warranty: 1 year
- ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)
No Return Policy
All sales of this product are final and are non-refundable.
Cielo Breez Max Mini Split Thermostat with WiFi
Introducing Cielo Breez Max, the ultimate smart thermostat for your mini-splits, designed to elevate your comfort with intelligent climate control. Transform your air conditioner into a smart powerhouse and manage your cooling or heating from anywhere using your phone. This award-winning device, available in black and white, prevents overheating or overcooling with AI-powered Comfy Max, while seamlessly detecting any mini-split brand for hassle-free setup.
Features:
- Energy Savings
- WiFi Connectivity
- Weekly Schedule
- Geofencing
- Temperature Range Lock
- Real-Time Notifications
- HVAC Zoning
Weekly Schedule lets you set on and off periods throughout the week based on your needs.
Geofencing uses your smartphone's location to trigger actions in your system, such as turning the air conditioner on or off based on your proximity to home.
Temperature Range Lock ensures your air conditioner operates within a set temperature range for optimal comfort and efficiency.
Real-Time Notifications keep you informed with important updates, helping you manage your air conditioner better.
HVAC Zoning allows you to create customized temperature control zones by grouping multiple mini-split units.
The Cielo Breez Max offers innovative features and extraordinary performance, making it a perfect fit for any room air conditioner. Enjoy maximum energy savings and simplified home comfort with this advanced smart thermostat.
Equipment Pad
E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
- High recycled plastic content
- Subtle texture resists unit slide
- Unaffected by UV or weather
- Uniform ribbing transfers load evenly
- Drillable for securing unit
- Lightweight, yet rugged
No Return Policy
All sales of this product are final and are non-refundable.
15 feet - 1/4" and 3/8" Line Set
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
12,000 BTU Mitsubishi SVZ Series Air Handler - R454B
Mitsubishi SVZ Series 1 Ton Air Handler | R454B
The Mitsubishi SVZ Series 1 Ton Air Handler, combined with the SUZ outdoor unit, is a high-efficiency, ducted heating and cooling solution tailored for residential and light commercial applications. Designed with Mitsubishi Electric's cutting-edge inverter technology and compatible with the next-generation R454B refrigerant, this system offers both superior comfort and a reduced environmental impact.
Key Features
- Energy-Efficient Inverter Technology: Provides precise temperature control, reducing energy usage and operating costs.
- R454B Refrigerant: Features a lower global warming potential (GWP) than older refrigerants, supporting environmentally conscious HVAC design.
- Quiet Operation: Delivers whisper-quiet performance, making it suitable for bedrooms, offices, and other quiet spaces.
- Compact and Versatile Design: Offers flexibility for vertical or horizontal installations in tight or concealed spaces.
- High Static Pressure Capability: Supports longer duct runs and complex ductwork layouts without compromising performance.
- Multi-Speed Fan: Allows airflow customization to match comfort preferences and room conditions.
Technical Specifications
- Indoor Unit Model: SVZ-KP12NA
- Outdoor Unit Model: SUZ-KA12NA2
- Cooling/Heating Capacity: 12,000 BTU/h (1 Ton)
- Refrigerant: R454B
- Power Supply: 208/230V, 1 Phase, 60 Hz
- Fan Speeds: Multiple selectable speeds for enhanced comfort
- Sound Pressure Levels: As low as 27 dB(A), depending on mode and configuration
Benefits
- Comfort All Year: Delivers reliable cooling and heating with inverter-driven precision.
- Environmentally Friendly: Designed to comply with evolving environmental standards using low-GWP refrigerant.
- Flexible Installation: Suitable for a variety of residential and light commercial spaces with horizontal or vertical orientation.
- Low Noise Levels: Quiet operation makes it ideal for use in occupied or sound-sensitive environments.
The Mitsubishi SVZ Series 1 Ton Air Handler with R454B refrigerant is a modern, efficient, and compact ducted HVAC solution. Whether for a retrofit or new construction, this system ensures dependable year-round performance with minimal environmental impact and maximum user comfort.
Condenser Risers - 4" x 18" - 2 Pack
Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.
Features
- Ideal for piping, duct runs, cable trays and condensers
- Weather resistant PVC
- Linear track holds 3/8" hex head bolts
- Two 7/8" long bolts included
- Weighs up to 397 Ib
35 feet - 1/4" and 3/8" Line Set
This insulated refrigerant line set for mini split systems comes as a pair, including both the liquid line and suction line. It is used to connect the indoor air handler to the outdoor condenser. The line set is 35’ feet long. The liquid line has 1/4 inch outside diameter flared ends. The suction line has 3/8 inch outside diameter flared ends.
Features:
- Insulated
- Flared Line Ends
- Heavy Duty Refrigerant Lines
Equipment Pad and Risers Kit
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
- Reliable Support: Abundance of ridges for stable ground support.
- Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
- Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
- Simple Appearance: Gray color with size labels.
- Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
- Weather Resistance: Made from tough PVC for long-lasting performance.
- Secure Setup: The track securely holds bolts in place.
- Bolts Included: Each set comes with two bolts.
- Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
50 feet - 1/4" and 3/8" Line Set
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
25 feet - 1/4" and 3/8" Line Set
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
30 feet - 1/4" and 3/8" Line Set
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
