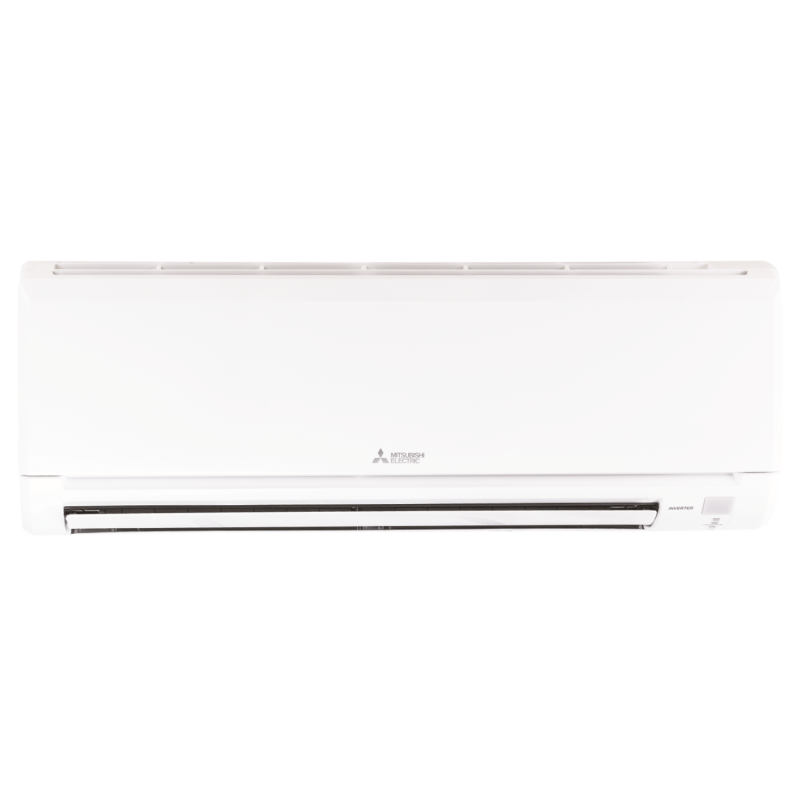

The Mitsubishi MSZ-GS12NA air handler is designed to be able to function as a single zone system or with a multi zone system setup. This unit is manufactured as part of Mitsubishi’s standard air handler series, making it an inexpensive choice for efficient home comfort. With its ability to work with both cooling-only and heat pump condensers, the MSZ-GS12NA can function in almost any basic configuration and application. The unit also has the ability to ramp up and down based on the thermostat’s needs along with an automated vertical air swing adjustment system to direct the airflow where it needs to go, keeping you comfortable year-round with the right condenser.
Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost.
12,000 BTU Wall Mounted Mitsubishi Mini Split Multi Zone GS - Air Handler | |
---|---|
SKU | MSZ-GS12NA |
Weight (in lbs) | 26.000000 |
Brand/Manufacturer | Mitsubishi |
Controller | Wireless Included |
Additional Information | Drain: 5/8" |
Cooling BTU | 12,000 BTU |
Heating BTU | 14,400 BTU |
Maximum CFM | 109-399 CFM |
Decibel Level (dBA) | 19-45 |
Refrigerant | R410A |
Capacity | Dehumidification Rate: 0.38 gal/hr |
Liquid Line | 1/4" |
Suction Line | 3/8" |
Electrical | 208/230v 1 Phase 60 Hz |
Phase | Single Phase |
BTU/Tonnage | 12,000 BTU/1 Ton |
Mini Split Type | Wall Mounted |
Zone Compatibility | Multi Zone |
Operating Mode | Cooling, Heating |
Height | 11-5/8" |
Width | 31-7/16" |
Depth | 9-1/8" |
Warranty | 10 Years with Online Registration |
