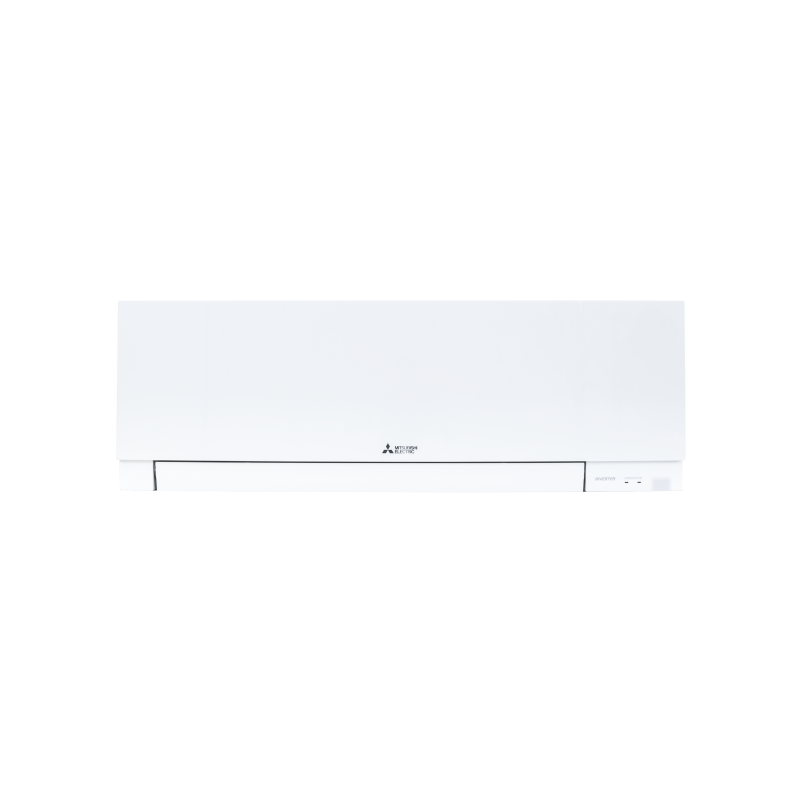

12,000 BTU Wall Mounted Mitsubishi Mini Split Multi Zone EF Series - Air Handler

12,000 BTU Wall Mounted Mitsubishi Mini Split Multi Zone EF Series - Air Handler
By

Mitsubishi

Out of stock
Model

MSZ-EF12NAW-U1

ID

13534

Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost.

  • Designed to cover up to a small room in ideal conditions
  • 12,000 BTU wall-mounted air handler with wireless remote
  • Decorative design with a sleek white finish
  • .2625 gallon per hour dehumidification rate

Available in black, white, and silver, the MSZ-EF12NAW is from a sleek designer series of air handler that is meant to be a more eye-appealing version of Mitsubishi’s basic air handler series. With its ability to work with both cooling-only and heat pump condensers as well as single zone and multi zone setups, the MSZ-EF12NAW that can be used in a wide variety of applications. For enhanced comfort over other brands, this air handler has the ability to ramp itself up and down based on the needs of the unit’s thermostats.

More Information
12,000 BTU Wall Mounted Mitsubishi Mini Split Multi Zone EF Series - Air Handler
FeatureSpec
SKUMSZ-EF12NAW-U1
Weight (in lbs)26
Brand/ManufacturerMitsubishi
UPCna
ControllerWireless Included
Additional InformationDrain: 5/8"
Cooling BTU12,000
Heating BTU14,400
Maximum CFM121-448 CFM
Decibel Level (dBA)21-46
Energy StarNo
RefrigerantR410A
CapacityDehumidification Rate: 0.26 gal/hr
Liquid Line1/4"
Suction Line3/8"
Electrical208/230V 1 Phase 60 Hz
PhaseSingle Phase
BTU/Tonnage12,000 BTU/1 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Operating ModeCooling, Heating
Height11-3/4"
Width34-13/16"
Depth7-11/16"
Warranty10 Years with Online Registration
