Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost.
Available in black, white, and silver, the MSZ-EF15NAW is from a sleek designer series of air handler that is meant to be a more eye-appealing version of Mitsubishi’s basic air handler series. With its ability to work with both cooling-only and heat pump condensers as well as single zone and multi zone setups, the MSZ-EF15NAW that can be used in a wide variety of applications. For enhanced comfort over other brands, this air handler has the ability to ramp itself up and down based on the needs of the unit’s thermostats.

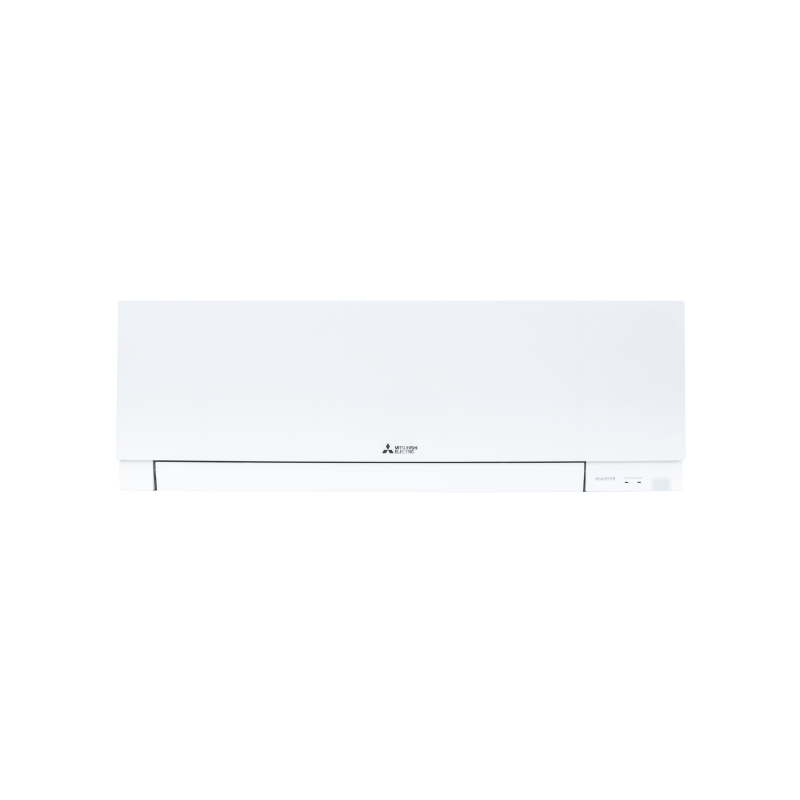

15,000 BTU Wall Mounted Mitsubishi Mini-Split Multi Zone EF Series - Air Handler | |
---|---|
SKU | MSZ-EF15NAW-U1 |
Weight (in lbs) | 26.000000 |
Brand/Manufacturer | Mitsubishi |
Controller | Wireless Included |
Additional Information | Drain: 5/8" |
Cooling BTU | 14,000 |
Heating BTU | 18,000 |
Maximum CFM | 176-448 CFM |
Decibel Level (dBA) | 28-48 |
Energy Star | No |
Refrigerant | R410A |
Capacity | Dehumidification Rate: 0.45 gal/hr |
Liquid Line | 1/4" |
Suction Line | 3/8" |
Electrical | 208/230V 1 Phase 60 Hz |
Phase | Single Phase |
BTU/Tonnage | 15,000 BTU/1.25 Ton |
Mini-Split Type | Wall Mounted |
Zone Compatibility | Multi Zone |
Operating Mode | Cooling, Heating |
Height | 11-3/4" |
Width | 34-13/16" |
Depth | 7-11/16" |
Warranty | 10 Years with Online Registration |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING |
