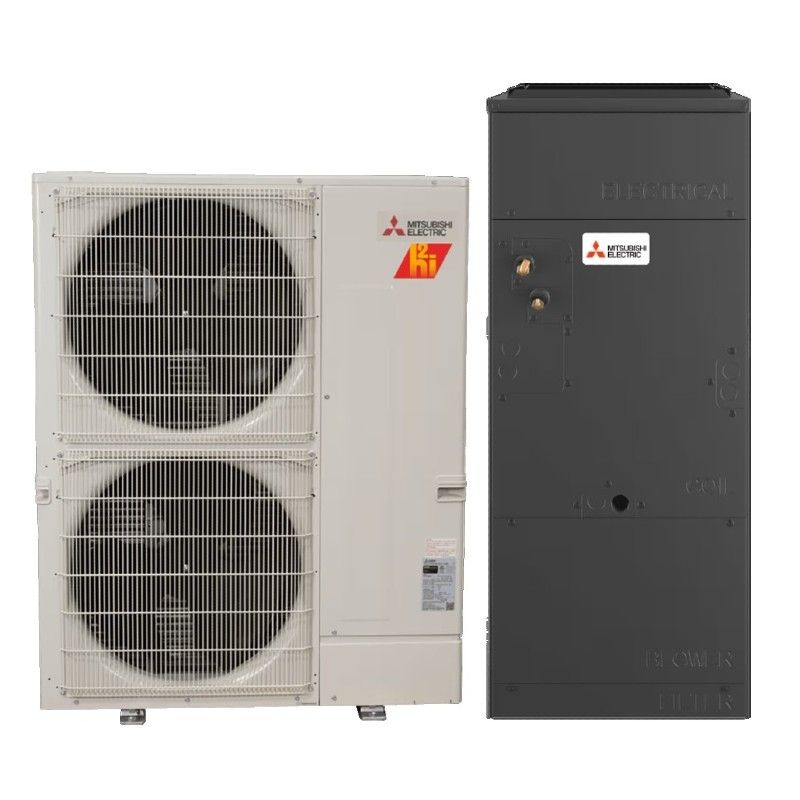

Mitsubishi 30,000 BTU SEZ-AD-Series 17.6 SEER2 Single Zone Ducted H2i Central Air Mini Split Hyper Heat Pump System - R454B | 230V
Required Fields *
By
Mitsubishi
In stock
Model
PUZ-AK30NLHZ / PVA-AA30NL
ID
201909
Was $12,876.79
Your Low Price $10,103.25
In Stock - Ready to Ship
Product Features
- Complete all-electric inverter heating and cooling system
- Can be installed in upflow, downflow, or horizontal applications
- Certified for use with R454B refrigerant
- Well-suited for small to medium homes in various climates
Save up to $5,500 off Local HVAC Prices
ÂFree Shipping
Mitsubishi 2.5 Ton 21 SEER2 Ducted H2i Central Air Inverter Heat Pump Split System | R454B (PUZ-AK30NLHZ / PVA-AA30NL)
The Mitsubishi PUZ-AK30NLHZ / PVA-AA30NL is a high-performance 2.5 Ton ducted inverter heat pump system featuring advanced Hyper-Heating INVERTER® (H2i) technology. This system provides exceptional heating capability in cold climates while delivering an impressive 21 SEER2 efficiency rating and using environmentally friendly R454B refrigerant for sustainable comfort.
Key Features
- Superior Efficiency: Achieves 21 SEER2 and 9.8 HSPF2 ratings for optimal energy savings and performance.
- H2i Technology: Hyper-Heating INVERTER® ensures reliable heating down to -13°F, maintaining comfort in harsh winters.
- Eco-Friendly Refrigerant: Utilizes R454B refrigerant with a low global warming potential.
- Variable-Speed Compressor: Inverter-driven compressor adapts to changing load demands for precise temperature control and energy efficiency.
- Quiet Operation: Engineered for minimal sound indoors and outdoors, enhancing user comfort.
Outdoor Unit: PUZ-AK30NLHZ
- Type: Hyper-Heating inverter outdoor unit with heating and cooling functions
- Compressor: High-efficiency rotary compressor designed for cold climates
- Durability: Weather-resistant construction with protective coatings
- Cold Climate Performance: Maintains heating capacity in low temperatures without auxiliary heat
Indoor Unit: PVA-AA30NL
- Design: Slim-profile ducted air handler for concealed installation
- Blower: ECM variable-speed blower motor for quiet and efficient airflow
- Air Quality: Washable air filter for cleaner indoor air
- Insulation: Sound-insulated cabinet enhances thermal performance and reduces noise
Applications
- Residential and light commercial buildings in cold climates
- Whole-home ducted HVAC systems
- Energy-efficient heating and cooling upgrades
The Mitsubishi PUZ-AK30NLHZ / PVA-AA30NL delivers advanced cold-weather heating and cooling performance with excellent energy efficiency and eco-friendly operation. Ideal for modern comfort and sustainability in colder regions.
30" Wall Mount Bracket
This wall mount bracket is perfect for outdoor condensers. The length of the wall bracket arms are 30" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).
Features:
- Steel: 10 GA
- Powder-coated grey Finish
- Load rating: 600 lbs per pair
- Holes will accommodate anchors for installation
- Warranty: 1 year
- ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)
No Return Policy
All sales of this product are final and are non-refundable.
Cielo Breez Max Mini Split Thermostat with WiFi
Introducing Cielo Breez Max, the ultimate smart thermostat for your mini-splits, designed to elevate your comfort with intelligent climate control. Transform your air conditioner into a smart powerhouse and manage your cooling or heating from anywhere using your phone. This award-winning device, available in black and white, prevents overheating or overcooling with AI-powered Comfy Max, while seamlessly detecting any mini-split brand for hassle-free setup.
Features:
- Energy Savings
- WiFi Connectivity
- Weekly Schedule
- Geofencing
- Temperature Range Lock
- Real-Time Notifications
- HVAC Zoning
Weekly Schedule lets you set on and off periods throughout the week based on your needs.
Geofencing uses your smartphone's location to trigger actions in your system, such as turning the air conditioner on or off based on your proximity to home.
Temperature Range Lock ensures your air conditioner operates within a set temperature range for optimal comfort and efficiency.
Real-Time Notifications keep you informed with important updates, helping you manage your air conditioner better.
HVAC Zoning allows you to create customized temperature control zones by grouping multiple mini-split units.
The Cielo Breez Max offers innovative features and extraordinary performance, making it a perfect fit for any room air conditioner. Enjoy maximum energy savings and simplified home comfort with this advanced smart thermostat.
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 15 feet
Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Equipment Pad
E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
- High recycled plastic content
- Subtle texture resists unit slide
- Unaffected by UV or weather
- Uniform ribbing transfers load evenly
- Drillable for securing unit
- Lightweight, yet rugged
No Return Policy
All sales of this product are final and are non-refundable.
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 25 feet
Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Condenser Risers - 4" x 18" - 2 Pack
Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.
Features
- Ideal for piping, duct runs, cable trays and condensers
- Weather resistant PVC
- Linear track holds 3/8" hex head bolts
- Two 7/8" long bolts included
- Weighs up to 397 Ib
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 30 feet
Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Equipment Pad and Risers Kit
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
- Reliable Support: Abundance of ridges for stable ground support.
- Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
- Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
- Simple Appearance: Gray color with size labels.
- Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
- Weather Resistance: Made from tough PVC for long-lasting performance.
- Secure Setup: The track securely holds bolts in place.
- Bolts Included: Each set comes with two bolts.
- Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 35 feet
Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 35 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 50 feet
Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends

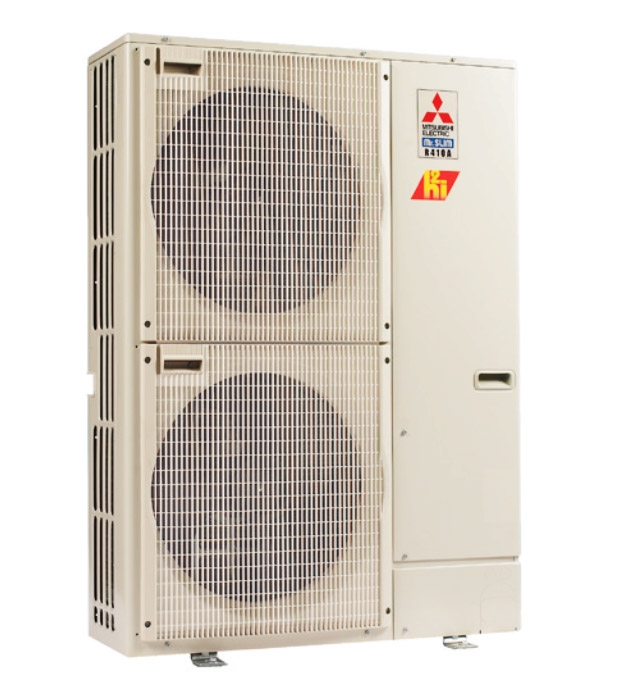

30,000 BTU Mitsubishi Single Zone Condenser - R454B
PUZ-AK30NLHZ - Outdoor Unit for Heat Pump System
The PUZ-AK30NLHZ is a high-efficiency outdoor unit designed to pair with Mitsubishi Electric's PCA-AK30NL ceiling-suspended indoor unit, delivering reliable heating and cooling for commercial applications. Below are the key features and specifications of this outdoor unit:
Key Features:
- Hyper-Heating INVERTER®: Features a variable speed INVERTER-driven compressor that enhances heating performance, providing efficient heating even in colder temperatures.
- Wide Heating Range: Maintains heating performance down to -13°F, ensuring consistent comfort in colder climates.
- High-Speed Start-up: Reduces heating start-up time by approximately half compared to standard models, delivering prompt warmth when needed.
- Built-in Base Pan Heater: Equipped with a built-in base pan heater to prevent ice buildup, ensuring reliable operation during heating cycles.
- Pre-Charged Refrigerant: Comes pre-charged with refrigerant suitable for piping lengths up to 100 feet, simplifying installation and reducing setup time.
- Pressure/Temperature Protection: Incorporates safeguards to monitor and protect against pressure and temperature anomalies, ensuring safe and efficient operation.
Specifications:
- Cooling at 95°F:
- Maximum Capacity: 31,000 BTU/h
- Rated Capacity: 30,000 BTU/h
- Minimum Capacity: 12,300 BTU/h
- Maximum Power Input: 2,550 W
- Rated Power Input: 2,420 W
- Heating at 47°F:
- Maximum Capacity: 35,000 BTU/h
- Rated Capacity: 35,000 BTU/h
- Minimum Capacity: 11,500 BTU/h
- Maximum Power Input: 2,710 W
- Rated Power Input: 2,772 W
- Heating at 17°F:
- Rated Capacity: 22,400 BTU/h
- Maximum Power Input: 2,400 W
- Heating at 5°F:
- Maximum Capacity: 32,000 BTU/h
- Maximum Power Input: 4,700 W
- Heating at -13°F:
- Maximum Capacity: 21,700 BTU/h
- SEER2 Rating: 21.9, indicating high energy efficiency.
- EER21 Rating: 12.3, reflecting efficient energy use during cooling.
- HSPF2 Rating: 9.4, demonstrating effective heating performance.
- Electrical Requirements:
- Voltage: 208/230 V AC, Single-phase, 60 Hz
- Guaranteed Voltage Range: 198 - 264 V AC
- Indoor-Outdoor Voltage (S1-S2): 208/230 V AC
- Indoor-Outdoor Voltage (S2-S3): 12-24 V DC
- Short-Circuit Current Rating (SCCR): 5 kA
- Recommended Fuse/Breaker Size (Outdoor): 30 A
- Recommended Wire Size (Indoor to Outdoor): 14 AWG
- Outdoor Unit Dimensions (W x D x H): 41-1/4 x 14-1/2 x 31-1/2 inches (1,048 x 368 x 800 mm)
- Outdoor Unit Weight: 129 lbs (59 kg)
The PUZ-AK30NLHZ outdoor unit, when paired with the PCA-AK30NL indoor unit, offers a comprehensive heating and cooling solution suitable for various commercial settings. For detailed installation guidelines and comprehensive information, please refer to the official Mitsubishi Electric documentation.
30,000 BTU Mitsubishi P Series Multi-Positional Air Handler - R454B
PVA-AA30NL Mitsubishi 30,000 BTU P-Series Central Air Handler
The Mitsubishi Electric PVA-AA30NL is a 30,000 BTU/h ducted air handler designed for single-zone applications. Its multi-position installation capability makes it ideal for various residential and light commercial settings, offering both flexibility and efficiency.
Key Features
- Multi-Position Installation: Supports horizontal (left or right) and vertical (up or down) configurations, with optional downflow condensate management kit (CMA-1).
- Efficient ECM Motor: Enclosed, highly efficient electronically commutated motor for enhanced reliability and lower energy usage.
- Fiberglass-Free Insulation: 1" R4.2 insulation enhances thermal performance and reduces condensation risks.
- Selectable Static Pressure: Adjustable to 0.30, 0.50, and 0.80 in.WG with three fan speeds at each setting for tailored airflow control.
- Quiet Operation: Low sound pressure levels (as low as 30 dB(A)) ensure minimal noise disruption.
- Remote and Smart Controls: Compatible with wired and wireless controllers, third-party interfaces, and the Mitsubishi Comfort App.
- Optional Enhancements: Supports electric heat kits, ERV (energy recovery ventilator) control, and humidifier control for expanded functionality.
- Positive Pressure Cabinet: Ensures less than 1.0% air leakage at 1.0 in.WG for maximum efficiency.
- Blow-Through Coil Design: Allows simple coil cleaning by removing the blower, improving maintenance access.
Performance and Specifications
- Cooling Capacity: 30,000 BTU/h
- Heating Capacity: 32,000 BTU/h at 47°F
- SEER: 19
- HSPF: 10
- Airflow Rates: 613, 744, 875 CFM (cooling/heating)
- Sound Pressure Levels: 30, 34, 38 dB(A) (cooling/heating)
- Unit Dimensions: 21" W x 21-5/8" D x 54-1/4" H
- Weight: 141 lbs (unit)
- Voltage: 208/230V, 1-phase, 60 Hz
- ENERGY STAR® Certified: No
Applications
The PVA-AA30NL is suitable for various applications, including residential homes, small offices, retail stores, and other light commercial environments where a flexible, quiet, and efficient air handling solution is needed.
