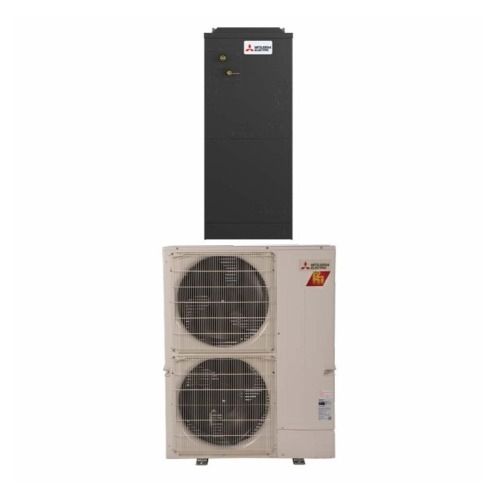

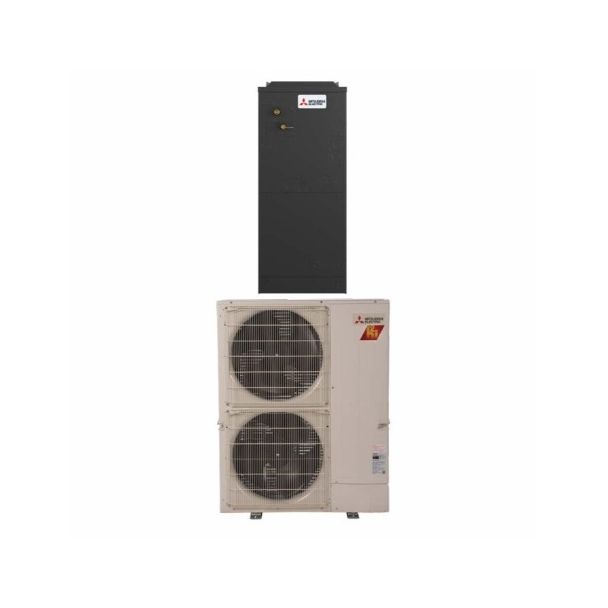

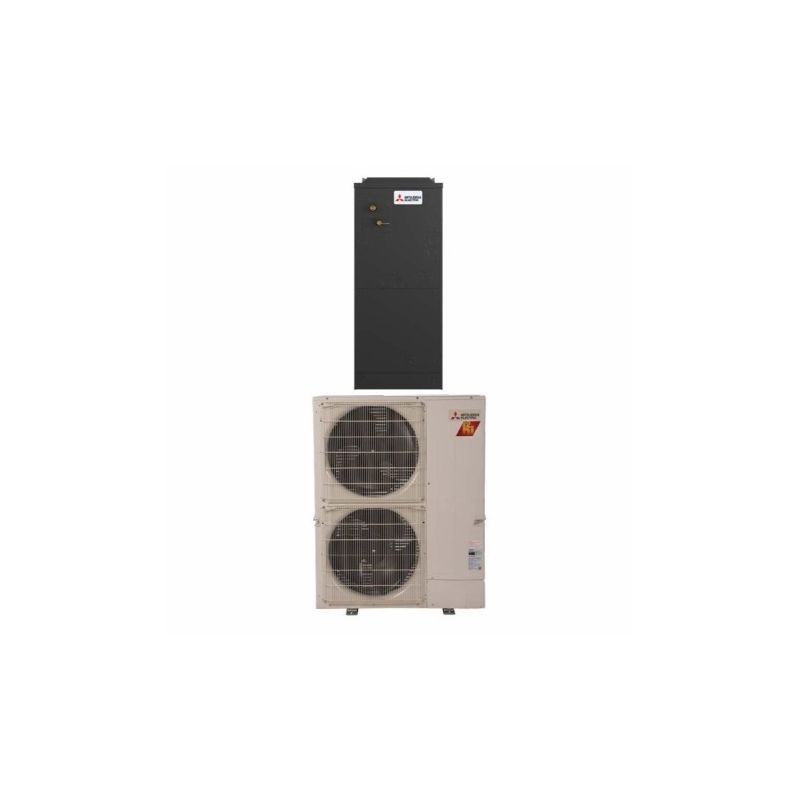

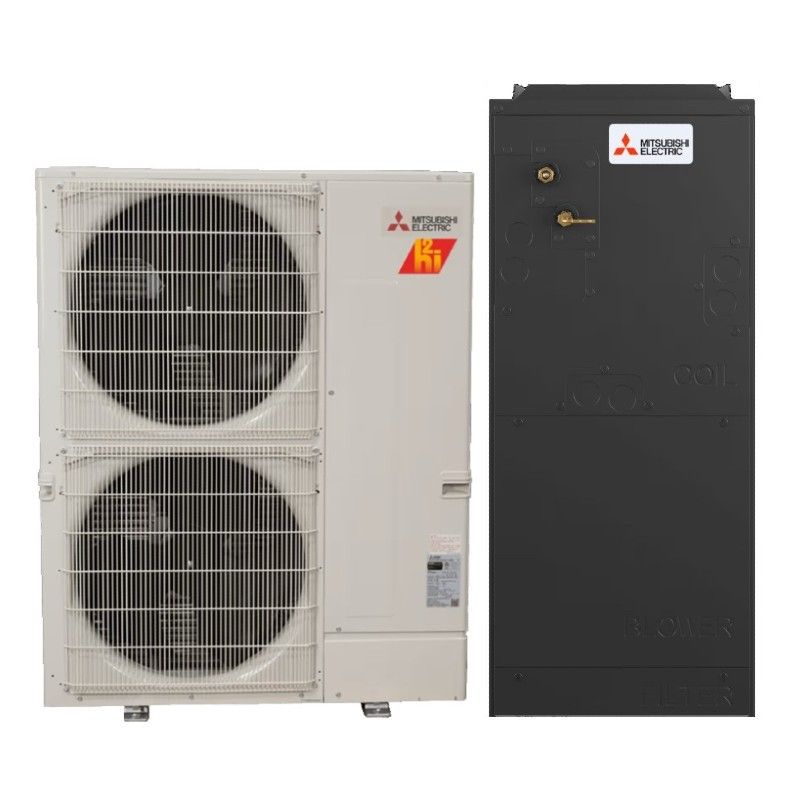

Mitsubishi 2 Ton 18.6 SEER2 Ducted Central Air Inverter H2i Heat Pump Split System | R454B

Mitsubishi SVZ Series 2 Ton Air Handler | R454B

The Mitsubishi SVZ Series 2 Ton Air Handler, paired with the SUZ outdoor unit, is a powerful and efficient ducted system designed to deliver consistent comfort across larger residential spaces and light commercial environments. Utilizing advanced inverter technology and eco-conscious R454B refrigerant, this system is built for high performance, quiet operation, and sustainable climate control.

Key Features

• Inverter Compressor Technology: Automatically adjusts output to maintain ideal temperatures while maximizing energy savings.
• R454B Refrigerant: Environmentally advanced refrigerant with a lower global warming potential (GWP) for reduced environmental impact.
• Quiet Operation: Engineered to operate at low sound levels, providing comfort without disruption.
• Compact and Flexible Installation: Suitable for both vertical and horizontal installation, ideal for attics, closets, and utility rooms.
• High Static Pressure Support: Designed to accommodate complex ductwork and longer duct runs without loss of performance.
• Multi-Speed Fan Control: Offers adjustable airflow for enhanced comfort and zoning flexibility.

Technical Specifications

• Indoor Unit Model: SVZ-KP24NA
• Outdoor Unit Model: SUZ-KA24NA2
• Capacity: 24,000 BTU/h (2 Ton)
• Refrigerant: R454B
• Power Supply: 208/230V, 1 Phase, 60 Hz
• Fan Speeds: Multiple speeds for optimal air distribution
• Sound Pressure Levels: Low operating noise starting around 30 dB(A), depending on configuration

Benefits

• Large Area Comfort: Perfect for conditioning larger homes or office spaces with zoned or centralized airflow.
• Eco-Conscious Design: Low-GWP R454B refrigerant helps meet modern sustainability standards.
• Energy Efficiency: Variable speed operation results in lower energy use and reduced utility bills.
• Installation Versatility: Can be installed in a wide range of applications thanks to its compact and adaptable layout.
• Reliability and Performance: Mitsubishi's proven technology ensures long-lasting and consistent heating and cooling.

The Mitsubishi SVZ Series 2 Ton Air Handler with R454B is a high-capacity solution engineered for efficiency, comfort, and environmental responsibility. Whether you're upgrading an existing system or designing a new installation, this unit provides the performance and reliability that Mitsubishi Electric is known for.

SUZ-AK24NLHZ - 24,000 BTU/H Hyper Heat Pump Outdoor Unit

The SUZ-AK24NLHZ is a high-performance outdoor unit designed to provide efficient cooling and heating capabilities for residential and commercial applications. With advanced features like the Hyper-Heating INVERTER® (H2i®) technology and enhanced durability, this unit is ideal for year-round comfort even in extreme weather conditions.

Outdoor Unit Features (SUZ-AK24NLHZ):

• Blue Fin Coating: Anti-corrosion treatment on the heat exchanger fins to protect against salt, sulfur, and airborne contaminants, ideal for coastal and industrial environments.
• Built-in Base Pan Heater: Prevents ice formation during colder months, ensuring reliable operation in freezing temperatures.
• Hot-Start Technology: The fan activates only once the heat exchanger is warm, preventing cold air blasts at startup.
• Hyper-Heating INVERTER® (H2i®): Provides 100% heating capacity down to 5°F, with guaranteed operation even at -13°F for consistent warmth.
• Joint Lap DC Motor: Offers high efficiency and reliability for consistent performance.
• Outdoor Unit Directed Power: The outdoor unit powers the indoor unit, with automatic restart when power returns after an outage.
• Pulse Amplitude Modulation Technology: Enhances energy efficiency by optimizing compressor performance, ensuring precise capacity control and reducing energy consumption.
• Quiet Operation: Operates quietly at noise levels similar to normal conversation, ensuring minimal disruption in the environment.

Specifications:

• Cooling Capacity: 24,000 BTU/h rated, with a maximum of 24,800 BTU/h and a minimum of 12,700 BTU/h at 95°F outdoor temperature.
• Heating Capacity: 28,000 BTU/h at 47°F, 25,000 BTU/h at 17°F, 25,000 BTU/h at 5°F, and 17,700 BTU/h at -13°F.
• Power Input: 1,790W rated power input during cooling, and 2,217W rated power input during heating at 47°F.
• SEER2: 17.3 for efficient cooling performance.
• HSPF2: 8.5 for energy-efficient heating performance.
• Refrigerant: Uses R454B refrigerant, pre-charged with 9 lbs 14 oz, with a maximum piping length of 25 feet.
• Sound Pressure Level: 52 dB(A) during cooling, and 53 dB(A) during heating for a quieter operation.
• Dimensions: 41-11/32 x 14 x 52-43/64 inches for the outdoor unit, weighing 231 lbs.

The SUZ-AK24NLHZ outdoor unit is designed to provide exceptional heating and cooling performance, offering energy savings and reliability in various climates. Whether used in residential or commercial applications, it ensures year-round comfort even in extreme temperatures.

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 35 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends
