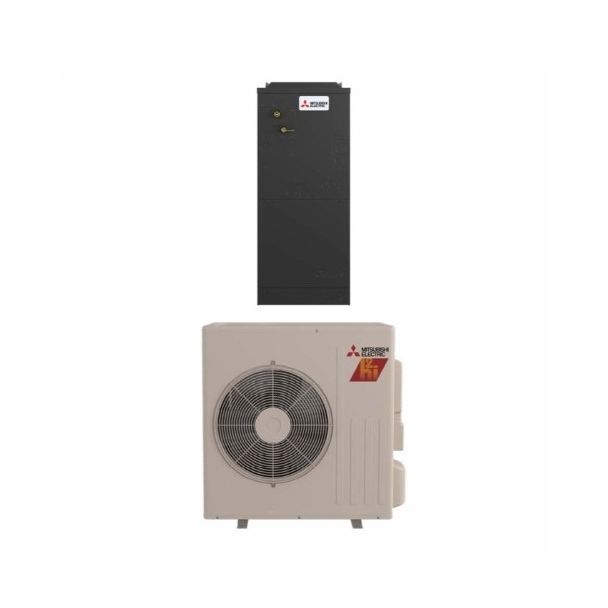

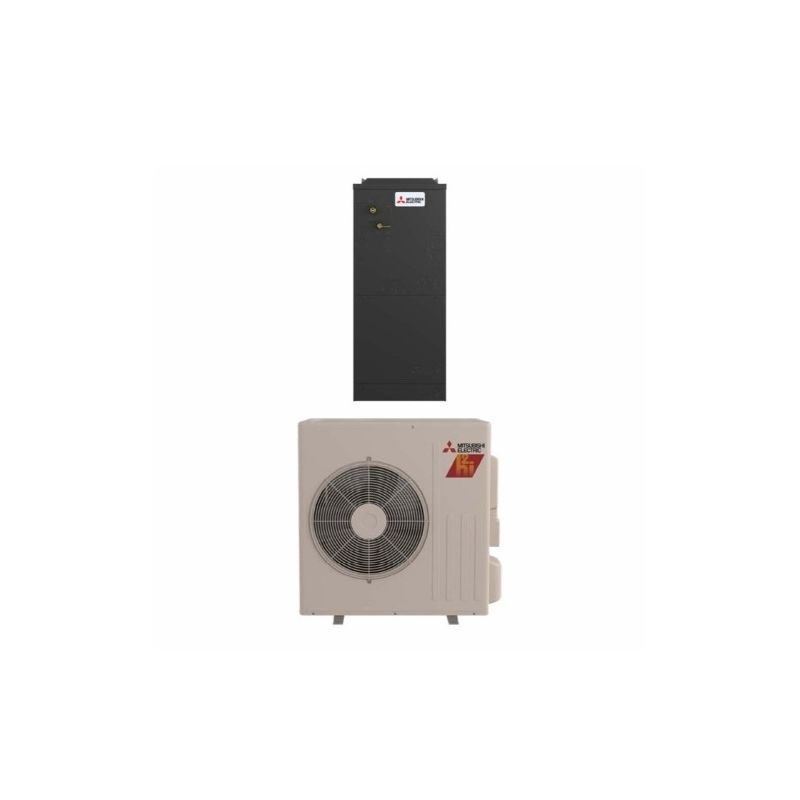

Mitsubishi 2 Ton 19.1 SEER2 Cooling Only Ducted Central Air Inverter Heat Pump Split System |R454B

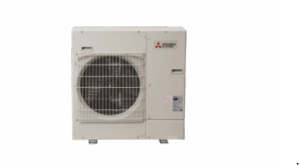

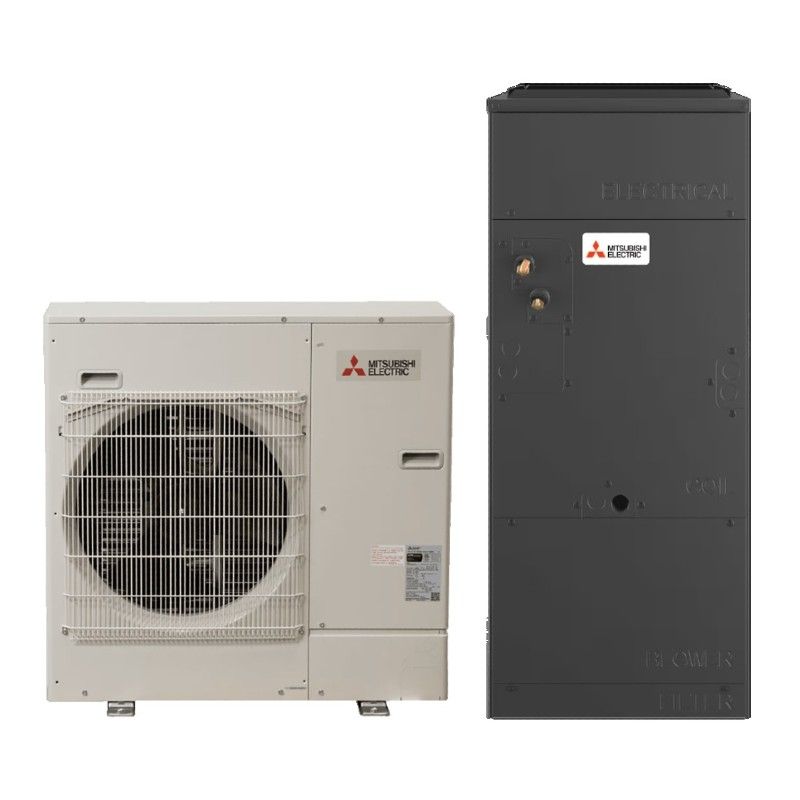

PUY-AH24NL - Outdoor Unit for Ceiling-Suspended Air Conditioning System

The PUY-AH24NL is a high-performance outdoor unit designed for use with ceiling-suspended air conditioning systems, offering excellent cooling and heating capabilities for larger spaces. It is ideal for commercial and residential applications that require efficient climate control across multiple zones. Below are the key features and specifications of this model:

Key Features:

• Blue Fin Coating: An anti-corrosion treatment applied to the heat exchanger's aluminum fins, protecting against corrosion from salt, sulfur, and other airborne contaminants, especially in coastal and industrial areas.
• Continuous Operation: Capable of 24-hour continuous operation in cooling mode, providing consistent comfort around the clock.
• Fast Restart: Quickly resumes operation after power interruptions, minimizing downtime and maintaining comfort.
• High Pressure Protection: Equipped with high-pressure safeguards to protect the system from anomalies, ensuring reliability and safe operation.
• INVERTER-Driven Compressor: Adjusts the compressor speed according to cooling demand, enhancing energy efficiency and maintaining stable temperatures.
• Low Ambient Cooling: Supports cooling down to -40°F with the addition of wind baffles, making it suitable for a variety of climates.
• Pre-Charged Refrigerant: The unit is pre-charged with refrigerant for specific line lengths, simplifying installation and reducing setup time.
• Seacoast Protection: Features a robust anti-corrosion system, including a treated heat exchanger coil and coated external panels, rated for 2,000 hours under ASTM B117 testing, ensuring durability in coastal environments.
• Superior Energy and Operational Efficiency: Designed to deliver top-tier performance while minimizing energy consumption and reducing operational costs.

Specifications:

• Cooling Capacity at 95°F:
  • Maximum Capacity: 24,000 BTU/h
  • Rated Capacity: 21,800 BTU/h
  • Minimum Capacity: 9,800 BTU/h
• Power Consumption:
  • Maximum Power Input: 2,120 W
  • Rated Power Input: 1,810 W
• Moisture Removal: 4 pints/h
• Energy Efficiency Ratings:
  • SEER2: 20.2
  • EER21: 12
• Electrical Requirements:
  • Voltage: 208/230 V AC, Single-phase, 60 Hz
  • Guaranteed Voltage Range: 198 - 264 V AC
  • Indoor-Outdoor Voltage (S1-S2): 208/230 V AC
  • Short-circuit Current Rating (SCCR): 5 kA
  • Recommended Outdoor Fuse/Breaker Size: 25 A
  • Recommended Wire Size (Indoor to Outdoor): 14 AWG
• Outdoor Unit Dimensions (W x D x H): 37-13/32 x 14 x 37-1/8 inches (950 x 355 x 943 mm)
• Outdoor Unit Weight: 155 lbs (70 kg)

The PUY-AH24NL outdoor unit is designed to offer efficient and reliable cooling and heating for ceiling-suspended systems, delivering superior performance and durability for a wide range of applications.

PVA-AA24NL Mitsubishi 24,000 BTU P-Series Central Air Handler

The Mitsubishi Electric PVA-AA24NL is a high-performance 24,000 BTU/h ducted air handler designed for single-zone applications. Its multi-position installation capability makes it ideal for various residential and light commercial settings, offering both flexibility and efficiency.

Key Features

• Multi-Position Installation: Supports horizontal (left or right) and vertical (up or down) configurations. For downflow setups, the optional CMA-1 kit is recommended to manage condensate effectively.
• Efficient ECM Motor: Features a totally enclosed, highly efficient ECM motor for reliable and energy-saving operation.
• Fiberglass-Free Insulation: Equipped with 1" R4.2 fiberglass-free insulation to reduce condensation and enhance thermal efficiency.
• Selectable Static Pressure: Offers adjustable external static pressure settings of 0.30, 0.50, and 0.80 in.WG, with three fan speeds at each setting for optimal airflow control.
• Quiet Operation: Operates at low sound pressure levels, ranging from 34 to 44 dB(A), ensuring minimal noise disruption.
• Positive Pressure Cabinet: Designed with a positive pressure cabinet that limits air leakage to less than 1.0% at 1.0 in.WG, maximizing efficiency.
• Unique Blow-Through Design: Allows for simple coil cleaning by removing the blower, facilitating easier maintenance.
• Optional Enhancements: Compatible with electric heat kits, humidifier control, and energy recovery ventilator (ERV) control for expanded functionality.
• Advanced Controls: Supports multiple control options, including wired and wireless controllers, third-party interfaces, and the Mitsubishi Comfort App for remote access.

Performance and Specifications

• Cooling Capacity: Rated at 24,000 BTU/h, with a maximum of 25,000 BTU/h and a minimum of 13,600 BTU/h.
• Heating Capacity: Rated at 28,000 BTU/h at 47°F, with a maximum of 28,000 BTU/h and a minimum of 12,800 BTU/h.
• SEER2: 19.7
• HSPF2: 8.8
• EER2: 13.6
• COP at 47°F: 4.0
• Airflow Rates: 613, 744, 875 CFM (cooling/heating)
• Sound Pressure Levels: 34, 40, 44 dB(A) (cooling/heating)
• Unit Dimensions: 21" W x 21-5/8" D x 54-1/4" H
• Weight: 141 lbs (unit), 163 lbs (packaged)
• Voltage: 208/230V, 1-phase, 60 Hz
• ENERGY STAR® Certified: Yes

Applications

The PVA-AA24NL is suitable for various applications, including residential homes, small offices, retail stores, and other light commercial environments where a flexible, quiet, and efficient air handling solution is needed.
