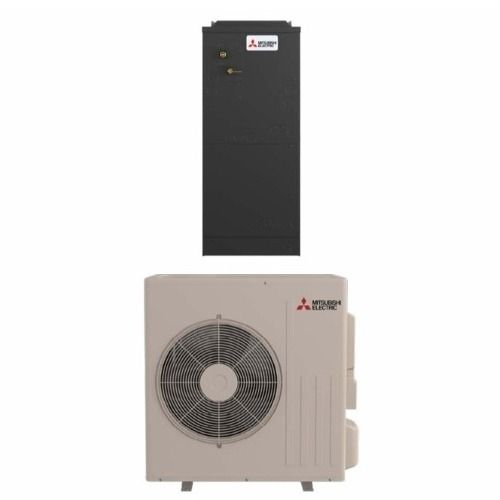

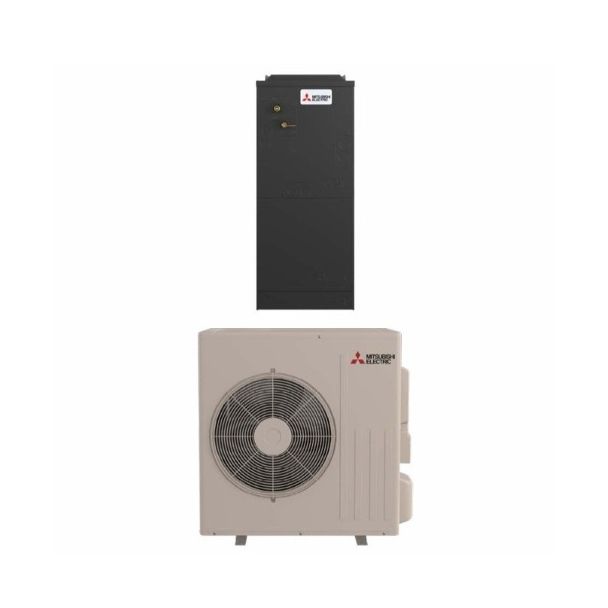

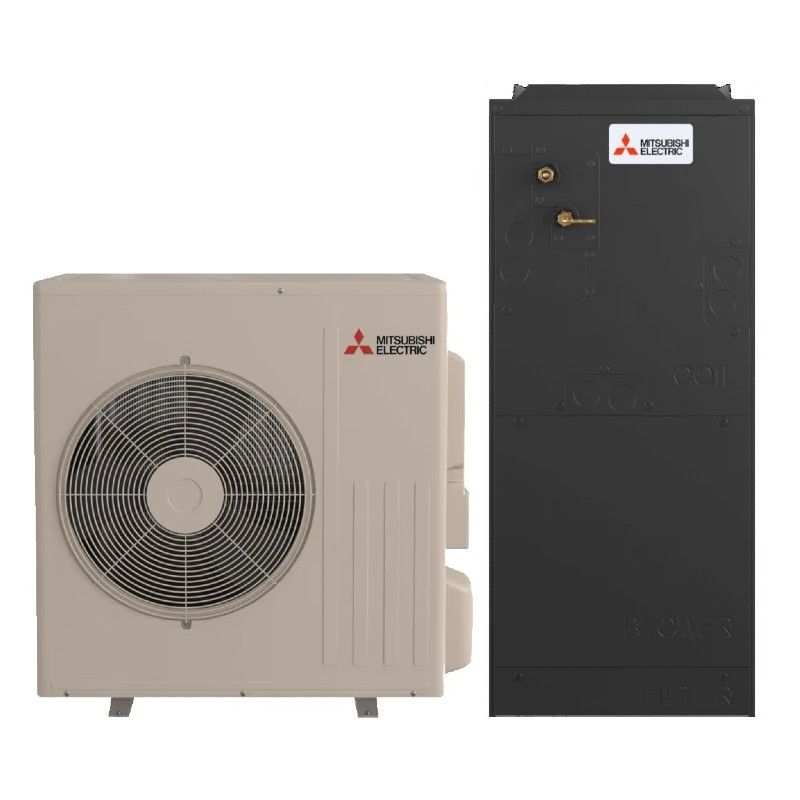

Mitsubishi 2 Ton 19.5 SEER2 Ducted Central Air Inverter Heat Pump Split System | R454B

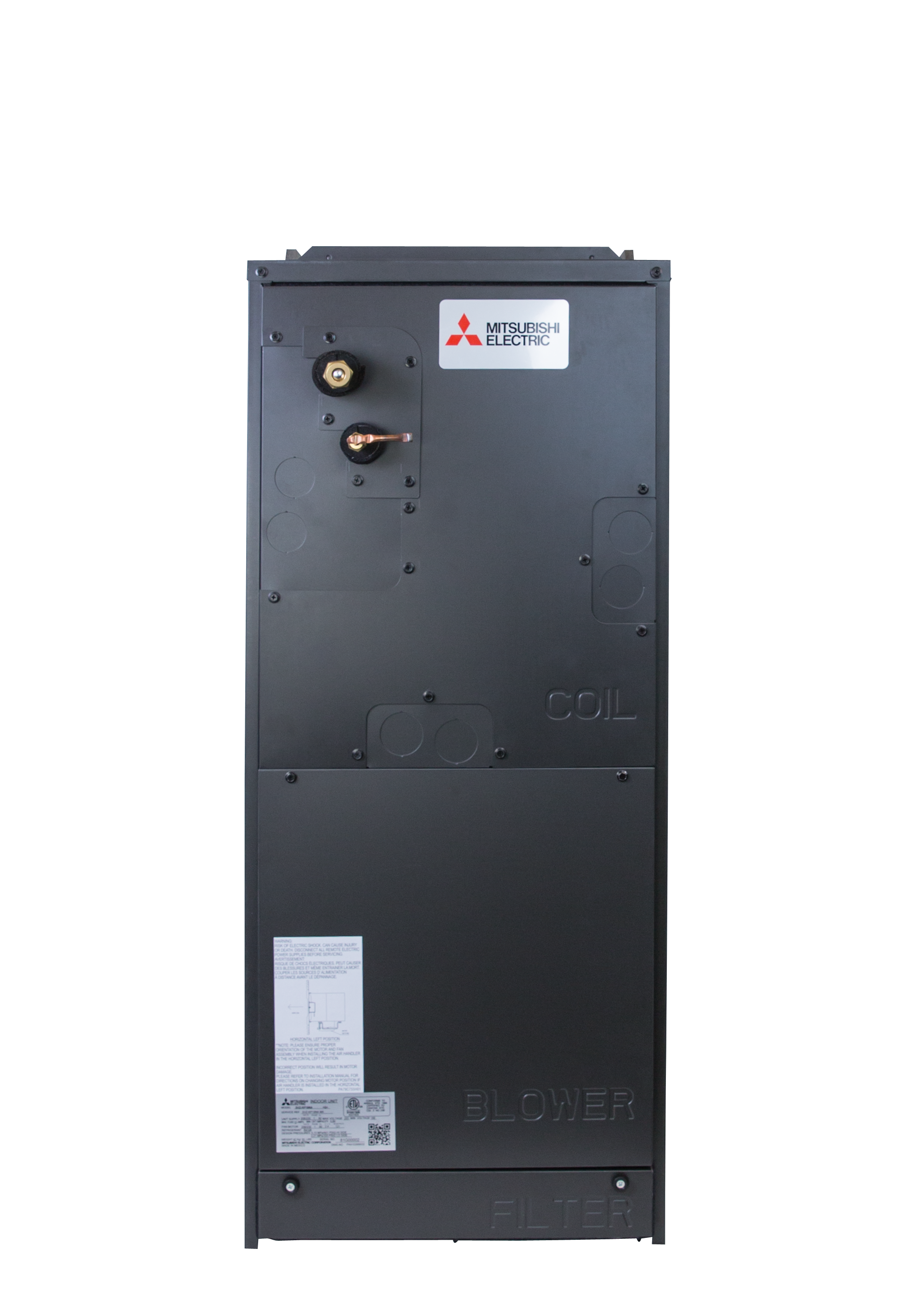

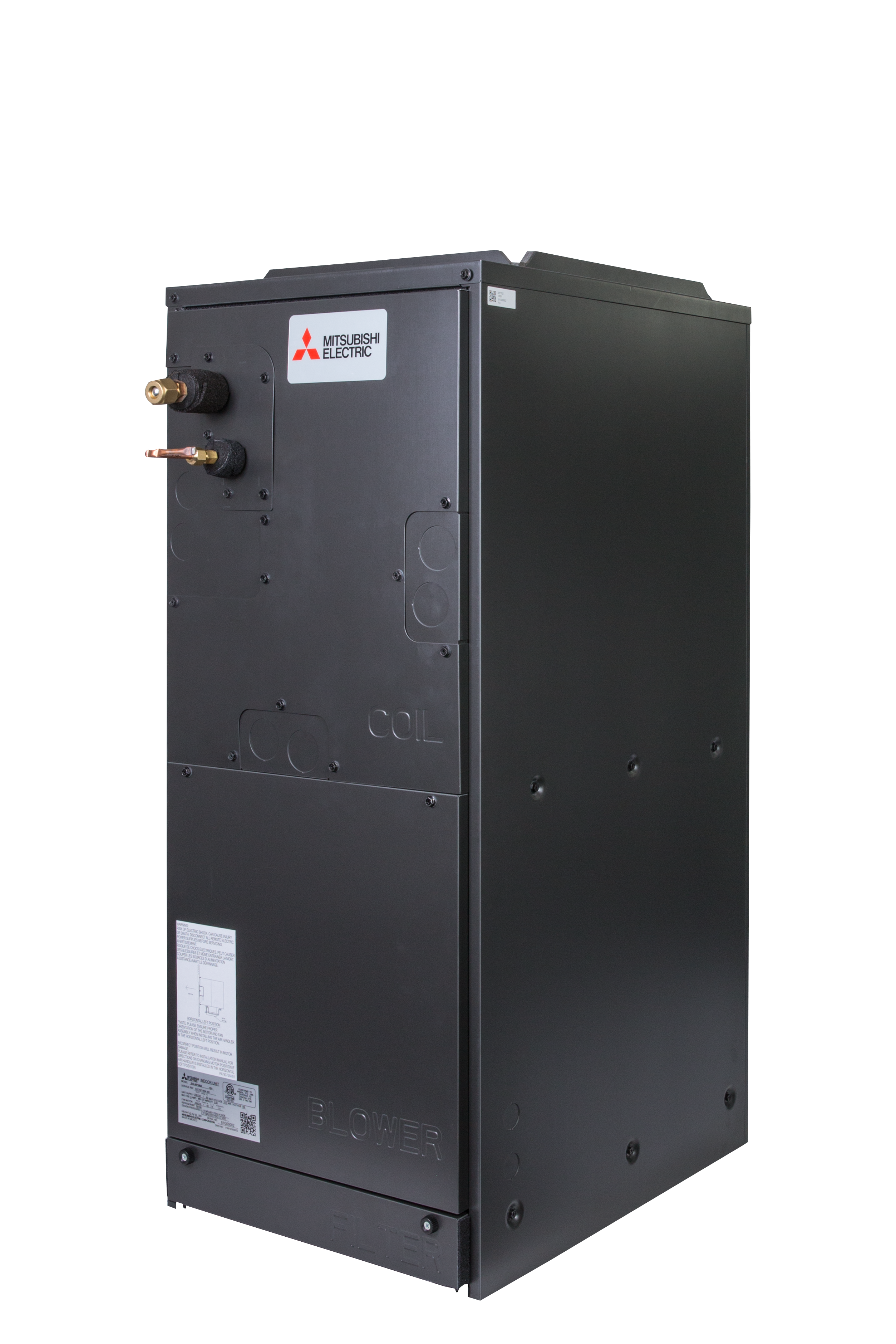

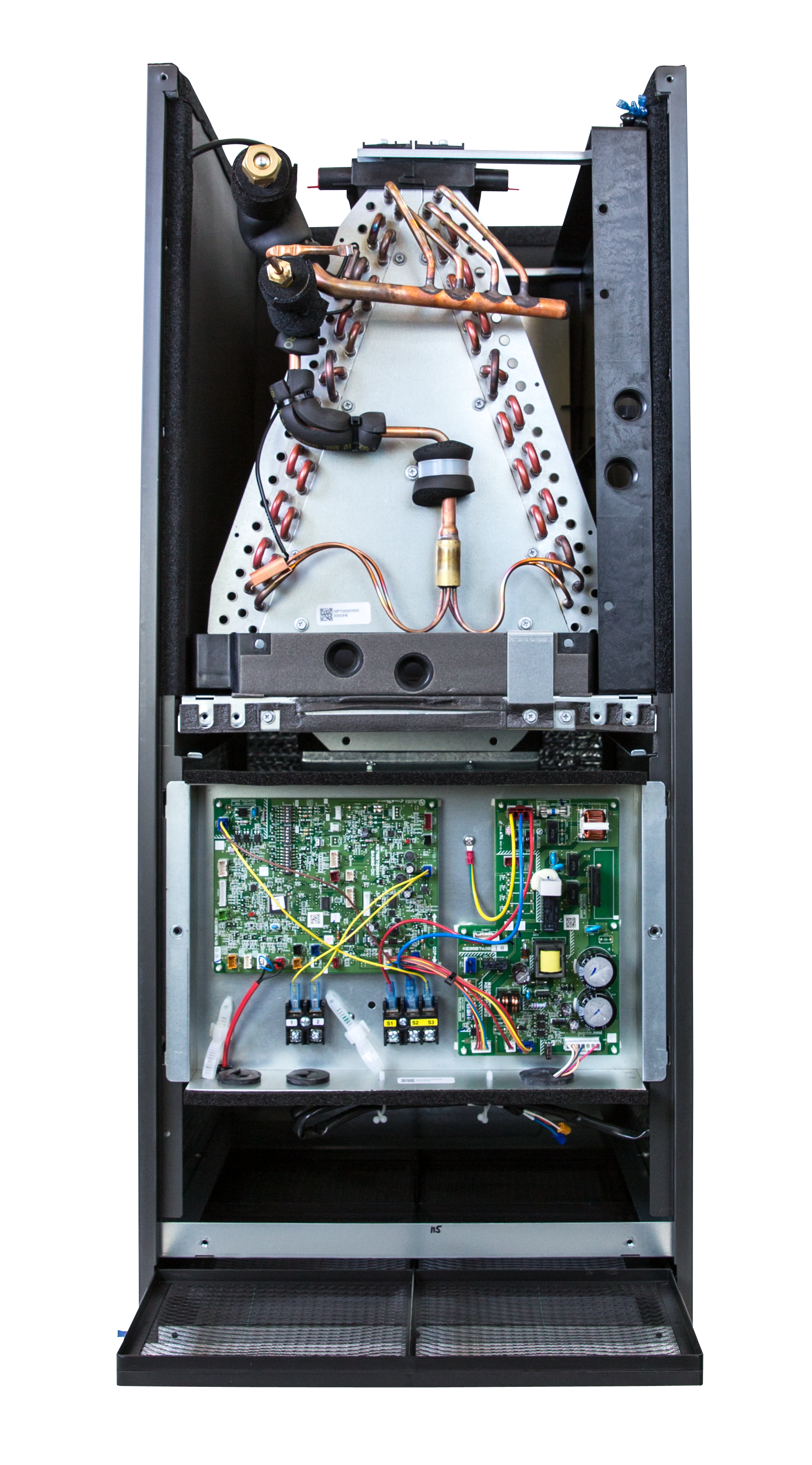

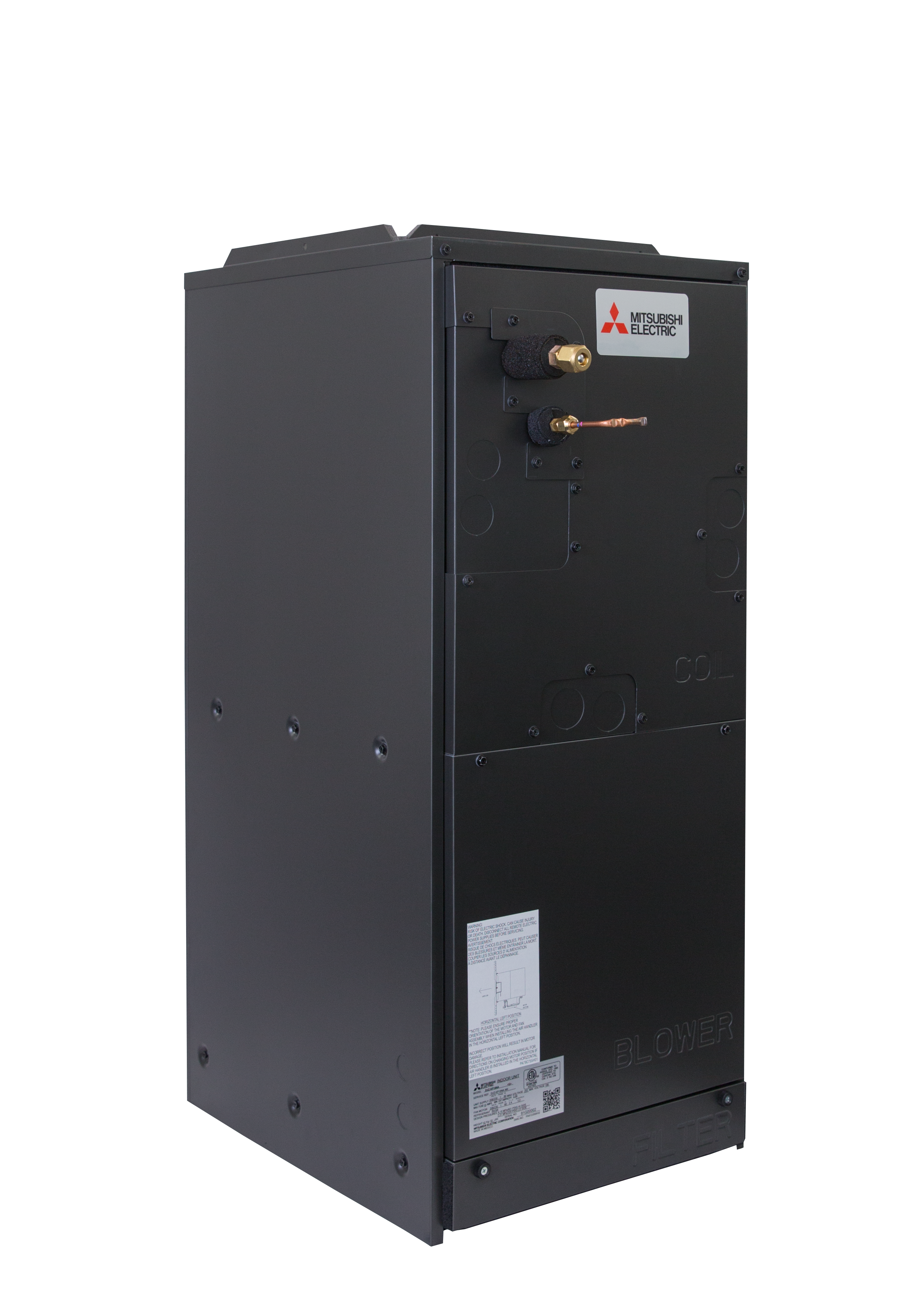

Mitsubishi SVZ Series 2 Ton Air Handler | R454B

The Mitsubishi SVZ Series 2 Ton Air Handler, paired with the SUZ outdoor unit, is a powerful and efficient ducted system designed to deliver consistent comfort across larger residential spaces and light commercial environments. Utilizing advanced inverter technology and eco-conscious R454B refrigerant, this system is built for high performance, quiet operation, and sustainable climate control.

Key Features

• Inverter Compressor Technology: Automatically adjusts output to maintain ideal temperatures while maximizing energy savings.
• R454B Refrigerant: Environmentally advanced refrigerant with a lower global warming potential (GWP) for reduced environmental impact.
• Quiet Operation: Engineered to operate at low sound levels, providing comfort without disruption.
• Compact and Flexible Installation: Suitable for both vertical and horizontal installation, ideal for attics, closets, and utility rooms.
• High Static Pressure Support: Designed to accommodate complex ductwork and longer duct runs without loss of performance.
• Multi-Speed Fan Control: Offers adjustable airflow for enhanced comfort and zoning flexibility.

Technical Specifications

• Indoor Unit Model: SVZ-KP24NA
• Outdoor Unit Model: SUZ-KA24NA2
• Capacity: 24,000 BTU/h (2 Ton)
• Refrigerant: R454B
• Power Supply: 208/230V, 1 Phase, 60 Hz
• Fan Speeds: Multiple speeds for optimal air distribution
• Sound Pressure Levels: Low operating noise starting around 30 dB(A), depending on configuration

Benefits

• Large Area Comfort: Perfect for conditioning larger homes or office spaces with zoned or centralized airflow.
• Eco-Conscious Design: Low-GWP R454B refrigerant helps meet modern sustainability standards.
• Energy Efficiency: Variable speed operation results in lower energy use and reduced utility bills.
• Installation Versatility: Can be installed in a wide range of applications thanks to its compact and adaptable layout.
• Reliability and Performance: Mitsubishi's proven technology ensures long-lasting and consistent heating and cooling.

The Mitsubishi SVZ Series 2 Ton Air Handler with R454B is a high-capacity solution engineered for efficiency, comfort, and environmental responsibility. Whether you're upgrading an existing system or designing a new installation, this unit provides the performance and reliability that Mitsubishi Electric is known for.

SUZ-AA24NL - 24,000 BTU/H Heat Pump Outdoor Unit

The SUZ-AA24NL is a powerful and efficient outdoor heat pump unit designed for residential and light commercial use. It delivers reliable performance for both heating and cooling, ensuring optimal comfort in varying temperature conditions.

Outdoor Unit Features (SUZ-AA24NL):

• Quiet Operation: Operates with noise levels similar to a typical conversation, offering a quiet and peaceful environment.
• Pulse Amplitude Modulation Technology: Enhances energy efficiency by adjusting the power supply for optimal compressor performance, reducing energy consumption.
• Inverter-Driven Compressor: Provides precise capacity control for maintaining consistent temperature and energy savings.
• Hot-Start Technology: Prevents cold air blasts during startup by ensuring the fan activates only once the heat exchanger is warm.
• High-Performance Grooved Piping: Improves heat exchange efficiency, enhancing overall system performance.
• Blue Fin Coating: Protects the heat exchanger from corrosion caused by environmental factors like salt and sulfur, particularly useful in coastal or industrial locations.
• Outdoor Unit Directed Power: Powers the indoor unit and includes an automatic restart feature in case of power loss.
• Joint Lap DC Motor: Ensures reliable and efficient operation with a high-performance motor design.

Specifications:

• Cooling Capacity: 24,000 BTU/h maximum, with a minimum capacity of 9,100 BTU/h at 95°F outdoor temperature.
• Heating Capacity: 28,200 BTU/h at 47°F, with capacities ranging from 17,100 BTU/h at 17°F to 11,200 BTU/h at -4°F outdoor temperature.
• Energy Efficiency: SEER2 rating of 21.2, EER2 of 12.2, and HSPF2 of 10 for optimal performance and reduced energy consumption.
• Refrigerant: Uses R454B refrigerant with a pre-charged amount of 3 lbs 4 oz, offering a maximum piping length of 65 feet.
• Noise Levels: 55 dB(A) during both cooling and heating modes.
• Unit Dimensions: 33-1/16 x 13 x 34-11/16 inches, with a unit weight of 117 lbs.

The SUZ-AA24NL is designed to offer high efficiency and reliable comfort, making it an ideal choice for both residential and commercial installations. With its advanced features and durable construction, this outdoor unit ensures excellent performance and long-lasting operation.

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 35 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends
