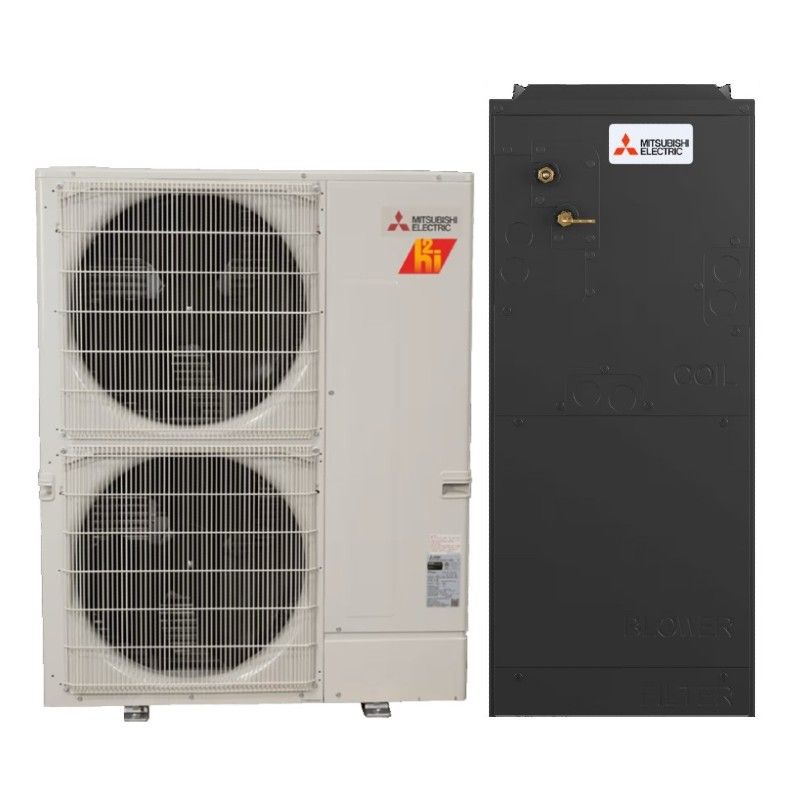

Mitsubishi 36,000 BTU 15.2 SEER2 Single Zone Ducted Central Air Inverter H2i Hyper Mini Split Heat Pump System – R454B | 230V
Required Fields *
By
Mitsubishi
In stock
Model
SUZ-AK36NLHZ / SVZ-AP36NL
ID
198648
In Stock - Ready to Ship
Was $9,513.00
Your Low Price $7,938.00
Free Shipping
Product Features
- Complete all-electric inverter heating and cooling system
- Can be installed in upflow, downflow, or horizontal applications
- Certified for use with R454B refrigerant
- Well-suited for medium homes in various climates
Save up to $5,500 off Local HVAC Prices

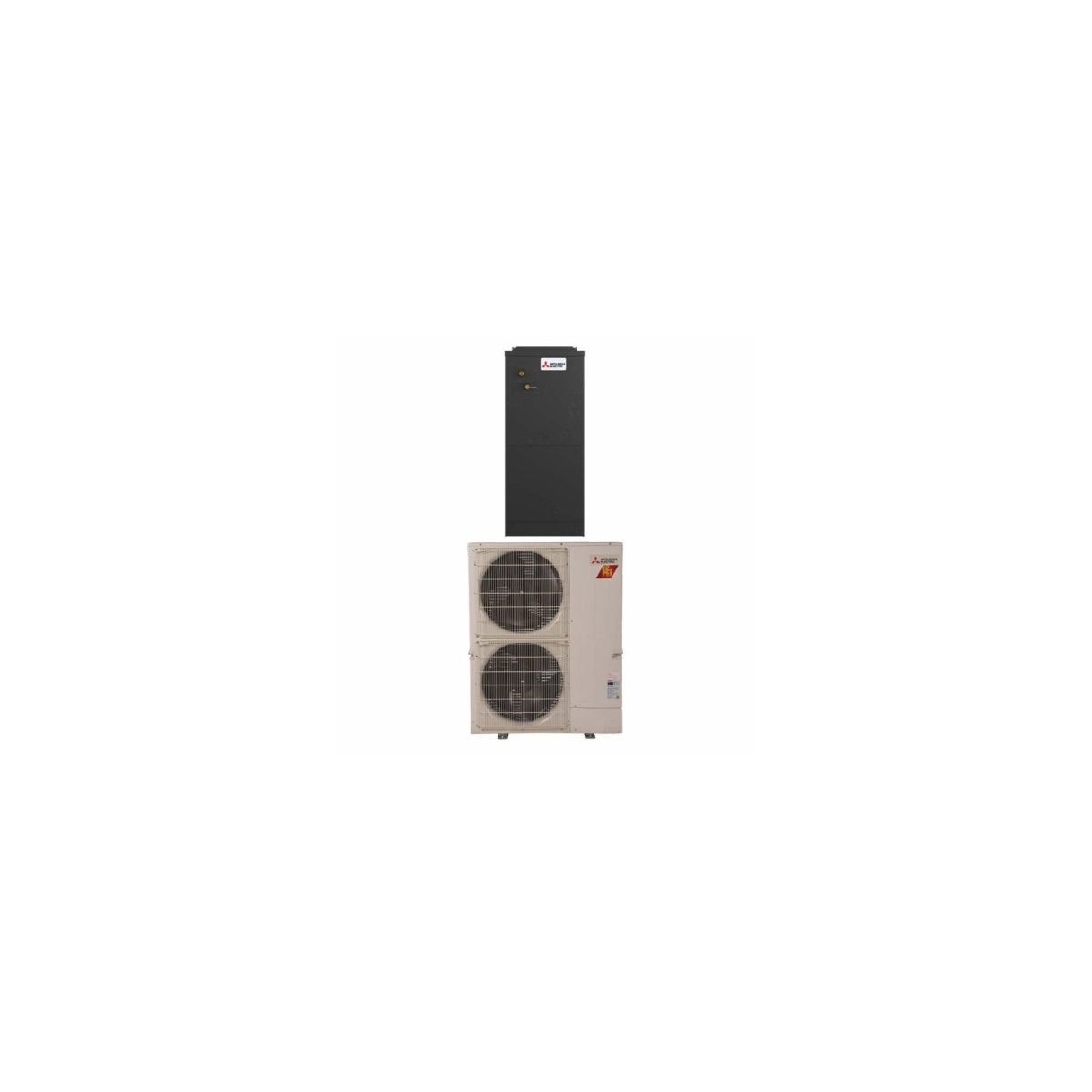

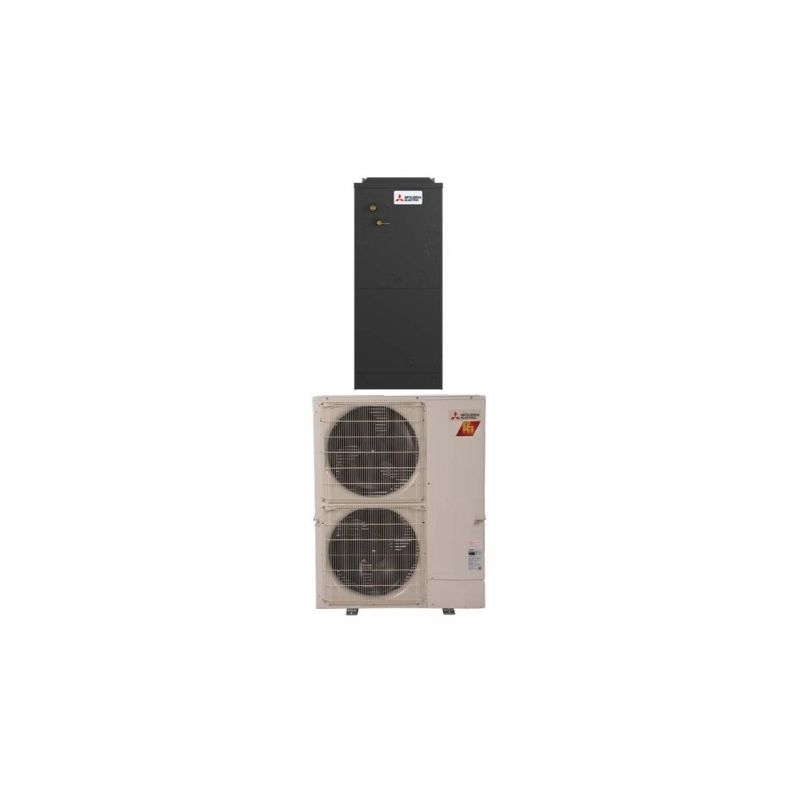

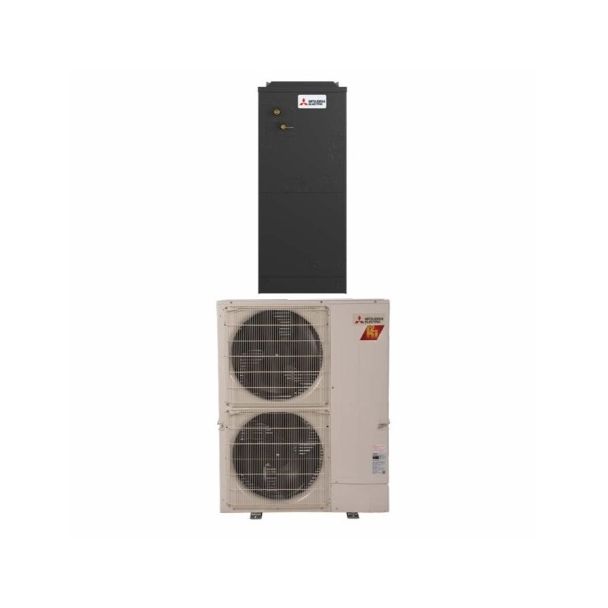

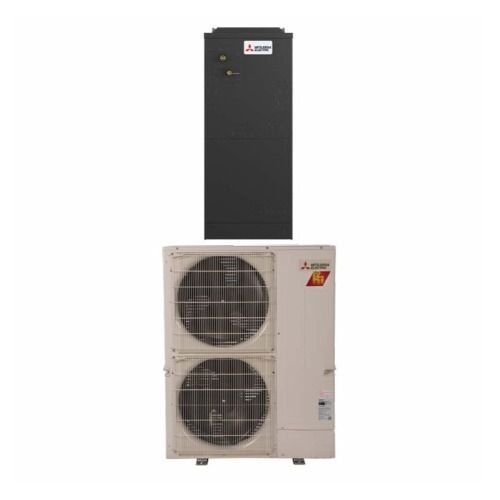

Mitsubishi 3 Ton 15.2 SEER2 Ducted Central Air Inverter H2i Heat Pump Split System | R454B SUZ-AK36NLHZ / SVZ-AP36NL
The Mitsubishi Electric SUZ-AK36NLHZ outdoor unit paired with the SVZ-AP36NL indoor unit delivers high-efficiency, year-round comfort with Hyper-Heating INVERTER® (H2i®) technology. Designed for cold climates and superior performance, this system uses environmentally friendly R454B refrigerant and features a 15.2 SEER2 rating, making it an ideal solution for whole-home ducted installations.
Key Features
- Capacity: 36,000 BTU (3 Ton)
- SEER2 Efficiency Rating: 15.2 for energy savings and dependable comfort
- Hyper-Heating INVERTER® (H2i®) Technology: Provides reliable heating performance in extreme cold conditions
- Refrigerant: Environmentally friendly R454B with low Global Warming Potential
- Quiet Operation: Minimal noise levels for residential comfort
- Inverter-Driven Compressor: Ensures precise temperature control and maximum efficiency
Indoor Unit - SVZ-AP36NL Highlights
- High Static Pressure Design: Supports multiple zones and extended duct runs
- Flexible Installation: Suitable for upflow, downflow, horizontal left or right configurations
- Built-in Condensate Pump: Simplifies drainage for convenient installations
- Integrated Air Filtration: Enhances indoor air quality
Outdoor Unit - SUZ-AK36NLHZ Highlights
- Cold Climate Performance: Maintains rated heating capacity at outdoor temperatures as low as 5°F and continues operation down to -13°F
- Blue Fin Anti-Corrosion Coating: Protects against moisture and coastal elements
- Smart Defrost Logic: Minimizes defrost cycles for greater efficiency
- Compact and Durable: Built to withstand extreme weather conditions
System Benefits
- Reliable Year-Round Comfort: Delivers heating and cooling even in harsh climates
- Energy Efficient: Reduces energy consumption with inverter-driven technology
- Environmentally Responsible: R454B refrigerant supports green building initiatives
- Whole-Home Solution: Ideal for ducted systems in new builds and retrofits
The Mitsubishi 3 Ton H2i Ducted Inverter Heat Pump System (SUZ-AK36NLHZ / SVZ-AP36NL) combines robust heating performance, efficient cooling, and flexible installation options to meet the highest standards of residential HVAC design, especially in cold climate zones.

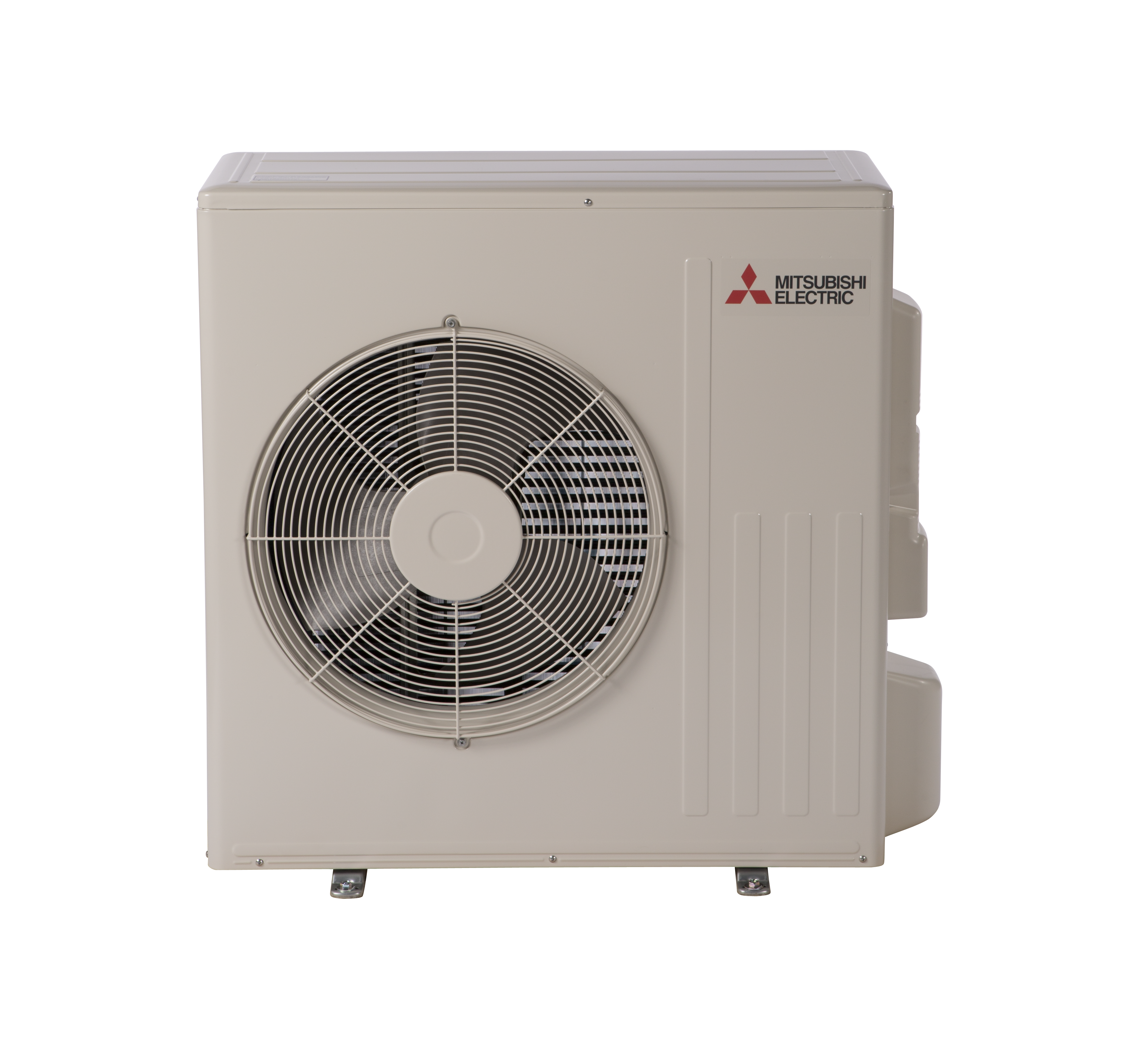

36,000 BTU Mitsubishi Single Zone Condenser - R454B
SUZ-AK36NLHZ - 36,000 BTU/H Hyper Heat Pump Outdoor Unit
The SUZ-AK36NLHZ is a high-performance outdoor unit designed to work seamlessly with compatible indoor units. It offers advanced technology for reliable heating and cooling, even in extreme outdoor temperatures, ensuring consistent comfort throughout the year.
Outdoor Unit Features (SUZ-AK36NLHZ):
- Blue Fin Coating: A corrosion-resistant treatment applied to the heat exchanger fins, ideal for coastal and industrial areas where exposure to salt, sulfur, and other environmental elements is common.
- Built-In Base Pan Heater: Prevents ice build-up in colder climates, ensuring reliable operation even in freezing conditions.
- Hot-Start Technology: Ensures the fan starts only after the heat exchanger is warm, preventing the release of cold air when the unit first powers up.
- Hyper-Heating INVERTER® (H2i®): Delivers 100% heating capacity down to 5°F and guarantees operation down to -13°F, making it suitable for extremely cold climates.
- Joint Lap DC Motor: Designed to improve the reliability and efficiency of the motor for enhanced performance.
- Pulse Amplitude Modulation Technology: Reduces energy consumption by adjusting the power supply to the compressor, optimizing performance without sacrificing comfort.
- Quiet Operation: Operates at noise levels similar to a typical conversation, ensuring that the outdoor unit won't disrupt the environment.
Specifications:
- Cooling Capacity: 37,000 BTU/h maximum, 36,000 BTU/h rated, 14,600 BTU/h minimum at 95°F outdoor temperature.
- Heating Capacity: 40,000 BTU/h maximum and rated at 47°F, 38,000 BTU/h at 17°F, 31,000 BTU/h at -13°F.
- Power Input: 2,910W in cooling mode and 2,930W in heating mode.
- SEER2: 19.5 for high energy efficiency in cooling mode.
- HSPF2: 8.5 for efficient heating performance.
- Refrigerant: Uses R454B refrigerant, pre-charged with 9 lbs 14 oz, and allows for a piping length of up to 25 ft.
- Dimensions: 41-11/32 x 14 x 52-43/64 inches.
- Sound Pressure Level: 52-53 dB(A) for quieter operation compared to other systems in its category.
The SUZ-AK36NLHZ is built for superior durability, energy efficiency, and comfort, making it an ideal solution for residential and light commercial applications, even in the most extreme weather conditions.
Installation Kit for Condensers
4Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
Key Features:
✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.
What’s Included:
- 3/4" x 6' Electrical Whip – SKU: 84138
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
Wall Mount Bracket for Condensers 30"
This wall mount bracket is perfect for outdoor condensers. The length of the wall bracket arms are 30" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).
Features:
- Steel: 10 GA
- Powder-coated grey Finish
- Load rating: 600 lbs per pair
- Holes will accommodate anchors for installation
- Warranty: 1 year
- ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)
No Return Policy
All sales of this product are final and are non-refundable.
Cielo Breez Max Mini Split Thermostat with WiFi
Introducing Cielo Breez Max, the ultimate smart thermostat for your mini-splits, designed to elevate your comfort with intelligent climate control. Transform your air conditioner into a smart powerhouse and manage your cooling or heating from anywhere using your phone. This award-winning device, available in black and white, prevents overheating or overcooling with AI-powered Comfy Max, while seamlessly detecting any mini-split brand for hassle-free setup.
Features:
- Energy Savings
- WiFi Connectivity
- Weekly Schedule
- Geofencing
- Temperature Range Lock
- Real-Time Notifications
- HVAC Zoning
Weekly Schedule lets you set on and off periods throughout the week based on your needs.
Geofencing uses your smartphone's location to trigger actions in your system, such as turning the air conditioner on or off based on your proximity to home.
Temperature Range Lock ensures your air conditioner operates within a set temperature range for optimal comfort and efficiency.
Real-Time Notifications keep you informed with important updates, helping you manage your air conditioner better.
HVAC Zoning allows you to create customized temperature control zones by grouping multiple mini-split units.
The Cielo Breez Max offers innovative features and extraordinary performance, making it a perfect fit for any room air conditioner. Enjoy maximum energy savings and simplified home comfort with this advanced smart thermostat.
Equipment Pad
E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
- High recycled plastic content
- Subtle texture resists unit slide
- Unaffected by UV or weather
- Uniform ribbing transfers load evenly
- Drillable for securing unit
- Lightweight, yet rugged
No Return Policy
All sales of this product are final and are non-refundable.
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 15 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Condenser Risers - 4" x 18" - 2 Pack
Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.
Features
- Ideal for piping, duct runs, cable trays and condensers
- Weather resistant PVC
- Linear track holds 3/8" hex head bolts
- Two 7/8" long bolts included
- Weighs up to 397 Ib
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 30 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Equipment Pad and Risers Kit
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
- Reliable Support: Abundance of ridges for stable ground support.
- Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
- Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
- Simple Appearance: Gray color with size labels.
- Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
- Weather Resistance: Made from tough PVC for long-lasting performance.
- Secure Setup: The track securely holds bolts in place.
- Bolts Included: Each set comes with two bolts.
- Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 50 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 25 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 35 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 35 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends

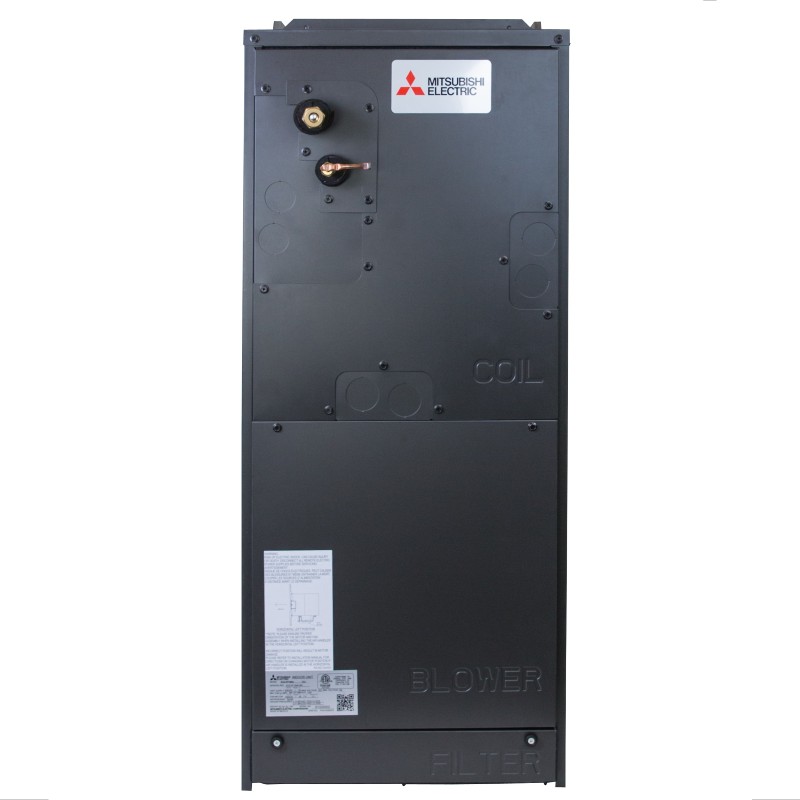

36,000 BTU Mitsubishi SVZ Series Air Handler - R454B
Mitsubishi SVZ Series 3 Ton Air Handler | R454B
The Mitsubishi SVZ Series 3 Ton Air Handler, matched with the SUZ outdoor unit, is a robust and efficient ducted HVAC system built to meet the demands of larger residential spaces and light commercial environments. With cutting-edge inverter compressor technology and environmentally responsible R454B refrigerant, this unit delivers powerful performance, year-round comfort, and long-term reliability.
Key Features
- Inverter-Driven Performance: Delivers variable-speed operation for precise temperature control and reduced energy consumption.
- Eco-Friendly Refrigerant: Utilizes R454B refrigerant, which offers a lower global warming potential (GWP) compared to legacy refrigerants.
- Quiet Operation: Built with noise-reduction engineering for smooth and quiet indoor performance.
- Flexible Installation: Supports both vertical and horizontal installations, ideal for a wide range of floor plans and mechanical spaces.
- High Static Pressure Capability: Effectively manages airflow in systems with longer duct runs or multiple zones.
- Multi-Speed Fan: Allows customizable airflow levels for optimal comfort and system balance.
Technical Specifications
- Indoor Unit Model: SVZ-KP36NA
- Outdoor Unit Model: SUZ-KA36NA2
- Capacity: 36,000 BTU/h (3 Ton)
- Refrigerant: R454B
- Power Supply: 208/230V, 1 Phase, 60 Hz
- Fan Configuration: Multi-speed fan with adjustable static pressure settings
- Sound Pressure Levels: Engineered for low-noise operation for improved indoor comfort
Benefits
- Powerful Coverage: Effectively heats and cools larger homes and commercial spaces with ease.
- Energy Efficiency: Inverter-driven operation reduces on/off cycling and optimizes energy usage.
- Sustainable Technology: R454B helps meet modern environmental standards without compromising performance.
- Flexible Layout Compatibility: Adapts to various architectural configurations with multiple installation orientations.
- Trusted Quality: Backed by Mitsubishi Electric's commitment to innovation, reliability, and long-lasting durability.
The Mitsubishi SVZ Series 3 Ton Air Handler with R454B refrigerant is an excellent choice for those seeking high-capacity, energy-efficient, and eco-conscious HVAC performance. Whether for new construction or upgrading an existing system, this unit delivers the comfort and control you expect from a Mitsubishi Electric solution.
