30,000 BTU 16.5 SEER Mitsubishi Single Zone Heat Pump System - Concealed Duct







Availability: Ships in 3-4 Weeks

Authorized Mitsubishi Dealer

Free Shipping
Accessories for this product
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing

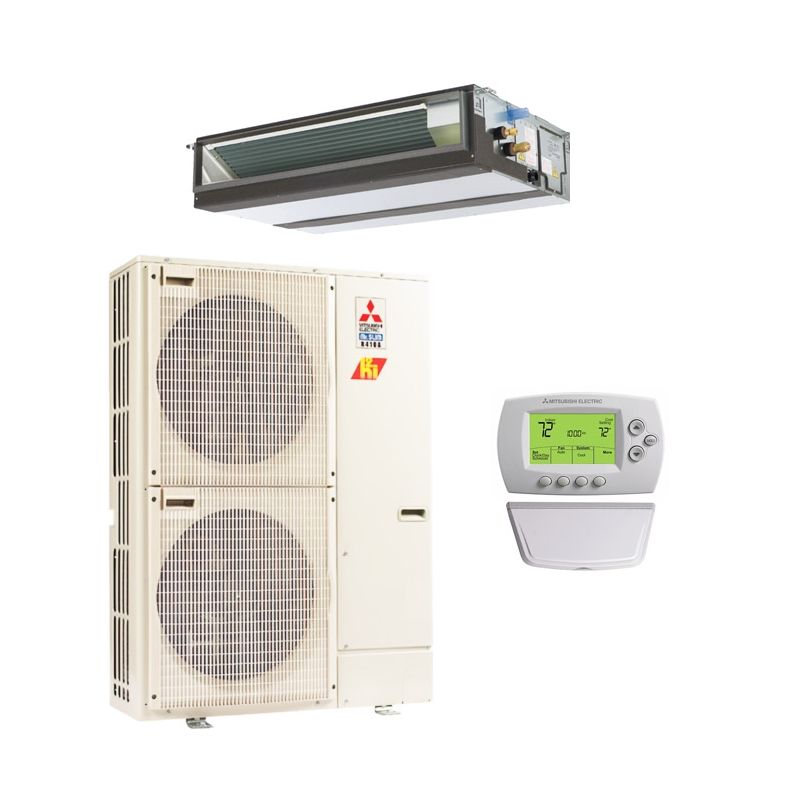

The Mitsubishi PEAD-A30AA7 / PUZ-HA30NHA5 mini split is designed to be a slim ducted system for when standard central air handlers are physically too large for the space. With its 30,000 BTU output, the unit is a versatile option in many ways, suitable for many different applications.


30,000 BTU, 16.5 SEER

The Mitsubishi PEAD-A30AA7 / PUZ-HA30NHA5 is designed with an output pf 30,000 BTU, or about enough to cover medium-sized spaces depending on climate and other variables. In some cases, the unit can also cover two small adjacent spaces when the ductwork branches off. The efficiency of the unit is rated at 16.5 SEER, which is more efficient than most full-sized central systems.


Straight from the manufacturer, the unit has a 5 year parts warranty and 7 year compressor warranty. With installation that follows the equipment’s state and local codes and when the unit is registered online through Mitsubishi, the warranty is upgraded to a 10 year parts and compressor warranty.

Ease of Comfort

While Mitsubishi has a lot of thermostats in their lineup, the manufacturer also provides an optional WiFi adapter. The Kumo Cloud, found here, allows access to your unit whenever you need it. All you need for this feature to work is Internet and the Kumo Cloud application, available on both the App Store and Google Play.

Hyper Heat Pump Technology

The PEAD-A30AA7 / PUZ-HA30NHA5 is factory-implemented with Mitsubishi’s Hyper Heat pump technology, consisting of a special drain pan heater. The heater protects the outdoor unit during operation at low temperatures, effectively lowering the temperature at which the unit can operate, keeping you warm in even some of the coldest of winters.

Product Specifications

More Information
30,000 BTU 16.5 SEER Mitsubishi Single Zone Heat Pump System - Concealed Duct
Weight (in lbs)335.000000
Cooling BTU30,000
Heating BTU34,000
Energy StarYes
SEER1 (Efficiency)16-17
Liquid Line3/8"
Suction Line5/8"
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size30
Min. Breaker Size28
Amperage Requirement30
BTU/Tonnage30,000 BTU/2.5 Ton
Mini-Split TypeConcealed Duct
Operating ModeCooling, Heating
HeightIndoor Unit: 9 7/8" Outdoor Unit: 53 1/8"
WidthIndoor Unit: 43 5/16" Outdoor Unit: 37 3/8"
DepthIndoor Unit: 28 7/8" Outdoor Unit: 14 3/16"
Warranty5 Years Parts Warranty
