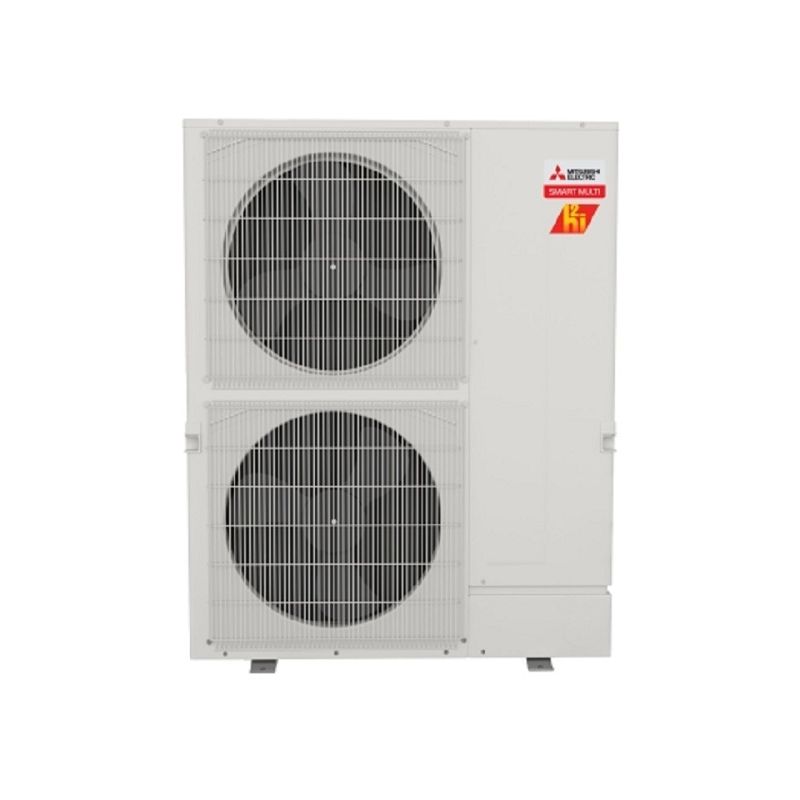

36,000 BTU 23 SEER Mitsubishi Multi-Zone Ductless H2i Hyper Heat Pump Condenser w/ Base Pan Heater



In stock




Availability: In Stock - Ready to Ship

Authorized Mitsubishi Dealer

Suggested Retail $4,789.47 Your Low Price Special Price $4,550.00
Free Shipping
Accessories for this product
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing



The Mitsubishi MXZ-SM36NAMHZ is a heat pump condenser designed to be used in multi zone system setups. As one air handler is needed per room that you are trying to heat and cool, multiple single zone condensers can take up a lot of space in your yard, making a multi zone unit more practical in many applications. With its integrated drain pan heater allowing it to heat down to 5°F, the MXZ-SM36NAMHZ will keep you warm even through the coldest months of the year.


  • 36,000 BTU multi zone heat pump condenser
  • Variable speed Inverter-driven compressor with quiet operation features
  • Requires a branch box
  • Hyper Heat technology, supporting enhanced comfort down to 5°F
36,000 BTU

The Mitsubishi MXZ-SM36NAMHZ is rated to handle a total of 36,000 BTU, which generally should be the same or greater than the total BTU count across all air handlers that this unit is paired with. In some instances, a certified pairing will have a higher BTU count total than this condenser’s rating. This is intentional, as the condenser can easily handle more, however anything higher than this rating can potentially lower the speed that the unit can heat and cool, as well as limit the functional outputs of each air handler if they are all running at the same time.


Mitsubishi offers a 5 year parts and 7 year compressor warranty on all of its products. When the unit is registered online through the manufacturer after an installation that follows your state and local codes, the warranty is upgraded to a 10 year parts and compressor warranty.

Required Equipment

The Mitsubishi MXZ-SM36NAMHZ is designed with only one set of line set ports, allowing it to support a higher BTU output than units with multiple sets. As such, at least one branch box is required for this unit to function to allow it to connect to multiple air handlers. Along with branch boxes, this condenser requires air handlers, controllers, and other basic installation equipment to function, all of which are available at an additional cost.

Enhanced Comfort

With its variable speed compressor, the MXZ-SM36NAMHZ can provide more precise adjustments to the covered spaces with the right air handlers. This also slightly improves electrical efficiency by ramping the compressor up and down based on the unit’s air handlers’ needs, as well as providing a more stable temperature output from the connected air handlers to provide superior comfort.

Intelligent Control

For ease of control, many air handlers that are compatible with the MXZ-SM36NAMHZ can use any Mitsubishi-brand thermostat or adapter. The most convenient to control—the Kumo cloud WiFi adapter, found herethe Kumo cloud WiFi adapter, found here—allows each air handler to be accessed from anywhere that you have Internet. Please note that in most applications, you will need one thermostat or adapter per indoor air handler that you want to be able to control with it.

Product Specifications

More Information
36,000 BTU 23 SEER Mitsubishi Multi-Zone Ductless H2i Hyper Heat Pump Condenser w/ Base Pan Heater
Weight (in lbs)275.000000
Cooling BTU36,000
Heating BTU33,000
Decibel Level (dBA)49
SEER1 (Efficiency)23
Liquid Line3/8"
Suction Line5/8"
Electrical230 V. 1 Phase 60 Hz
Max Breaker Size45 amps
Min. Breaker Size40 amps
Amperage Requirement50
Tonnage3 Ton
BTU/Tonnage36,000 BTU/3 Ton
Zone CompatibilityMulti Zone
WarrantyLimited warranty: five years parts and seven years compressors
Resources You will need Adobe® Acrobat® Reader to view PDF documents
Safety InformationPROPOSITION 65 WARNING


Write Your Own Review
You're reviewing:36,000 BTU 23 SEER Mitsubishi Multi-Zone Ductless H2i Hyper Heat Pump Condenser w/ Base Pan Heater
Your Rating

Questions and Answers

Customer Questions
What is the noise level of the condenser?
This noise level of this condenser is up to 53 dB. If you have any further questions please feel free to give us a call and we'll be happy to further assist you! Thanks.
What is the best Mitsubishi for cold temperatures?
Thank you for your question. This particular 36,000 BTU outdoor condenser is well equipped for cold climates. This unit is capable of efficiently heating even with outdoor temperatures as low as -13°F This particular product only comes with the outdoor condenser, but we do have systems available that include both this condenser and compatible air handlers. For more assistance in finding a system that is right for you, please give us a call.
How high should it sit on a platform?
Thank you for your question. We recommend a platform that is high enough to keep it from sitting directly on the ground. Our equipment pad, which can be purchased separately as an accessory for this product, is 3" in thickness. We also have a wall bracket for the condenser which keeps the outdoor condenser much higher off the ground. Either option should work, but if you are worried about deep snowfall, the wall mounted bracket may be the best option for you. Both the equipment pad and wall mount bracket can be found with the other accessories on this product page. All of these accessories are located beneath the "add to cart" button. The two mounting options can also be selected using the drop down selection bars next to the product image. For more assistance, please give us a call.
Is the entrance for the refrigerant lines completely sealed to prevent rodent and insects entering?
Thank you for your question. Yes, the line set connections are covered and sealed. Once the seal is taken off the lines are connected directly to the unit.
