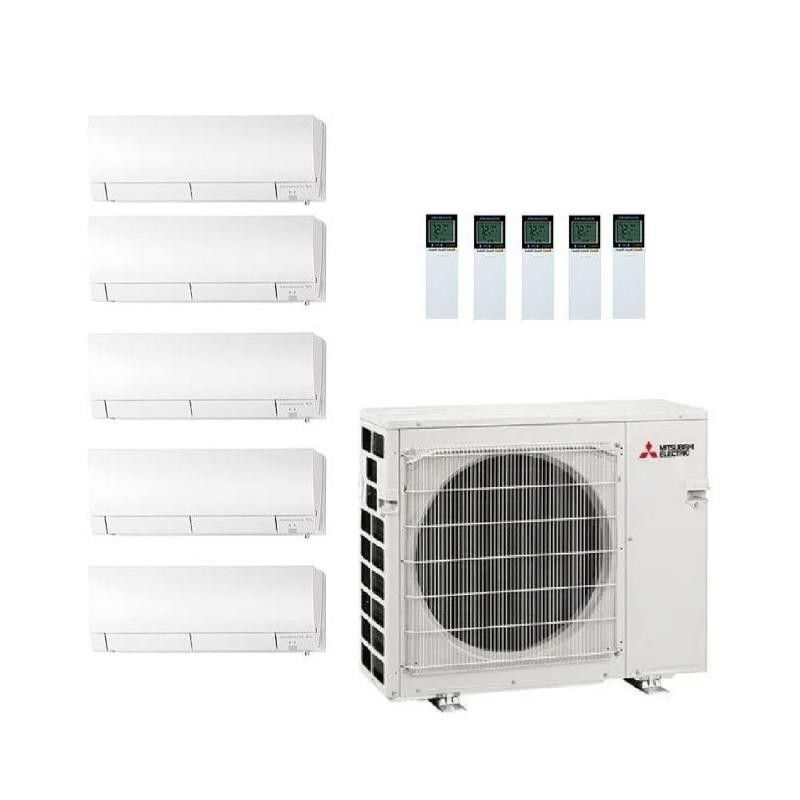

Mitsubishi 36,000 BTU FX Series 19.2 SEER2 5 Zone Wall Mounted Mini Split Heat Pump System R454B | 230V 6 + 6 + 9 + 9 + 9

MXZ-5D36NL - Multi-Zone Heat Pump Outdoor Unit

The MXZ-5D36NL is a high-performance outdoor heat pump unit designed for multi-zone applications, capable of connecting up to five indoor units. This system offers efficient heating and cooling solutions for residential and light commercial settings, ensuring year-round comfort. Below are the key features and specifications of this model:

Key Features:

• Variable Speed INVERTER-Driven Compressor: Adjusts compressor speed to match heating or cooling demand, optimizing energy efficiency and maintaining consistent indoor temperatures.
• Quiet Operation: Operates at sound pressure levels as low as 52 dB(A), minimizing noise disturbances in your environment.
• Blue Fin Heat Exchanger Coating: Enhances corrosion resistance, extending the unit's lifespan, especially in coastal or humid environments.
• Built-in Base Pan Heater: Prevents ice buildup in the base pan during heating operation in cold weather conditions.
• Advanced Protections: Includes compressor overcurrent detection, fan motor overheating/voltage protection, compressor thermal protection, and high-pressure protection for enhanced safety and reliability.
• Seacoast Protection: Rated for 2,000 hours spraying time per ASTM B117 Standard, making it suitable for coastal areas.

Specifications:

• Cooling Capacity at 95°F:
  • Maximum Capacity: 36,400 BTU/h
  • Rated Capacity: 35,400 BTU/h (Non-Ducted), 33,400 BTU/h (Mixed), 31,400 BTU/h (Ducted)
  • Minimum Capacity: 12,600 BTU/h (Non-Ducted), 12,600 BTU/h (Mixed), 12,600 BTU/h (Ducted)
• Heating Capacity at 47°F:
  • Maximum Capacity: 43,000 BTU/h
  • Rated Capacity: 36,000 BTU/h (Non-Ducted), 35,200 BTU/h (Mixed), 34,400 BTU/h (Ducted)
  • Minimum Capacity: 12,800 BTU/h (Non-Ducted), 12,800 BTU/h (Mixed), 12,800 BTU/h (Ducted)
• Heating Capacity at 17°F:
  • Rated Capacity: 23,000 BTU/h (Non-Ducted), 22,400 BTU/h (Mixed), 22,000 BTU/h (Ducted)
• Heating Capacity at 5°F:
  • Maximum Capacity: 24,000 BTU/h
• Efficiency Ratings:
  • SEER2: 19.20 (Non-Ducted), 17.70 (Mixed), 16.20 (Ducted)
  • EER2: 12 (Non-Ducted), 10.40 (Mixed), 8.80 (Ducted)
  • HSPF2 (IV): 9.30 (Non-Ducted), 8.80 (Mixed), 8.30 (Ducted)
  • COP at 47°F: 3.5 (Non-Ducted), 3.3 (Mixed), 3.1 (Ducted)
  • COP at 17°F (Maximum Capacity): 2.26 (Non-Ducted), 2.08 (Mixed), 1.94 (Ducted)
  • COP at 5°F (Maximum Capacity): 2.10 (Non-Ducted), 1.72 (Mixed), 1.34 (Ducted)
• Electrical Requirements:
  • Power Supply: 208/230 V AC, Single-phase, 60 Hz
  • Guaranteed Voltage Range: 198 - 253 V AC
  • Voltage (Indoor to Outdoor, S1-S2): 208/230 V AC
  • Voltage (Indoor to Outdoor, S2-S3): 24 V DC
  • Recommended Wire Size (Indoor to Outdoor): AWG 14
  • Short-circuit Current Rating (SCCR): 5 kA
  • Minimum Circuit Ampacity (MCA): 29 A
  • Maximum Overcurrent Protection (MOCP): 49 A
• Fan Motor:
  • Full Load Amperage: 1.74 A
  • Output: 88 W
  • Airflow Rate: 2,306 CFM (Cooling), 2,306 CFM (Heating)
• Unit Dimensions:
  • Width: 37-13/32 inches
  • Depth: 13 inches
  • Height: 31-11/32 inches
  • Weight: 152 lbs

The MXZ-5D36NL is ideal for applications requiring efficient heating and cooling performance across multiple zones. Its advanced features ensure reliable operation and enhanced comfort throughout the year.

E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.

• High recycled plastic content
• Subtle texture resists unit slide
• Unaffected by UV or weather
• Uniform ribbing transfers load evenly
• Drillable for securing unit
• Lightweight, yet rugged

No Return Policy

All sales of this product are final and are non-refundable.

4Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.

Key Features:

✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.

What’s Included:

• 3/4" x 6' Electrical Whip – SKU: 84138
• 60A Non-Fused Disconnect – SKU: 83335
• Surge Protector – SKU: ICM517
• CPS Charging Adapter – SKU: 87-AD87
• Telescoping Wall Sleeve – SKU: NFP-75

Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!

This insulated refrigerant line set for mini split systems comes as a pair, including both the liquid line and suction line. It is used to connect the indoor air handler to the outdoor condenser. The line set is 35’ feet long. The liquid line has 1/4 inch outside diameter flared ends. The suction line has 3/8 inch outside diameter flared ends.

Features:

• Insulated
• Flared Line Ends
• Heavy Duty Refrigerant Lines

This wall mount bracket is perfect for outdoor condensers. The length of the wall bracket arms are 30" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).

Features:

• Steel: 10 GA
• Powder-coated grey Finish
• Load rating: 600 lbs per pair
• Holes will accommodate anchors for installation
• Warranty: 1 year
• ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)

No Return Policy

All sales of this product are final and are non-refundable.

Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.

Features

• Ideal for piping, duct runs, cable trays and condensers
• Weather resistant PVC
• Linear track holds 3/8" hex head bolts
• Two 7/8" long bolts included
• Weighs up to 397 Ib

E Lite Condenser Pad and Risers

E Lite Condenser Pad

E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.

Key Features:

• Reliable Support: Abundance of ridges for stable ground support.
• Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
• Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
• Simple Appearance: Gray color with size labels.
• Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.

E Lite Risers

E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.

Key Features:

• Weather Resistance: Made from tough PVC for long-lasting performance.
• Secure Setup: The track securely holds bolts in place.
• Bolts Included: Each set comes with two bolts.
• Strong Support: Capable of handling loads of up to 397 pounds.

E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.

No Return Policy

All sales of this product are final and are non-refundable.
