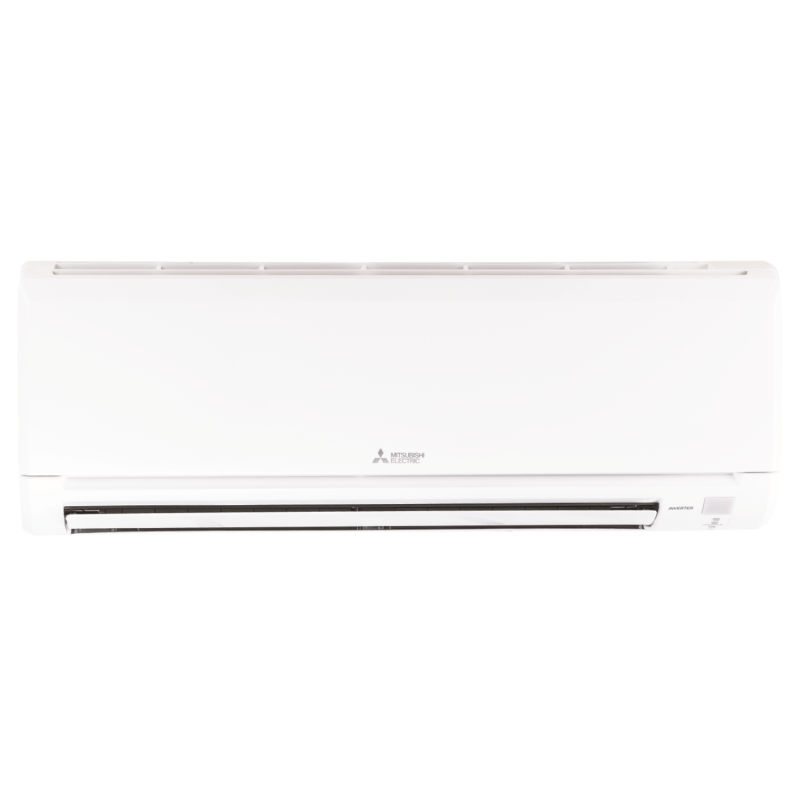

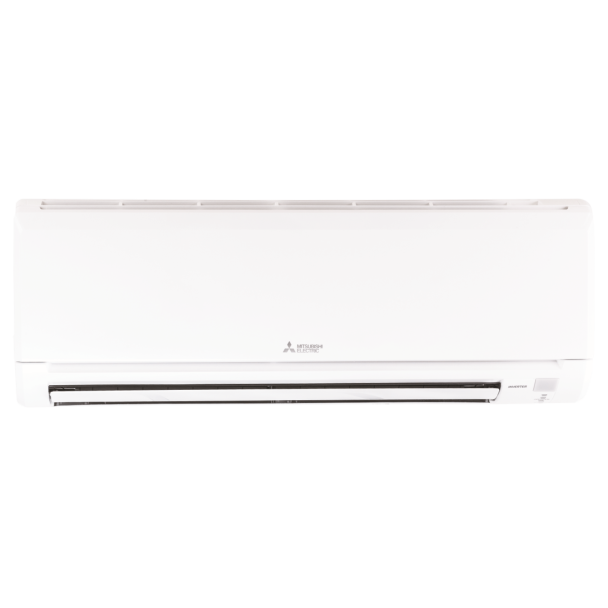

6,000 BTU Wall Mounted Mitsubishi Mini Split Multi Zone GS - Air Handler

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Mitsubishi

In stock

Model

MSZ-GS06NA

7081

Rating:

97% of 100

(2) Write a Review

9 Questions Answered

In Stock - 146 Ready to Ship

Authorized Mitsubishi Dealer

$657.00

Sleek Wall Mounted Design
Heating & Cooling
Ductless Solution for a Up to 250 sq ft Room/Zone
Quiet Operation
10 Year Warranty with Online Registration
Multi-Zone/Room Compatible

Accessories for this product

Description

Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost.

Able to cover up to a small room in ideal conditions
6,000 BTU wall-mounted air handler with remote
Automatic adjustments to match the thermostat’s needs
.225 gallon per hour dehumidification rate

The Mitsubishi MSZ-GS06NA air handler is designed to be able to function as a single zone system or with a multi zone system setup. This unit is manufactured as part of Mitsubishi’s standard air handler series, making it an inexpensive choice for efficient home comfort. With its ability to work with both cooling-only and heat pump condensers, the MSZ-GS06NA can function in almost any basic configuration and application. The unit also has the ability to ramp up and down based on the thermostat’s needs along with an automated vertical air swing adjustment system to direct the airflow where it needs to go, keeping you comfortable year-round with the right condenser.

Product Specifications

More Information
6,000 BTU Wall Mounted Mitsubishi Mini Split Multi Zone GS - Air Handler
SKU	MSZ-GS06NA
Weight (in lbs)	26.000000
Brand/Manufacturer	Mitsubishi
Controller	Wireless Included
Additional Information	Drain: 5/8"
Cooling BTU	6,000 BTU
Heating BTU	7,200 BTU
Maximum CFM	109-406 CFM
Decibel Level (dBA)	19-43
Refrigerant	R410A
Capacity	Dehumidification Rate: 0.23 gal/hr
Liquid Line	1/4"
Suction Line	3/8"
Electrical	208/230v 1 Phase 60 Hz
BTU/Tonnage	6,000 BTU/0.5 Ton
Mini Split Type	Wall Mounted
Zone Compatibility	Multi Zone
Operating Mode	Cooling, Heating
Height	11-5/8"
Width	31-7/16"
Depth	9-1/8"
Warranty	10 Years with Online Registration
Resources	Submittal Service Manual Parts Manual Operation Manual Installation Manual Engineering Data You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.

Reviews 2

Questions and Answers

Customer Questions

Who installs this unit if I am unable to put it in myself? Do I call an electrician or contractor?

Correct. We provide the product and it is up to the customer to choose the contractor/installer. This way you can find the services need and desired cost that best fits your needs. If you have any further questions please feel free to give us a call. Thanks!

What room size does this cover?

This unit can cover up to 150-250 sqft. If you have any further questions please feel free to give us a call! Thanks.

Can I add this unit to an existing Mitsubishi Model#MXZ-3C24NA2? There are two indoor units

Yes, this air handler model is compatible with the MXZ-3C24NA2. However depending on the BTU rating of your other two air handlers, the unit may or may not be able to efficiently operate with a third air handler. A general rule of thumb is that the BTU ratings of the indoor units add up to be within 30% of the capacity of the outdoor unit. For assistance in this, please give us a call at 1-888-376-5487.

How do you know what one to choose?

Thank you for your question. There are several different factors that will determine which mini split system is right for you. Please reference our Sizing Guide which will allow you to know exactly what kind of unit you'll be needing. For further assistance, please give us a call.

What is needed for a five multi room Mitsubishi .

Please reference our Mitsubishi 5-Zone Page for a full selection of five zone systems from Mitsubishi. If you have any further questions please feel free to give us a call! Thanks.

How many watts does it take to start up & run?

Thank you for your question. This indoor air handler has the electrical requirements of 208 / 230V, 1-Phase, 60 Hz. It has a minimum circuit ampacity of 1 A and a blower mower output of 30W. For more information regarding the electrical components of this system, please review the submittal. The submittal can be found on the product page under the under product specifications. For more assistance, please give us a call.

LG units with wired thermostats turn off fan and compressor when set temp is reached. Does this do so also?

Thank you for your question. Unlike traditional heating and cooling systems, mini split systems run continuously when on. However, they consume little electricity and are often times much quieter. This particular indoor air handler features several settings that aid in having an efficient to run system. With the included remote, you can set an on/off timer so that the unit either turns on or off at a set time. You can also control the fan speed. The ECONO Cool operation can also be selected which helps in conserving energy. There are many other settings to choose from as well. To learn more about the available settings, please review the Operation Manual. This manual can be located on the product page at the end of the product specifications, in the resources section. For more assistance, please give us a call.

Size of the inside heads ?

The dimensions of this unit are 11-5/8" H x 31-7/16" W x 9-1/8" D, If you have any further questions please feel free to give us a call! Thanks.

What is the temperature range?

This unit's outdoor temperature operating range for heating is -5℉ to 70℉ and cooling is 14℉ to 115℉. The unit's indoor temperature operating range for heating is 70℉ to 80℉ and cooling is 57℉ to 90℉. Feel free to give us a call with any more questions to better help you!

Why Choose Mitsubishi Mini Splits?

Mitsubishi mini split air conditioners and heat pumps provide exceptional comfort, energy efficiency, and ultra-quiet performance in any climate. Engineered for reliability and precision, these systems offer year-round heating and cooling while reducing energy costs and enhancing indoor air quality.
