Today's Hours 8am - 11pm estMitsubishi 60,000 BTU GX-Series 20 Seer2 4 Zone Wall Mounted Mini Split Heat Pump System R454B | 230V 6 + 9 + 18 + 24
Required Fields *
By
Mitsubishi
In stock
Model
MXZ-SM60NL / MSZ-GX06NL / MSZ-GX09NL / MSZ-GX18NL / MSZ-GX24NL
ID
226683
Was $14,680.32
Your Low Price $12,918.69
Product Features
- 4 Zone/Room Compatible
- Heating & Cooling Capabilites
- Compatible with one Up to 250, one 250-400, one 600-1,000, & one 1,000-1,500 sq ft Rooms/Zones
- Ductless R454b Refrigerant Solution
- AHRI Certified
- 10 Year Warranty with Online Registration

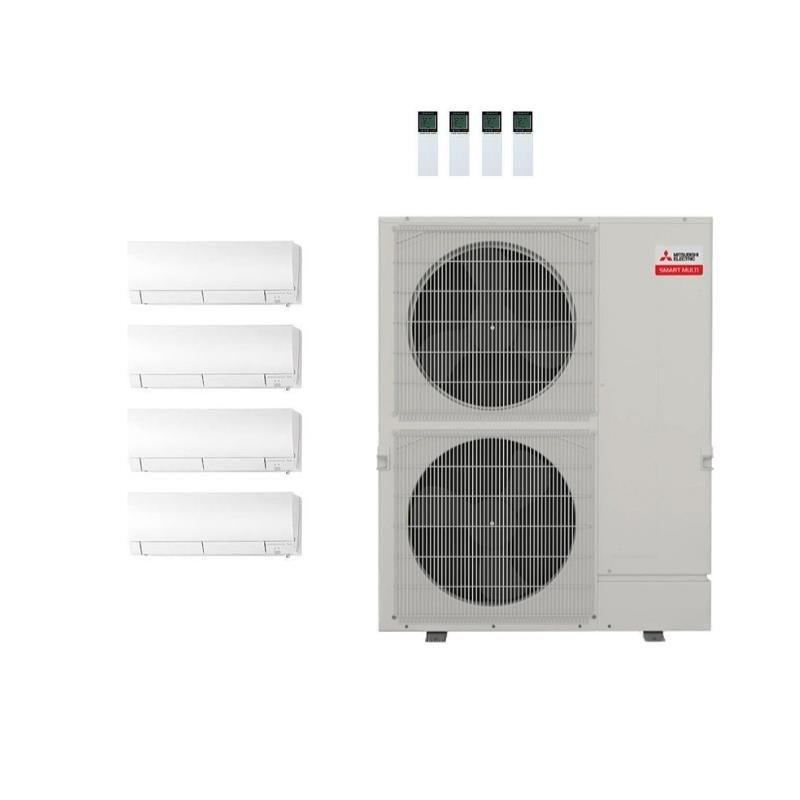

Mitsubishi 60,000 BTU GX-Series 20 SEER2 Quad Zone Wall Mounted Mini Split Heat Pump System
The Mitsubishi GX-Series 60,000 BTU Quad Zone Wall Mounted Mini Split Heat Pump System delivers extreme high-capacity progressive multi-zone climate control with a 6,000 + 9,000 + 18,000 + 24,000 BTU indoor unit configuration. Powered by R454B refrigerant and 230V single-phase operation, this system provides 20 SEER2 efficiency for demanding luxury residential estates and commercial facilities spanning compact bedrooms to expansive common areas.
System Specifications
- Outdoor Unit: MXZ-SM60NL multi-zone condenser rated at 60,000 BTU cooling and up to 66,000 BTU heating, featuring advanced twin rotary inverter compressor technology.
- Indoor Units: Four GX-Series wall-mounted units: one compact 6,000 BTU unit for small bedrooms, one 9,000 BTU unit for studies or dens, one 18,000 BTU unit for large family rooms, and one powerful 24,000 BTU unit for expansive living areas or conference rooms.
- Efficiency: 20 SEER2 rating ensures substantial energy savings despite extreme high-capacity zoning demands.
- Refrigerant: Eco-friendly R454B with low global warming potential, pre-charged for reliable multi-zone performance.
- Electrical: 208/230V single-phase, 60Hz power supply with 55A minimum circuit ampacity and 50A breaker recommendation.
- Piping Connections: 3/8" liquid line, 3/4" gas line, supporting total lengths up to 492 feet for flexible extreme-capacity installations.
Advanced Features
- Dual Barrier Coating: Protects heat exchangers, vanes, and fans from dirt accumulation to maintain efficiency under extreme high-capacity loads.
- Multiple Vane Control: Auto, swing, and direct airflow modes optimize comfort distribution across progressive capacity zones of varying sizes.
- Powerful Mode: Temporarily boosts refrigerant flow and fan speed for rapid temperature recovery in oversized spaces.
- Wireless Zone Controls: Individual remotes enable precise temperature, fan speed, and airflow customization for each room capacity.
- Quiet Extreme Capacity Operation: Indoor units operate from 19 dB(A) creating undisturbed residential or professional environments even at peak performance.
Performance Benefits
This extreme progressive capacity configuration excels with a compact 6k BTU unit conditioning small bedrooms, 9k BTU handling studies or nurseries, 18k BTU powering large family rooms, and a substantial 24k BTU unit serving expansive great rooms, kitchens, or conference facilities. Inverter technology delivers consistent temperatures, optimized energy use, and minimal noise across diverse high-capacity zone requirements.
Sleek wall-mounted design integrates seamlessly above doors or corners with washable filters and easy service access. The system provides commercial-grade reliability backed by 10-year parts warranty upon registration.
Ideal Applications
- Luxury family estates featuring bedrooms, studies, large family rooms, and expansive common living areas.
- Professional office complexes with private workspaces plus oversized conference and collaboration facilities.
- High-performance commercial projects requiring flexible extreme high-capacity zoning solutions.
60,000 BTU Mitsubishi Multi Zone Condenser - R454B
Create efficient, year-round comfort with a compact multi-zone outdoor condenser designed to simplify home climate upgrades and pair seamlessly with compatible indoor air handlers.
Upgrade your comfort with the Mitsubishi MXZ-SM60NL Outdoor Multi-Zone Heat Pump Condenser—an inverter-driven outdoor unit designed to deliver efficient heating and cooling for multiple connected indoor spaces. Built for homeowners who want flexible comfort, quiet operation, and easier installation, this condenser pairs effortlessly with compatible Mitsubishi indoor units for reliable, year-round performance.
Key Features
- Multi-Zone Comfort — Supports multiple indoor units for independent temperature control in separate rooms.
- Inverter-Driven Performance — Helps maintain consistent temperatures while optimizing energy use.
- Quiet Outdoor Operation — Engineered for low-noise performance to help preserve a comfortable home environment.
- Built for Durability — Features a corrosion-resistant outdoor coil coating for added protection in challenging environments.
Warranty
Mitsubishi offers a limited warranty of 10-Year Compressor / 10-Year Parts Warranty when installed according to manufacturer guidelines and registered properly.
6,000 BTU Mitsubishi GX-Series Wall Mount Mini Split Air Handler - R454B
Enjoy efficient, quiet comfort with the Mitsubishi Electric MSZ-GX06NL wall-mounted indoor unit.
Transform the comfort of your space with the Mitsubishi Electric MSZ-GX06NL Wall-Mounted Mini Split Indoor Unit. Designed to deliver reliable heating and cooling for smaller rooms, this indoor unit combines a sleek wall-mounted design with quiet performance for bedrooms, home offices, and other compact living spaces.
Key Features
- Efficient Year-Round Comfort — When paired with a compatible Mitsubishi condenser, it helps provide dependable heating and cooling while supporting efficient energy use.
- Right-Sized Comfort for Smaller Spaces — The 6,000 BTU capacity is well suited for compact rooms and targeted comfort.
- Ultra-Quiet Operation — Helps maintain a peaceful environment with low-noise performance.
- Advanced Filtration — Helps reduce airborne particles and odors for cleaner indoor air.
Warranty
10-year limited parts warranty with online registration.
9,000 BTU Mitsubishi GX-Series Wall Mount Mini Split Air Handler - R454B
Enjoy efficient, quiet comfort with the Mitsubishi Electric MSZ-GX09NL wall-mounted indoor unit.
Transform the comfort of your space with the Mitsubishi Electric MSZ-GX09NL Wall-Mounted Mini Split Indoor Unit. Designed to deliver reliable heating and cooling for smaller rooms, this indoor unit combines a sleek wall-mounted design with quiet performance for bedrooms, home offices, and other compact living spaces.
Key Features
- Efficient Year-Round Comfort — When paired with a compatible Mitsubishi condenser, it helps provide dependable heating and cooling while supporting efficient energy use.
- Right-Sized Comfort for Smaller Spaces — The 9,000 BTU capacity is well suited for compact rooms and targeted comfort.
- Ultra-Quiet Operation — Helps maintain a peaceful environment with low-noise performance.
- Advanced Filtration — Helps reduce airborne particles and odors for cleaner indoor air.
Warranty
10-year limited parts warranty with online registration.
18,000 BTU Mitsubishi GX-Series Wall Mount Mini Split Air Handler - R454B
Enjoy efficient, quiet comfort with the Mitsubishi Electric MSZ-GX18NL wall-mounted indoor unit.
Transform the comfort of your space with the Mitsubishi Electric MSZ-GX18NL Wall-Mounted Mini Split Indoor Unit. Designed to deliver reliable heating and cooling for larger rooms, this indoor unit combines a sleek wall-mounted design with quiet performance for living rooms, bedrooms, home offices, and other everyday spaces.
Key Features
- Efficient Year-Round Comfort — When paired with a compatible Mitsubishi condenser, it helps provide dependable heating and cooling while supporting efficient energy use.
- Right-Sized Comfort for Larger Spaces — The 18,000 BTU capacity is well suited for bigger bedrooms, living areas, and other residential spaces.
- Ultra-Quiet Operation — Helps create a comfortable environment with low-noise performance.
- Advanced Filtration — Helps reduce airborne particles and odors for cleaner indoor air.
Warranty
10-year limited parts warranty with online registration.
24,000 BTU Mitsubishi GX-Series Wall Mount Mini Split Air Handler - R454B
Enjoy efficient, quiet comfort with the Mitsubishi Electric MSZ-GX24NL wall-mounted indoor unit.
Transform the comfort of your space with the Mitsubishi Electric MSZ-GX24NL Wall-Mounted Mini Split Indoor Unit. Designed to deliver reliable heating and cooling for larger rooms, this indoor unit combines a sleek wall-mounted design with quiet performance for living rooms, open spaces, home offices, and other everyday spaces.
Key Features
- Efficient Year-Round Comfort — When paired with a compatible Mitsubishi condenser, it helps provide dependable heating and cooling while supporting efficient energy use.
- Right-Sized Comfort for Larger Spaces — The 24,000 BTU capacity is well suited for bigger rooms and open residential areas.
- Ultra-Quiet Operation — Helps create a comfortable environment with low-noise performance.
- Advanced Filtration — Helps reduce airborne particles and odors for cleaner indoor air.
Warranty
10-year limited parts warranty with online registration.
15 feet - 1/4" and 3/8" Line Set
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 15 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 15 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Equipment Pad
E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
- High recycled plastic content
- Subtle texture resists unit slide
- Unaffected by UV or weather
- Uniform ribbing transfers load evenly
- Drillable for securing unit
- Lightweight, yet rugged
No Return Policy
All sales of this product are final and are non-refundable.
Installation Kit for Condensers
Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
What’s Included:
- 3/4" x 6' Electrical Whip – SKU: 84138
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
Mitsubishi MHK2 Wireless Remote Controller
The Mitsubishi MHK2 is the second revision of Mitsubishi's most popular wireless controller set, now available for M & P Series residential and light commercial units. This controller offers in-depth 7-day scheduling and an easy to read, backlit display.
The updated MHK2 can now be used in tandem with the Kumo Cloud wi-fi adapter, sold separately. No longer do you have to choose between internet and wireless control: you can use both!
The MRCH2 is the main body of the thermostat. This can be placed anywhere within 200 feet of the indoor unit and does not require line of sight. The ;MRC2 cable will connect to the CN105 connector on the indoor unit's control board. The other end of this cable will connect to the MIFH2 receiver. The MIFH2 should be placed on the right side of a wall mounted unit, in the pocket of a MLZ-KP cassette, or anywhere near the control side of a ducted or square cassette unit.
Features:
- Includes MRCH2 thermostat, MIFH2 wireless receiver, and MRC2 cable
- Backlit display
- Can sense temperature at indoor unit (default) or at controller
- Fahrenheit °F / Celsius °C
- No batteries required
- Single zone compatible
- Multi zone compatible
- English, French, Spanish
Compatible Indoor Units:
Wall Mounted
- GL Series: MSZ-GL06NA-U1, MSZ-GL09NA-U1, MSZ-GL12NA-U1, MSZ-GL15NA-U1, MSZ-GL18NA-U1, MSZ-GL24NA-U1, MSY-GL09NA-U1, MSY-GL12NA-U1, MSY-GL15NA-U1, MSY-GL18NA-U1, MSY-GL24NA-U1
- FH Series: MSZ-FH06NA, MSZ-FH09NA, MSZ-FH12NA, MSZ-FH15NA, MSZ-FH18NA2
- EF Series: MSZ-EF09NAB-U1, MSZ-EF09NAS-U1, MSZ-EF09NAW-U1, MSZ-EF12NAB-U1, MSZ-EF12NAS-U1, MSZ-EF12NAW-U1, MSZ-EF15NAB-U1, MSZ-EF15NAS-U1, MSZ-EF15NAW-U1, MSZ-EF18NAB-U1, MSZ-EF18NAS-U1, MSZ-EF18NAW-U1
- JP Series: MSZ-JP09WA-U1, MSZ-JP12WA-U1
- WR Series: MSZ-WR09NA-U1, MSZ-WR12NA-U1, MSZ-WR18NA-U1, MSZ-WR24NA-U1
- D Series: MSZ-D30NA-8, MSZ-D36NA-8, MSY-D30NA-8, MSY-D36NA-8
- P Series: PKA-A12HA7, PKA-A18HA7,PKA-A24KA7, PKA-A30KA7, PKA-A36KA7
Ducted
- KD Series: SEZ-KD09NA4R1.TH, SEZ-KD12NA4R1.TH, SEZ-KD15NA4R1.TH, SEZ-KD18NA4R1.TH
- P Series: PEAD-A09AA7, PEAD-A12AA7, PEAD-A15AA7, PEAD-A18AA7, PEAD-A24AA7, PEAD-A30AA7, PEAD-A36AA7, PEAD-A42AA7
Ceiling Cassette
- KF Series: SLZ-KF09NA, SLZ-KF12NA, SLZ-KF15NA, SLZ-KF18NA
- KP Series: MLZ-KP09NA, MLZ-KP12NA, MLZ-KP18NA
- P Series: PLA-A12EA7, PLA-A18EA7, PLA-A24EA7, PLA-A30EA7, PLA-A36EA7, PLA-A42EA7
Floor Mounted
- MFZ-KJ09NA-U1, MFZ-KJ12NA-U1, MFZ-KJ15NA-U1, MFZ-KJ18NA-U1
Multi Position Air Handler
- KP: SVZ-KP12NA, SVZ-KP18NA, SVZ-KP24NA, SVZ-KP30NA, SVZ-KP36NA
- P Series: PVA-A12AA7, PVA-A18AA7, PVA-A24AA7, PVA-A30AA7, PVA-A36AA7, PVA-A42AA7
Ceiling Suspended
- P Series: PCA-A24KA7, PCA-A30KA7, PCA-A36KA7, PCA-A42KA7
Mitsubishi M-Series - 5 Ports - Branch Box
Mitsubishi Electric PAC-LMA50BC Branch Box Overview
The Mitsubishi Electric PAC-LMA50BC Branch Box is a key component in multi-zone HVAC systems, designed to efficiently distribute refrigerant and optimize the performance of connected indoor units. Supporting up to five indoor units, this branch box is ideal for both residential and commercial applications where reliable and balanced operation is required.
Key Features
- Supports Multiple Indoor Units: Connects up to five indoor units, allowing flexible system configurations for a variety of spaces.
- Balanced Refrigerant Flow: Ensures consistent refrigerant distribution to each connected indoor unit, enhancing overall system efficiency and performance.
- Durable Construction: Made with galvanized steel, the PAC-LMA50BC offers long-lasting durability and resistance to environmental factors.
- Compact, Space-Saving Design: Its small footprint allows installation in areas with limited space, making it suitable for tight mechanical rooms or ceilings.
- Low Power Usage: Operates efficiently with minimal energy consumption, reducing operating costs.
Technical Specifications
- Power Supply: Single-phase, 208/230V, 60Hz
- Input Power: 0.003 kW
- Running Current: 0.15A
- Dimensions:
- Width: 17-3/4 inches (450 mm)
- Depth: 11-1/16 inches (280 mm)
- Height: 6-3/4 inches (170 mm)
- Weight: 16.0 lbs (7.4 kg)
Piping Connections
- Indoor Unit Connections:
- Liquid Line: 1/4" (6.35 mm) x 5 [A, B, C, D, E]
- Gas Line: 3/8" (9.52 mm) x 4 [A, B, C, D], 1/2" (12.7 mm) x 1 [E]
- Outdoor Unit Connections:
- Liquid Line: 3/8" (9.52 mm)
- Gas Line: 5/8" (15.88 mm)
Optional Accessories
- Branch Box Enclosure (BBE-1): Provides extra protection for the branch box in exposed or demanding installations.
- Port Adapters: Facilitate connection to various pipe diameters, including:
- ADP3812: 3/8" to 1/2"
- PAC-SK88RJ-E: 1/2" to 3/8"
- PAC-SK89RJ-E: 1/2" to 5/8"
- PAC-493PI: 1/4" to 3/8"
- PAC-SK90RJ-E: 3/8" to 5/8"
- ADP5834: 5/8" to 3/4"
Applications
- Residential Multi-Zone Systems: Ideal for homes requiring multiple indoor units, ensuring consistent performance and comfort throughout the space.
- Light Commercial Use: Suitable for offices, retail shops, or small commercial buildings where multiple indoor units are connected to a single outdoor unit.
Overall, the PAC-LMA50BC Branch Box is a reliable and versatile component that simplifies multi-zone HVAC installations. Its durable construction, compact design, and efficient refrigerant distribution make it an essential part of residential and commercial HVAC systems.
35 feet - 1/4" and 3/8" Line Set
This insulated refrigerant line set for mini split systems comes as a pair, including both the liquid line and suction line. It is used to connect the indoor air handler to the outdoor condenser. The line set is 35’ feet long. The liquid line has 1/4 inch outside diameter flared ends. The suction line has 3/8 inch outside diameter flared ends.
Features:
- Insulated
- Flared Line Ends
- Heavy Duty Refrigerant Lines
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 30 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 30 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
30" Wall Mount Bracket
This wall mount bracket is perfect for outdoor condensers. The length of the wall bracket arms are 30" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).
Features:
- Steel: 10 GA
- Powder-coated grey Finish
- Load rating: 600 lbs per pair
- Holes will accommodate anchors for installation
- Warranty: 1 year
- ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)
No Return Policy
All sales of this product are final and are non-refundable.
50 feet - 1/4" and 3/8" Line Set
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 50 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 50 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Condenser Risers - 4" x 18" - 2 Pack
Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.
Features
- Ideal for piping, duct runs, cable trays and condensers
- Weather resistant PVC
- Linear track holds 3/8" hex head bolts
- Two 7/8" long bolts included
- Weighs up to 397 Ib
25 feet - 1/4" and 3/8" Line Set
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 25 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 25 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Equipment Pad and Risers Kit
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
- Reliable Support: Abundance of ridges for stable ground support.
- Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
- Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
- Simple Appearance: Gray color with size labels.
- Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
- Weather Resistance: Made from tough PVC for long-lasting performance.
- Secure Setup: The track securely holds bolts in place.
- Bolts Included: Each set comes with two bolts.
- Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
30 feet - 1/4" and 3/8" Line Set
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 35 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 35 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 35 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 35 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Top reviews
- Mitsubishi split systemGood customer’s service!!!
Posted on
Customer Questions
Why Choose Mitsubishi Mini Splits?
Mitsubishi mini split air conditioners and heat pumps provide exceptional comfort, energy efficiency, and ultra-quiet performance in any climate. Engineered for reliability and precision, these systems offer year-round heating and cooling while reducing energy costs and enhancing indoor air quality.
