Please note that in order to function, this air handler must be installed with a condenser, controller, and other installation equipment, also available for purchase.

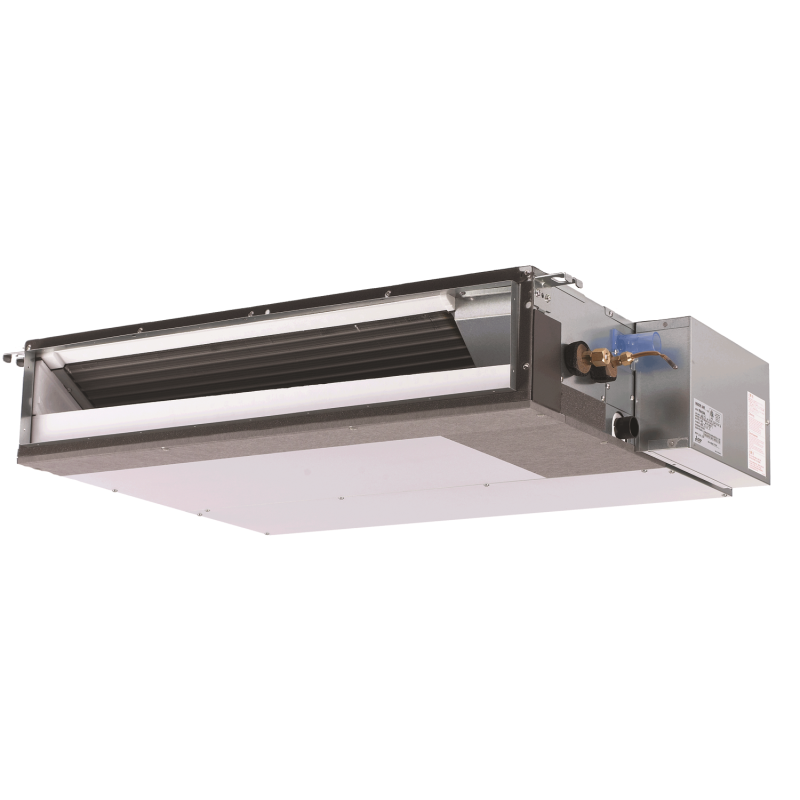

The Mitsubishi SEZ-KD18NA4 is a slim-ducted air handler compatible with both single and multi zone mini split equipment. Designed for use in applications where standard, whole-home air handlers are too large, this air handler can fit in a wide variety of tight locations such as crawlspaces. The unit can support small duct runs, including branch-offs so that it can cover a couple of smaller rooms, or the unit can direct airflow directly into the space with no ductwork. All of the SEZ-KD18NA4’s features provide enhanced comfort to your home in a convenient form factor.
18,000 BTU Concealed Duct Mitsubishi Mini-Split Multi Zone KD Series - Air Handler | |
---|---|
SKU | SEZ-KD18NA4R1.TH |
Weight (in lbs) | 65.000000 |
Brand/Manufacturer | Mitsubishi |
Controller | Not Included |
Additional Information | Drain: 1-1/4" |
Cooling BTU | 17,200 BTU |
Heating BTU | 21,600 BTU |
Maximum CFM | 381-635 CFM |
Decibel Level (dBA) | 30-38 |
Refrigerant | R410A |
Capacity | Dehumidification Rate: 0.35 gal/hr |
Liquid Line | 1/4" |
Suction Line | 1/2" |
Electrical | 208/230V 1 Phase 60 Hz |
Phase | Single Phase |
BTU/Tonnage | 18,000 BTU/1.5 Ton |
Mini-Split Type | Concealed Duct |
Zone Compatibility | Multi Zone |
Operating Mode | Cooling, Heating |
Height | 7-7/8" |
Width | 46-7/8" |
Depth | 27-9/16" |
Warranty | 10 Years with Online Registration |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING |
