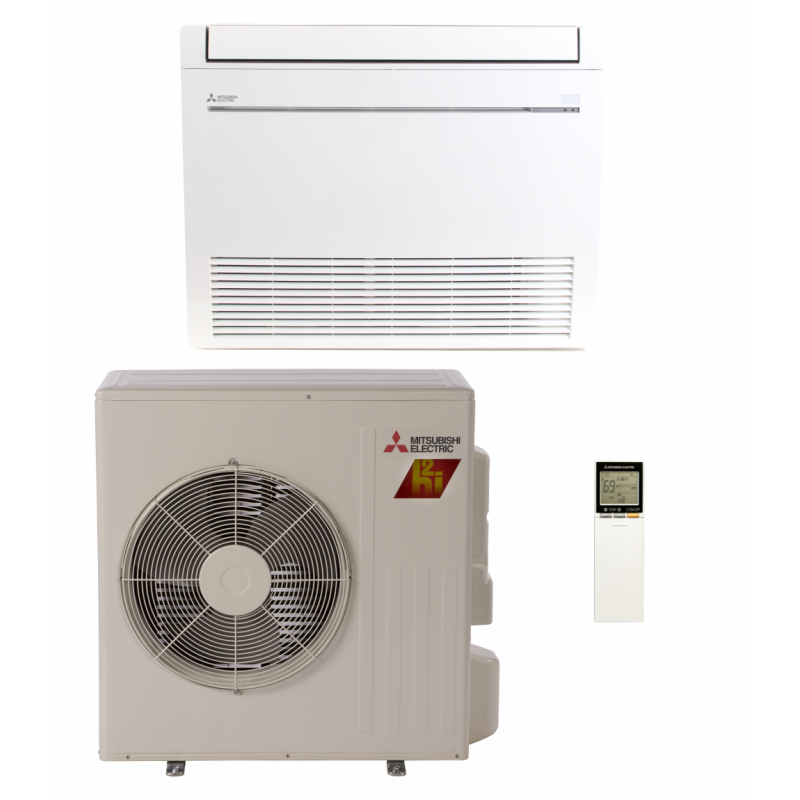

Mitsubishi 18,000 BTU KJ-Series 22 SEER2 Single Zone Floor Mounted Mini Split Heat Pump System R410A | 230V

Mitsubishi 18,000 BTU KJ-Series 22 SEER2  Single Zone Floor Mounted Mini Split Heat Pump System R410A | 230V
Customer reviews
Rating:
5 out of 5
Out of stock
By

Mitsubishi

Out of stock
Model

MFZ-KJ18NA / MUFZ-KJ18NAHZ

ID

2876

OVERVIEW

The Mitsubishi MFZ-KJ18NA / MUFZ-KJ18NAHZ is a floor mounted single-zone mini split. With its high 21 SEER efficiency rating and its 18,000 BTU output, the MFZ-KJ18NA / MUFZ-KJ18NAHZ is a good option for any installation where a low-wall installation is required, as it only needs to be 3” off of the floor.

QUICK FACTS

  • Designed to be able to heat and cool up to a medium-sized room in ideal climates
  • 18,000 BTU, 21 SEER single-zone mini split
  • Slim floor mounted installation design
  • Hyper Heat technology, able to operate at -13°F
18,000 BTU, 21 SEER

The Mitsubishi MFZ-KJ18NA / MUFZ-KJ18NAHZ can be used to heat and cool a medium-sized room in ideal climates, with its output of 18,000 BTU. The unit’s efficiency is rated at 21 SEER, saving you money over many other brands due to its high efficiency.

Warranty

Mitsubishi provides a 5 year parts and 7 year compressor warranty from the factory. When the unit is installed following your state and local codes and is registered online through the manufacturer, the warranty is upgraded to a 10 year parts and compressor warranty.

Intelligent Comfort

The Mitsubishi MFZ-KJ18NA / MUFZ-KJ18NAHZ is engineered with automatic adjustments to keep the room’s temperature at the operator’s desired setting, keeping you more comfortable in the space you are trying to heat and cool. With Mitsubishi’s optional Kumo Cloud Adapter, found here, this unit can be controlled from anywhere that you have Internet access—from across town at work to across the world on vacation—bringing ease of control to Mitsubishi’s enhanced comfort systems.

Convenient but Effective Design

The Mitsubishi MFZ-KJ18NA / MUFZ-KJ18NAHZ’s air handler is manufactured as a slim, low-clearance system, with a bottom clearance of only 3” since the system is designed to have a top output. This small form factor and clearance allows the unit to be installed for more applications, all the while still able to easily heat and cool the room in which it is installed.

More Information
Mitsubishi 18,000 BTU KJ-Series 22 SEER2 Single Zone Floor Mounted Mini Split Heat Pump System R410A | 230V
FeatureSpec
SKUMFZ-KJ18NA / MUFZ-KJ18NAHZ
Refrigerant ChargePre-Charged For: 25'
Weight (in lbs)260
AHRI Certificate Number201754293
Brand/ManufacturerMitsubishi
UPC689526847544
ControllerWireless Included
Additional InformationHeat Pump
Additional InformationMaximum Line Set Length: 100'
Additional InformationDrain: 5/8"
Cooling BTU17,000 BTU
Heating BTU21,000 BTU
Maximum CFM168-491 CFM
Decibel Level (dBA)Indoor Unit: 28-50 | Outdoor Unit: 51-55
Energy StarYes
RefrigerantR410A
CapacityDehumidification Rate: 0.55 gal/hr
HSPF11.3
SEER1 (Efficiency)21-22
EER12.6
Liquid Line1/4"
Suction Line1/2"
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size20
Min. Breaker Size16
Amperage Requirement20
BTU/Tonnage18,000 BTU/1.5 Ton
Mini Split TypeFloor Mounted
Min/Max Outdoor Temp for Heating-13°-75°
Min/Max Outdoor Temp for Cooling14°-115°
Zone CompatibilitySingle Zone
Operating ModeCooling, Heating
HeightIndoor Unit: 23-5/8" | Outdoor Unit: 34-5/8"
WidthIndoor Unit: 29-17/32" | Outdoor Unit: 33-1/16"
DepthIndoor Unit: 8-15/32" | Outdoor Unit: 13"
Additional InfoIndoor Unit Weight: 33 lbs | Outdoor Unit Weight: 124 lbs
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
