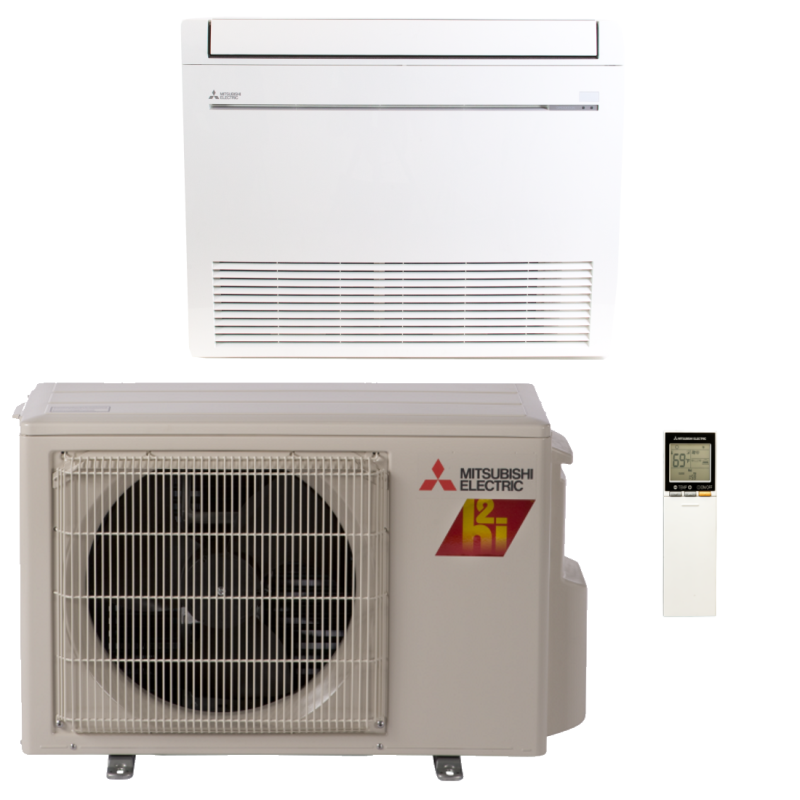

9,000 BTU 28.2 SEER Floor Mounted Mitsubishi Mini-Split H2i Hyper Heat Single Zone Heat Pump - MZ-KJ09NA

Regular Price: $2,952.00

Special Price $2,214.00

9,000 BTU 28.2 SEER Floor Mounted Mitsubishi Mini-Split H2i Hyper Heat Single Zone Heat Pump - MZ-KJ09NA

By: Mitsubishi Model: MFZ-KJ09NA / MUFZ-KJ09NAHZ ID: 2874

Regular Price: $2,952.00

Special Price $2,214.00

Bread Checkout
Authorized Mitsubishi Dealer
Ships in 3-4 Weeks
AHRI Certified


Regular Price: $2,952.00

Special Price $2,214.00





The Mitsubishi MFZ-KJ09NA / MUFZ-KJ09NAHZ is a floor mounted single-zone mini-split. With its high 28.2 SEER efficiency rating and its 9,000 BTU output, the MFZ-KJ09NA / MUFZ-KJ09NAHZ is a good option for any installation where a low-wall installation is required, as it only needs to be 3” off of the floor.


  • Designed to be able to heat and cool up to a small room in ideal climates
  • 9,000 BTU, 28.2 SEER single-zone mini-split
  • Slim floor mounted installation design
  • Hyper Heat technology, able to operate at -13°F
  • Energy Star certified
9,000 BTU, 28.2 SEER

The Mitsubishi MFZ-KJ09NA / MUFZ-KJ09NAHZ can be used to heat and cool a small room in ideal climates, with its output of 9,000 BTU. The unit’s efficiency is rated at 28.2 SEER and is Energy Star certified, saving you money over many other brands due to its high efficiency.


Mitsubishi provides a 5 year parts and 7 year compressor warranty from the factory. When the unit is installed following your state and local codes and is registered online through the manufacturer, the warranty is upgraded to a 10 year parts and compressor warranty.

Intelligent Comfort

The Mitsubishi MFZ-KJ09NA / MUFZ-KJ09NAHZ is engineered with automatic adjustments to keep the room’s temperature at the operator’s desired setting, keeping you more comfortable in the space you are trying to heat and cool. With Mitsubishi’s optional Kumo Cloud Adapter, found here, this unit can be controlled from anywhere that you have Internet access—from across town at work to across the world on vacation—bringing ease of control to Mitsubishi’s enhanced comfort systems.

Convenient but Effective Design

The Mitsubishi MFZ-KJ09NA / MUFZ-KJ09NAHZ’s air handler is manufactured as a slim, low-clearance system, with a bottom clearance of only 3” since the system is designed to have a top output. This small form factor and clearance allows the unit to be installed for more applications, all the while still able to easily heat and cool the room in which it is installed.


Additional Information

Manufacturer Mitsubishi
AHRI Certificate Number 201754416
Controller Wireless Included
Additional Information Heat Pump
Additional Information Maximum Line Set Length: 65'
Additional Information Drain: 5/8"
Cooling BTU 9,000 BTU
Heating BTU 11,000 BTU
Maximum CFM 117-417 CFM
Decibel Level (dBA) Indoor Unit: 21-46 | Outdoor Unit: 48-50
Energy Star Yes
Refrigerant R410A
Refrigerant Charge Pre-Charged For: 25'
Capacity Dehumidification Rate: 0.18 gal/hr
EER 15.8
Liquid Line 1/4"
Suction Line 3/8"
Electrical 208/230V 1 Phase 60 Hz
Max Breaker Size 15
Min. Breaker Size 11
Amperage Requirement 15
Tonnage 0.75 Ton
System Tonnage 1 Ton
Mini-Split Type Floor Mounted
Min/Max Outdoor Temp for Heating -13°-75°
Min/Max Outdoor Temp for Cooling 14°-115°
Low Ambient Heating Yes
Zone Compatibility Single Zone
Operating Mode Cooling, Heating
Height Indoor Unit: 23-5/8" | Outdoor Unit: 21-5/8"
Width Indoor Unit: 29-17/32" | Outdoor Unit: 31-1/3"
Depth Indoor Unit: 8-15/32" | Outdoor Unit: 11-1/5"
Weight (in lbs) 173.0000
Additional Info Indoor Unit Weight: 33 lbs | Outdoor Unit Weight: 83 lbs
Warranty 10 Years with Online Registration
