Description
OVERVIEW

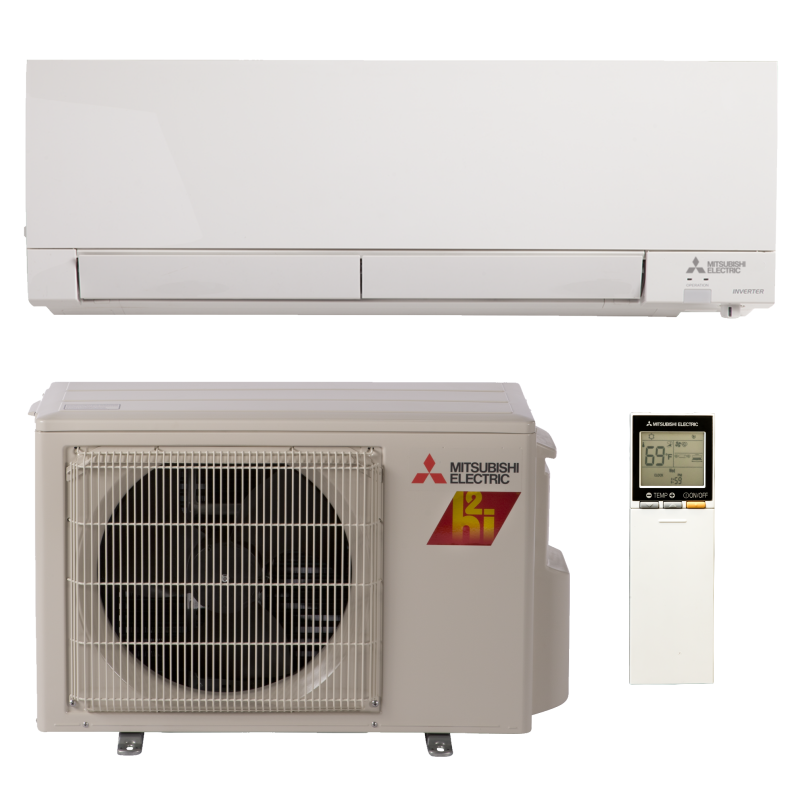

Designed with enhanced efficiency and supreme comfort, the Mitsubishi MSZ-FS09NA / MUZ-FS09NAH single-zone mini split is an ideal wall mounted unit to heat and cool a single room of your home or office. With its enhanced sensors and automatic intelligent controls, the MSZ-FS09NA / MUZ-FS09NAH is considered a superior unit from a superior manufacturer.
Designed to be able to heat and cool a small room in average climates
9,000 BTU, 30.5 SEER wall mounted mini split
Built-in I-SEE sensor and auto-controlled outlet vanes
Hyper Heat pump technology, functioning down to -13°F
Energy Star certified
9,000 BTU, 30.5 SEER
At an output of 9,000 BTU and an efficiency rating of 30.5 SEER, Mitsubishi designed the MSZ-FS09NA / MUZ-FS09NAH to be a good suit for any small rooms in ideal climate conditions. With a higher efficiency over many other options, this unit is efficient enough Energy Star certified.
Warranty
Mitsubishi provides a 5 year parts and 7 year compressor warranty out of the box. When the unit is installed following your state and local codes and is registered online through the manufacturer, the warranty is upgraded to a 10 year parts and compressor warranty.
Reliable Functionality
With Mitsubishi’s Hyper Heat technology, the MSZ-FS09NA / MUZ-FS09NAH will provide heat down as low as -13°F as measured by the outdoor unit, reliably providing warmth to the room it is covering year-round in most climates.
Ease of Comfort
The Mitsubishi MSZ-FS09NA / MUZ-FS09NAH mini split comes with an IR remote in the box so that the unit can be controlled anywhere in the room. With the Kumo Cloud, a Mitsubishi-branded WiFi mini split adapter found here, conveniently providing you access to the unit’s controls from anywhere in the world as long as you have Internet access through the app.
Intelligent Controls
The Mitsubishi MSZ-FS09NA / MUZ-FS09NAH is engineered to perfection in its intelligent automated temperature controls. The Mitsubishi MSZ-FS09NA / MUZ-FS09NAH is designed to automatically ramp up and down depending on your room’s cooling needs in order to keep a stable temperature. Moreover, the system is built with an integrated I-SEE sensor, which constantly measures temperatures in different points in the room to change the direction of air flow as needed. Effectively, this feature allows the unit to focus its efforts on the part of the room that needs heat or cooling the most, keeping a much more stable temperature in the room than units without the I-SEE sensor. With all of these enhanced comfort features, the MSZ-FS09NA / MUZ-FS09NAH definitely lives up to Mitsubishi’s superior standards.
Product Specifications
More Information
9,000 BTU 30.5 SEER Wall Mounted Mitsubishi Mini Split H2i Hyper Heat Single Zone Heat Pump - MZ-FS09NAH
SKU
MSZ-FS09NA / MUZ-FS09NAH
Refrigerant Charge
Pre-Charged For: 25'
Weight (in lbs)
110.000000
AHRI Certificate Number
201754297
Brand/Manufacturer
Mitsubishi
Controller
Wireless Included
Product Features
Low Ambient Heating
Additional Information
Heat Pump
Additional Information
Maximum Line Set Length: 65'
Additional Information
Drain: 5/8"
HSPF
13.5
Cooling BTU
9,000 BTU
Heating BTU
10,900 BTU
Maximum CFM
117-381 CFM
Decibel Level (dBA)
Indoor Unit: 20-42 | Outdoor Unit: 48-49
Energy Star
Yes
Refrigerant
R410A
Capacity
Dehumidification Rate: 0.23 gal/hr
SEER1 (Efficiency)
26-30
EER
16.1
Liquid Line
1/4"
Suction Line
3/8"
Electrical
208/230V 1 Phase 60 Hz
Phase
Single Phase
Max Breaker Size
15
Min. Breaker Size
11
Amperage Requirement
15
BTU/Tonnage
9,000 BTU/0.75 Ton
Mini Split Type
Wall Mounted
Min/Max Outdoor Temp for Heating
-13°-75°
Min/Max Outdoor Temp for Cooling
14°-115°
Zone Compatibility
Single Zone
Operating Mode
Cooling, Heating
Size Range
38" Wide & Up
Height
Indoor Unit: 12-11/16" | Outdoor Unit: 21-5/8"
Width
Indoor Unit: 36-7/16" | Outdoor Unit: 31-1/2"
Depth
Indoor Unit: 9-3/16" | Outdoor Unit: 11-1/4"
Additional Info
Indoor Unit Weight: 34 lbs | Outdoor Unit Weight: 89 lbs
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Thank you for your question. The outdoor condenser unit comes with a charge of R410A refrigerant. The refrigerant charge for this unit is for 25'. However, if your installation requires a line set longer than 25', a licensed installer can adjust the refrigerant levels. Line sets compatible with this mini split system can be found on this product's page under the accessories which are located under the add to cart button on the right hand side of the screen.
What size of breaker do I need for the inside electrical panel?
Thank you for your question. This system requires a maximum breaker size of 15 and a minimum breaker size of 11. It has an amperage requirement of 15. The indoor air handler unit is powered by the outdoor condenser. For more assistance, please give us a call.
If I'm understanding I need a double pole 15 amp breaker for the electrical panel inside the house correct ?
Correct, that model calls for a double pole 15a breaker, 208 - 230 V. The power goes into a disconnect switch located outside the house, near the condenser unit - then through a weatherproof whip to the outdoor unit. The control wire that connects the indoor unit carries power to the inside component, no further wiring to the panel is necessary. HVAC Direct carries everything you need under Accessories on the product page. If you have any further questions please feel free to give us a call! Thanks.
When it comes to quality and dependability, a Mitsubishi mini split is regarded as the best in the business. If properly looked for and maintained, the life expectancy of a Mitsubishi mini split is frequently greater than 20 years. Learn more.
Mitsubishi is an industry-leader in AC and heating systems and components. As a global supplier of Mitsubishi mini split systems, all units are designed with innovative, cost and energy-efficient technologies. These heating and cooling systems are perfect for residential, commercial and industrial establishments.
Similarly, they provide years of optimal comfort and true heating – cooling balance for properties of all sizes. If looking to replace or upgrade your existing HVAC units, Mitsubishi ductless mini splits are great applications for home and business owners seeking true energy savings.
These days, there are tons of options when it comes to HVAC products. Different companies make different models of products each with its own pros and cons. At HVACDirect.com, we sell different brands and models for you to pick from. While all of these brands are great, the Mitsubishi mini-split system is the best. Let’s see why Mitsubishi makes the best mini split.
Mitsubishi mini split systems have been growing in popularity among homeowners who seek efficient and effective cooling in zones or individual areas of their home. Since each indoor unit (called an air handler) works separately, ductless mini split units can offer better temperature control for your home whether you choose a single- or multi-zone system. Both zone designs let each room have a different temperature, so the family no longer needs to fight over the AC controls. Ductless systems also have the advantage of not requiring any ductwork, giving you flexibility all the while saving money and reducing installation time significantly.
