9,000 BTU 19.5 SEER Ceiling Cassette Mitsubishi Mini-Split Single Zone Heat Pump - MLZ-KA09NA2



Ships in 3-4 Weeks




Availability: Ships in 3-4 Weeks

Authorized Mitsubishi Dealer

AHRI Certified

AHRI Number:202392018

Bread Checkout
Free Shipping
Accessories for this product

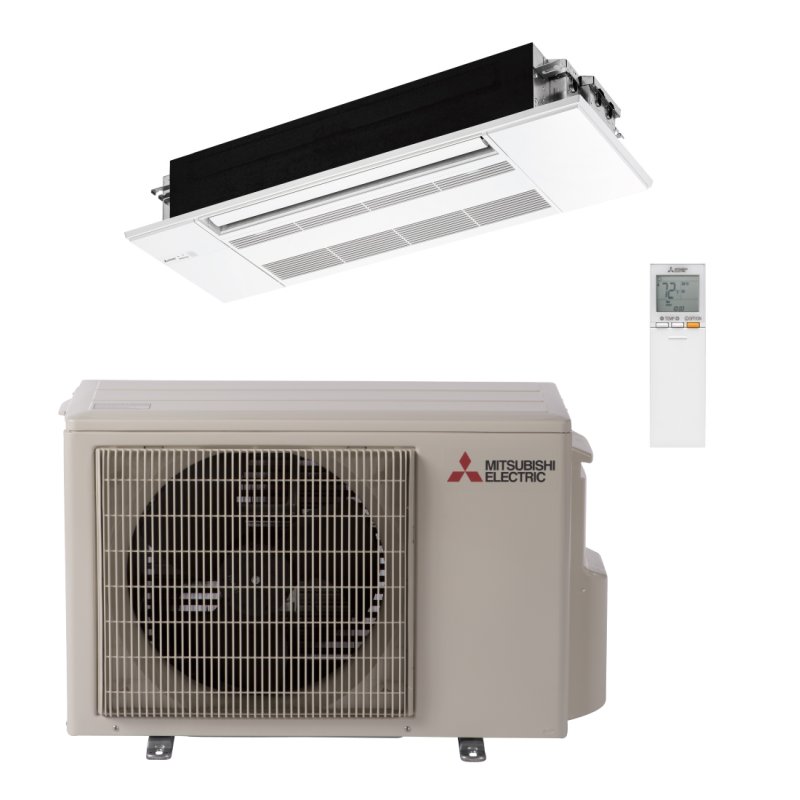

The Mitsubishi MLZ-KP09NA / SUZ-KA09NA2 is a single-zone mini-split with an output of 9,000 BTU and an efficiency rating of 19.5 SEER. The slim design of the ceiling cassette makes it a perfect choice for any installation in which a wall mounted unit is impractical.


  • Designed to be able to heat and cool up to a small room (depending on climate)
  • 9,000 BTU, 19.5 SEER single-zone mini-split
  • Ceiling recessed to free up wall space in your room
  • Slim design for easier installation
9,000 BTU, 19.5 SEER

With an output of 9,000 BTU, the Mitsubishi MLZ-KP09NA / SUZ-KA09NA2 is suitable up to a small room in an average climate. The unit also has a 19.5 SEER rating, making it able to efficiently heat and cool your home with ease. Please note that for all of these cassettes, a grille is required for proper installation and is available as an additional accessory.


Mitsubishi provides a 5 year parts and 7 year compressor warranty from the factory. When the unit is installed following your state and local codes and is registered online through the manufacturer, the warranty is upgraded to a 10 year parts and compressor warranty.

Intelligent Comfort

The Mitsubishi MLZ-KP09NA / SUZ-KA09NA2 is designed with intelligent controls that make small adjustments to keep the room’s temperature stable and bringing more comfort to your home. With an optional WiFi accessory, such as the Mitsubishi Kumo Cloud Adapter found here, this unit can be controlled from anywhere that you have Internet access—from across town at work to across the world on vacation—bringing ease of control to Mitsubishi’s superior comfort.

Convenient and Effective Design

The Mitsubishi ceiling cassette on this unit is designed to fit between standard 16” joists and is only 7-1/2” deep. This low profile design allows the air handler to be installed in tighter spaces and eases the installation process. Designed to function down to -4°F, the MLZ-KP09NA / SUZ-KA09NA2 is effective in many of the colder winter months.


Product Specifications

More Information
9,000 BTU 19.5 SEER Ceiling Cassette Mitsubishi Mini-Split Single Zone Heat Pump - MLZ-KA09NA2
Refrigerant Charge Pre-Charged For: 25'
Weight (in lbs) 115.000000
AHRI Certificate Number 202392018
Brand/Manufacturer Mitsubishi
Controller Wireless Included
Additional Information Heat Pump
Additional Information Maximum Line Set Length: 65'
Additional Information Drain: 1-1/4"
HSPF 13.3
Cooling BTU 9,000 BTU
Heating BTU 12,000 BTU
Maximum CFM 180-350 CFM
Decibel Level (dBA) Indoor Unit: 26-38 | Outdoor Unit: 48-50
Energy Star Yes
Refrigerant R410A
Capacity Dehumidification Rate: 0.19 gal/hr
SEER (Efficiency) 18-20
EER 12.6
Condenser Stages Variable Speed
Compressor Type Rotary
Liquid Line 1/4"
Suction Line 3/8"
Electrical 208/230V 1 Phase 60 Hz
Phase Single Phase
Max Breaker Size 15
Min. Breaker Size 9
Amperage Requirement 15
Mini-Split Type Ceiling Cassette
Min/Max Outdoor Temp for Heating -4°-75°
Min/Max Outdoor Temp for Cooling 14°-115°
Zone Compatibility Single Zone
Operating Mode Cooling, Heating
Height Indoor Unit: 7-5/16" | Grille: 1-7/16" | Outdoor Unit: 21-5/8"
Width Indoor Unit: 43-3/8" | Grille: 47-1/4" | Outdoor Unit: 31-1/2"
Depth Indoor Unit: 14-3/16" | Grille: 16-11/16" | Outdoor Unit: 11-1/4"
Additional Info Indoor Unit Weight: 34 lbs | Outdoor Unit Weight: 81 lbs
Warranty 10 Years with Online Registration
