15,000 BTU Concealed Duct Mitsubishi Mini Split Multi Zone P-Series - Air Handler-R410A

15,000 BTU Concealed Duct Mitsubishi Mini Split Multi Zone P-Series - Air Handler-R410A
By

Mitsubishi

Out of stock
Model

PEAD-A15AA7

ID

57449

Please note that in order to function, this air handler must be installed with a condenser, controller, and other installation equipment, also available for purchase.

  • Can normally cover up to a small room in average conditions
  • 15,000 BTU slim ducted air handler
  • Designed for both small ductwork runs and airflow directly into a room
  • 0.16 gallon per hour dehumidification rate

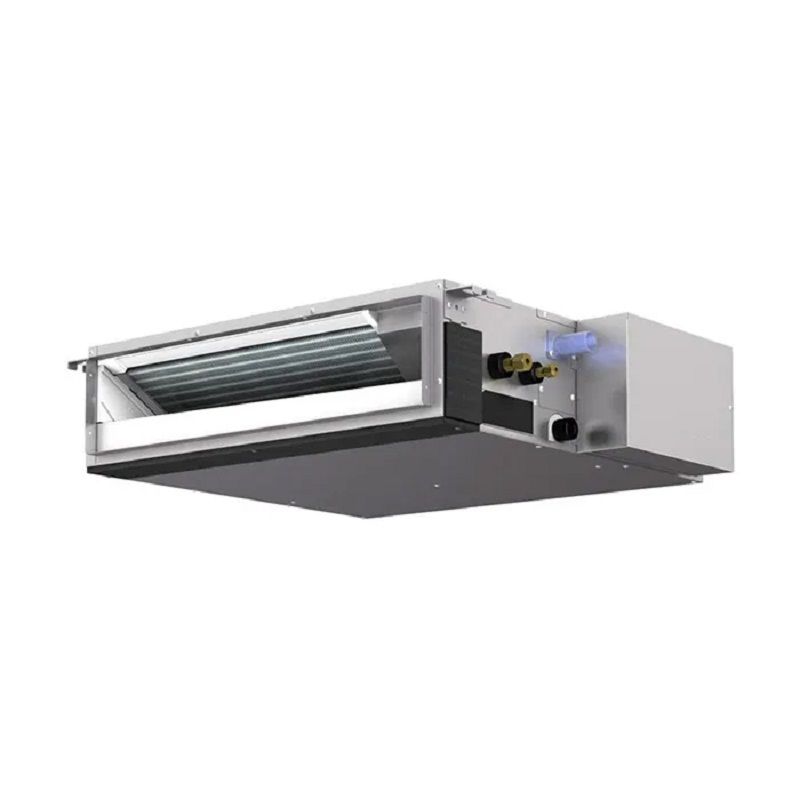

The Mitsubishi PEAD-A15AA7 is a slim ducted air handler designed to fit in tighter spaces, such as crawl spaces. The unit can be installed with ductwork runs and branching off into a couple smaller rooms, or the unit can blow air directly into a room. All of the features of the PEAD-A15AA7 provide enhanced comfort to your home in a convenient form factor.

More Information
15,000 BTU Concealed Duct Mitsubishi Mini Split Multi Zone P-Series - Air Handler-R410A
FeatureSpec
SKUPEAD-A15AA7
Weight (in lbs)62
Brand/ManufacturerMitsubishi
ControllerNot Included
Additional InformationDrain: 1-1/4" PVC
Cooling BTU15,000 BTU
Heating BTU18,000 BTU
Maximum CFM424-600 CFM
Decibel Level (dBA)29-36
Energy StarNo
RefrigerantR410A
HSPF11.4
Condenser StagesVariable Speed
Compressor TypeRotary
Liquid Line1/4"
Suction Line1/2"
Electrical208/230V 1 Phase 60 Hz
BTU/Tonnage15,000 BTU/1.25 Ton
Mini Split TypeConcealed Duct
Zone CompatibilityMulti Zone
Operating ModeCooling, Heating
Height9-7/8"
Width35-7/16"
Depth28-7/8"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
