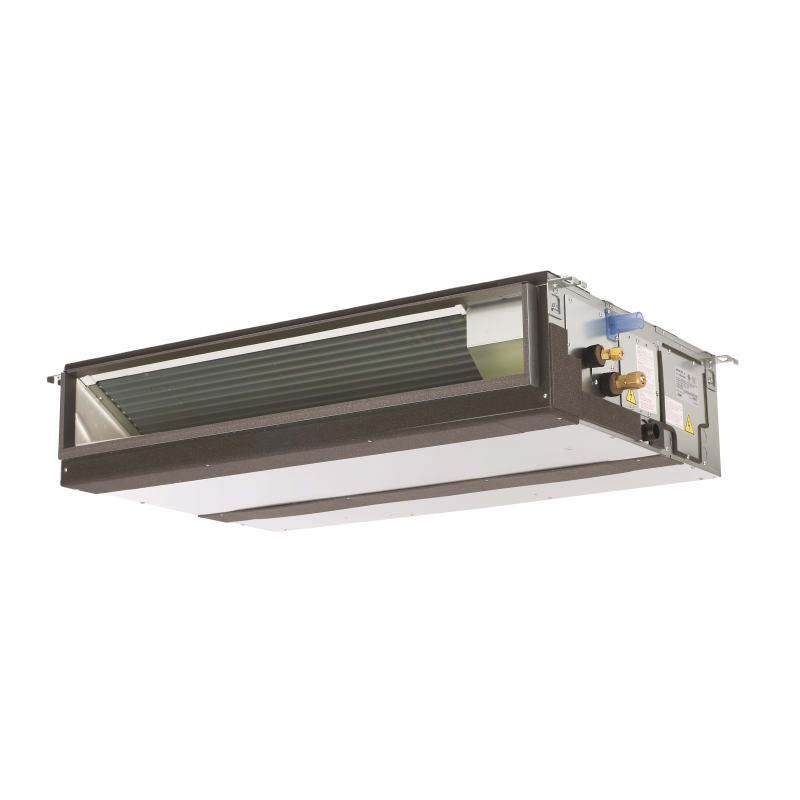

18,000 BTU 19.8 SEER Concealed Duct Mitsubishi Mini Split Single Zone - PEAD-A18AA8-R410A

18,000 BTU 19.8 SEER Concealed Duct Mitsubishi Mini Split Single Zone - PEAD-A18AA8-R410A
By

Mitsubishi

Out of stock
Model

PEAD-A18AA8

ID

201475

OVERVIEW

No Return Policy: All sales of this product are final and are non-refundable. The Mitsubishi PEAD-A18AA8 mini split is designed as a slim ducted system, ideal for spaces where standard central air handlers are too large. With its 18,000 BTU output, this unit offers a versatile solution for various applications, combining efficiency and compactness. Its Energy Star certification ensures excellent energy efficiency, making it a reliable option for both residential and light commercial spaces.

QUICK FACTS

  • Designed to heat and cool average-sized spaces efficiently
  • 18,000 BTU, 19.8 SEER ducted mini split
  • Slim design for flexible installation in tight spaces
  • Energy Star certified for higher energy efficiency
18,000 BTU, 19.8 SEER

The Mitsubishi PEAD-A18AA8 offers 18,000 BTU of cooling and heating power, suitable for average-sized spaces depending on climate and room layout. Its efficiency is rated at 19.8 SEER, surpassing many traditional central systems, making it a great option for those seeking energy savings without sacrificing comfort.

Warranty

This unit comes with a 5-year parts warranty and a 7-year compressor warranty from the manufacturer. When installed in compliance with local and state codes, and registered online through Mitsubishi, the warranty is upgraded to 10 years for both parts and compressor.

Ease of Comfort

The Mitsubishi PEAD-A18AA8 can be paired with the optional Kumo Cloud WiFi adapter for remote control of your system. The Kumo Cloud allows you to control your mini split from anywhere via the app, available for both iOS and Android devices.

Installation

This ducted mini split is a more compact version of an all-electric central heat pump system. The air handler is designed for installation in tight spaces such as ceilings or walls, eliminating the need for a large closet. Its flexibility allows it to either blow air directly into a room or distribute it through ductwork to multiple rooms. Depending on your home’s requirements, you may need more than one unit to provide whole-house comfort.

More Information
18,000 BTU 19.8 SEER Concealed Duct Mitsubishi Mini Split Single Zone - PEAD-A18AA8-R410A
FeatureSpec
SKUPEAD-A18AA8
Refrigerant ChargePre-Charged For: 25'
Weight (in lbs)143
AHRI Certificate Number204629210
Brand/ManufacturerMitsubishi
ControllerNot Included
Additional InformationHeat Pump
Additional InformationMaximum Line Set Length: 100'
Additional InformationDrain: 1-1/4"
Cooling BTU18,000 BTU
Heating BTU19,000 BTU
Maximum CFM382-600 CFM
Decibel Level (dBA)29-37
Energy StarYes
RefrigerantR410A
CapacityDehumidification Rate: 0.4 gal/hr
SEER1 (Efficiency)18-20
Condenser StagesVariable Speed
Compressor TypeRotary
Liquid Line1/4"
Suction Line1/2"
Electrical208/230V 1 Phase 60 Hz
PhaseSingle Phase
Max Breaker Size24
Min. Breaker Size14
Amperage Requirement25
BTU/Tonnage18,000 BTU/1.5 Ton
Mini Split TypeConcealed Duct
Min/Max Outdoor Temp for Heating-4°-75°
Min/Max Outdoor Temp for Cooling14°-115°
Zone CompatibilitySingle Zone
Operating ModeCooling, Heating
Height9-7/8
Width35-7/16
Depth28-7/8
Warranty10 Years with Online Registration
