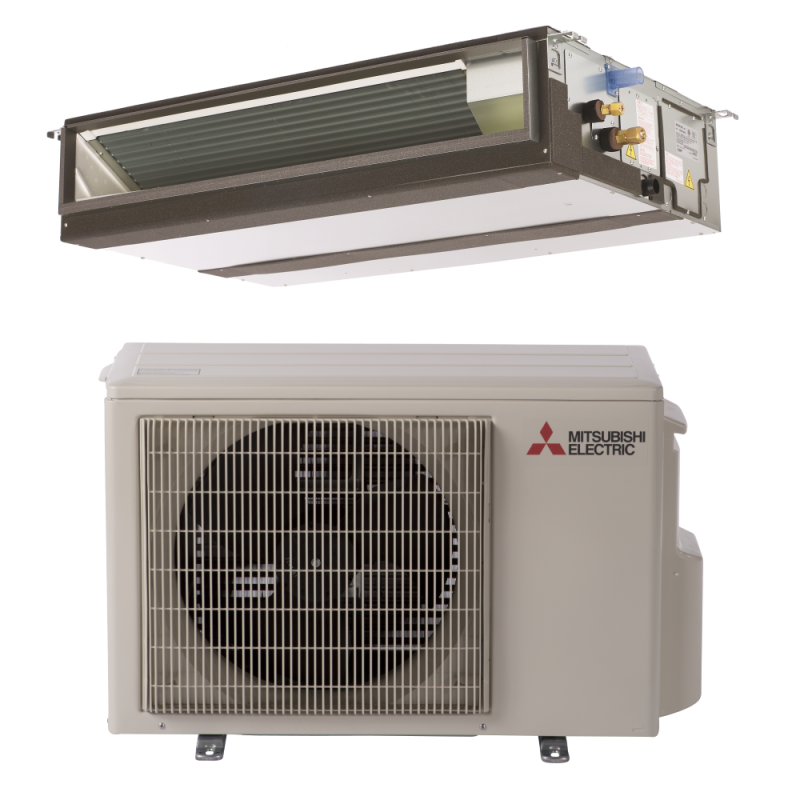

9,000 BTU 19.7 SEER Concealed Duct Mitsubishi Mini-Split Single Zone Heat Pump - PEAD-KA09NA2
The Mitsubishi PEAD-A09AA7 / SUZ-KA09NA2 mini split is designed to be a slim ducted system for when standard central air handlers are physically too large for the space. With its Energy Star certificate and its 9,000 BTU output, the unit is a versatile option in many ways, suitable for many different applications.
- Designed to be able to heat and cool a small space in perfect conditions
- 9,000 BTU, 19.7 SEER ducted mini split
- Slim design for more installation potential
- Energy Star certified
9,000 BTU, 19.7 SEER
The Mitsubishi PEAD-A09AA7 / SUZ-KA09NA2 is designed with an output pf 9,000 BTU, or about enough to cover small spaces depending on climate and other variables. In some cases, the unit can also cover two small adjacent spaces when the ductwork branches off. The efficiency of the unit is rated at 19.7 SEER, which is more efficient than most full-sized central systems.
Straight from the manufacturer, the unit has a 5 year parts warranty and 7 year compressor warranty. With installation that follows the equipment’s state and local codes and when the unit is registered online through Mitsubishi, the warranty is upgraded to a 10 year parts and compressor warranty.
While Mitsubishi has a lot of thermostats in their lineup, the manufacturer also provides an optional WiFi adapter. The Kumo Cloud, found here, allows access to your unit whenever you need it. All you need for this feature to work is Internet and the Kumo Cloud application, available on both the App Store and Google Play.
The Mitsubishi PEAD-A09AA7 / SUZ-KA09NA2 ducted mini split is designed to be a much smaller version of an all-electric central heat pump central system. As the air handler is designed to fit in smaller spaces such as in the ceiling or wall instead of needing its own closet, the unit also has a lower output than many central systems. As a result, in most houses, you will need more than one to cover the entire house depending on your home’s needs. Moreover, the unit can either be blown directly into a space with proper mounting equipment or it can blow through ductwork first. This allows you to direct the airflow into one room or branch it off into multiple rooms, making it ready for multiple installation applications."
|9,000 BTU 19.7 SEER Concealed Duct Mitsubishi Mini-Split Single Zone Heat Pump - PEAD-KA09NA2|
|Weight (in lbs)||139.000000|
|AHRI Certificate Number||204629207|
|Additional Information||Heat Pump|
|Additional Information||Maximum Line Set Length: 65'|
|Additional Information||Drain: 1-1/4"|
|Cooling BTU||9,000 BTU|
|Heating BTU||12,000 BTU|
|Maximum CFM||254-353 CFM|
|Decibel Level (dBA)||Indoor Unit: 24-28 | Outdoor Unit: 48-50|
|Refrigerant Charge||Pre-Charged For: 25'|
|Capacity||Dehumidification Rate: 0.1 gal/hr|
|Condenser Stages||Variable Speed|
|Electrical||208/230V 1 Phase 60 Hz|
|Max Breaker Size||15|
|Min. Breaker Size||9|
|System Tonnage||1 Ton|
|Mini-Split Type||Concealed Duct|
|Min/Max Outdoor Temp for Heating||-4°-75°|
|Min/Max Outdoor Temp for Cooling||14°-115°|
|Zone Compatibility||Single Zone|
|Operating Mode||Cooling, Heating|
|Height||Indoor Unit: 9-7/8" | Outdoor Unit: 21-5/8"|
|Width||Indoor Unit: 35-7/16" | Outdoor Unit: 31-1/2"|
|Depth||Indoor Unit: 28-7/8" | Outdoor Unit: 11-1/4"|
|Additional Info||Indoor Unit Weight: 58 lbs | Outdoor Unit Weight: 81 lbs|
|Warranty||10 Years with Online Registration|
|Safety Information||PROPOSITION 65 WARNING|
