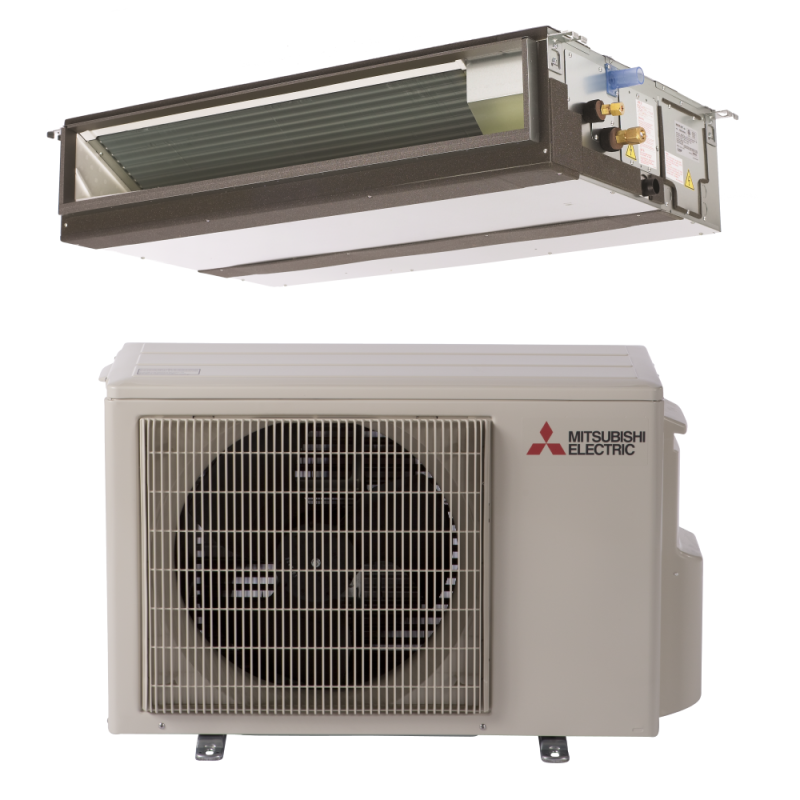

15,000 BTU 19.2 SEER Concealed Duct Mitsubishi Mini-Split Single Zone Heat Pump - PEAD-KA15NA2

By

Mitsubishi

In stock
Model

PEAD-A15AA7 / SUZ-KA15NA2

ID

57419

Availability: Ships in 3-4 Weeks

Authorized Mitsubishi Dealer

AHRI Certified

AHRI Number:204629209

Suggested Retail $3,420.00 Your Low Price Special Price $3,249.00

Free Shipping
Accessories for this product
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing

Description

QUICK FACTS

  • Designed to be able to heat and cool a small space in perfect conditions
  • 15,000 BTU, 19.2 SEER ducted mini split
  • Slim design for more installation potential
  • Energy Star certified
15,000 BTU, 19.2 SEER

The Mitsubishi PEAD-A15AA7 / SUZ-KA15NA2 is designed with an output pf 15,000 BTU, or about enough to cover small spaces depending on climate and other variables. In some cases, the unit can also cover two small adjacent spaces when the ductwork branches off. The efficiency of the unit is rated at 19.2 SEER, which is more efficient than most full-sized central systems.

Warranty

Straight from the manufacturer, the unit has a 5 year parts warranty and 7 year compressor warranty. With installation that follows the equipment’s state and local codes and when the unit is registered online through Mitsubishi, the warranty is upgraded to a 10 year parts and compressor warranty.

Ease of Comfort

While Mitsubishi has a lot of thermostats in their lineup, the manufacturer also provides an optional WiFi adapter. The Kumo Cloud, found here, allows access to your unit whenever you need it. All you need for this feature to work is Internet and the Kumo Cloud application, available on both the App Store and Google Play.

Installation

The Mitsubishi PEAD-A15AA7 / SUZ-KA15NA2 ducted mini split is designed to be a much smaller version of an all-electric central heat pump central system. As the air handler is designed to fit in smaller spaces such as in the ceiling or wall instead of needing its own closet, the unit also has a lower output than many central systems. As a result, in most houses, you will need more than one to cover the entire house depending on your home’s needs. Moreover, the unit can either be blown directly into a space with proper mounting equipment or it can blow through ductwork first. This allows you to direct the airflow into one room or branch it off into multiple rooms, making it ready for multiple installation applications.

"

Product Specifications

More Information
15,000 BTU 19.2 SEER Concealed Duct Mitsubishi Mini-Split Single Zone Heat Pump - PEAD-KA15NA2
SKUPEAD-A15AA7 / SUZ-KA15NA2
Refrigerant ChargePre-Charged For: 25'
Weight (in lbs)143.000000
AHRI Certificate Number204629209
Brand/ManufacturerMitsubishi
ControllerNot Included
Additional InformationHeat Pump
Additional InformationMaximum Line Set Length: 65'
Additional InformationDrain: 1-1/4"
HSPF11.6
Cooling BTU15,000 BTU
Heating BTU18,000 BTU
Maximum CFM382-600 CFM
Decibel Level (dBA)Indoor Unit: 30-37 | Outdoor Unit: 49-51
Energy StarYes
RefrigerantR410A
CapacityDehumidification Rate: 0.16 gal/hr
SEER1 (Efficiency)18-20
EER13
Condenser StagesVariable Speed
Compressor TypeRotary
Liquid Line1/4"
Suction Line1/2"
Electrical208/230V 1 Phase 60 Hz
PhaseSingle Phase
Max Breaker Size18
Min. Breaker Size10
Amperage Requirement20
BTU/Tonnage15,000 BTU/1.25 Ton
Mini-Split TypeConcealed Duct
Min/Max Outdoor Temp for Heating-4°-75°
Min/Max Outdoor Temp for Cooling14°-115°
Zone CompatibilitySingle Zone
Operating ModeCooling, Heating
HeightIndoor Unit: 9-7/8" | Outdoor Unit: 21-5/8"
WidthIndoor Unit: 35-7/16" | Outdoor Unit: 31-1/2"
DepthIndoor Unit: 28-7/8" | Outdoor Unit: 11-1/4"
Additional InfoIndoor Unit Weight: 62 lbs | Outdoor Unit Weight: 81 lbs
Warranty10 Years with Online Registration
