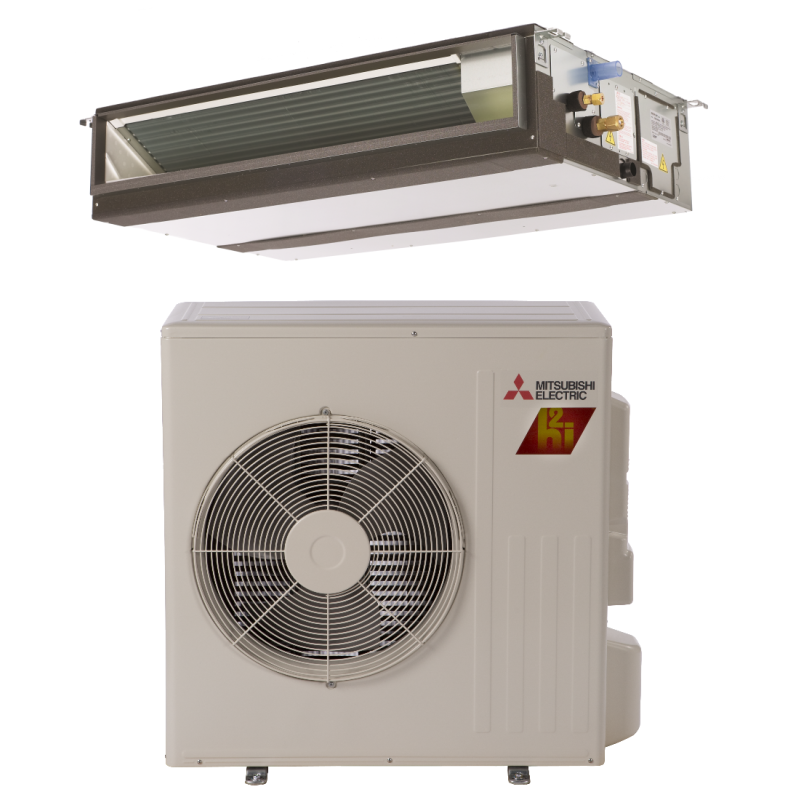

15,000 BTU 18.3 SEER Concealed Duct Mitsubishi Mini-Split Single Zone H2i Hyper Heat Heat Pump - PEAD-KA15NAHZ

By

Mitsubishi

Model

PEAD-A15AA7 / SUZ-KA15NAHZ

ID

57427

Availability: Ships in 3-4 Weeks

Authorized Mitsubishi Dealer

AHRI Certified

AHRI Number:204627045

$3,388.16

Free Shipping
Accessories for this product
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing

Description

"

OVERVIEW

The Mitsubishi PEAD-A15AA7 / SUZ-KA15NAHZ mini split is designed to be a slim ducted system for when standard central air handlers are physically too large for the space. With its 15,000 BTU output, the unit is a versatile option in many ways, suitable for many different applications.

QUICK FACTS

  • Designed to be able to heat and cool a small space in perfect conditions
  • 15,000 BTU, 18.3 SEER ducted mini split
  • Slim design for more installation potential
  • Hyper Heat pump technology in the condenser
15,000 BTU, 18.3 SEER

The Mitsubishi PEAD-A15AA7 / SUZ-KA15NAHZ is designed with an output pf 15,000 BTU, or about enough to cover small spaces depending on climate and other variables. In some cases, the unit can also cover two small adjacent spaces when the ductwork branches off. The efficiency of the unit is rated at 18.3 SEER, which is more efficient than most full-sized central systems.

Warranty

Straight from the manufacturer, the unit has a 5 year parts warranty and 7 year compressor warranty. With installation that follows the equipment’s state and local codes and when the unit is registered online through Mitsubishi, the warranty is upgraded to a 10 year parts and compressor warranty.

Ease of Comfort

While Mitsubishi has a lot of thermostats in their lineup, the manufacturer also provides an optional WiFi adapter. The Kumo Cloud, found here, allows access to your unit whenever you need it. All you need for this feature to work is Internet and the Kumo Cloud application, available on both the App Store and Google Play.

Installation

The Mitsubishi PEAD-A15AA7 / SUZ-KA15NAHZ ducted mini split is designed to be a much smaller version of an all-electric central heat pump central system. As the air handler is designed to fit in smaller spaces such as in the ceiling or wall instead of needing its own closet, the unit also has a lower output than many central systems. As a result, in most houses, you will need more than one to cover the entire house depending on your home’s needs. Moreover, the unit can either be blown directly into a space with proper mounting equipment or it can blow through ductwork first. This allows you to direct the airflow into one room or branch it off into multiple rooms, making it ready for multiple installation applications.

Hyper Heat Pump Technology

The PEAD-A15AA7 / SUZ-KA15NAHZ is factory-implemented with Mitsubishi’s Hyper Heat pump technology, consisting of a special drain pan heater. The heater protects the outdoor unit during operation at low temperatures, effectively lowering the temperature at which the unit can operate, keeping you warm in even some of the coldest of winters.

"

Product Specifications

More Information
15,000 BTU 18.3 SEER Concealed Duct Mitsubishi Mini-Split Single Zone H2i Hyper Heat Heat Pump - PEAD-KA15NAHZ
SKUPEAD-A15AA7 / SUZ-KA15NAHZ
Refrigerant ChargePre-Charged For: 25'
Weight (in lbs)162.000000
AHRI Certificate Number204627045
Brand/ManufacturerMitsubishi
ControllerNot Included
Additional InformationHeat Pump
Additional InformationMaximum Line Set Length: 65'
Additional InformationDrain: 1-1/4"
HSPF9.9
Cooling BTU15,000 BTU
Heating BTU18,000 BTU
RefrigerantR410A
CapacityDehumidification Rate: 0 gal/hr
SEER1 (Efficiency)18-20
EER12.6
Condenser StagesVariable Speed
Compressor TypeRotary
Liquid Line1/4"
Suction Line1/2"
Electrical208/230V 1 Phase 60 Hz
PhaseSingle Phase
Max Breaker Size31
Min. Breaker Size17
Amperage Requirement30
BTU/Tonnage15,000 BTU/1.25 Ton
Mini-Split TypeConcealed Duct
Min/Max Outdoor Temp for Heating-13°-75°
Min/Max Outdoor Temp for Cooling14°-115°
Zone CompatibilitySingle Zone
Operating ModeCooling, Heating
HeightIndoor Unit: 9-7/8" | Outdoor Unit: 34-5/8
WidthIndoor Unit: 35-7/16" | Outdoor Unit: 38-9/16
DepthIndoor Unit: 28-7/8" | Outdoor Unit: 13"
Additional InfoIndoor Unit Weight: 62 lbs | Outdoor Unit Weight: 131 lbs
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
