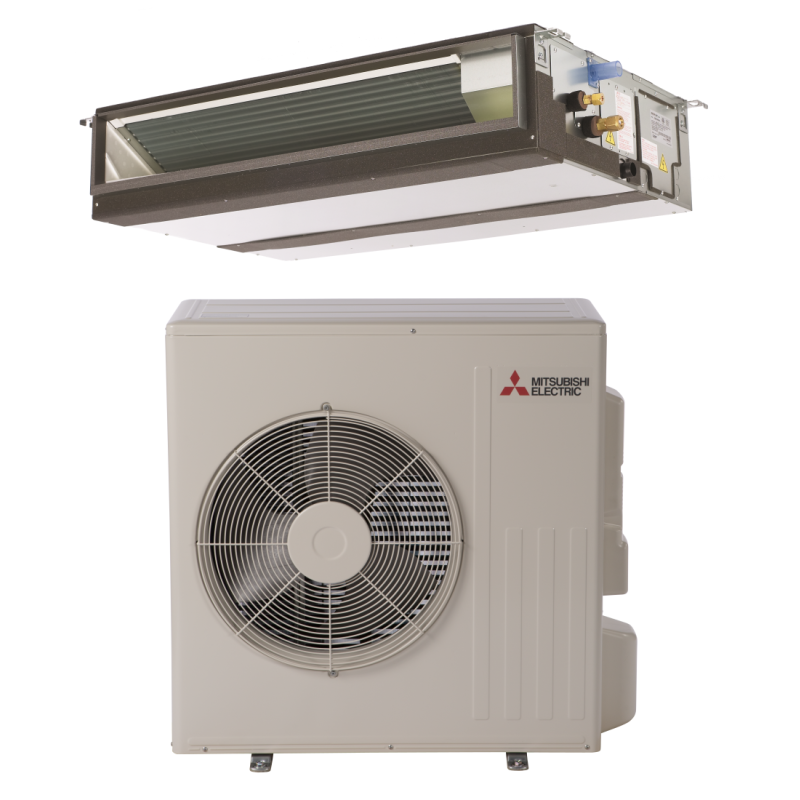

18,000 BTU 19.8 SEER Concealed Duct Mitsubishi Mini-Split Single Zone Heat Pump - PEAD-KA18NA2

We Price Match!

Give our sales team a call at

123.123.1233 (Toll Free) or

123.111.2222 (International) and we'll

match any competitor's price.

Chat With Us!

By
Mitsubishi
Model
PEAD-A18AA7 / SUZ-KA18NA2
ID
57420
Availability: Ships Within 2-3 Business Days
Mitsubishi

Authorized Mitsubishi Dealer

AHRI Certified

AHRI Number:204629210

Suggested Retail $3,815.63 As low as Special Price $3,144.00
Bread Checkout

Free Shipping
Accessories for this product
Description
"

OVERVIEW

The Mitsubishi PEAD-A18AA7 / SUZ-KA18NA2 mini split is designed to be a slim ducted system for when standard central air handlers are physically too large for the space. With its Energy Star certificate and its 18,000 BTU output, the unit is a versatile option in many ways, suitable for many different applications.

QUICK FACTS

  • Designed to be able to heat and cool an average space in perfect conditions
  • 18,000 BTU, 19.8 SEER ducted mini split
  • Slim design for more installation potential
  • Energy Star certified
18,000 BTU, 19.8 SEER

The Mitsubishi PEAD-A18AA7 / SUZ-KA18NA2 is designed with an output pf 18,000 BTU, or about enough to cover average spaces depending on climate and other variables. In some cases, the unit can also cover two small adjacent spaces when the ductwork branches off. The efficiency of the unit is rated at 19.8 SEER, which is more efficient than most full-sized central systems.

Warranty

Straight from the manufacturer, the unit has a 5 year parts warranty and 7 year compressor warranty. With installation that follows the equipment’s state and local codes and when the unit is registered online through Mitsubishi, the warranty is upgraded to a 10 year parts and compressor warranty.

Ease of Comfort

While Mitsubishi has a lot of thermostats in their lineup, the manufacturer also provides an optional WiFi adapter. The Kumo Cloud, found here, allows access to your unit whenever you need it. All you need for this feature to work is Internet and the Kumo Cloud application, available on both the App Store and Google Play.

Installation

The Mitsubishi PEAD-A18AA7 / SUZ-KA18NA2 ducted mini split is designed to be a much smaller version of an all-electric central heat pump central system. As the air handler is designed to fit in smaller spaces such as in the ceiling or wall instead of needing its own closet, the unit also has a lower output than many central systems. As a result, in most houses, you will need more than one to cover the entire house depending on your home’s needs. Moreover, the unit can either be blown directly into a space with proper mounting equipment or it can blow through ductwork first. This allows you to direct the airflow into one room or branch it off into multiple rooms, making it ready for multiple installation applications.

"
Product Specifications
More Information
18,000 BTU 19.8 SEER Concealed Duct Mitsubishi Mini-Split Single Zone Heat Pump - PEAD-KA18NA2
Weight (in lbs) 143.000000
AHRI Certificate Number 204629210
Manufacturer Mitsubishi
Controller Not Included
Additional Information Heat Pump
Additional Information Maximum Line Set Length: 100'
Additional Information Drain: 1-1/4"
HSPF 12.9
Cooling BTU 18,000 BTU
Heating BTU 21,600 BTU
Maximum CFM 382-600 CFM
Decibel Level (dBA) Indoor Unit: 30-37 | Outdoor Unit: 54-55
Energy Star Yes
Refrigerant R410A
Refrigerant Charge Pre-Charged For: 25'
Capacity Dehumidification Rate: 0.4 gal/hr
SEER 19
EER 14.1
Condenser Stages Variable Speed
Compressor Type Rotary
Liquid Line 1/4"
Suction Line 1/2"
Electrical 208/230V 1 Phase 60 Hz
Phase Single Phase
Max Breaker Size 24
Min. Breaker Size 14
Amperage Requirement 25
Tonnage 1.5 Ton
System Tonnage 1.5 Ton
Mini-Split Type Concealed Duct
Min/Max Outdoor Temp for Heating -4°-75°
Min/Max Outdoor Temp for Cooling 14°-115°
Zone Compatibility Single Zone
Operating Mode Cooling, Heating
Height Indoor Unit: 9-7/8" | Outdoor Unit: 34-5/8"
Width Indoor Unit: 35-7/16" | Outdoor Unit: 33-1/16"
Depth Indoor Unit: 28-7/8" | Outdoor Unit: 13"
Additional Info Indoor Unit Weight: 62 lbs | Outdoor Unit Weight: 81 lbs
Warranty 10 Years with Online Registration
