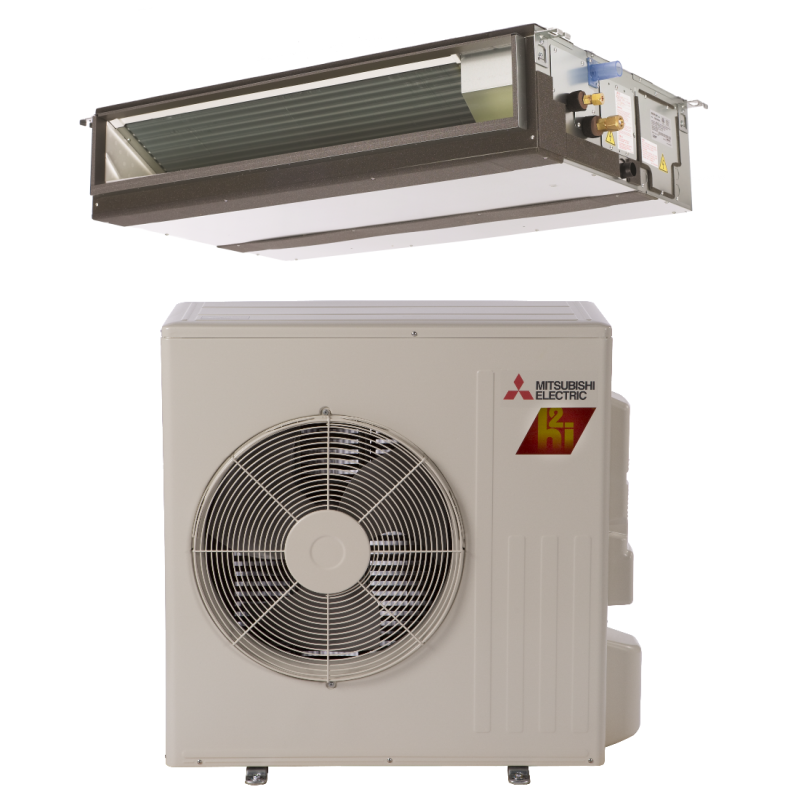

18,000 BTU 18.9 SEER Concealed Duct Mitsubishi Mini-Split Single Zone H2i Hyper Heat Heat Pump - PEAD-KA18NAHZ
The Mitsubishi PEAD-A18AA7 / SUZ-KA18NAHZ mini split is designed to be a slim ducted system for when standard central air handlers are physically too large for the space. With its 18,000 BTU output, the unit is a versatile option in many ways, suitable for many different applications.
- Designed to be able to heat and cool a medium-sized space in perfect conditions
- 18,000 BTU, 18.9 SEER ducted mini split
- Slim design for more installation potential
- Hyper Heat pump technology in the condenser
18,000 BTU, 18.9 SEER
The Mitsubishi PEAD-A18AA7 / SUZ-KA18NAHZ is designed with an output pf 18,000 BTU, or about enough to cover medium-sized spaces depending on climate and other variables. In some cases, the unit can also cover two small adjacent spaces when the ductwork branches off. The efficiency of the unit is rated at 18.9 SEER, which is more efficient than most full-sized central systems.
Straight from the manufacturer, the unit has a 5 year parts warranty and 7 year compressor warranty. With installation that follows the equipment’s state and local codes and when the unit is registered online through Mitsubishi, the warranty is upgraded to a 10 year parts and compressor warranty.
While Mitsubishi has a lot of thermostats in their lineup, the manufacturer also provides an optional WiFi adapter. The Kumo Cloud, found here, allows access to your unit whenever you need it. All you need for this feature to work is Internet and the Kumo Cloud application, available on both the App Store and Google Play.
The Mitsubishi PEAD-A18AA7 / SUZ-KA18NAHZ ducted mini split is designed to be a much smaller version of an all-electric central heat pump central system. As the air handler is designed to fit in smaller spaces such as in the ceiling or wall instead of needing its own closet, the unit also has a lower output than many central systems. As a result, in most houses, you will need more than one to cover the entire house depending on your home’s needs. Moreover, the unit can either be blown directly into a space with proper mounting equipment or it can blow through ductwork first. This allows you to direct the airflow into one room or branch it off into multiple rooms, making it ready for multiple installation applications.
The PEAD-A18AA7 / SUZ-KA18NAHZ is factory-implemented with Mitsubishi’s Hyper Heat pump technology, consisting of a special drain pan heater. The heater protects the outdoor unit during operation at low temperatures, effectively lowering the temperature at which the unit can operate, keeping you warm in even some of the coldest of winters."
|18,000 BTU 18.9 SEER Concealed Duct Mitsubishi Mini-Split Single Zone H2i Hyper Heat Heat Pump - PEAD-KA18NAHZ|
|Weight (in lbs)||162.000000|
|AHRI Certificate Number||204627046|
|Additional Information||Heat Pump|
|Additional Information||Maximum Line Set Length: 100'|
|Additional Information||Drain: 1-1/4"|
|Cooling BTU||18,000 BTU|
|Heating BTU||21,600 BTU|
|Refrigerant Charge||Pre-Charged For: 25'|
|Capacity||Dehumidification Rate: 0 gal/hr|
|Condenser Stages||Variable Speed|
|Electrical||208/230V 1 Phase 60 Hz|
|Max Breaker Size||31|
|Min. Breaker Size||17|
|System Tonnage||1.5 Ton|
|Mini-Split Type||Concealed Duct|
|Min/Max Outdoor Temp for Heating||-13°-75°|
|Min/Max Outdoor Temp for Cooling||14°-115°|
|Zone Compatibility||Single Zone|
|Operating Mode||Cooling, Heating|
|Height||Indoor Unit: 9-7/8" | Outdoor Unit: 34-5/8|
|Width||Indoor Unit: 35-7/16" | Outdoor Unit: 38-9/16|
|Depth||Indoor Unit: 28-7/8" | Outdoor Unit: 13"|
|Additional Info||Indoor Unit Weight: 62 lbs | Outdoor Unit Weight: 131 lbs|
|Warranty||10 Years with Online Registration|
|Safety Information||PROPOSITION 65 WARNING|
