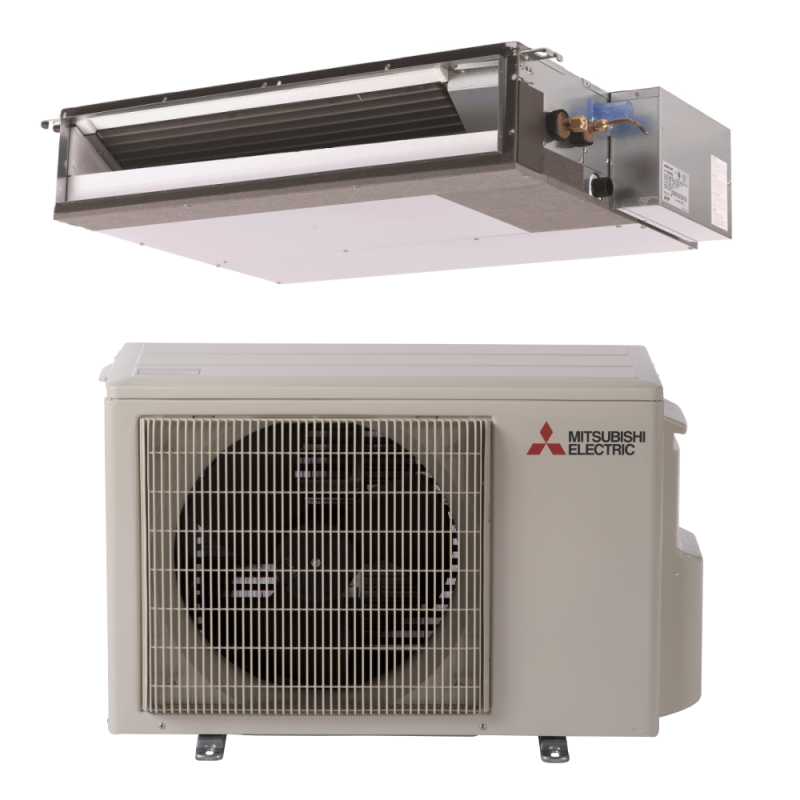

15,000 BTU 19 SEER Concealed Duct Mitsubishi Mini-Split Single Zone Heat Pump - SEZ-KA15NA2
The Mitsubishi SEZ-KD15NA4R1.TH / SUZ-KA15NA2 mini split is designed to be a slim ducted system for when standard central air handlers are physically too large for the space. With its Energy Star certificate and its 15,000 BTU output, the unit is a good choice for many applications.
- Designed to be able to heat and cool a small space in perfect conditions
- 15,000 BTU, 15.5 SEER ducted mini split
- Slim design for more installation potential
- Energy Star certified
15,000 BTU, 15.5 SEER
With its 15.5 SEER rating and its Energy Star certificate, the Mitsubishi SEZ-KD15NA4R1.TH / SUZ-KA15NA2 is designed with an efficient output of 15,000 BTU. Depending on a number of variables such as ductwork runs, this model is able to cover a small space or two smaller adjacent spaces.
Straight from the manufacturer, the unit has a 5 year parts warranty and 7 year compressor warranty. With installation that follows the equipment’s state and local codes and when the unit is registered online through Mitsubishi, the warranty is upgraded to a 10 year parts and compressor warranty.
The Mitsubishi SEZ-KD15NA4R1.TH / SUZ-KA15NA2 will provide heat at an outdoor temperature of -4°F, reliably providing warmth to your space. For a Hyper Heat pump system that warms down to -13°F with the same system output, click here.
The Mitsubishi SEZ-KD15NA4R1.TH / SUZ-KA15NA2 ducted mini split comes with a wall-mounted controller that is made to be field-installed. With the Kumo Cloud, a Mitsubishi-branded WiFi minisplit adapter found here, the unit can be accessed anywhere that you have Internet.
The Mitsubishi SEZ-KD15NA4R1.TH / SUZ-KA15NA2 ducted mini split is designed to be a much smaller version of an all-electric central heat pump central system. As the air handler is designed to fit in smaller spaces such as in the ceiling or wall instead of needing its own closet, the unit also has a lower output than many central systems. As a result, in most houses, you will need more than one to cover the entire house depending on your home’s needs. Moreover, the unit can either be blown directly into a space with proper mounting equipment or it can blow through ductwork first. This allows you to direct the airflow into one room or branch it off into multiple rooms, making it ready for multiple installation applications.
|15,000 BTU 19 SEER Concealed Duct Mitsubishi Mini-Split Single Zone Heat Pump - SEZ-KA15NA2|
|Weight (in lbs)||134.000000|
|AHRI Certificate Number||202392029|
|Additional Information||Heat Pump|
|Additional Information||Maximum Line Set Length: 65'|
|Additional Information||Drain: 1-1/4"|
|Cooling BTU||15,000 BTU|
|Heating BTU||18,000 BTU|
|Maximum CFM||317-529 CFM|
|Decibel Level (dBA)||Indoor Unit: 30-37 | Outdoor Unit: 49-51|
|Refrigerant Charge||Pre-Charged For: 25'|
|Capacity||Dehumidification Rate: 0.24 gal/hr|
|Electrical||208/230V 1 Phase 60 Hz|
|Max Breaker Size||18|
|Min. Breaker Size||10|
|System Tonnage||1 Ton|
|Mini-Split Type||Concealed Duct|
|Min/Max Outdoor Temp for Heating||-4°-75°|
|Min/Max Outdoor Temp for Cooling||14°-115°|
|Zone Compatibility||Single Zone|
|Operating Mode||Cooling, Heating|
|Height||Indoor Unit: 7-7/8" | Outdoor Unit: 21-5/8"|
|Width||Indoor Unit: 39" | Outdoor Unit: 31-1/2"|
|Depth||Indoor Unit: 27-9/16" | Outdoor Unit: 11-1/4"|
|Additional Info||Indoor Unit Weight: 54 lbs | Outdoor Unit Weight: 81 lbs|
|Warranty||10 Years with Online Registration|
|Safety Information||PROPOSITION 65 WARNING|
