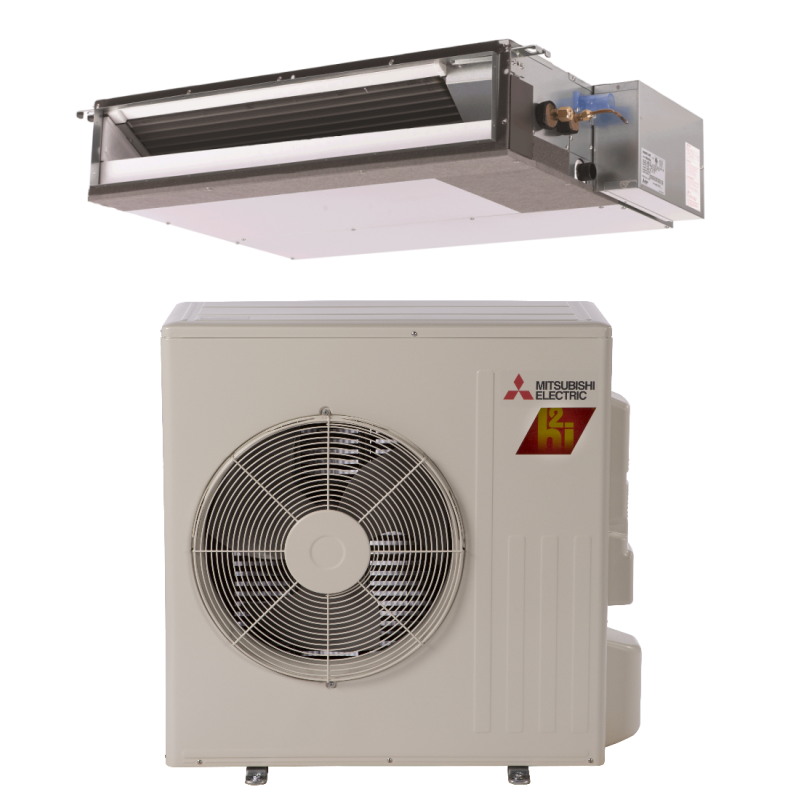

12,000 BTU 19 SEER Concealed Duct Mitsubishi Mini-Split Single Zone H2i Hyper Heat Heat Pump - SEZ-KA12NAHZ
The Mitsubishi SEZ-KD12NA4R1.TH / SUZ-KA12NAHZ mini split is designed to be a slim ducted system for when standard central air handlers are physically too large for the space. With its Energy Star certificate and its 12,000 BTU output, the unit is a good choice for many applications.
- Designed to be able to heat and cool a small space in perfect conditions
- 12,000 BTU, 19 SEER ducted mini split
- Slim design for more installation potential
- Hyper Heat pump integrated technology, providing heat down to -13°F
12,000 BTU, 19 SEER
With its 19 SEER rating, the Mitsubishi SEZ-KD12NA4R1.TH / SUZ-KA12NAHZ is designed with an efficient output of 12,000 BTU. Depending on a number of variables such as ductwork runs, this model is able to cover a small space or two smaller adjacent spaces.
Straight from the manufacturer, the unit has a 5 year parts warranty and 7 year compressor warranty. With installation that follows the equipment’s state and local codes and when the unit is registered online through Mitsubishi, the warranty is upgraded to a 10 year parts and compressor warranty.
The Mitsubishi SEZ-KD12NA4R1.TH / SUZ-KA12NAHZ will provide heat at an outdoor temperature of as low as -13°F, reliably providing warmth to your space throughout the entire year in almost any climate.
The Mitsubishi SEZ-KD12NA4R1.TH / SUZ-KA12NAHZ ducted mini split comes with a wall-mounted controller that is made to be field-installed. With the Kumo Cloud, a Mitsubishi-branded WiFi mini split adapter found here, the unit can be accessed anywhere that you have Internet.
The Mitsubishi SEZ-KD12NA4R1.TH / SUZ-KA12NAHZ ducted mini split is designed to be a much smaller version of an all-electric central heat pump central system. As the air handler is designed to fit in smaller spaces such as in the ceiling or wall instead of needing its own closet, the unit also has a lower output than many central systems. As a result, in most houses, you will need more than one to cover the entire house depending on your home’s needs. Moreover, the unit can either be blown directly into a space with proper mounting equipment or it can blow through ductwork first. This allows you to direct the airflow into one room or branch it off into multiple rooms, making it ready for multiple installation applications."
|12,000 BTU 19 SEER Concealed Duct Mitsubishi Mini-Split Single Zone H2i Hyper Heat Heat Pump - SEZ-KA12NAHZ|
|Weight (in lbs)||160.000000|
|AHRI Certificate Number||204627020|
|Additional Information||Heat Pump|
|Additional Information||Maximum Line Set Length: 65'|
|Additional Information||Drain: 1-1/4"|
|Cooling BTU||12,000 BTU|
|Heating BTU||15,000 BTU|
|Refrigerant Charge||Pre-Charged For: 25'|
|Capacity||Dehumidification Rate: 0 gal/hr|
|Condenser Stages||Variable Speed|
|Electrical||208/230V 1 Phase 60 Hz|
|Max Breaker Size||24|
|Min. Breaker Size||14|
|System Tonnage||1 Ton|
|Mini-Split Type||Concealed Duct|
|Min/Max Outdoor Temp for Heating||-4°-75°|
|Min/Max Outdoor Temp for Cooling||14°-115°|
|Zone Compatibility||Single Zone|
|Operating Mode||Cooling, Heating|
|Height||Indoor Unit: 7-7/8" | Outdoor Unit: 34-5/8|
|Width||Indoor Unit: 39" | Outdoor Unit: 38-9/16|
|Depth||Indoor Unit: 27-9/16" | Outdoor Unit: 13"|
|Additional Info||Indoor Unit Weight: 50 lbs | Outdoor Unit Weight: 129 lbs|
|Warranty||10 Years with Online Registration|
|Safety Information||PROPOSITION 65 WARNING|
