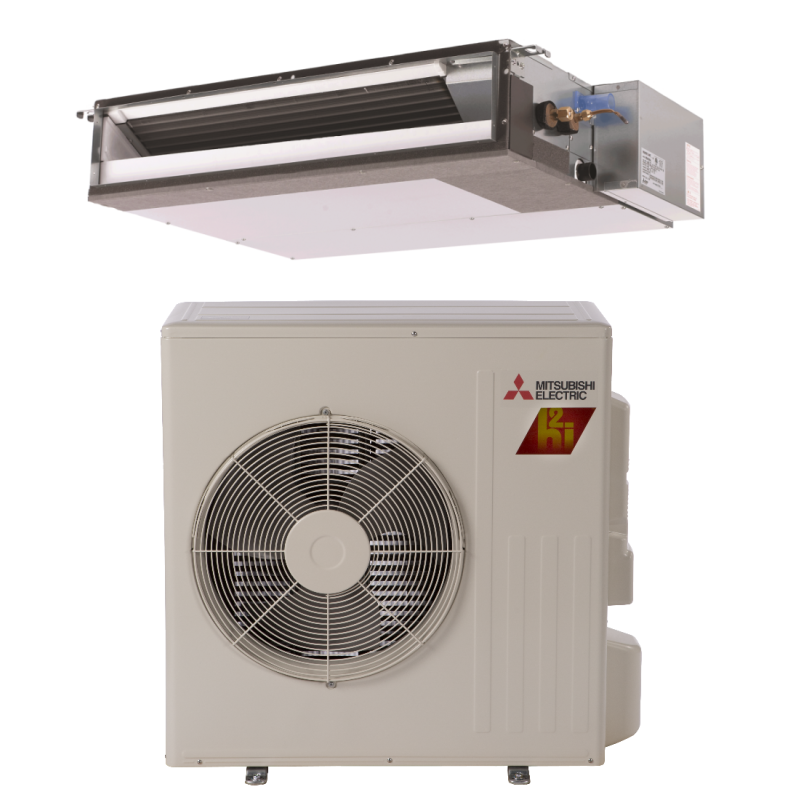

15,000 BTU 17.3 SEER Concealed Duct Mitsubishi Mini-Split Single Zone H2i Hyper Heat Heat Pump - SEZ-KA15NAHZ

By

Mitsubishi

Model

SEZ-KD15NA4R1.TH / SUZ-KA15NAHZ

ID

57414

Availability: Ships in 3-4 Weeks

Authorized Mitsubishi Dealer

AHRI Certified

AHRI Number:204627021

$3,128.15

Free Shipping
Accessories for this product
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing

Description

"

OVERVIEW

The Mitsubishi SEZ-KD15NA4R1.TH / SUZ-KA15NAHZ mini split is designed to be a slim ducted system for when standard central air handlers are physically too large for the space. With its Energy Star certificate and its 15,000 BTU output, the unit is a good choice for many applications.

QUICK FACTS

  • Designed to be able to heat and cool a small space in perfect conditions
  • 15,000 BTU, 17.3 SEER ducted mini split
  • Slim design for more installation potential
  • Hyper Heat pump integrated technology, providing heat down to -13°F
15,000 BTU, 17.3 SEER

With its 17.3 SEER rating, the Mitsubishi SEZ-KD15NA4R1.TH / SUZ-KA15NAHZ is designed with an efficient output of 15,000 BTU. Depending on a number of variables such as ductwork runs, this model is able to cover a small space or two smaller adjacent spaces.

Warranty

Straight from the manufacturer, the unit has a 5 year parts warranty and 7 year compressor warranty. With installation that follows the equipment’s state and local codes and when the unit is registered online through Mitsubishi, the warranty is upgraded to a 10 year parts and compressor warranty.

Reliable Functionality

The Mitsubishi SEZ-KD15NA4R1.TH / SUZ-KA15NAHZ will provide heat at an outdoor temperature of as low as -13°F, reliably providing warmth to your space throughout the entire year in almost any climate.

Ease of Comfort

The Mitsubishi SEZ-KD15NA4R1.TH / SUZ-KA15NAHZ ducted mini split comes with a wall-mounted controller that is made to be field-installed. With the Kumo Cloud, a Mitsubishi-branded WiFi mini split adapter found here, the unit can be accessed anywhere that you have Internet.

Installation

The Mitsubishi SEZ-KD15NA4R1.TH / SUZ-KA15NAHZ ducted mini split is designed to be a much smaller version of an all-electric central heat pump central system. As the air handler is designed to fit in smaller spaces such as in the ceiling or wall instead of needing its own closet, the unit also has a lower output than many central systems. As a result, in most houses, you will need more than one to cover the entire house depending on your home’s needs. Moreover, the unit can either be blown directly into a space with proper mounting equipment or it can blow through ductwork first. This allows you to direct the airflow into one room or branch it off into multiple rooms, making it ready for multiple installation applications.

"

Product Specifications

More Information
15,000 BTU 17.3 SEER Concealed Duct Mitsubishi Mini-Split Single Zone H2i Hyper Heat Heat Pump - SEZ-KA15NAHZ
SKUSEZ-KD15NA4R1.TH / SUZ-KA15NAHZ
Refrigerant ChargePre-Charged For: 25'
Weight (in lbs)162.000000
AHRI Certificate Number204627021
Brand/ManufacturerMitsubishi
ControllerNot Included
Additional InformationHeat Pump
Additional InformationMaximum Line Set Length: 65'
Additional InformationDrain: 1-1/4"
HSPF9.5
Cooling BTU15,000 BTU
Heating BTU18,000 BTU
RefrigerantR410A
CapacityDehumidification Rate: 0 gal/hr
SEER1 (Efficiency)16-17
EER12.5
Condenser StagesVariable Speed
Compressor TypeRotary
Liquid Line1/4"
Suction Line1/2"
Electrical208/230V 1 Phase 60 Hz
PhaseSingle Phase
Max Breaker Size31
Min. Breaker Size17
Amperage Requirement30
BTU/Tonnage15,000 BTU/1.25 Ton
Mini-Split TypeConcealed Duct
Min/Max Outdoor Temp for Heating-4°-75°
Min/Max Outdoor Temp for Cooling14°-115°
Zone CompatibilitySingle Zone
Operating ModeCooling, Heating
HeightIndoor Unit: 7-7/8" | Outdoor Unit: 34-5/8
WidthIndoor Unit: 39" | Outdoor Unit: 38-9/16
DepthIndoor Unit: 27-9/16" | Outdoor Unit: 13"
Additional InfoIndoor Unit Weight: 54 lbs | Outdoor Unit Weight: 131 lbs
Warranty10 Years with Online Registration
