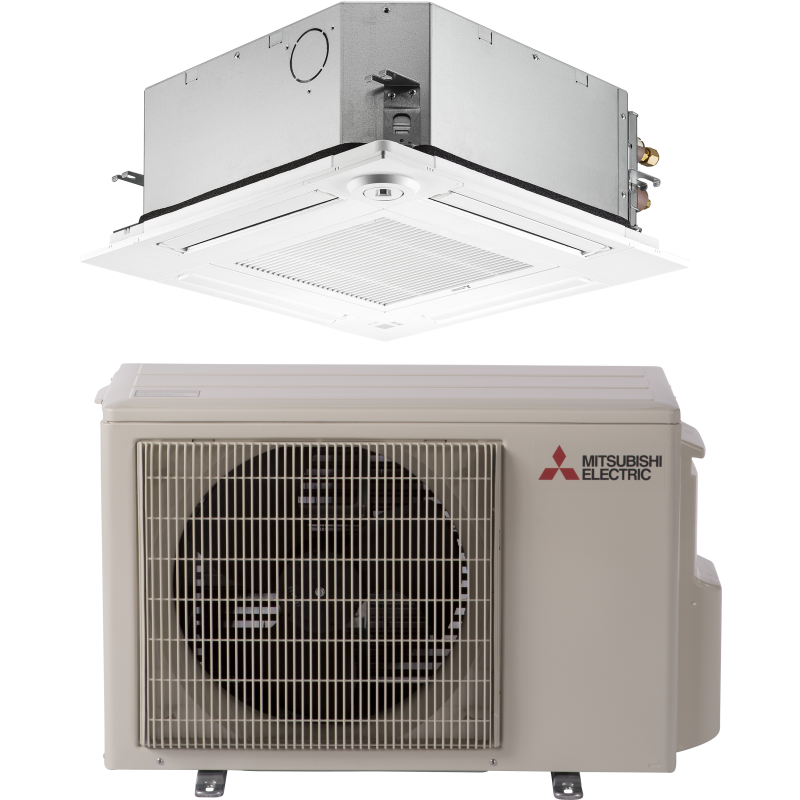

9,000 BTU 22.4 SEER Ceiling Cassette Mitsubishi Mini-Split Single Zone Heat Pump - SZ-KF09NA

We Price Match!

Give our sales team a call at

123.123.1233 (Toll Free) or

123.111.2222 (International) and we'll

match any competitor's price.

Chat With Us!


Authorized Mitsubishi Dealer

AHRI Certified

AHRI Number:202392021

Bread Checkout
Free Shipping
Accessories for this product


The Mitsubishi SLZ-KF09NA / SUZ-KA09NA2 single-zone mini-split system is designed to be a good fit for rooms that a wall mounted air handler is not an option. With its 9,000 BTU output and its intelligent temperature adjustment technology, the SLZ-KF09NA / SUZ-KA09NA2 lives up to the name of Mitsubishi, one of the top mini-split brands on the market today.


  • Ideal for up to a small room (depending on climate)
  • 9,000 BTU, 22.4 SEER single-zone mini-split
  • Ceiling recessed to free up wall space in your room
  • Cassette grille included in the cost of this unit
  • Energy Star certified
9,000 BTU, 22.4 SEER

With an output of 9,000 BTU, the SLZ-KF09NA / SUZ-KA09NA2 system is designed to be able to cover up to a small room in ideal climates. At 22.4 SEER, Mitsubishi designed the unit to provide efficient heating and cooling to your home at a moment’s notice. Please note that the image shows an I-SEE sensor in the cassette grille, available at an additional cost. Without this upgrade, the grille will not include the enhanced functionality of more precisely redirecting the airflow of the unit.


Mitsubishi provides a 5 year parts and 7 year compressor warranty from the factory. When the unit is installed following your state and local codes and is registered online through the manufacturer, the warranty is upgraded to a 10 year parts and compressor warranty.

Enhanced Comfort

With its Inverter technology and constant temperature reading system, the SLZ-KF09NA / SUZ-KA09NA2 is designed to automatically ramp up and down depending on the room’s temperature requirements on a constant basis, keeping you as comfortable as possible in your home.

Intelligent Control

The Mitsubishi SLZ-KF09NA / SUZ-KA09NA2 is designed with intelligent controls that make small adjustments to keep the room’s temperature stable and bringing more comfort to your home. With an optional WiFi accessory, such as the Mitsubishi Kumo Cloud Adapter found here, this unit can be controlled from anywhere that you have Internet access—from across town at work to across the world on vacation—bringing ease of control to Mitsubishi’s superior comfort.

Durability and Reliability

Mitsubishi designed the SLZ-KF09NA / SUZ-KA09NA2 system setup to be durable to withstand standard weathering and lower general wear-and-tear. Mitsubishi also designed the unit to function at a low, -4°F temperature to give you peace of mind with the unit’s reliable warming during the colder months of the year.

More Information
9,000 BTU 22.4 SEER Ceiling Cassette Mitsubishi Mini-Split Single Zone Heat Pump - SZ-KF09NA
Weight (in lbs) 109.000000
AHRI Certificate Number 202392021
Manufacturer Mitsubishi
Controller Not Included
Additional Information Heat Pump
Additional Information Maximum Line Set Length: 65'
Additional Information Drain: 1-1/4"
HSPF 12.2
Cooling BTU 9,000 BTU
Heating BTU 9,100 BTU
Maximum CFM 207-335 CFM
Decibel Level (dBA) Indoor Unit: 25-31 | Outdoor Unit: 48-50
Energy Star Yes
Refrigerant R410A
Refrigerant Charge Pre-Charged For: 25'
Capacity Dehumidification Rate: 0.13 gal/hr
EER 13.4
Condenser Stages Variable Speed
Compressor Type Rotary
Liquid Line 1/4"
Suction Line 3/8"
Electrical 208/230V 1 Phase 60 Hz
Phase Single Phase
Max Breaker Size 15
Min. Breaker Size 9
Amperage Requirement 15
Tonnage 0.75 Ton
Mini-Split Type Ceiling Cassette
Min/Max Outdoor Temp for Heating -4°F - 75°F
Min/Max Outdoor Temp for Cooling 14°F - 115°F
Zone Compatibility Single Zone
Operating Mode Cooling, Heating
Height Indoor Unit: 9-21/32" | Grille: 13/16" | Outdoor Unit: 21-5/8"
Width Indoor Unit: 22-7/16" | Grille: 25-5/8" | Outdoor Unit: 31-1/2"
Depth Indoor Unit: 22-7/16" | Grille: 25-5/8" | Outdoor Unit: 11-1/4"
Additional Info Indoor Unit Weight: 31 lbs | Outdoor Unit Weight: 81 lbs
Warranty 10 Years with Online Registration
