9,000 BTU 20.2 SEER Ceiling Cassette Mitsubishi Mini Split Single Zone H2i Hyper Heat Heat Pump - SZ-KF09NAHZ

9,000 BTU 20.2 SEER Ceiling Cassette Mitsubishi Mini Split Single Zone H2i Hyper Heat Heat Pump - SZ-KF09NAHZ
By

Mitsubishi

Out of stock
Model

SLZ-KF09NA / SUZ-KA09NAHZ

ID

57402

People that viewed this product purchased this instead:

OVERVIEW

The Mitsubishi SLZ-KF09NA / SUZ-KA09NAHZ single-zone mini split system is designed to be a good fit for rooms that a wall mounted air handler is not an option. With its intelligent temperature adjustment technology and its Hyper Heat capacity, the SLZ-KF09NA / SUZ-KA09NAHZ lives up to the name of Mitsubishi, one of the most trusted brands on the market to bring the best possible comfort to your home.

QUICK FACTS

  • Ideal for up to a small room (depending on climate)
  • 9,000 BTU, 20 SEER single-zone mini split
  • Ceiling recessed to free up wall space in your room
  • Energy Star certified
  • Hyper Heat technology built-in, enabling heating down to -14°F
  • Cassette grille included in the cost of this unit
9,000 BTU, 20 SEER

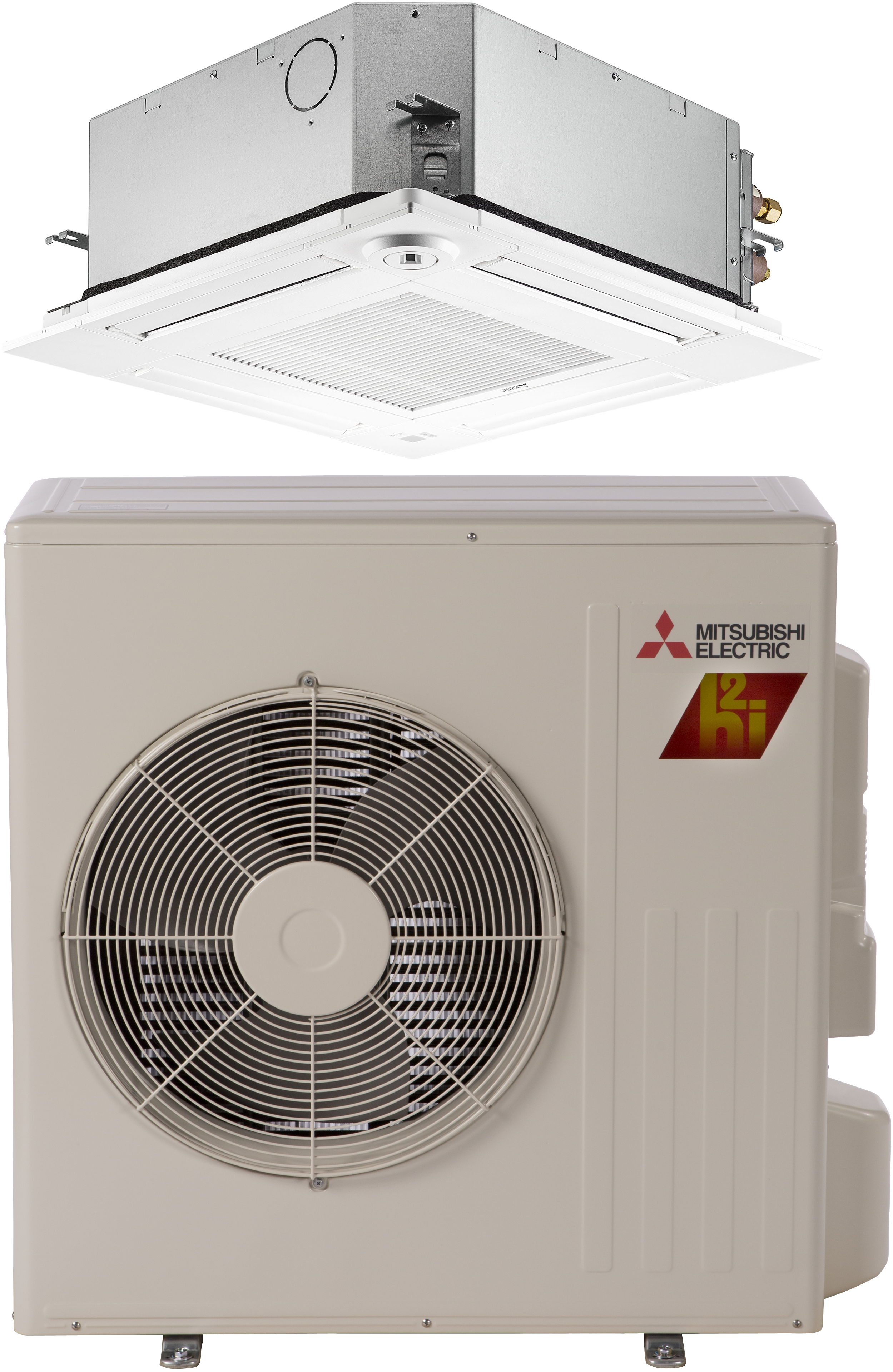

With an output of 9,000 BTU, the SLZ-KF09NA / SUZ-KA09NAHZ system is designed to be able to cover up to a small room in ideal climates. At 20 SEER, Mitsubishi designed the unit to provide efficient heating and cooling to your home at a moment’s notice. Please note that the image shows an I-SEE sensor in the cassette grille, available at an additional cost. Without this upgrade, the grille will not include the enhanced functionality of more precisely redirecting the airflow of the unit.

Warranty

Mitsubishi provides a 5 year parts and 7 year compressor warranty from the factory. When the unit is installed following your state and local codes and is registered online through the manufacturer, the warranty is upgraded to a 10 year parts and compressor warranty.

Enhanced Comfort

With its Inverter technology and constant temperature reading system, the SLZ-KF09NA / SUZ-KA09NAHZ is designed to automatically ramp up and down depending on the room’s temperature requirements on a constant basis, keeping you as comfortable as possible in your home.

Intelligent Control

The Mitsubishi SLZ-KF09NA / SUZ-KA09NAHZ is designed with intelligent controls that make small adjustments to keep the room’s temperature stable and bringing more comfort to your home. With an optional WiFi accessory, such as the Mitsubishi Kumo Cloud Adapter found here, this unit can be controlled from anywhere that you have Internet access—from across town at work to across the world on vacation—bringing ease of control to Mitsubishi’s superior comfort.

Durability and Reliability

Mitsubishi designed the SLZ-KF09NA / SUZ-KA09NAHZ system setup to be durable to withstand standard weathering and lower general wear-and-tear. With its Hyper Heat technology, Mitsubishi also designed the unit to heat down to -14°F temperature to give you peace of mind with the unit’s reliable warming during the coldest months of the year.

"
More Information
9,000 BTU 20.2 SEER Ceiling Cassette Mitsubishi Mini Split Single Zone H2i Hyper Heat Heat Pump - SZ-KF09NAHZ
SKUSLZ-KF09NA / SUZ-KA09NAHZ
Refrigerant ChargePre-Charged For: 25'
Weight (in lbs)160.000000
AHRI Certificate Number204627031
Brand/ManufacturerMitsubishi
ControllerNot Included
Product FeaturesLow Ambient Heating
Additional InformationHeat Pump
Additional InformationMaximum Line Set Length: 66'
Additional InformationDrain: 1-1/4"
HSPF10
Cooling BTU9,000 BTU
Heating BTU13,200 BTU
Maximum CFM207-300
Decibel Level (dBA)Indoor Unit: 25-31 | Outdoor Unit: 54-55
Energy StarYes
RefrigerantR410A
CapacityDehumidification Rate: 0.25 gal/hr
SEER1 (Efficiency)18-20
EER15
Condenser StagesVariable Speed
Compressor TypeRotary
Liquid Line1/4"
Suction Line3/8"
Electrical208/230V 1 Phase 60 Hz
PhaseSingle Phase
Max Breaker Size24
Min. Breaker Size14
Amperage Requirement25
BTU/Tonnage9,000 BTU/0.75 Ton
Mini Split TypeCeiling Cassette
Min/Max Outdoor Temp for Heating-14°-75°
Min/Max Outdoor Temp for Cooling14°-115°
Zone CompatibilitySingle Zone
Operating ModeCooling, Heating
HeightIndoor Unit: 9-21/32" | Grille: 13/16" | Outdoor Unit: 34-5/8
WidthIndoor Unit: 22-7/16" | Grille: 25-5/8" | Outdoor Unit: 38-9/16
DepthIndoor Unit: 22-7/16" | Grille: 25-5/8" | Outdoor Unit: 13"
Additional InfoIndoor Unit Weight: 31 lbs | Outdoor Unit Weight: 129 lbs
Warranty10 Years with Online Registration
